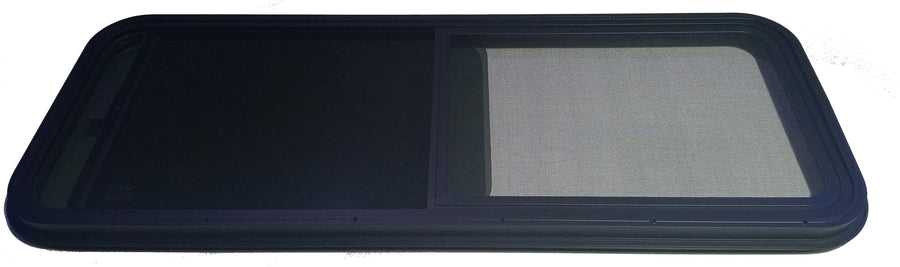

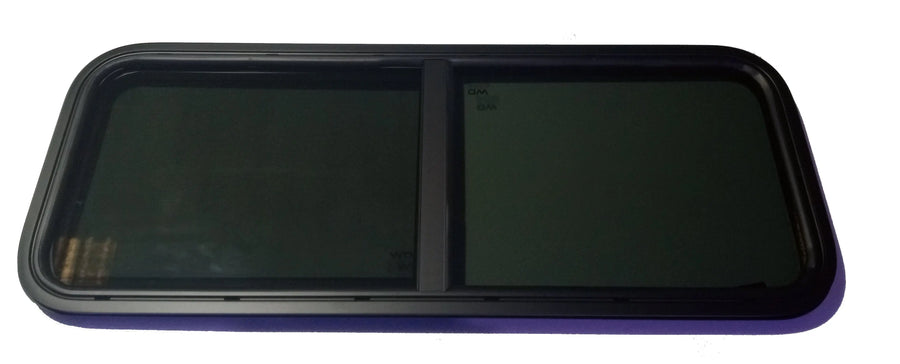

VWD Universal Fit Overlander Van Bunk Window O.D 41-5/16" X 16-5/16" (OVR4015)
Experience ultimate comfort and ventilation in your camper van's bunk area with the VWD Universal Fit Overlander Van Bunk Window O.D 41-5/16" X 16-5/16" (OVR4015). Specially designed for all types of vans and beloved by camper van enthusiasts, this flat half-sliding window is the perfect addition to enhance your travel experience.
Features
- UnIversal fit half-slider bunk window with solar privacy glass

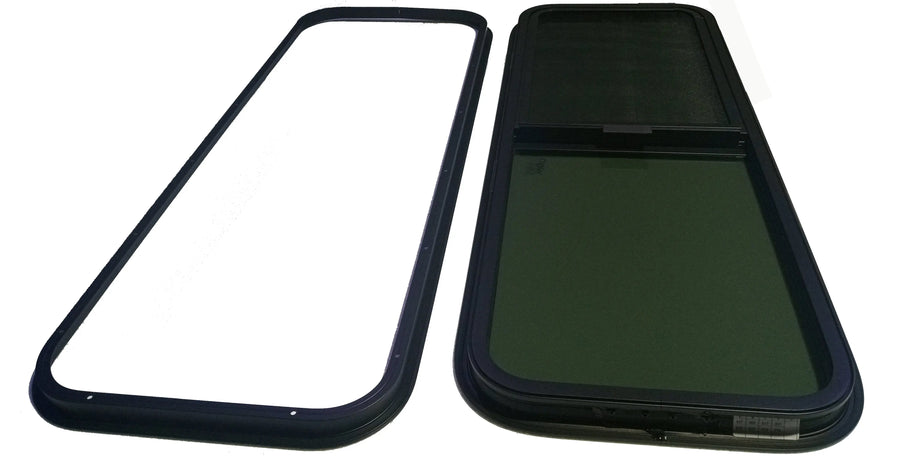

- Clamp ring installs on 1/8" walls. Doubles as a trim ring.
- UV Rating = 17%

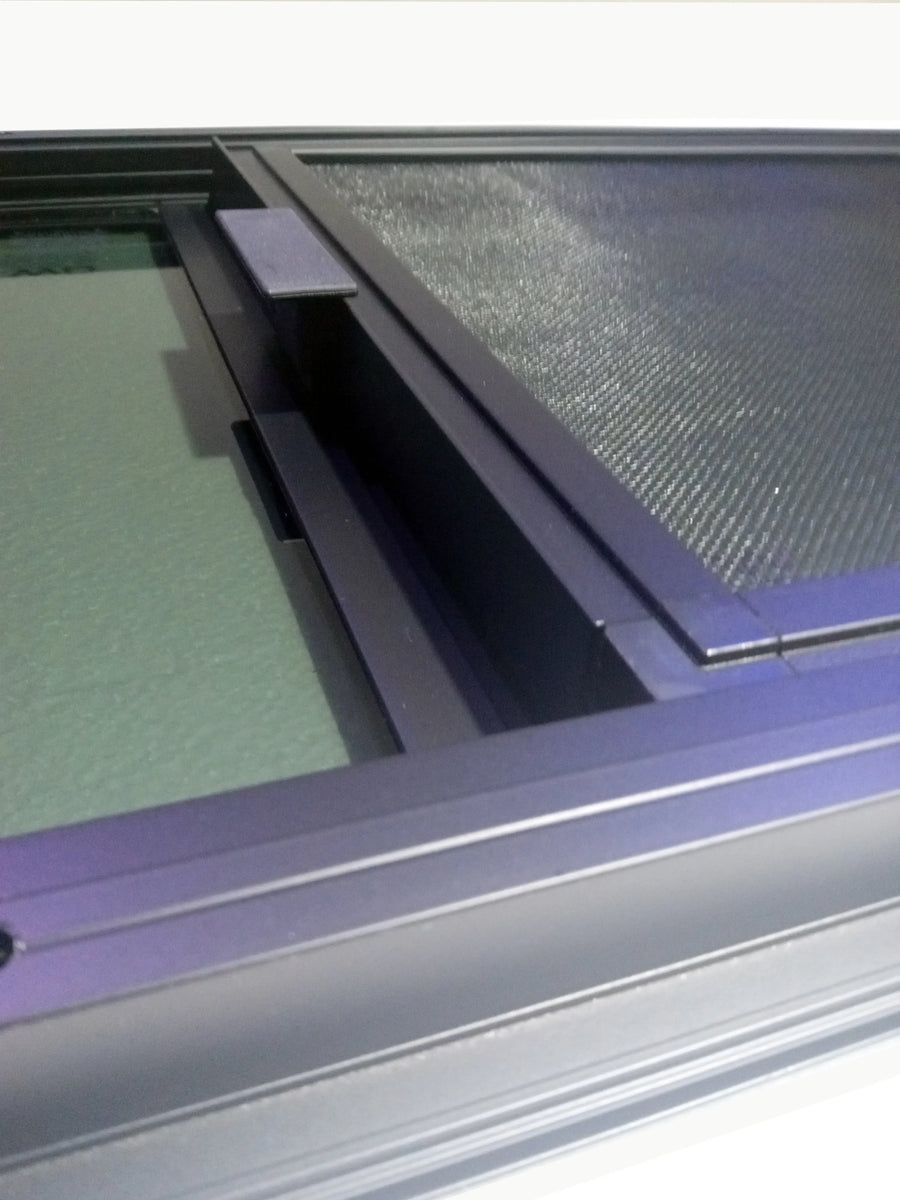

- Fixed bug screen
- Black aluminum frame
- Drainage system on top and bottom of window. Plugs included for top drains once configuration is decided.
- Easily installs on either side of the vehicle
Note: This window will only install on flat walls or low curve radius vehicles such as the 2007+ Mercedes Sprinter, 2014+ Ram ProMaster, and 2015+ Ford Transits. This will not work with older Chevy and Ford models with deeper curve side window panels.
What’s needed to install a clamp-in window?
- Bunk window
- Gasket (included with window)
- Clamp ring (included with window)
- Screws (included with window)
- Bunk window template
- Drill & metal drill bits(1/8” max)
- Philips screw driver (hand-tighten all screws)
- Step bit (3/8”-1/2” at least)
- Jigsaw with fine metal blade
- Foam or bristle paint brush
- Auto paint/primer
- Plastic/paper drop-cloths
- Blue painter’s tape
- Safety:
- Gloves
- Eye protection
- Hearing protection
- Face mask
- Long-sleeved shirt
Specifications
| Manufacturer | Van Windows Direct |
| Van Type |
Universal Fit |
| MPN | OVR4015 |
| Dimensions (L x W x H) | 44 x 5 x 19 in |
| Billable Weight | 40 lbs |
| Installation Type | Clamp Ring |
|
OVERLANDER SERIES SPECS |
|
|
|
|
|
Part/SKU |
Exterior (WxH) |
Interior (WxH) |
Screen Opening (WxH) |
Clamp Ring Depth |
|
OVR3009 |
31-5/16" x 10-3/16" |
30" x 9" |
12-3/4" x 5-7/8" |
1/8" |
|
OVR3511 |
36-3/4" x 13-1/8" |
35-7/16" x 11-7/8 |
16" x 9-3/8"/8" |
1/8" |
|
OVR4015 |
41-5/16" X 16-5/16" |
40" X 15" |
17-13/16" x 11-7/8" |
1/8" |
