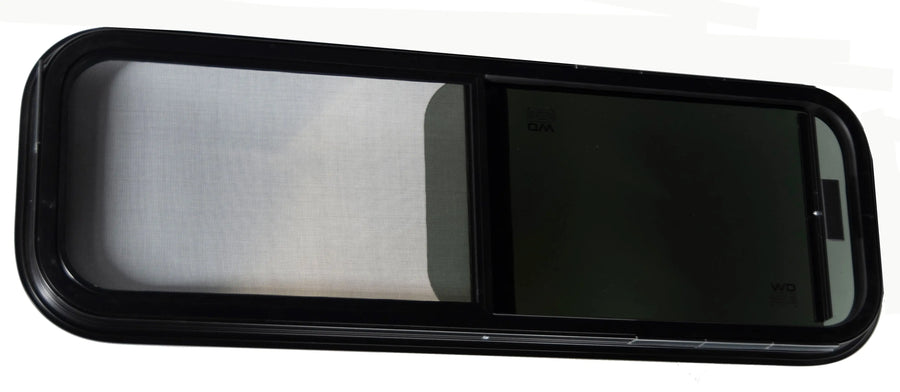

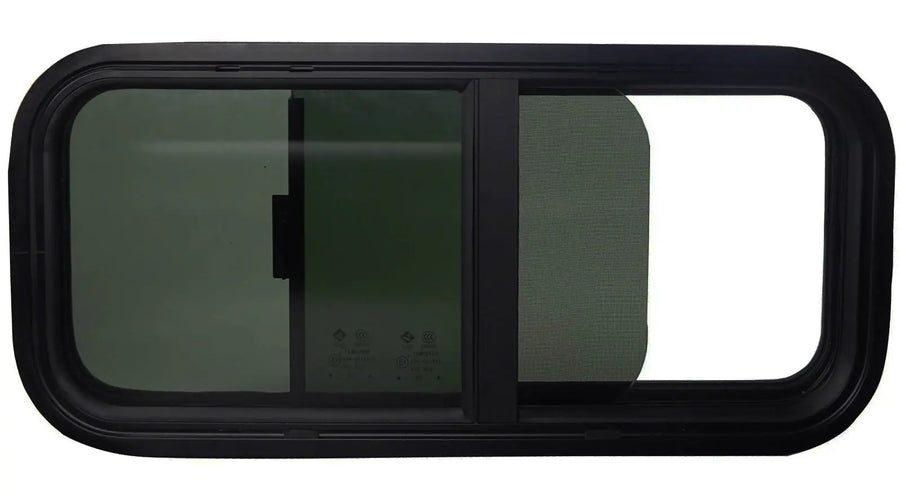

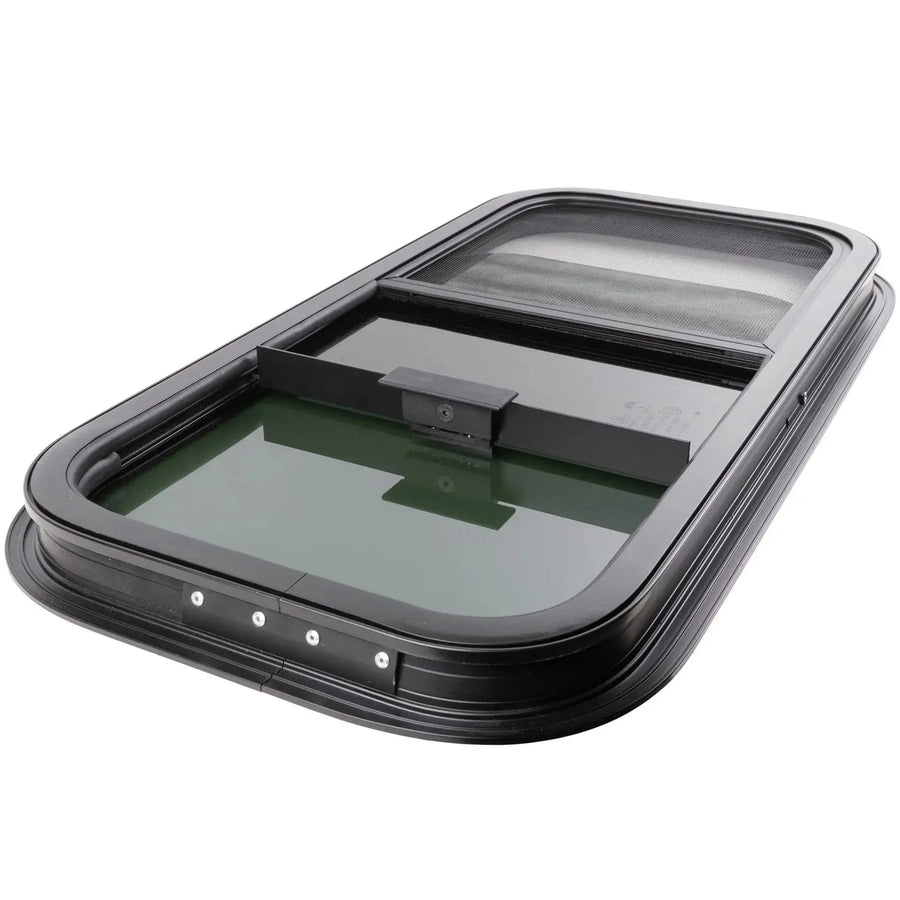

VWD Universal Fit Overlander Van Bunk Window O.D 36-3/4" x 13-1/8" (OVR3511)
Couldn't load pickup availability
Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more
Experience ultimate comfort and ventilation in your camper van's bunk area with the VWD Universal Fit Overlander Van Bunk Window O.D 36-3/4" x 13-1/8" (OVR3511). Specially designed for all types of vans and beloved by camper van enthusiasts, this flat half-sliding window is the perfect addition to enhance your travel experience.
Features
- UnIversal fit half-slider bunk window with solar privacy glass
- Clamp ring installs on 1/8" walls. Doubles as a trim ring.
- UV Rating = 17%
- Fixed bug screen
- Black aluminum frame
- Drainage system on top and bottom of window. Plugs included for top drains once configuration is decided.
- Easily installs on either side of the vehicle
Note: This window will only install on flat walls or low curve radius vehicles such as the 2007+ Mercedes Sprinter, 2014+ Ram ProMaster, and 2015+ Ford Transits. This will not work with older Chevy and Ford models with deeper curve side window panels.
What’s needed to install a clamp-in window?
- Bunk window
- Gasket (included with window)
- Clamp ring (included with window)
- Screws (included with window)
- Bunk window template
- Drill & metal drill bits(1/8” max)
- Philips screw driver (hand-tighten all screws)
- Step bit (3/8”-1/2” at least)
- Jigsaw with fine metal blade
- Foam or bristle paint brush
- Auto paint/primer
- Plastic/paper drop-cloths
- Blue painter’s tape
- Safety:
- Gloves
- Eye protection
- Hearing protection
- Face mask
- Long-sleeved shirt
Specifications
| Manufacturer | Van Windows Direct |
| Van Type |
Universal Fit |
| MPN | OVR3511 |
| Dimensions (L x W x H) | 40 x 5 x 15 in |
| Billable Weight | 25 lbs |
| Installation Type | Clamp Ring |
| OVERLANDER SERIES SPECS | ||||
| Part/SKU | Exterior (WxH) | Interior (WxH) | Screen Opening (WxH) | |
| OVR3009 | 31-5/16" x 10-3/16" | 30" x 9" | 12-3/4" x 5-7/8" | |
| OVR3310 | 35-5/16" X 11-3/16" | 33" X 10" | 14-15/16" X 7-9/16" | |
| OVR3511 | 36-3/4" x 13-1/8" | 35-7/16" x 11-7/8 | 16" x 9-3/8"/8" | |
