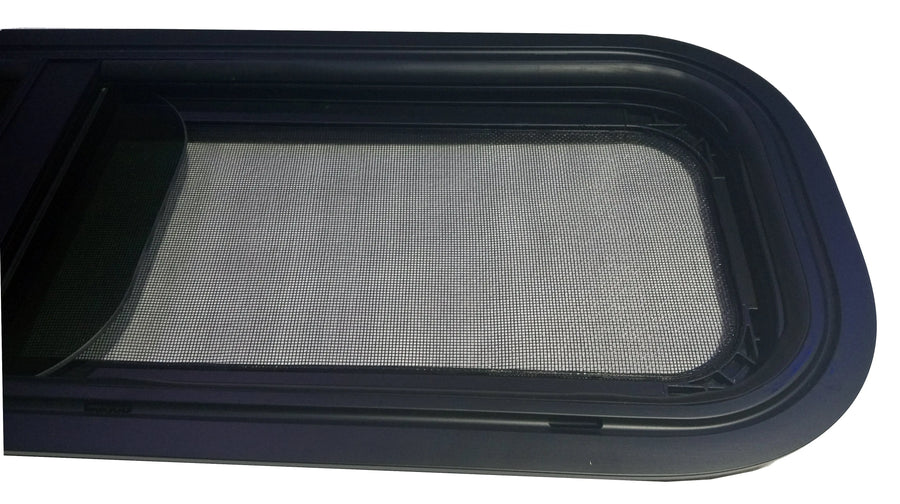

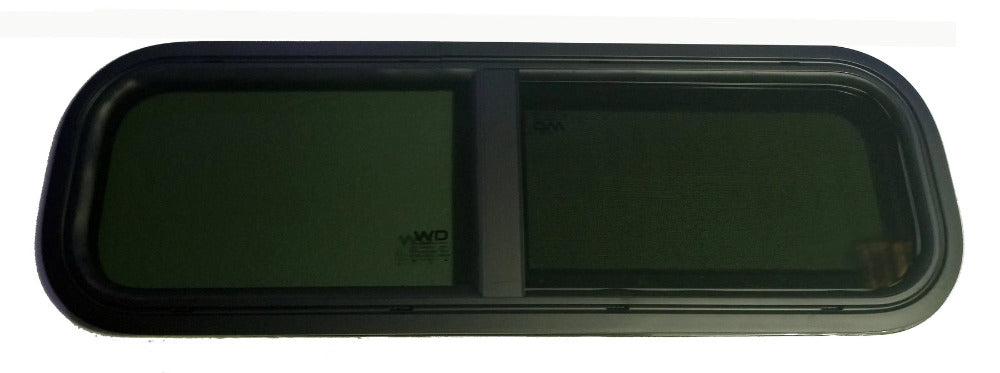

VWD Universal Fit Overlander Van Bunk Window O.D 35-5/16" X 11-3/16" (OVR3310)
Experience ultimate comfort and ventilation in your camper van's bunk area with the VWD Universal Fit Overlander Van Bunk Window O.D 35-5/16" X 11-3/16" (OVR3310). Specially designed for all types of vans and beloved by camper van enthusiasts, this flat half-sliding window is the perfect addition to enhance your travel experience.
Easy Installation and Enhanced Ventilation: Say goodbye to stuffy and cramped spaces! The VWD Overlander Bunk Window brings in a refreshing breeze to your van's rear cargo area, creating a comfortable and inviting atmosphere for your adventures. With its easy-to-install design, you can have this window up and running in no time, making it an excellent choice for both seasoned van lifers and newcomers to the camper van community.
Features
- Universal fit half-slider bunk window with solar privacy glass

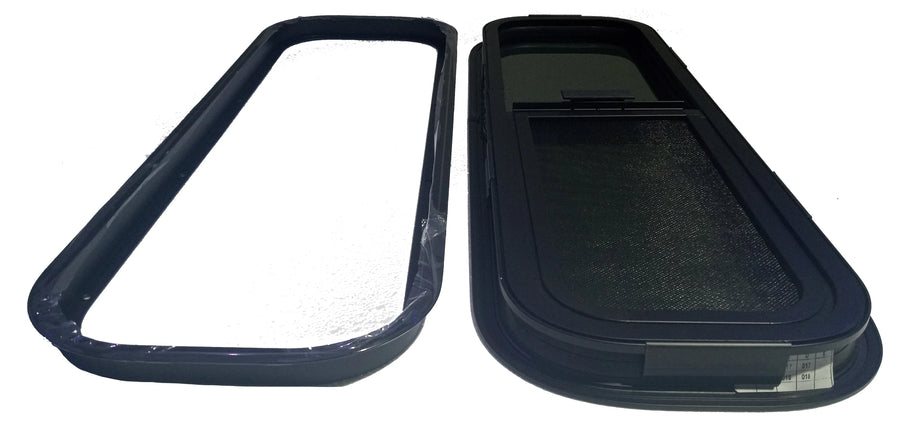

- Clamp ring installs on 1/8" walls. Doubles as a trim ring.
- Fixed bug screen
- Black aluminum frame
- UV Rating = 17%
- Drainage system on top and bottom of window. Plugs included for top drains once configuration is decided.
- Easily installs on either side of the vehicle
Note: This window will only install on flat walls or low curve radius vehicles such as the 2007+ Mercedes Sprinter, 2014+ Ram ProMaster, and 2015+ Ford Transits. This will not work with older Chevy and Ford models with deeper curve side window panels.
Specifications
| Manufacturer | Van Windows Direct |
| Van Type |
Universal Fit |
| MPN | OVR3310 |
| Dimensions (L x W x H) | 40 x 5 x 15 in |
| Billable Weight | 25 lbs |
| Installation Type | Clamp Ring |
| OVERLANDER SERIES SPECS | ||||
| Part/SKU | Exterior (WxH) | Interior (WxH) | Screen Opening (WxH) | Clamp Ring Depth |
| OVR3009 | 31-5/16" x 10-3/16" | 30" x 9" | 12-3/4" x 5-7/8" | 1/8" |
| OVR3310 | 35-5/16" X 11-3/16" | 33" X 10" | 14-15/16" X 7-9/16" | 1/8" |
| OVR3511 | 36-3/4" x 13-1/8" | 35-7/16" x 11-7/8 | 16" x 9-3/8"/8" | 1/8" |
| OVR4015 | 41-5/16" X 16-5/16" | 40" X 15" | 17-13/16" x 11-7/8" | 1/8" |
Document
Clamp Ring Universal Window Installation Instructions
