VanLab Mercedes Sprinter 144" Interior Kit

Vendor: VanLab

$9,995.00

Shipping calculated at checkout.

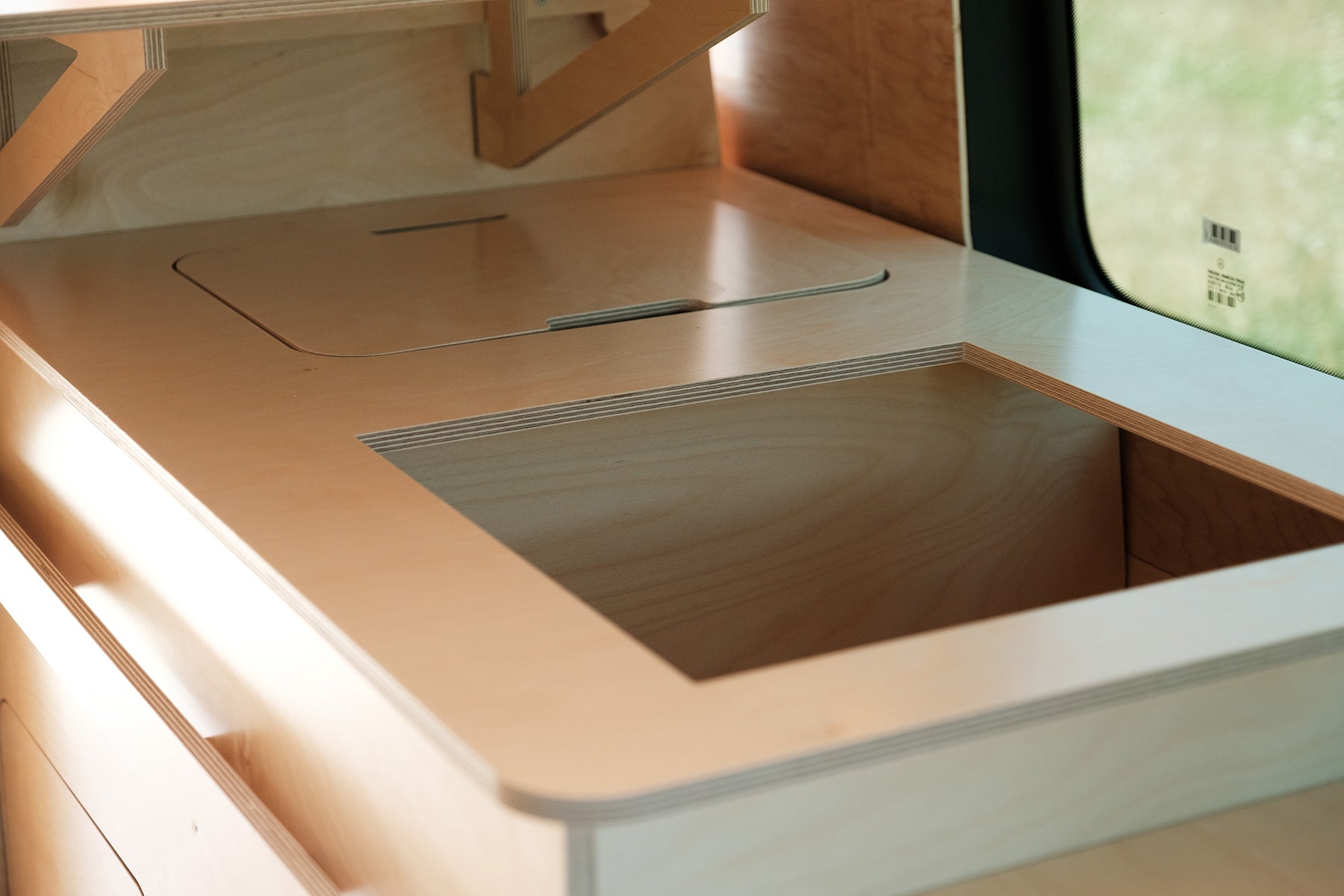

Kitchen and Worktop: Sink & Cooler/Fridge Cut Outs

Sink & Cooler/Fridge Cut Outs

Electrics and Integrated Wiring Loom: No Electrics

No Electrics Add Electrics

JOIN VAN LAND CLUB

Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more

1-2 week lead time before shipping.

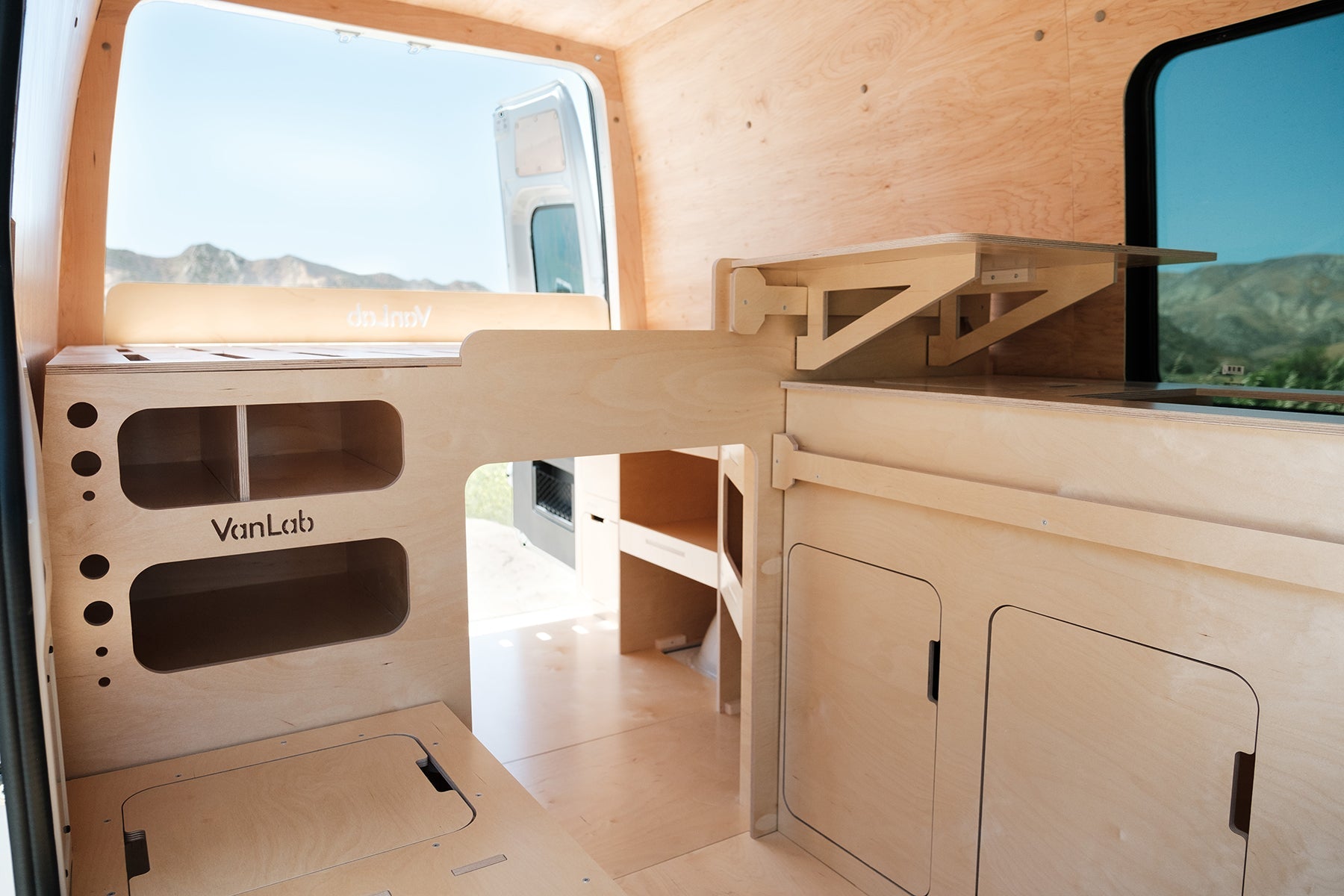

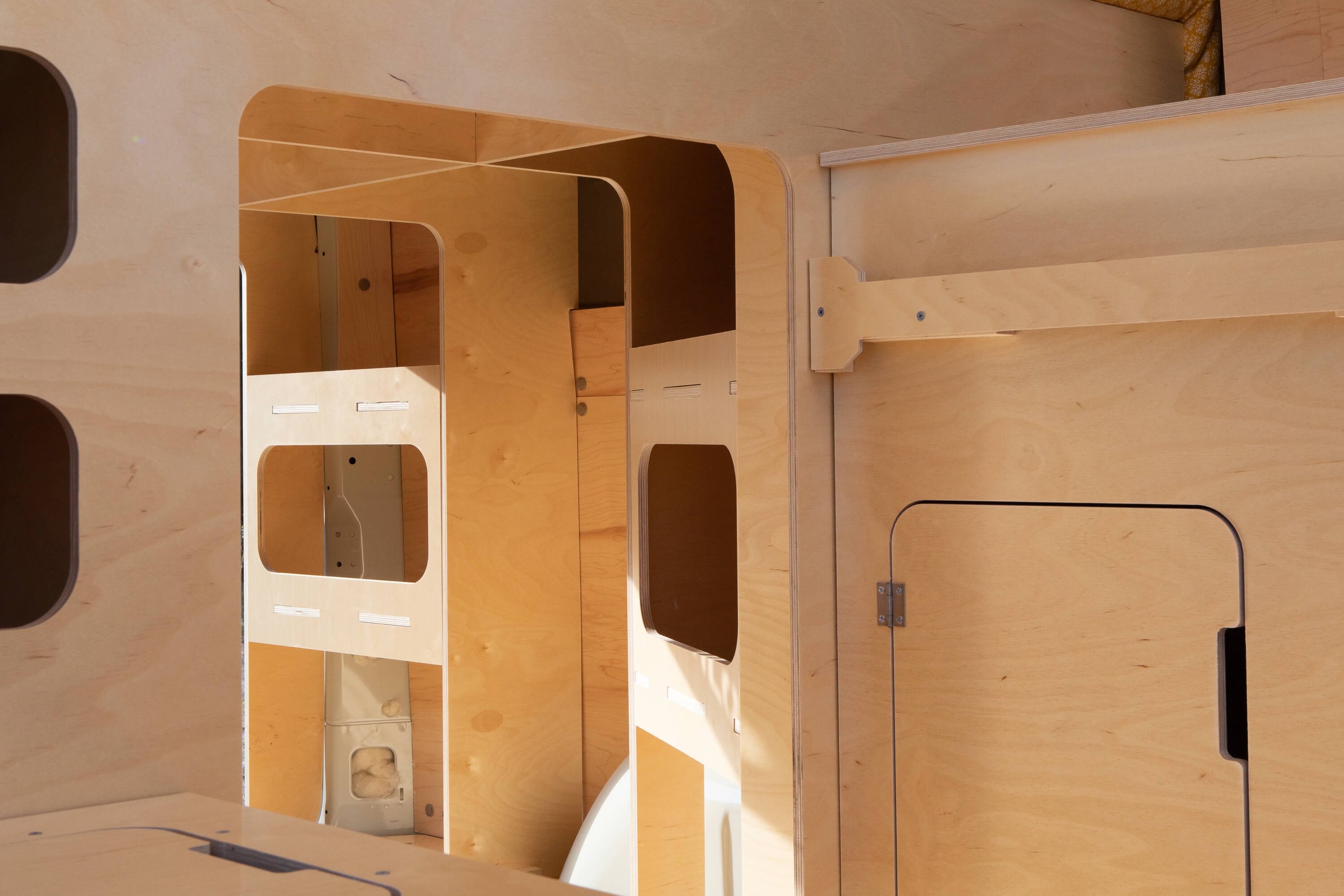

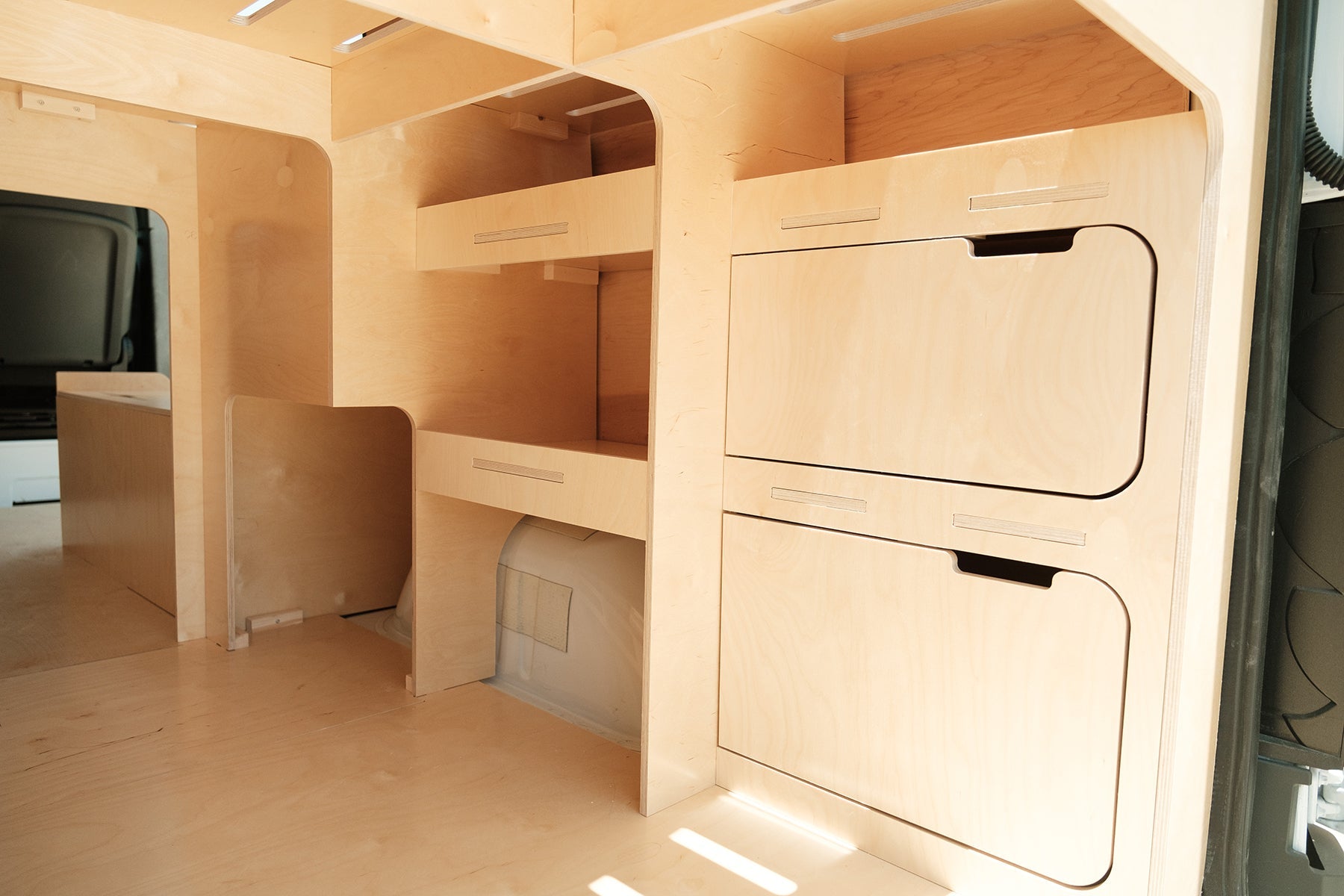

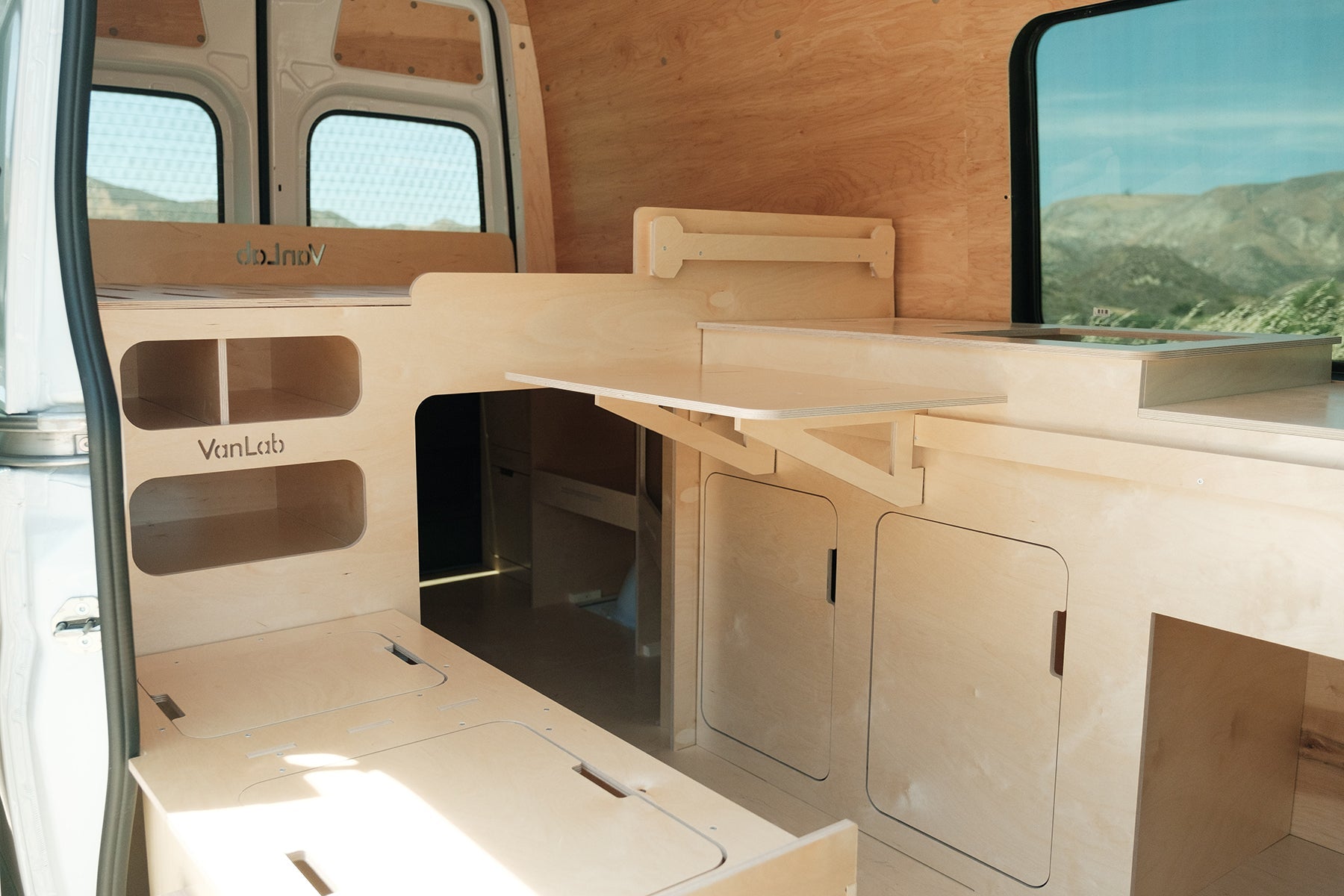

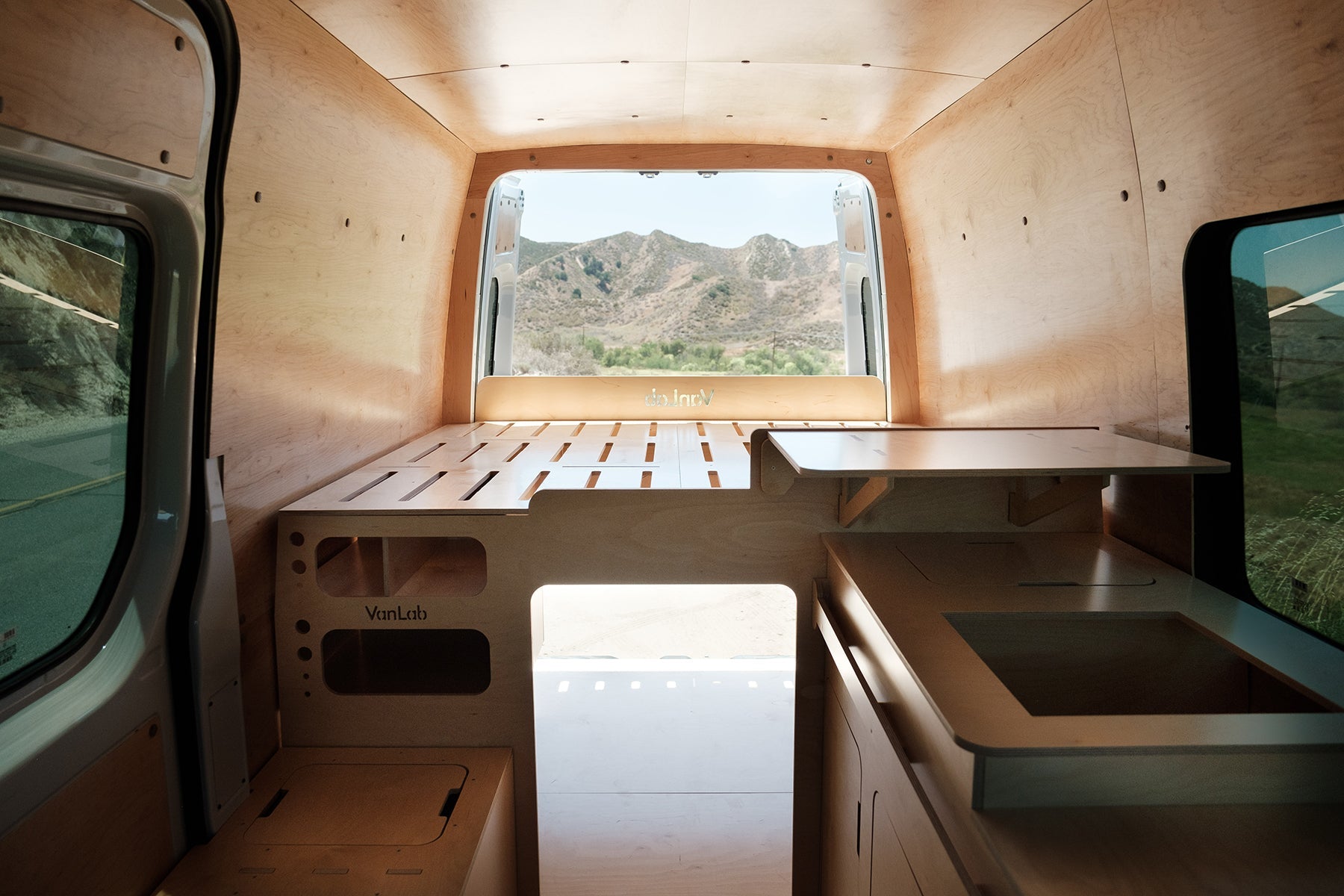

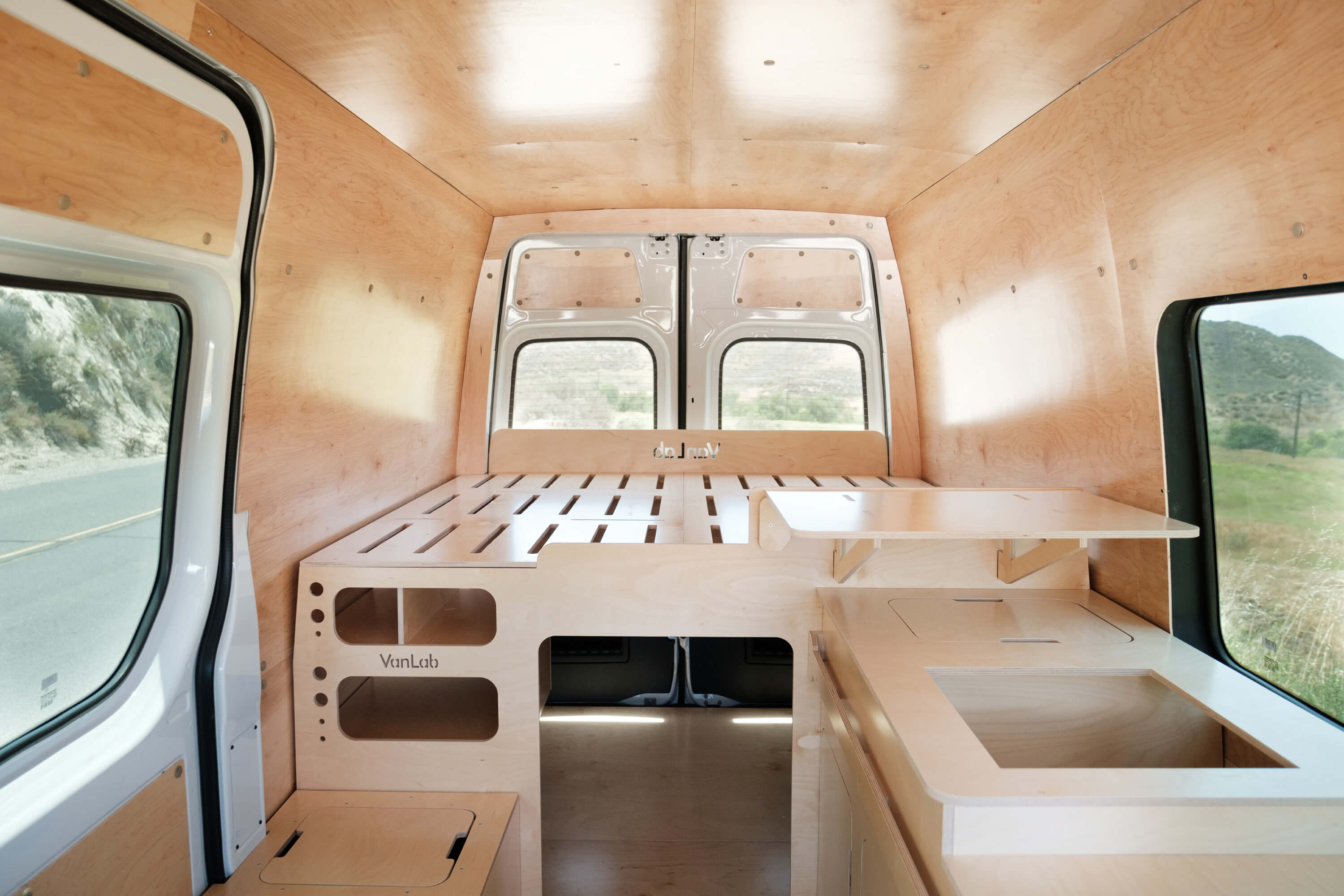

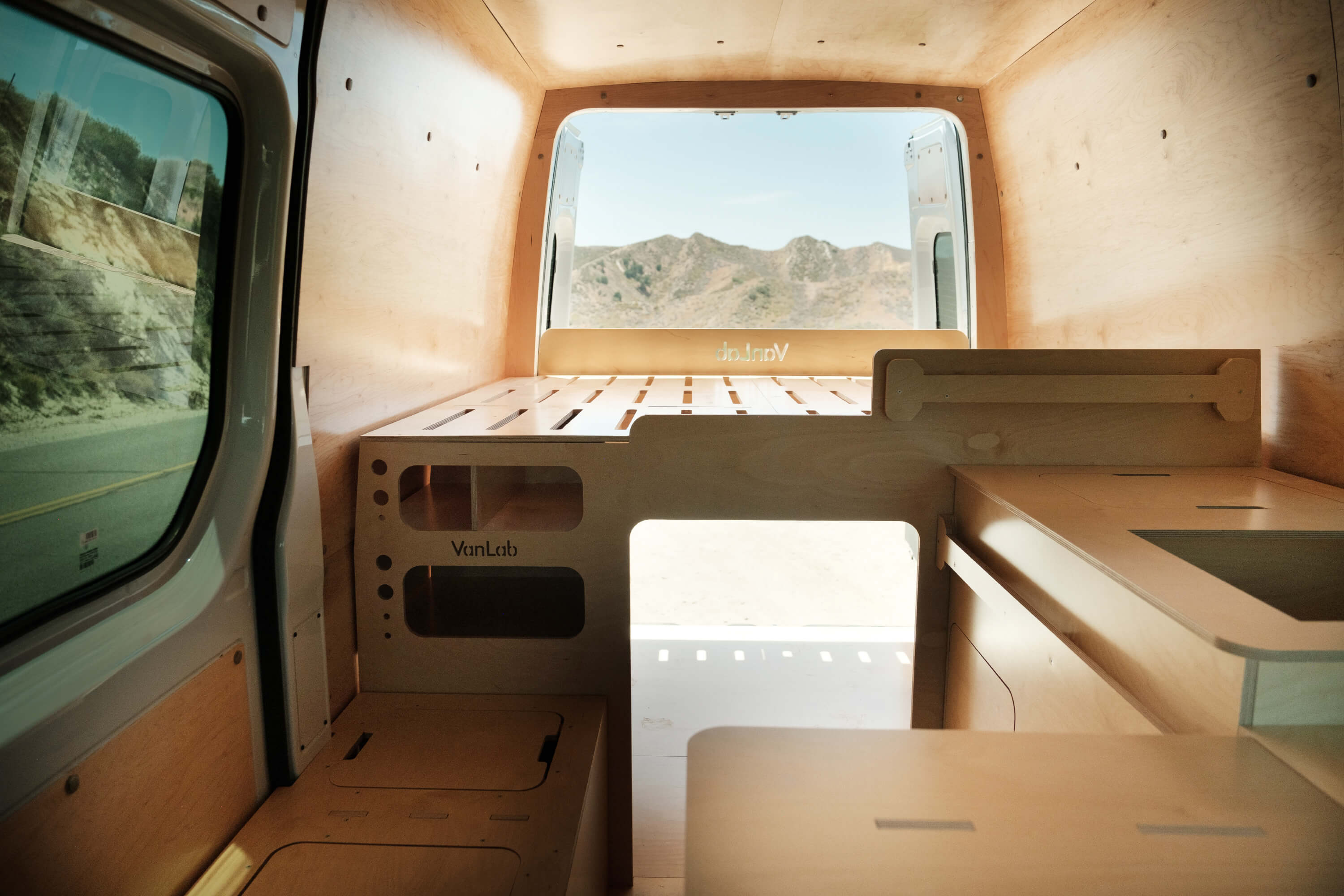

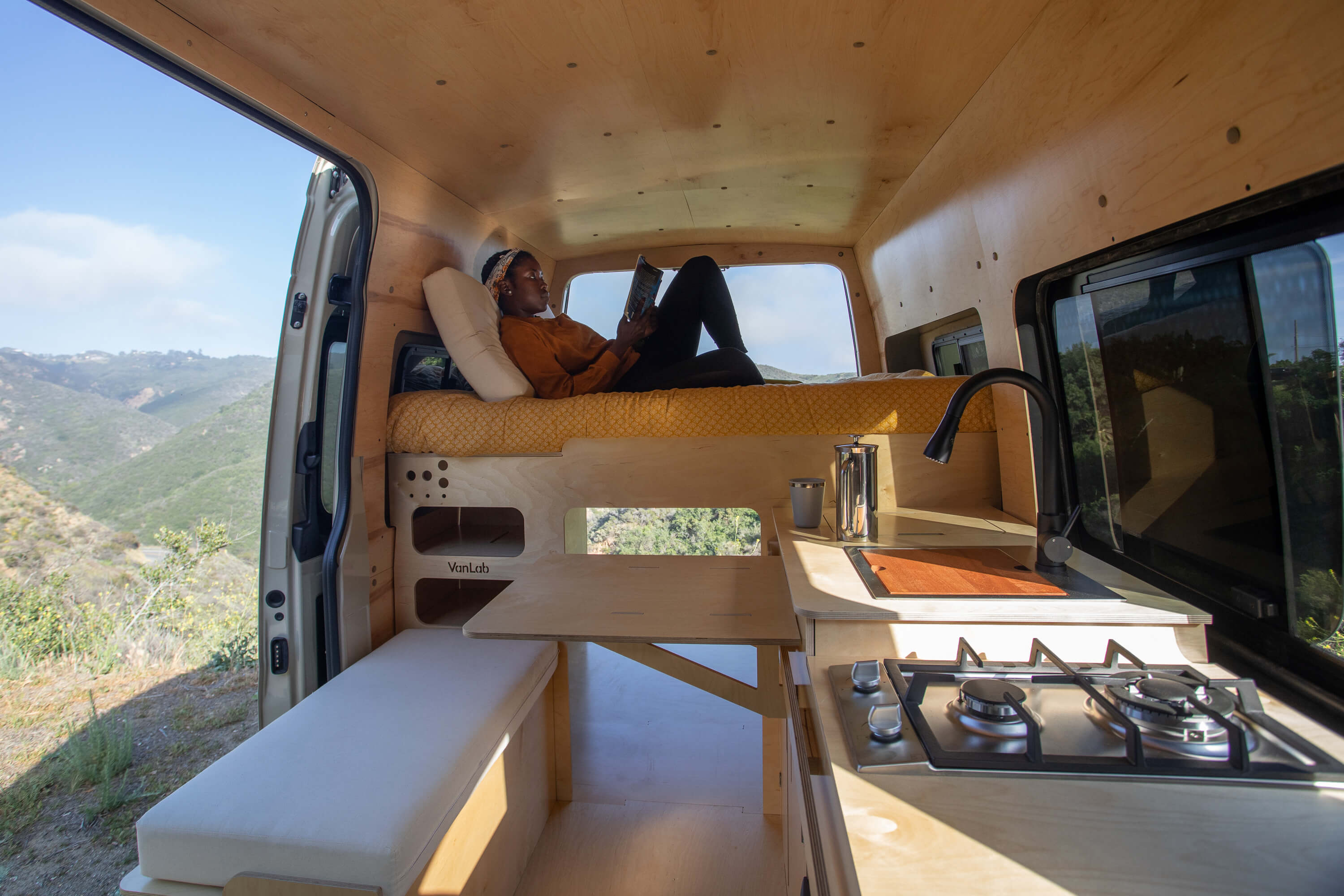

Introducing the VanLab Interior Kit - Sprinter 144"! For those of you who have built your own van cabinets and bed, you know what it feels like to spend hours grueling over measurements and decision making. VanLab has solved all the hard parts of this process! This interior kit comes with the main base units you need to get your build done faster! All options made with Baltic Birch.

What's Included?

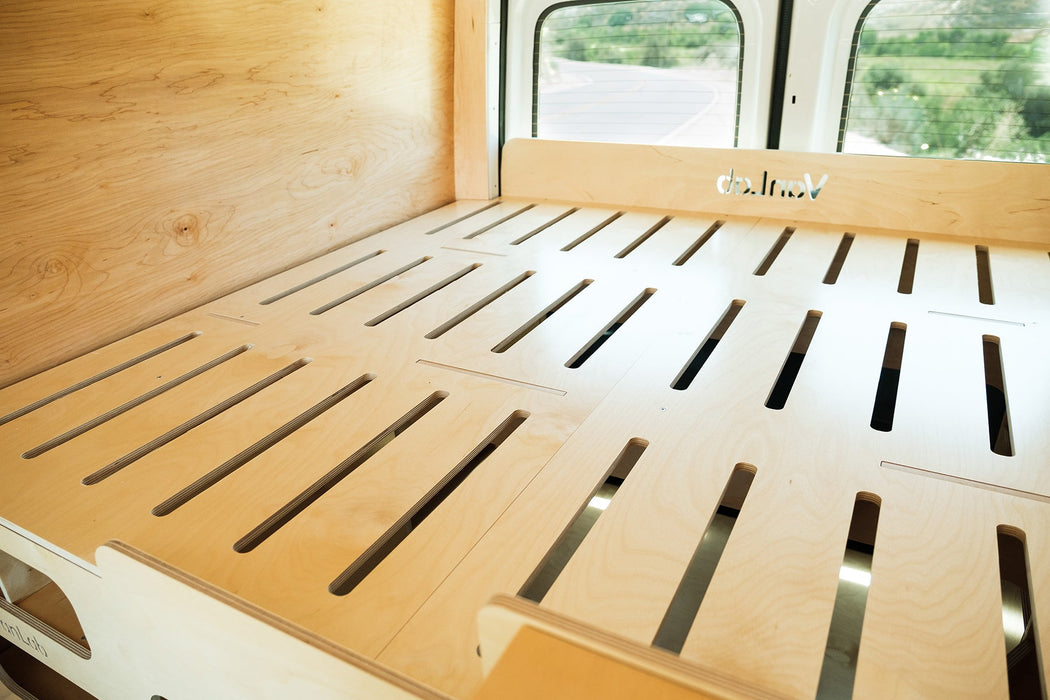

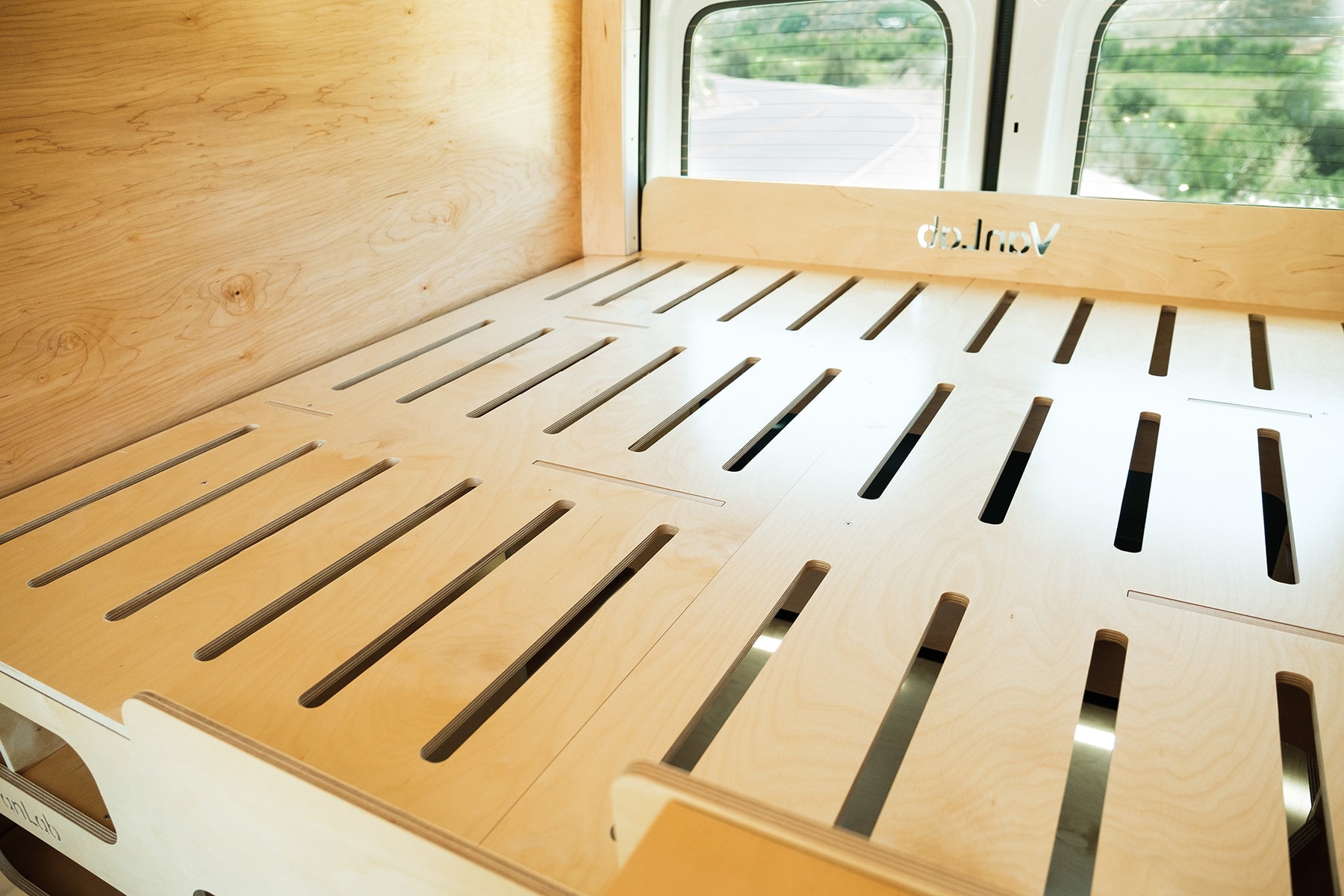

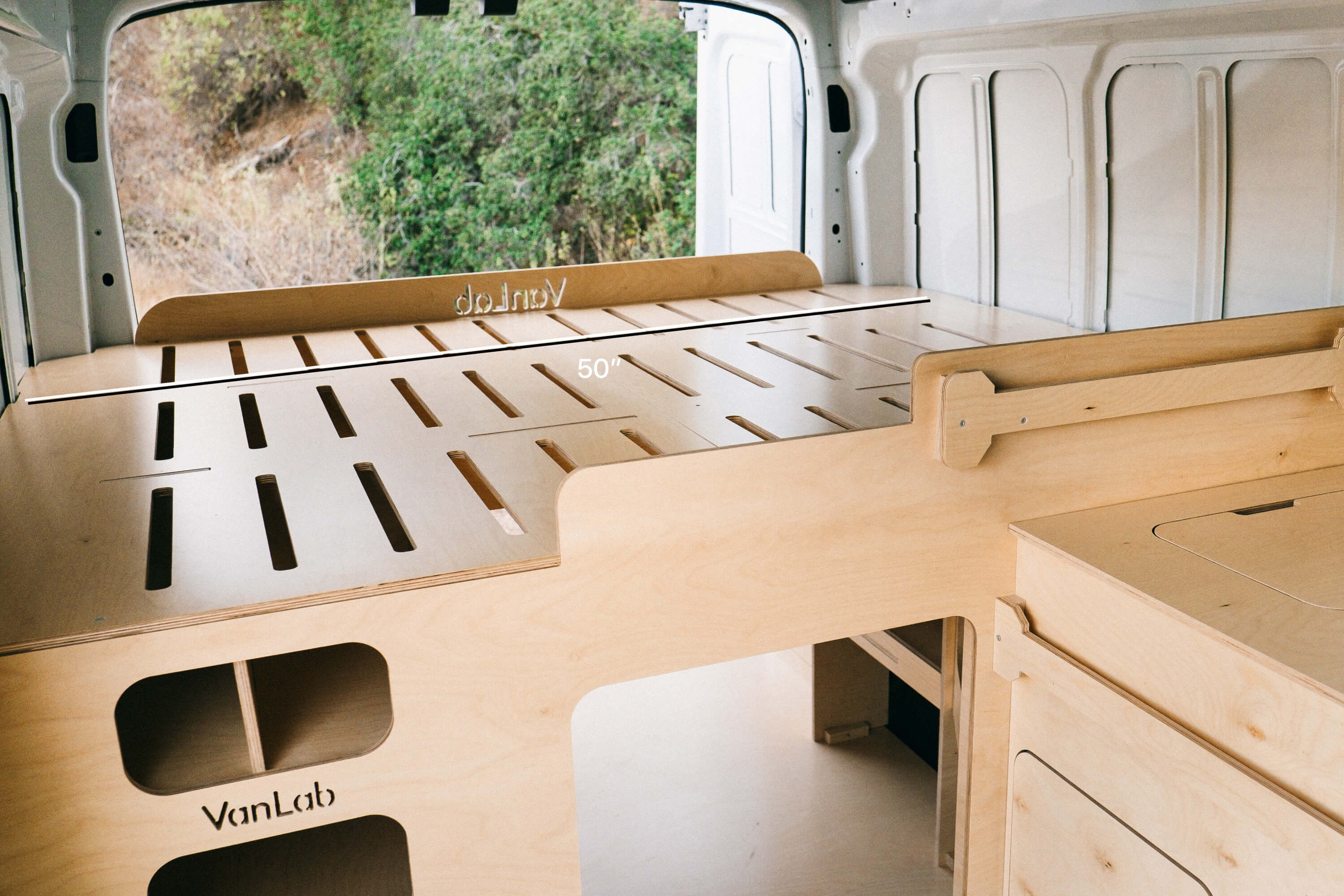

Bed Base Unit

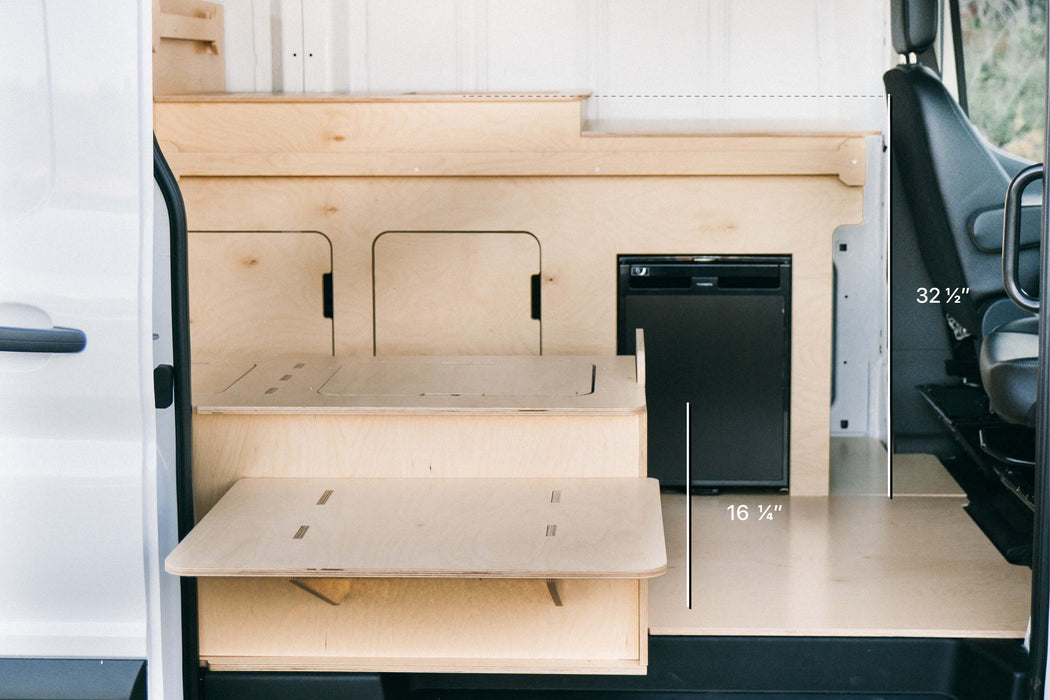

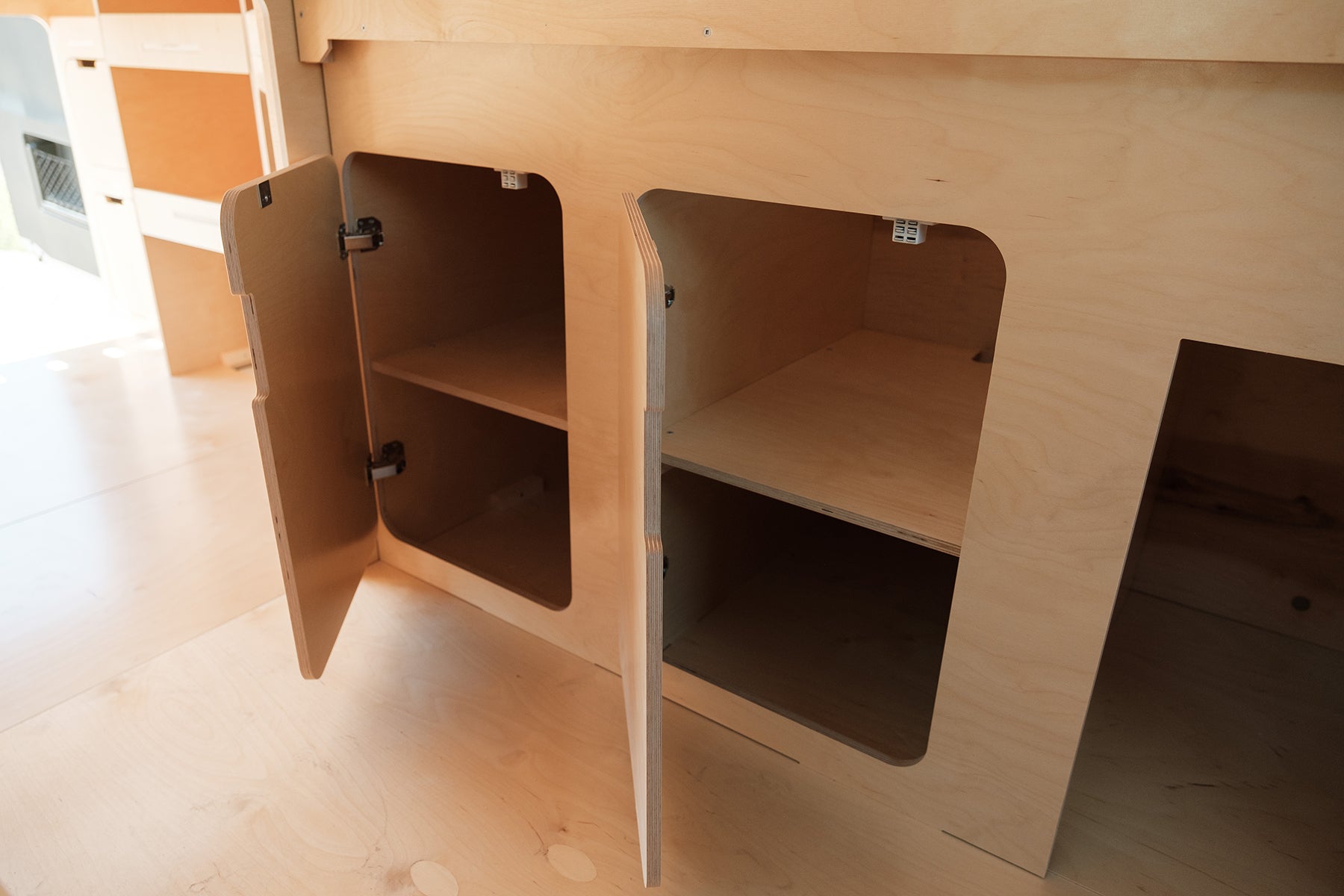

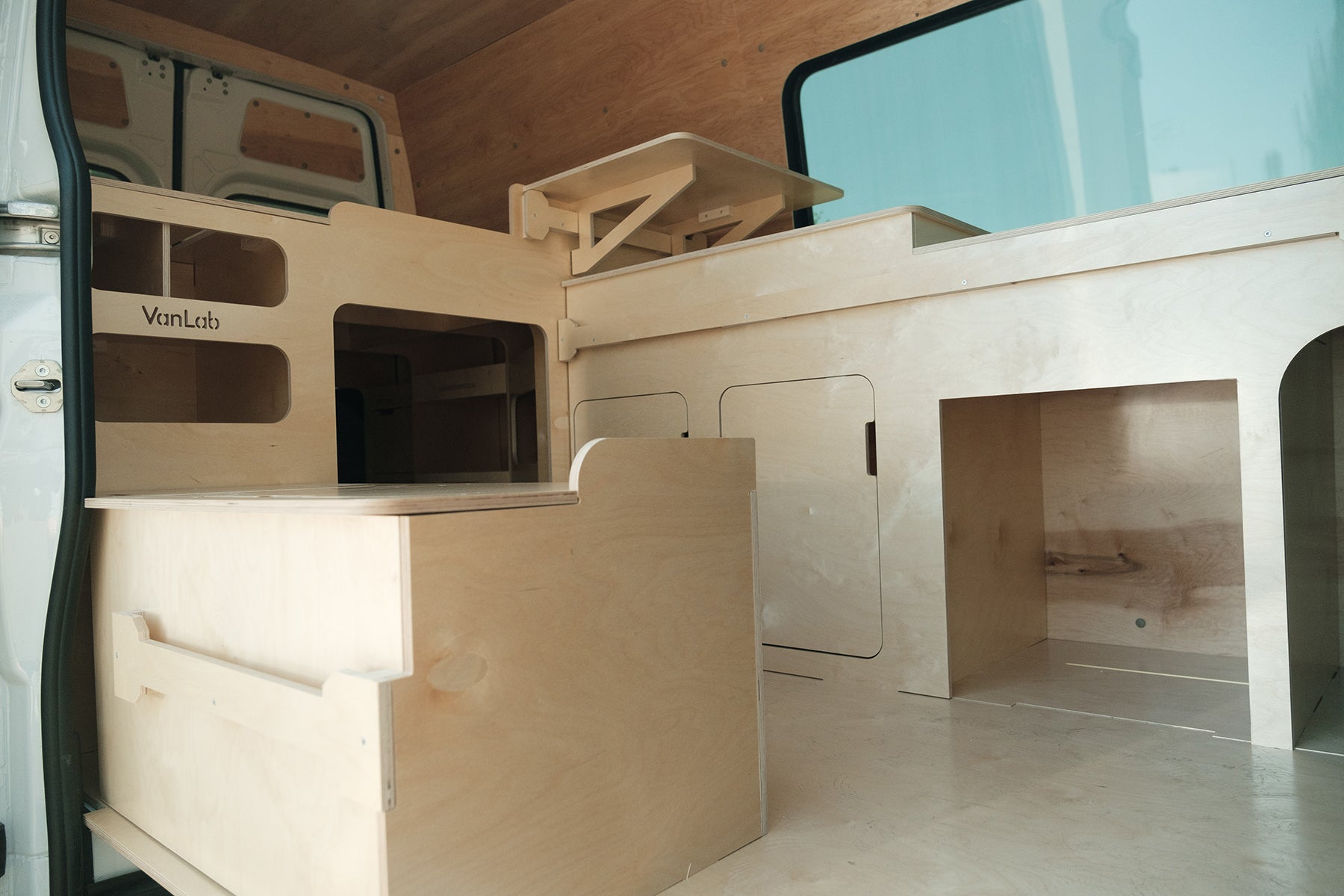

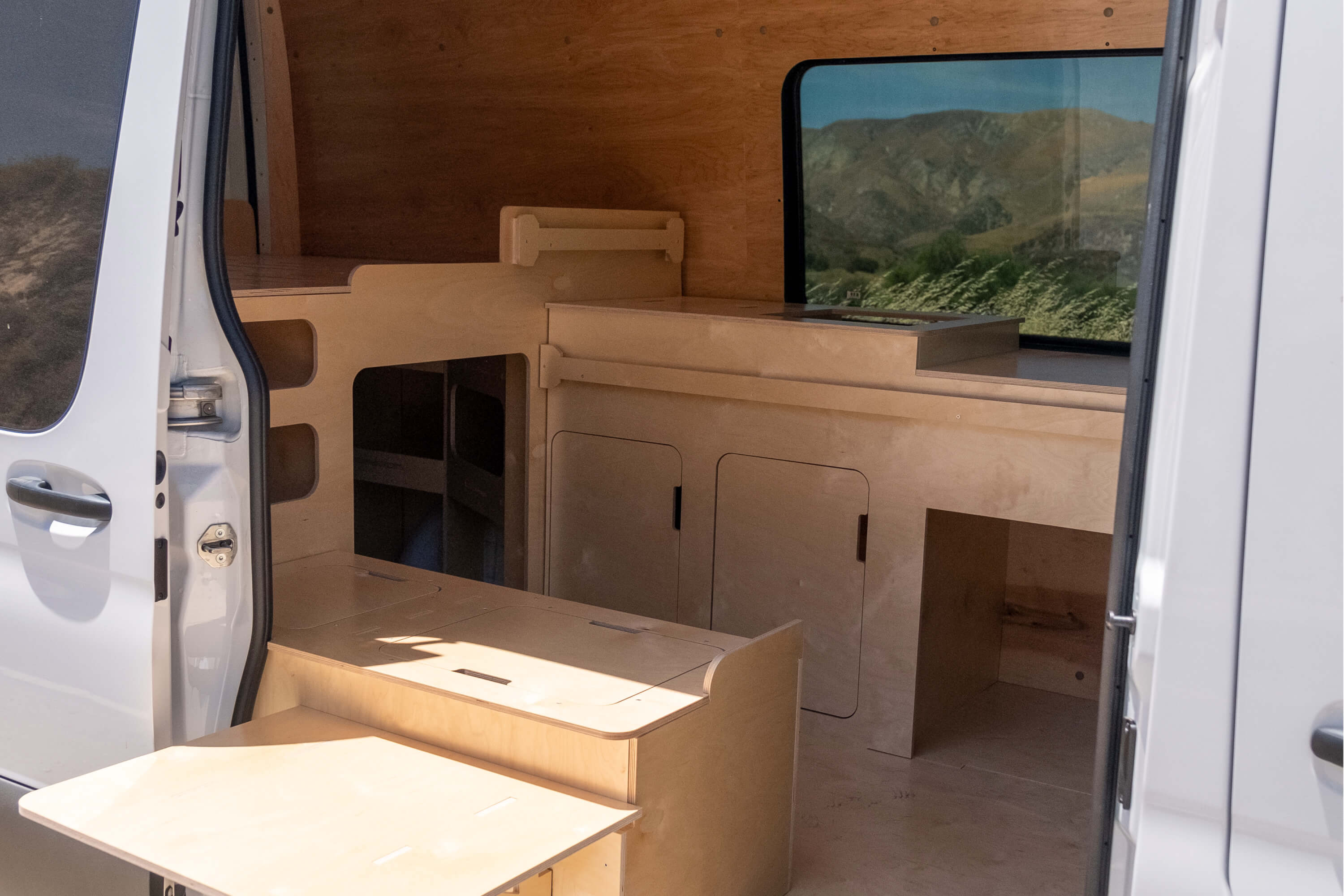

Kitchen Base Unit Cabinets

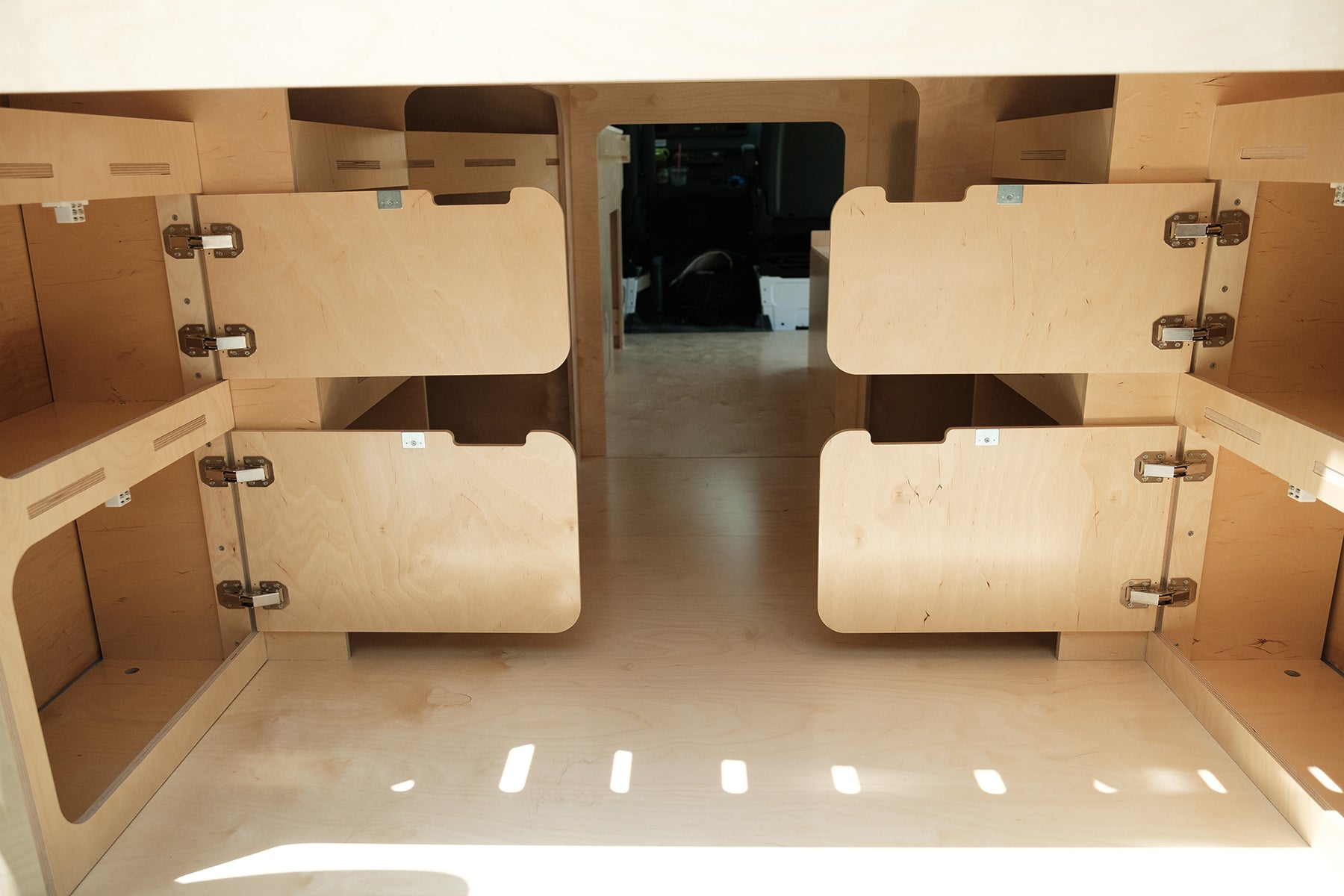

Water and Storage Cabinets

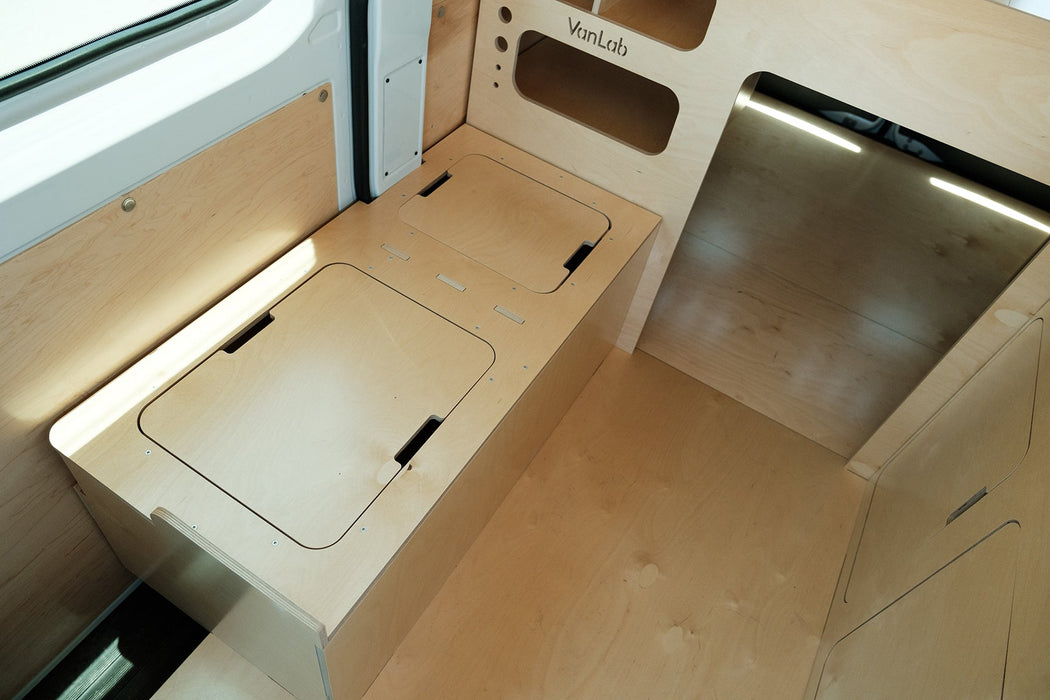

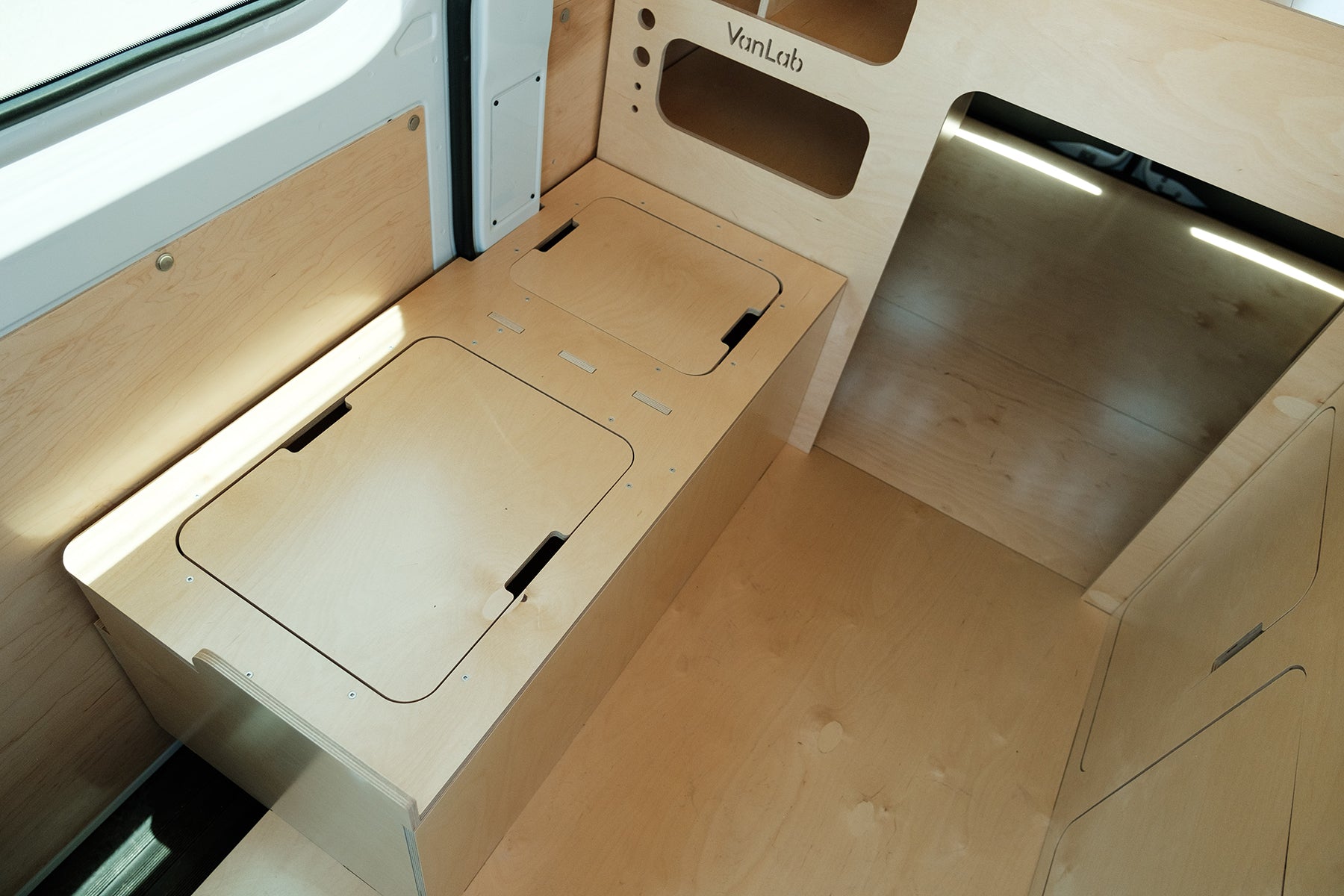

Living Area Storage Cabinets

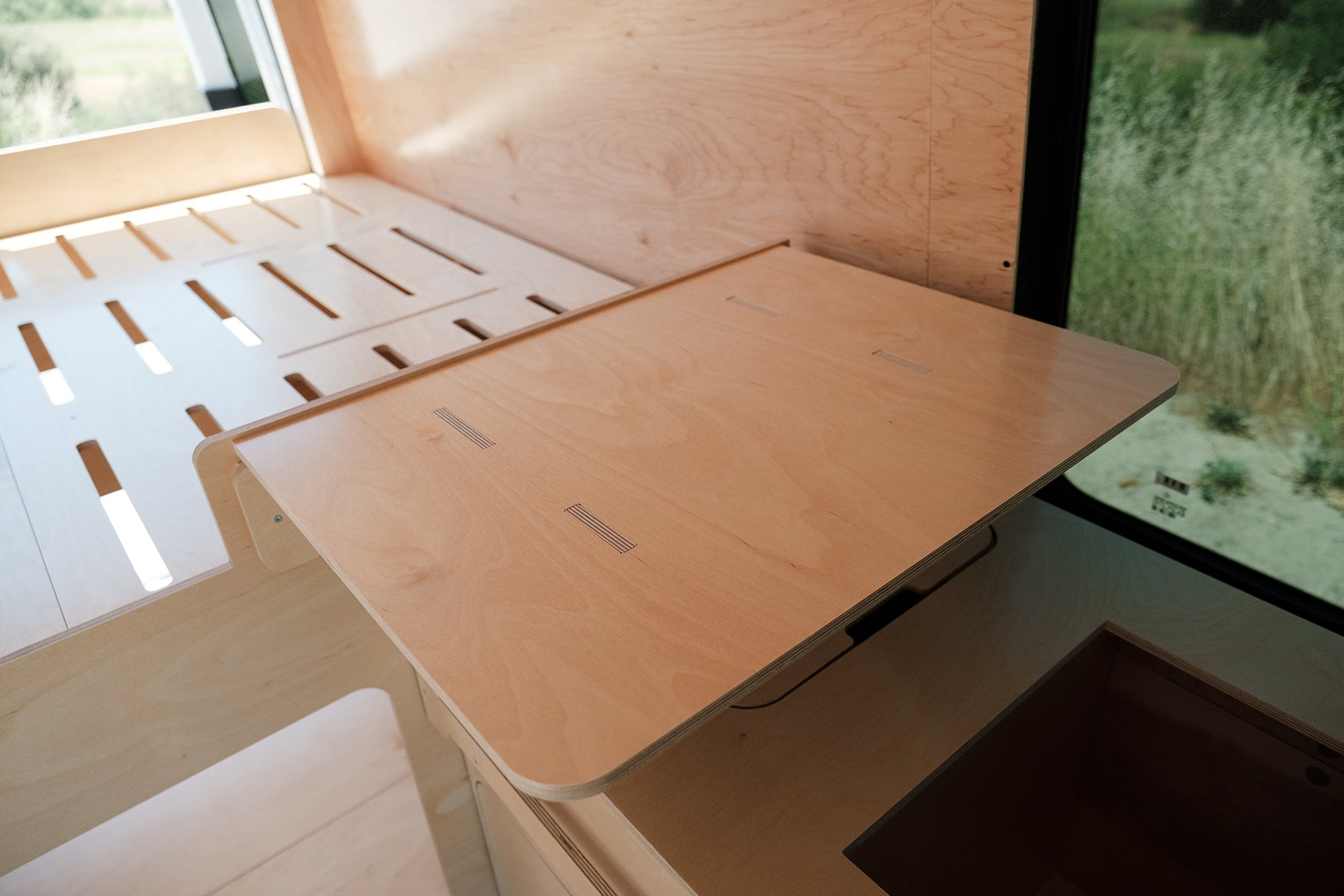

Worktop capabilities

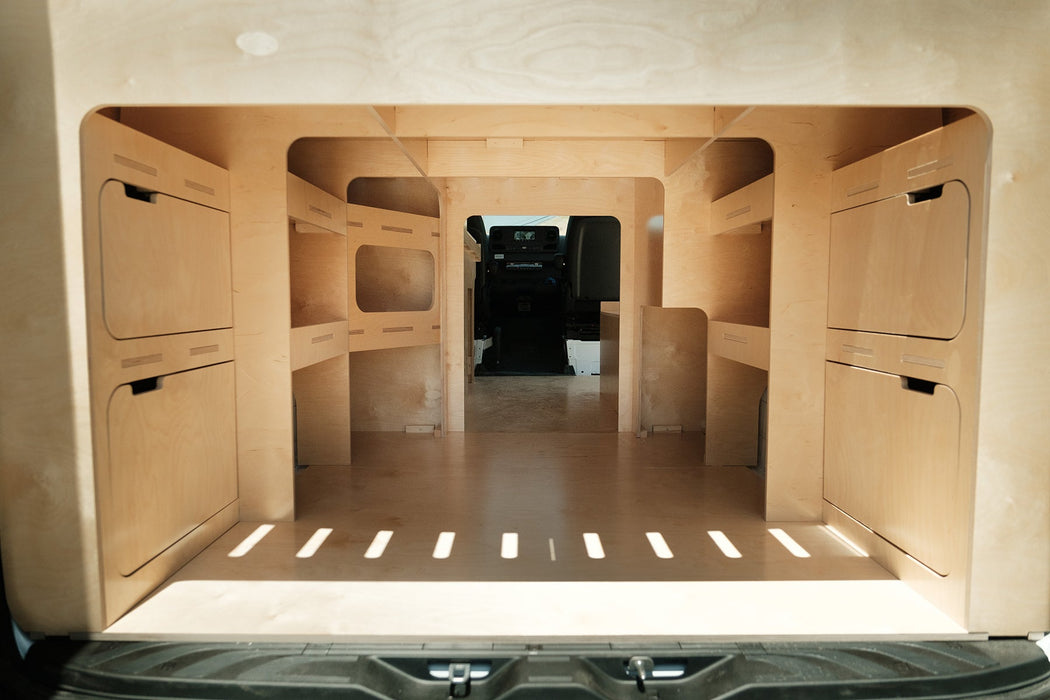

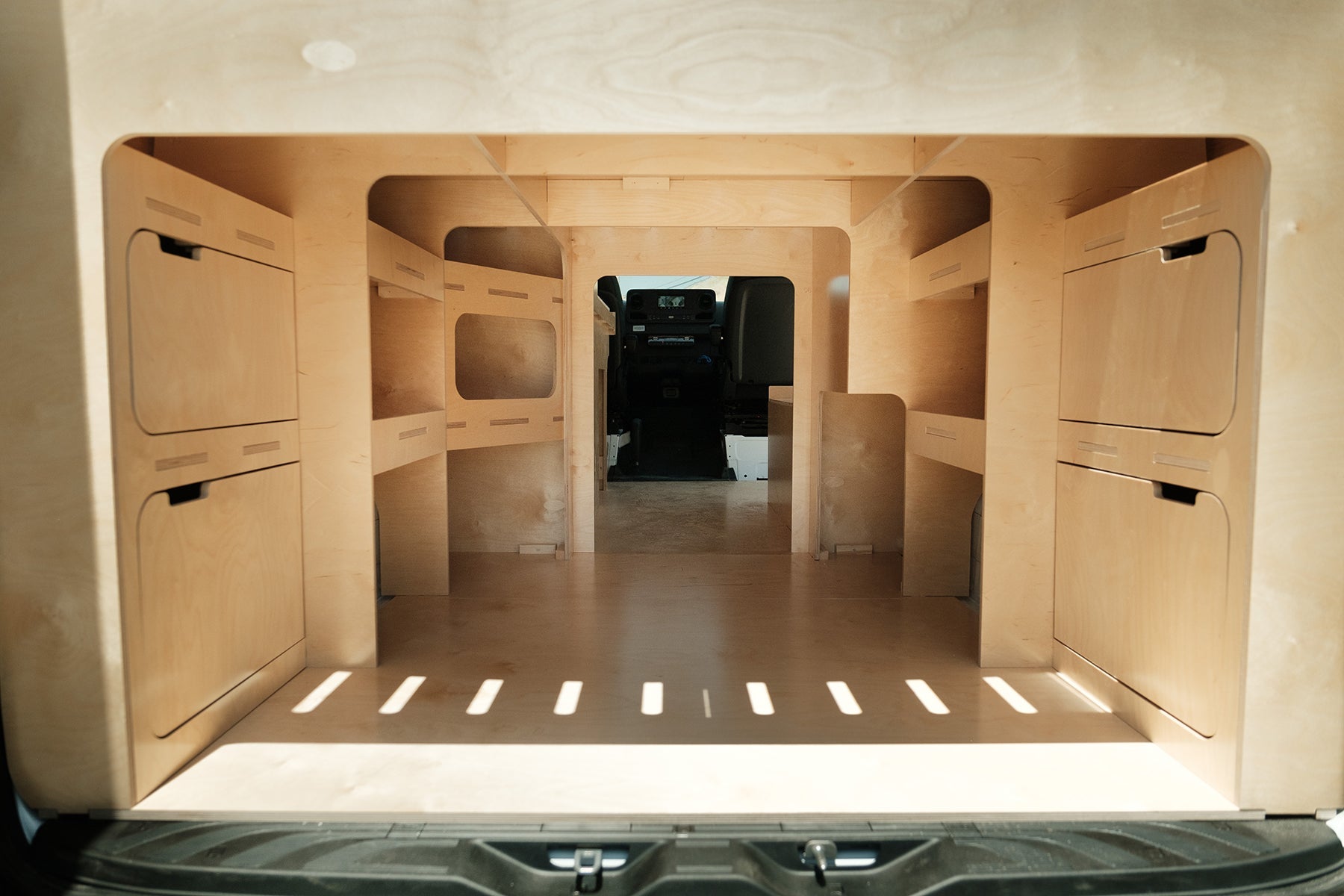

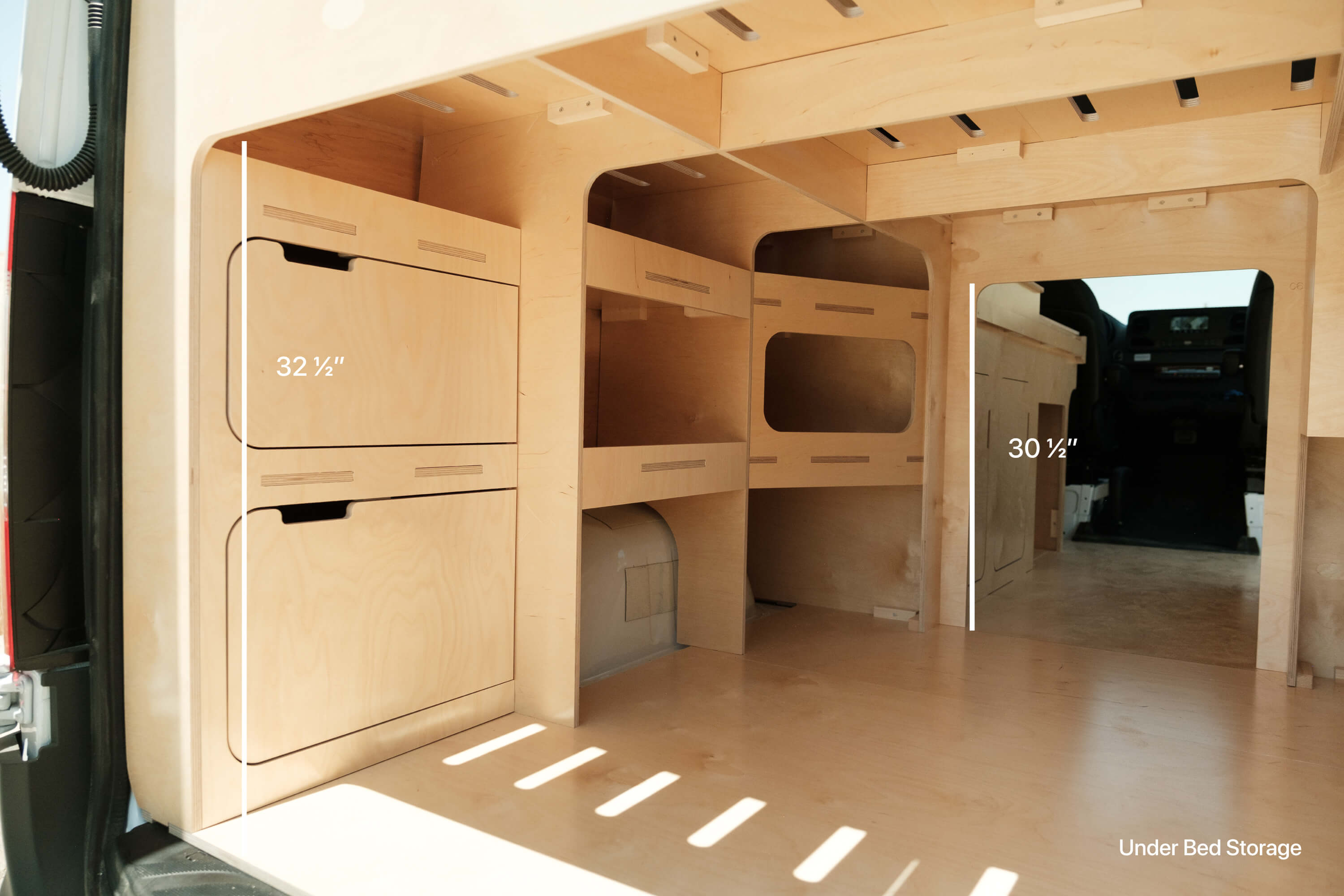

Garage Storage Area Space
Electrical Integrated Wiring Loom(optional) includes:

Switches wiring
Lighting
Fuses
Fuse board
Circuit breakers for protection
Voltage Sensitive Relay (VSR) for charging
Voltage readouts
2 Double USB Chargers

Not Included
Bedding / Cushions not included
Wall and Ceiling Panels not included
Sinks or other appliances

Specifications

Material	Baltic Birch Ply

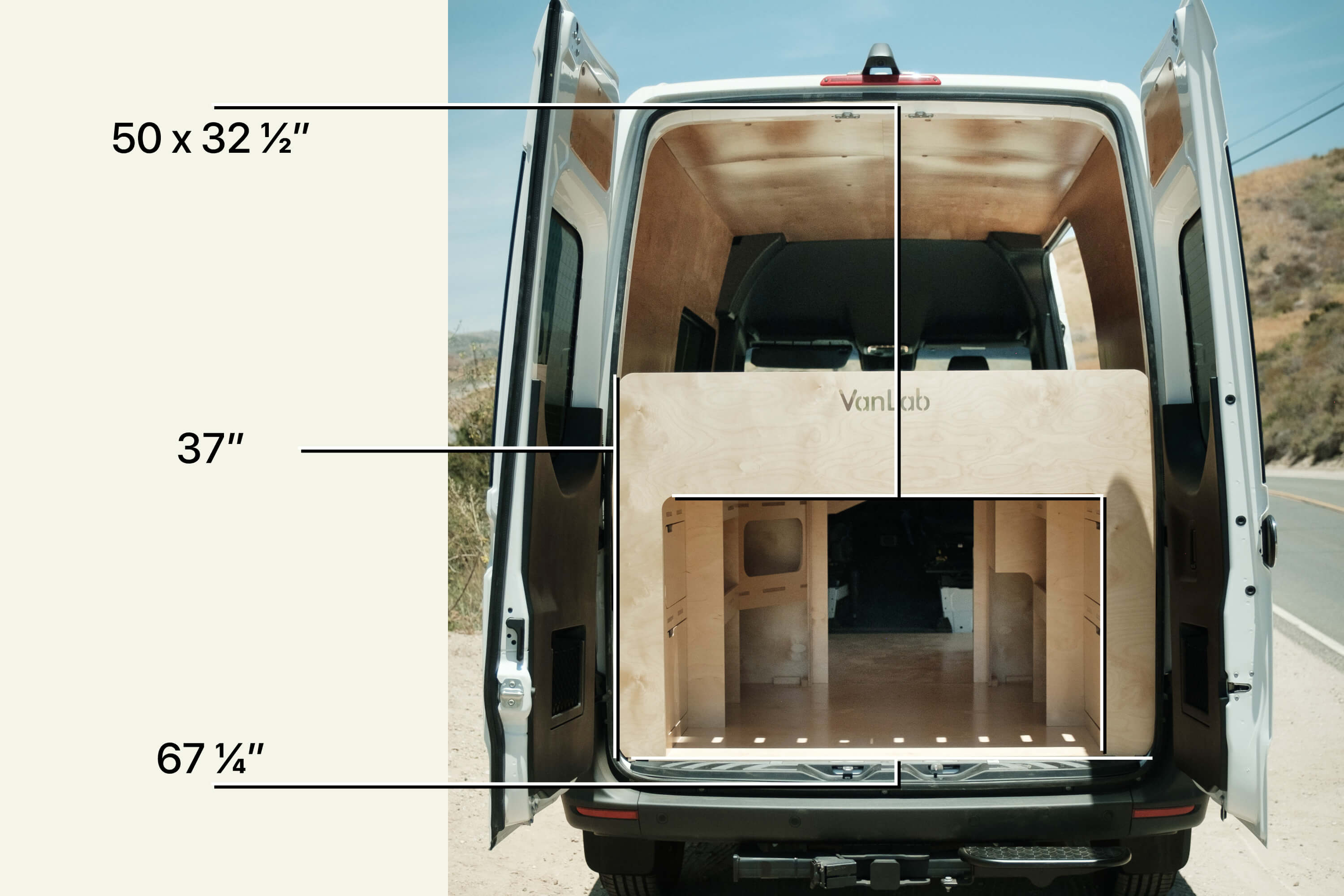

Bed Size - East/West Sleeping	67 1/4" Long x 61" Wide
Bed Height	37”
Worktop Height	33.4”
Fridge size compatible	2.6 ft^3.
Water Storage Size	Cupboard Size: 8.2 ft³ (17.5” wide, 23.15” deep, 35” tall)
Living area storage capacity	Total: 23.5 ft³ Kitchen Storage: 8.5 ft³ Water Tank Cupboard: 8.2 ft³ Bench Storage: 7.05 ft³

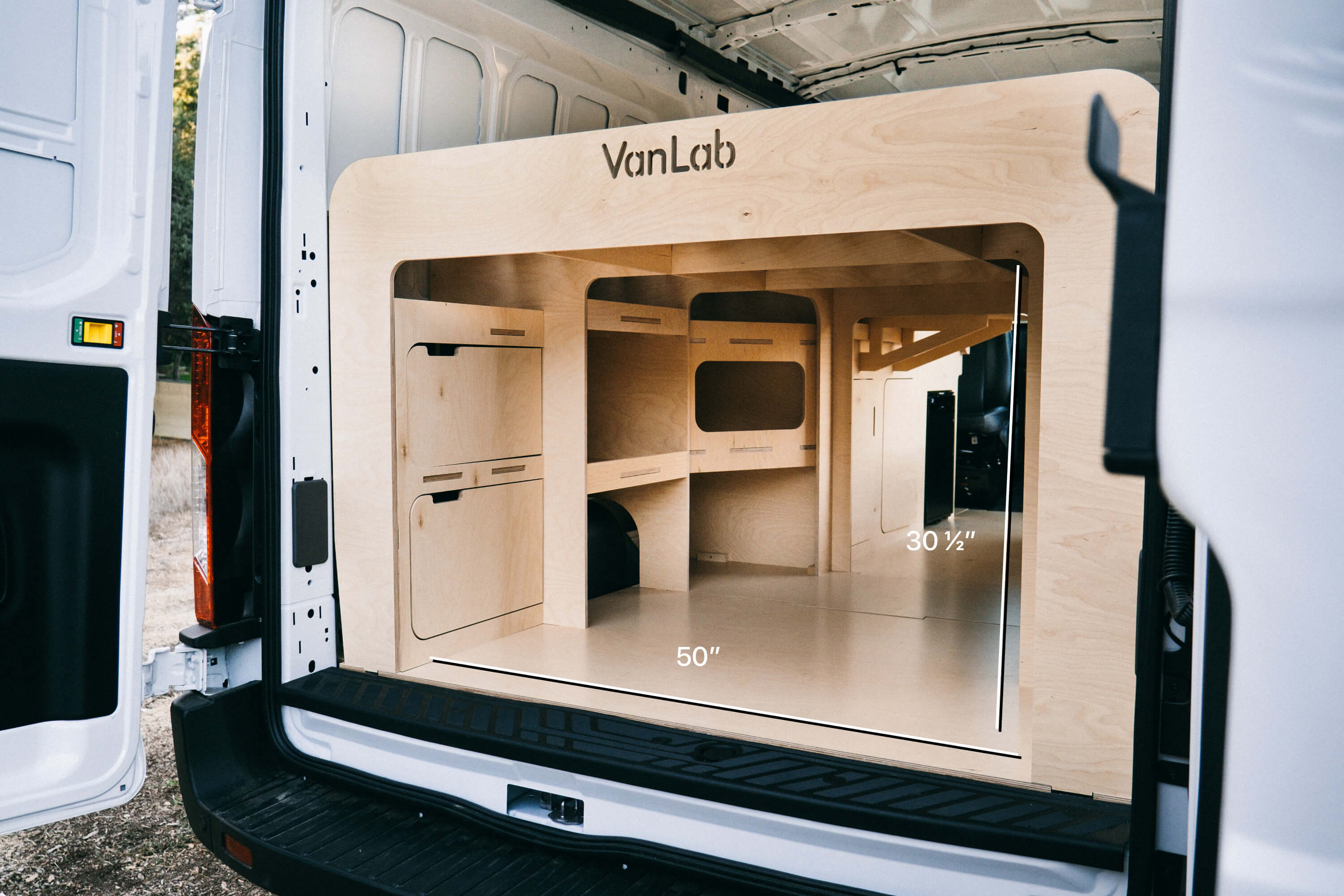

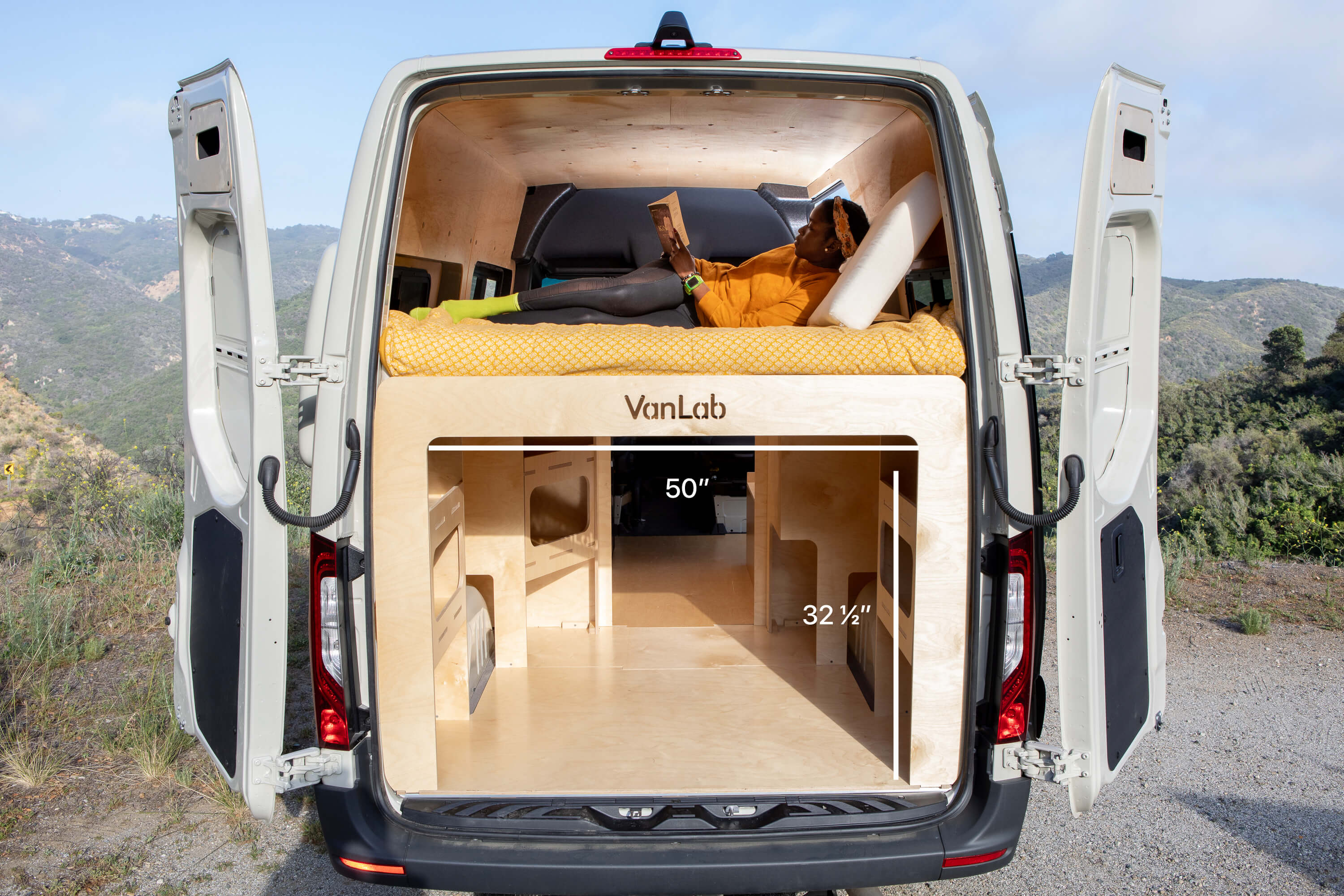

Garage Storage capacity	Total: 101 ft³

How Do I Install?

VanLab Mercedes Sprinter 144" Interior Kit Installation Manual

Additional Info

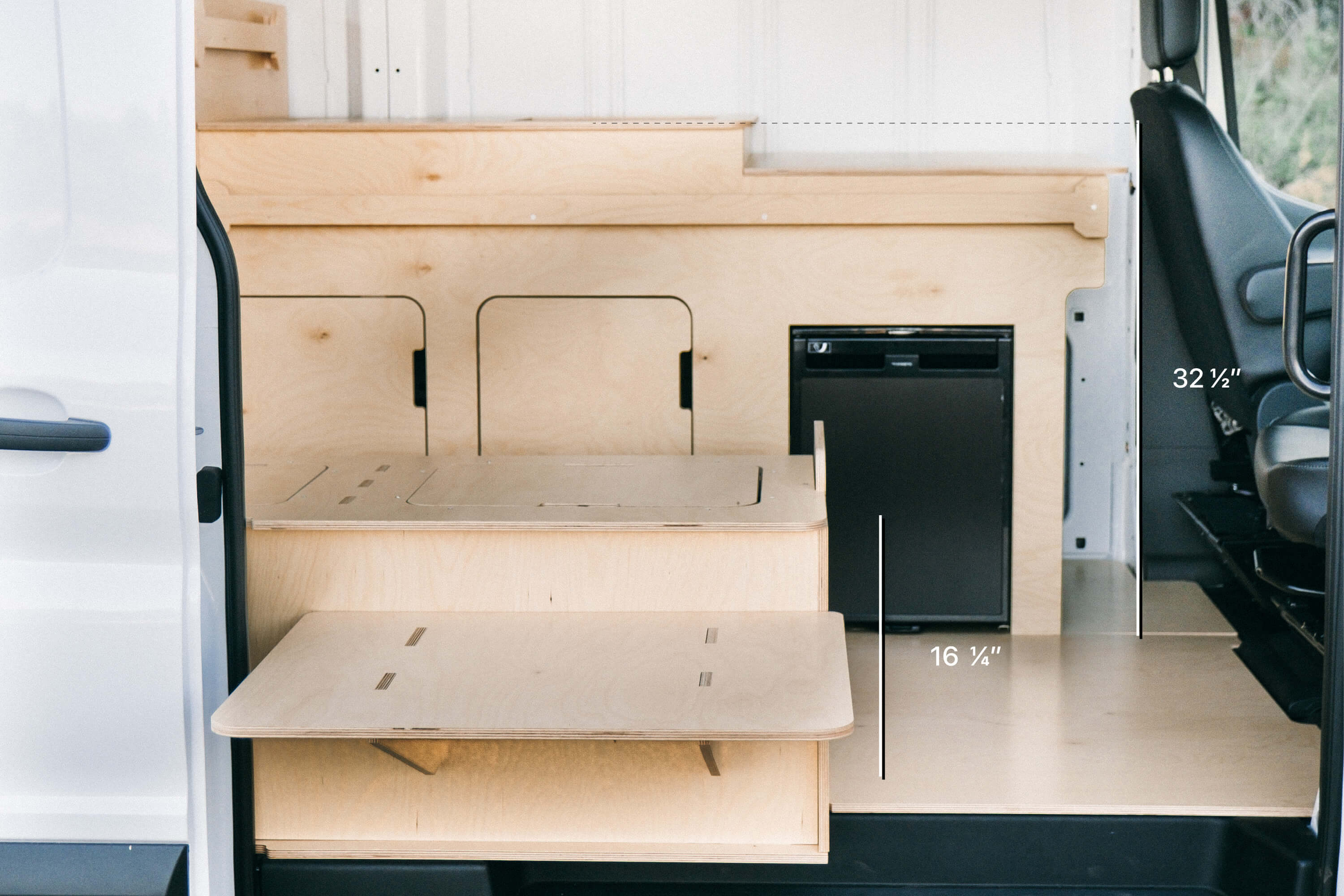

Refrigerators recommended for this Interior Kit range from Dometic, Virtrifigo, Nova Kool and Truckfridge with respect to the space allowed for 2.6 ft ^3. options. The specifications for the Dometic CRX50T are below and tested with this VanLab Interior Kit.
Depth: 19.69"
Height: 21.02"
Width: 14.96"

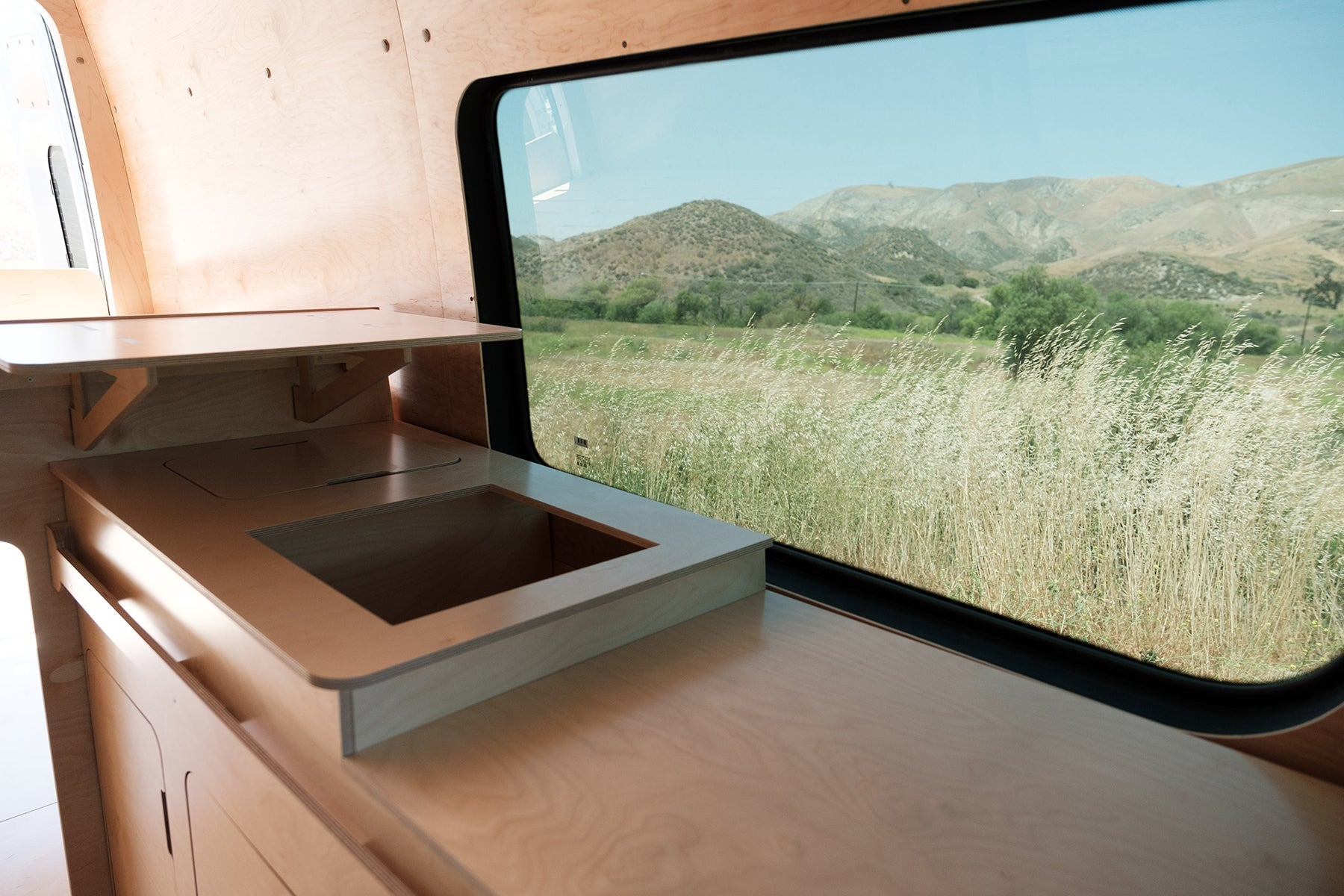

Sinks recommended for this Interior Kit can be any that fit in the allowances of the cabinet space supplied. VanLab recommends the Ruvati 15"x15" option. If you want to install another sink, just be sure it is similar to the Ruvati size and specifications below:

Overall Size: 15" x 15"
Sink Height: Minimum Base Cabinet : 18"

If you don't have a stovetop burner or plumbing system figured out yet, VanLab recommends the options below. If you want to use an alternate stovetop burner, just be sure it is the same specifications as shown or plan to make modifications at your discretion.

Ramblewood GC2-37P
‎20 x 11.4 x 3.9 inches

Asobo Life Sink Plumbing system
