Van Compass 2023+ Mercedes Sprinter AWD 2500 Striker 2" Complete Lift Kit (Single Rear Wheel)
Couldn't load pickup availability
Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more
Part#
VCMP-7219
Need a lift kit upgrade for your Mercedes Sprinter AWD (2023-Present)? The Van Compass 2023+ Mercedes Sprinter AWD 2500 Striker 2" Complete Lift Kit (Single Rear Wheel) is designed to give your Sprinter the lift it needs to tackle deeper backcountry landscapes and rougher trails with confidence. Carefully developed to maintain as much of the factory design integrity as possible, this system provides a true 2" lift with minimal compromise to your van’s original ride dynamics.
At the core of the Striker AWD kit is a combination of precisely machined and welded spacers that reposition the front subframe. This careful adjustment allows the CVs, tie rods, and control arms to cycle within Mercedes’ original geometry specifications, ensuring proper alignment, long-term durability, and smooth operation.
In the rear, the system includes a taller version of our Mini Leaf Spring pack, paired with longer sway bar links, shock relocation brackets, and bump stop spacers. This setup ensures that nothing binds, over-extends, or over-compresses during axle articulation, maintaining suspension performance and protecting drivetrain components under demanding off-road conditions.
With the correct wheel offset and some fender trimming, the Striker kit allows fitment of up to a 35 x 12.50 tire, delivering a massive boost in ground clearance, traction, and overall off-road capability.
Key Features
- Fits 2023+ Mercedes Sprinter AWD 2500 vans only
- Complete 2" lift designed for 2023–Present Mercedes Sprinter AWD 2500 (Single Rear Wheel)
- Repositions front subframe to maintain proper CV, tie rod, and control arm geometry
- Taller Mini Leaf Spring pack restores ride height and improves rear suspension articulation
- Longer rear sway bar links, shock relocation brackets, and bump stop spacers included
- Enables fitment of up to a 35 x 12.50 tire with proper wheel offset and fender trimming
- Increases ground clearance and off-road traction
- Carefully engineered to minimize compromise to original ride quality
- Machined and welded components for strength and durability
- High-quality construction made in the USA

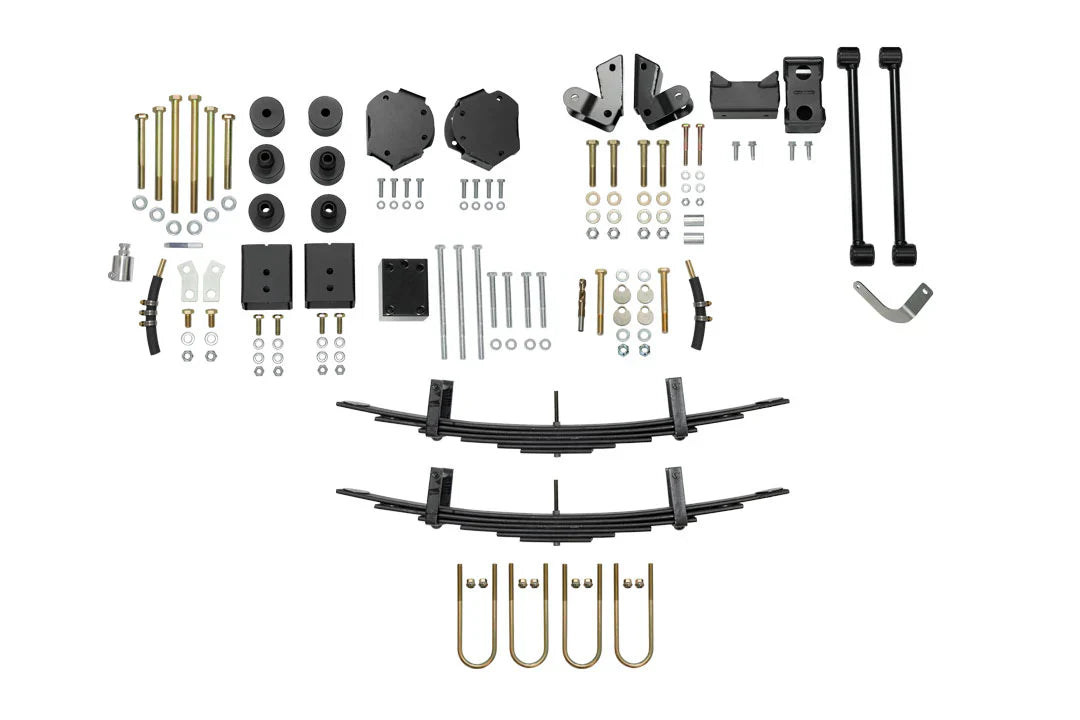

- Front 2" strut spacers
- Front 2" subframe drop spacers
- Engine and transmission mount 2" lift spacers
- Front differential re-clocking cams
- CNC Machined 2" steering shaft extension
- Low pressure power steering hose extension
- Front brake line relocation brackets
- 6-leaf Mini Leaf Spring pack
- Extended rear sway bar links
- Rear lower shock relocation brackets
- Rear bump stop drop brackets
- Wind assist or headlight leveling sensor bracket
- All necessary hardware and detailed instructions
Fitment Guide
MODEL: SPRINTER 2500
YEAR: 2023-PRESENT
DRIVE TYPE: AWD
>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<
>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<
Recommended Wheel Size: 17" x 8.5", +45mm offset
WHEEL FITMENT NOTE: 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.
Documents
2023+ VS30 AWD Striker 2" Front Kit Installation Instructions
2019+ VS30 4x4 and AWD Striker 2" Rear Kit Installation Instructions
