Van Compass 2023+ Mercedes Sprinter AWD 2500 - Stage 6.3 System 2" Lift

$5,761.60

Shipping calculated at checkout.

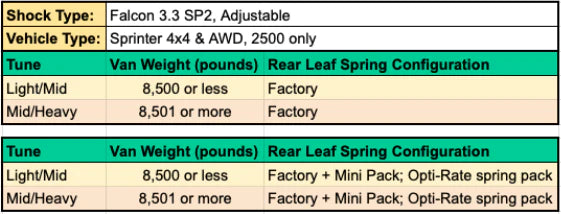

SHOCK TUNE: STAGE 6.3 - SPRINTER 2500 AWD | 23-UP - 2 INCH LIFT - FALCON 3.3 | LIGHT/MID TUNE

STAGE 6.3 - SPRINTER 2500 AWD | 23-UP - 2 INCH LIFT - FALCON 3.3 | LIGHT/MID TUNE STAGE 6.3 - SPRINTER 2500 AWD | 23-UP - 2 INCH LIFT - FALCON 3.3 | MID/HEAVY TUNE

JOIN VAN LAND CLUB

Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more

Part#
Light/Mid: VCMP-7222-LM
Mid/Heavy: VCMP-7222-MH

Need lift upgrade for your Mercedes Sprinter AWD (2023+ 2500)? The Van Compass 2023+ Mercedes Sprinter AWD 2500 - Stage 6.3 System 2" Lift¬†delivers maximum capability, adjustability, and performance for serious adventure and conversion builds. Designed to improve ground clearance, handling, and ride comfort without sacrificing factory suspension integrity, this system is perfect for vans that demand more out of every mile.

The core of the Stage 6.3 system is the innovative Striker 2" Lift Kit, carefully engineered to maintain proper suspension geometry while raising your van‚Äôs ride height. The added clearance improves approach, break-over, and departure angles, allowing for fitment of larger tires and giving your van a stronger, more aggressive stance.

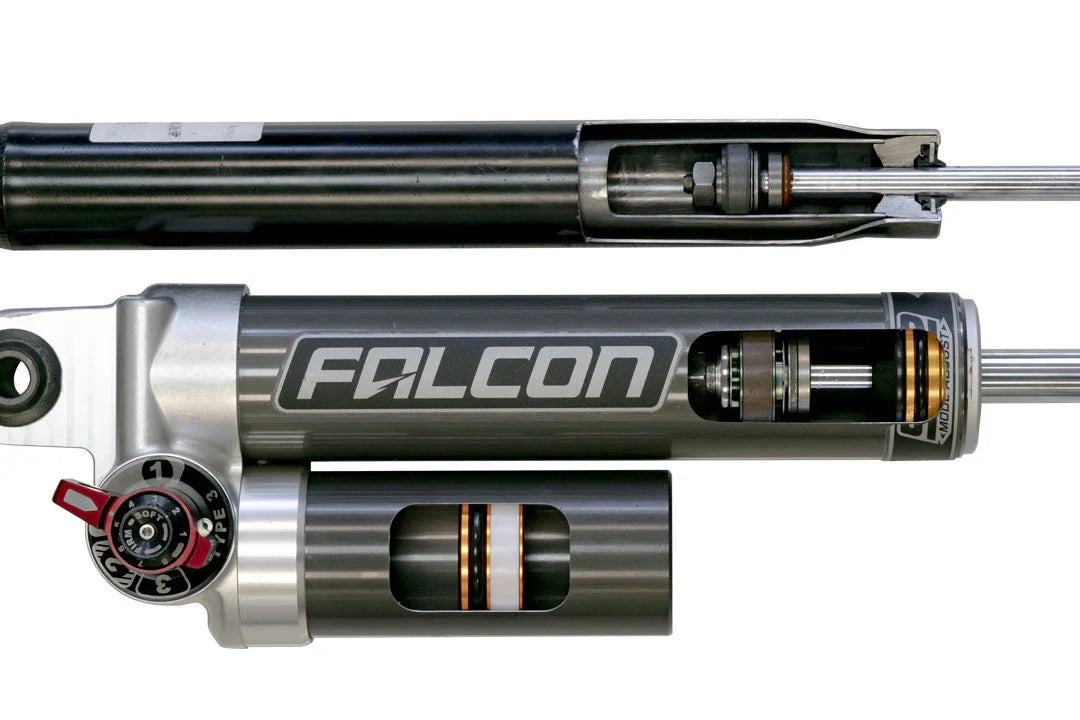

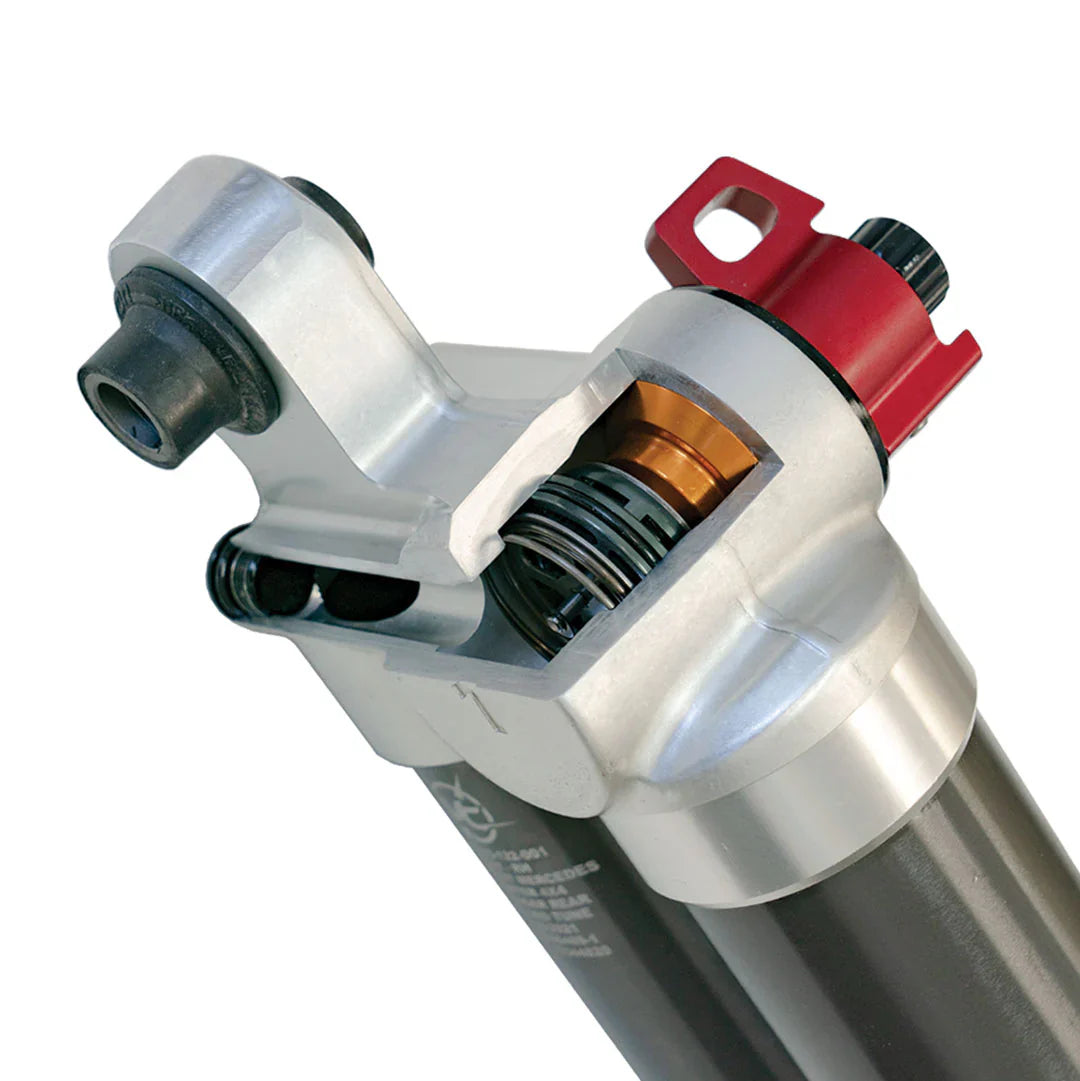

At the heart of the performance upgrade are VC-tuned Falcon 3.3 Adjustable Shocks installed at all four corners. These shocks feature 10 intuitive firmness settings, easily adjusted with the large Fast Adjust knob. Whether you're looking for maximum compliance off-road or firm, stable control on the highway, these shocks let you fine-tune your ride to match any driving condition with a much wider adjustment range than typical systems.

The Mini Leaf Spring Pack lifts the rear by 2 inches and restores lost ride height while increasing spring rate, making it ideal for heavy vans. Tuned to work seamlessly with the OEM spring, it maintains factory wheel positioning and geometry while enhancing suspension up-travel. Included U-bolts and glide pads ensure a quiet, reliable, and easy installation.

Completing the package are progressive foam Bump Buddy replacement jounce bumpers, which replace the factory rubber stops to improve spring curve progression, reduce sway, and enhance bottom-out resistance ‚Äî all without unwanted clunking or harshness.

Recommended Wheel Size:¬†17" x 8.5", +45mm offset

NOTE:¬†Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701

NOTE:¬†Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

NOTE:¬†NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Key Features

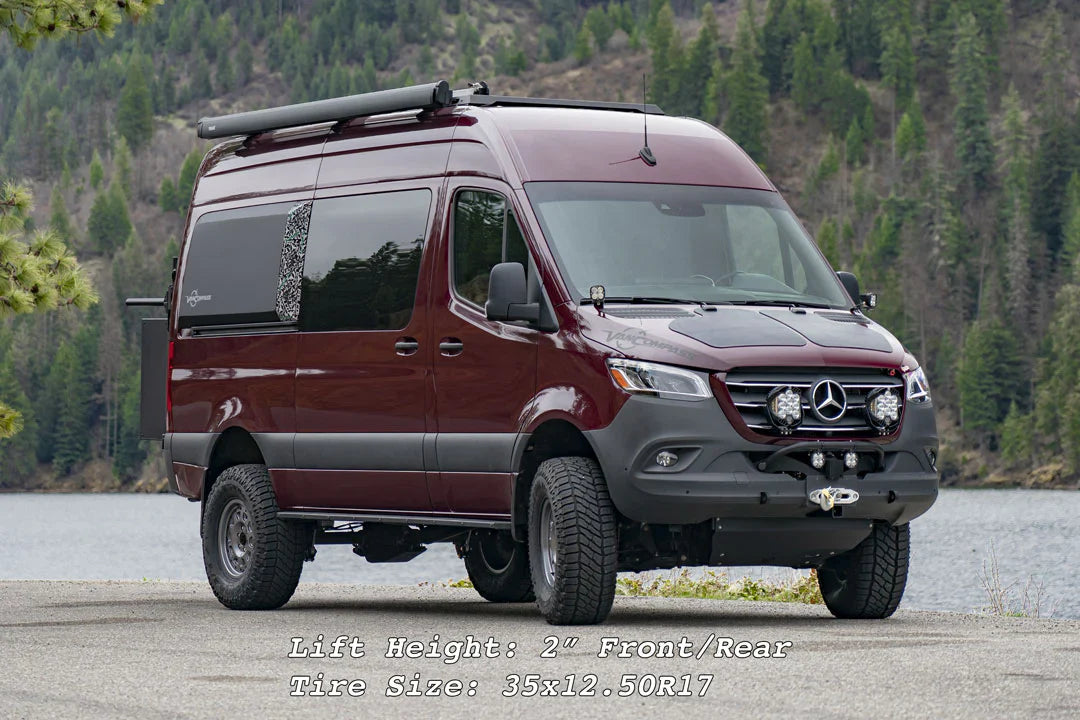

Aggressive, 2" taller stance allows larger tires to smooth out terrain
Increased approach, break over and departure angles
VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings
Increased spring rate to counter sag
Enhanced cornering stability and reduced wind sway
More effective control over large and small bumps
Improved handling feel on rough roads and broken pavement
Increased bottom out resistance

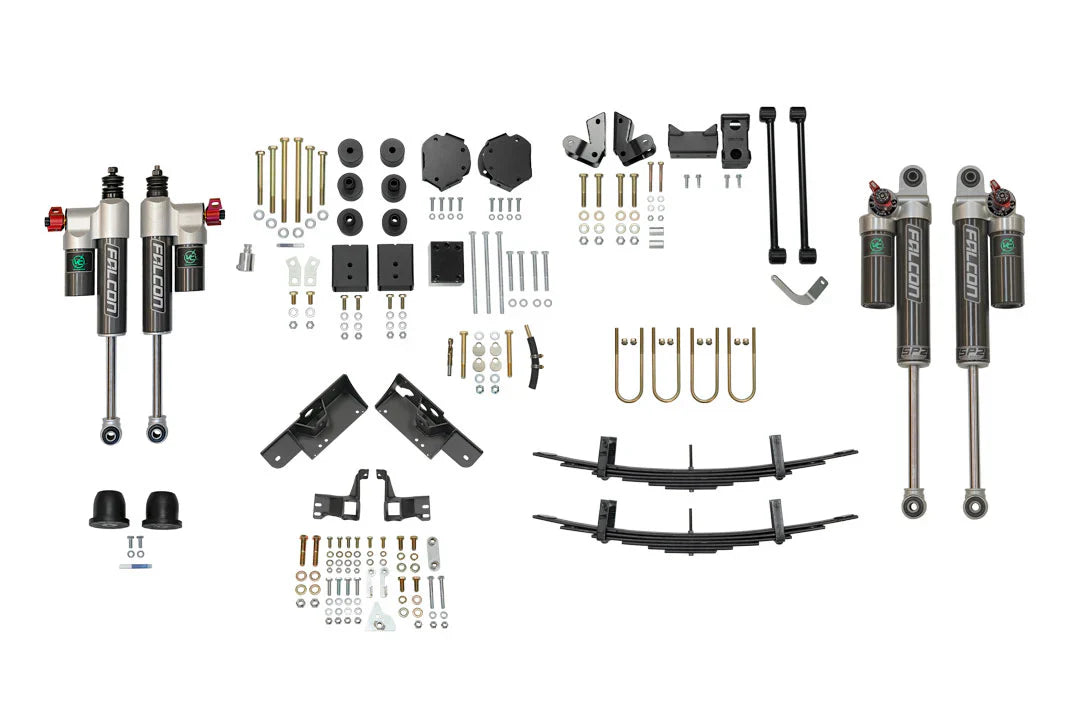

What's Included?

Striker 2" Front and Rear Lift Kit
Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
Front Bump Buddies
Falcon 3.3 Fast Adjust Rear Shocks with SP2
Rear Mini Leaf Spring Pack
Dust boots for all 4 shocks.
All necessary hardware and instructions for a simple installation

Fitment Guide

MODEL:¬†SPRINTER 2500

YEAR:¬†2023-PRESENT

DRIVE TYPE:¬†AWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT?¬†USE THE CAT SCALE LOCATOR<<

Recommended Wheel Size:¬†17" x 8.5", +45mm offset

NOTE:¬†Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701

NOTE:¬†Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

NOTE:¬†NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
