Van Compass 2020+ Ford Transit AWD/RWD Adjustable High-Clearance Lower Control Arm

Part#
VCMP-1055

When Ford designed the front end of the Transit, they had fleet work in mind. It's a simple front suspension layout, and aside from the toe setting, there is no adjustment.

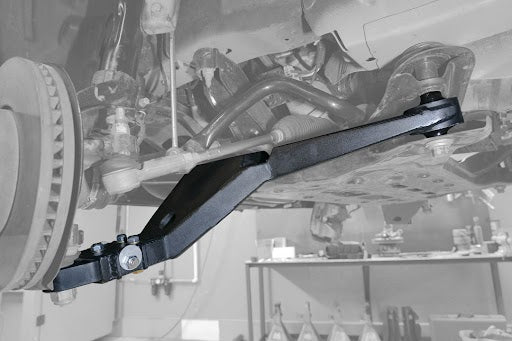

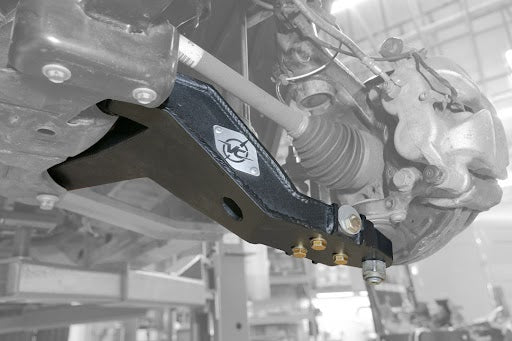

The Van Compass 2020+ Ford Transit AWD/RWD Adjustable High-Clearance Lower Control Arm solves this oversight from Ford by adding a simple to use cam bolt set the camber into specification easily on either side of the vehicle.  Clamped in place on 2 axes by pinch bolts, and with a precision cam holding the alignment, you'll get the adjustment and retention needed to maximize performance and tire life. Taking a cue from high end off road race cars, we've also incorporated features that allow the arm to tuck up high into the chassis for better clearance. These robust arms are made from laser cut and precision bent steel, then welded on a fixture in our facility.

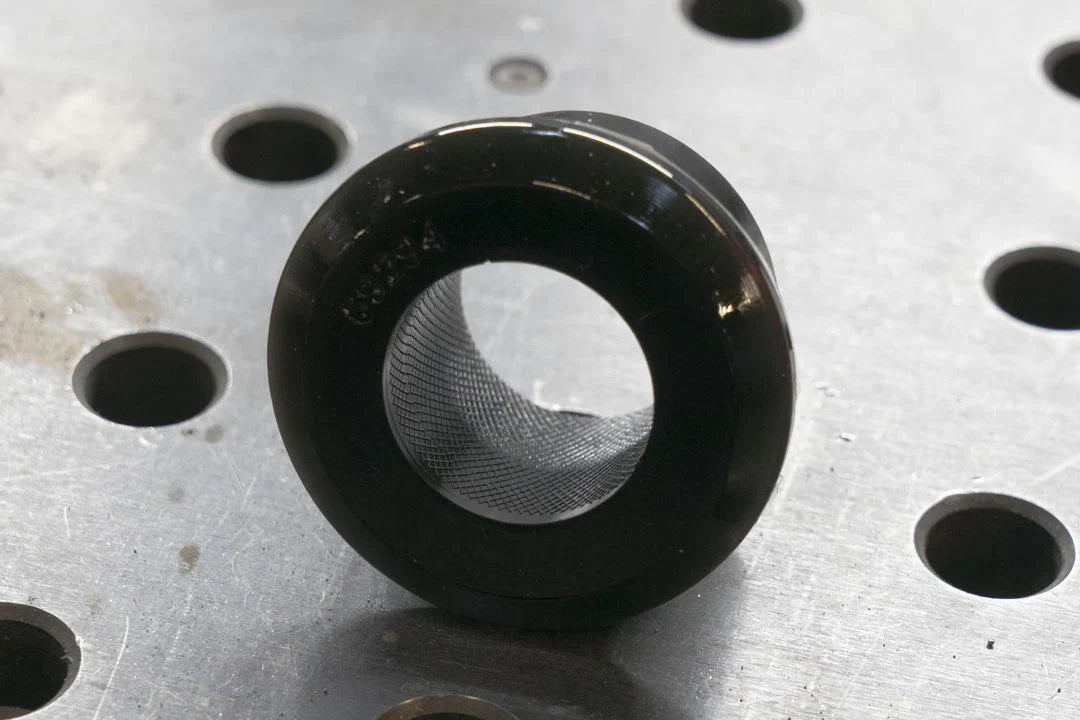

Unlike the competition, vAN Compass do NOT use a rod end (AKA heim, or spherical bearing) on their arms for numerous reasons. First, they simply do not hold up to the elements outside of the dry climate of the southern desert regions. Second, and more importantly, they transmit a lot of extra noise, vibration, and harshness into the cabin. Don't be fooled by 'race car' parts, they don't belong on adventure vans! Instead, we use high quality polyurethane bushings that allow all the deflection needed for our arms to easily cycle through the range of travel, while isolating the driver and passengers from unwanted clunks, pops, and thuds. Polyurethane also holds up much better against harsh chemicals used in winter environments.

NOTE: This control arm is designed specifically for vehicles equipped with the Van Compass Topo 2.0 Lift kit. The rear control arm bushing and camber correction is designed specifically around our 2.0” lift kit. We cannot guarantee compatibility with other manufacturer’s lift kits.

Key Features

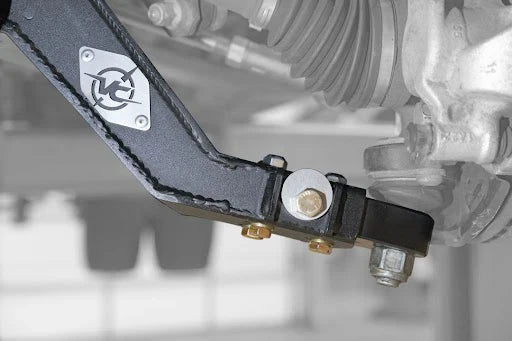

• Easy-to-use cam bolt system for precise camber adjustment on both sides
• Dual-axis pinch bolts and precision cam for secure alignment retention
• High-clearance design improves off-road capability
• Laser-cut, precision-bent steel construction for strength and durability
• Welded in-house on dedicated fixtures for consistent quality

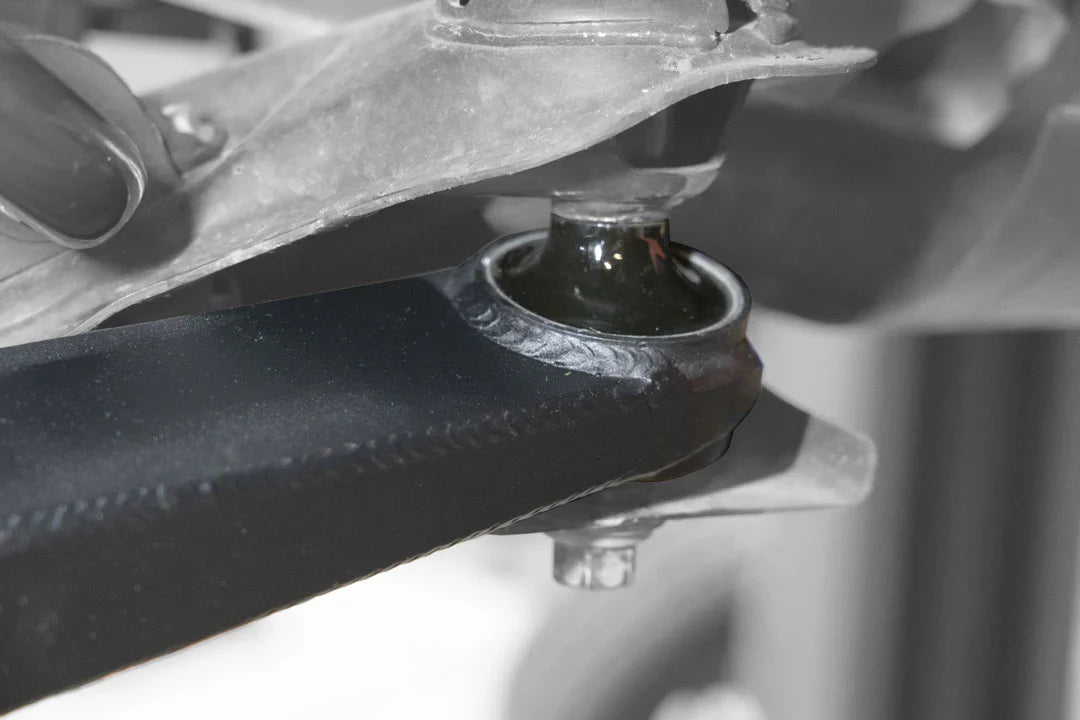

• Polyurethane bushings for noise isolation and long-term reliability
• Superior resistance to moisture, mud, and winter chemicals
• No rod ends (heims) ‚Äî no extra noise, vibration, or harshness
• Made in the USA

What's Included?

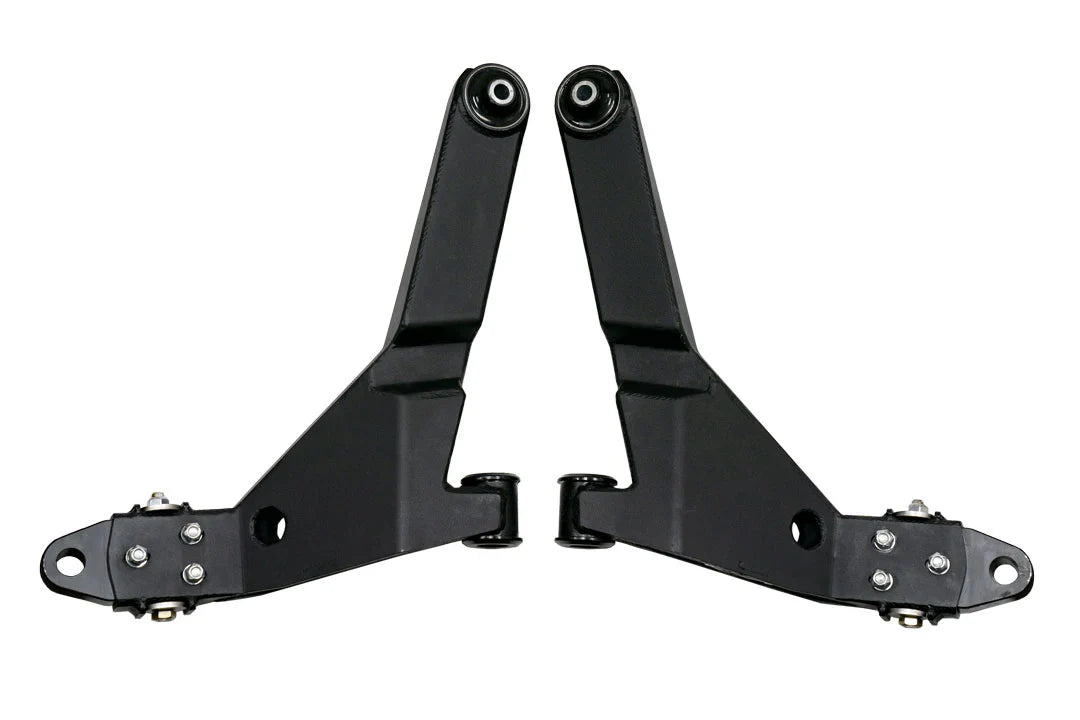

• Left and Right High Clearance Lower control arms
• Lower control arm bushings
• Hardware

Documents

Transit AWD High Clearance Control Arm Installation Instructions
