Van Compass 2019+ Mercedes Sprinter Big Tire Mudflap Relocation Kit

Part#
VCMP-4063

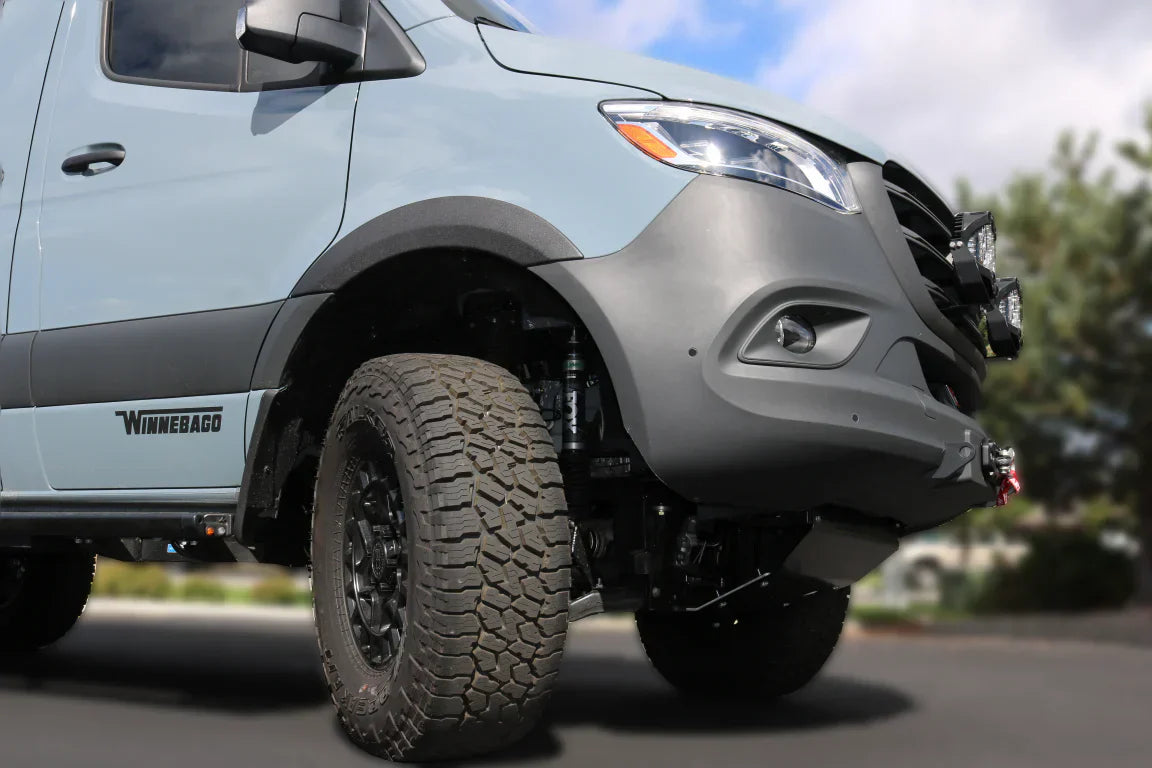

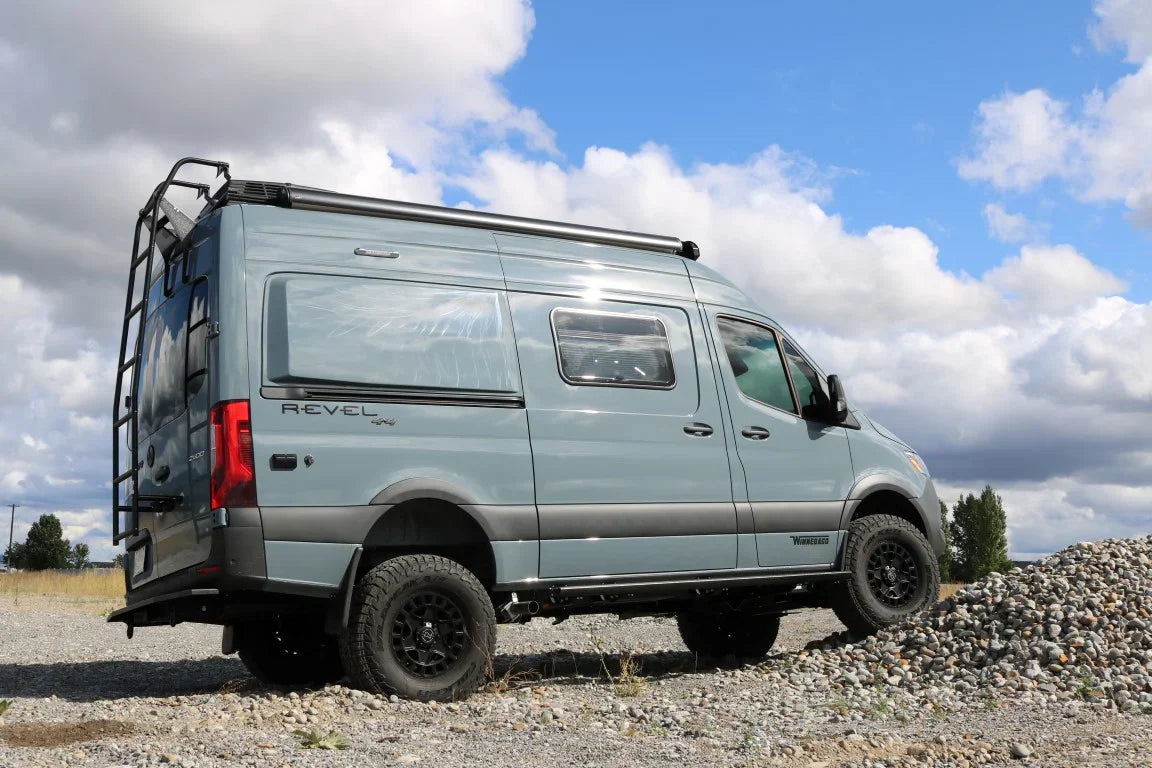

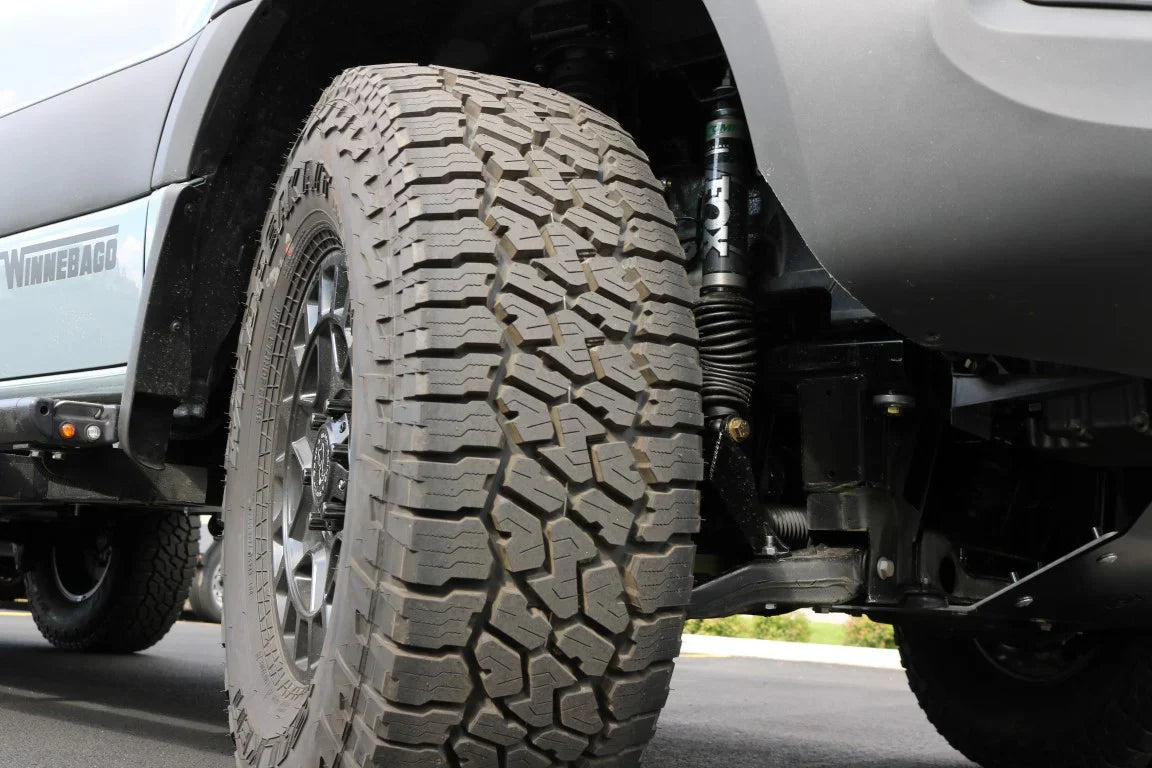

It's hard to not love the sleek, modern styling of the 2019+ Mercedes Sprinter VS30 vans. The only complaint we at Van Compass have about them is the tiny wheel openings Mercedes designed into them. Unfortunately, fitment of anything bigger than a 245/70/17 tire will rub the inner fender liners or pinch seam on the van. Even with our 2" Striker lift kits, the ability to run a larger tire is hindered without addressing the small wheel openings. The Big Tire Mudflap Bracket Kit allows fitment of up to a 35 x 12.5 x 17" tire on a 4x4 van equipped with our 2" Striker Lift Kit. 2wd vans can easily clear up to a 285/70/17 tire when paired with our 2" Striker lift system as well.

Our bracket kit addresses not only the small front wheel openings, but it also provides a solution in the rear of the van to get some proper tires on your VS30 Sprinter van. The Big Tire Mudflap Brackets are made from laser cut & CNC formed steel plate that has been powder coated for a durable, long lasting finish. Installation is simple and just requires cutting and trimming of the lower portions of the rear of the fender arches for a clean installation all while retaining the stock mudflaps for a near factory finished look.

Key Features

• Designed for 2019+ Mercedes Sprinter VS30 4X4 AWD/2WD vans only
• Enables fitment of larger tires by addressing limited factory wheel openings
• Allows up to 35x12.5R17 tire fitment on 4x4 vans with a 2" Striker Lift Kit
• Allows up to 285/70R17 tire fitment on 2WD vans with a 2" Striker Lift Kit
• Improves front and rear wheel opening clearance for oversized tire setups
• Retains factory mudflaps for a clean, near-OEM finished appearance
• Constructed from laser-cut and CNC-formed steel plate for strength and precision
• Powder-coated finish for enhanced durability and corrosion resistance
• Simple installation requiring minor trimming of lower rear fender arch sections

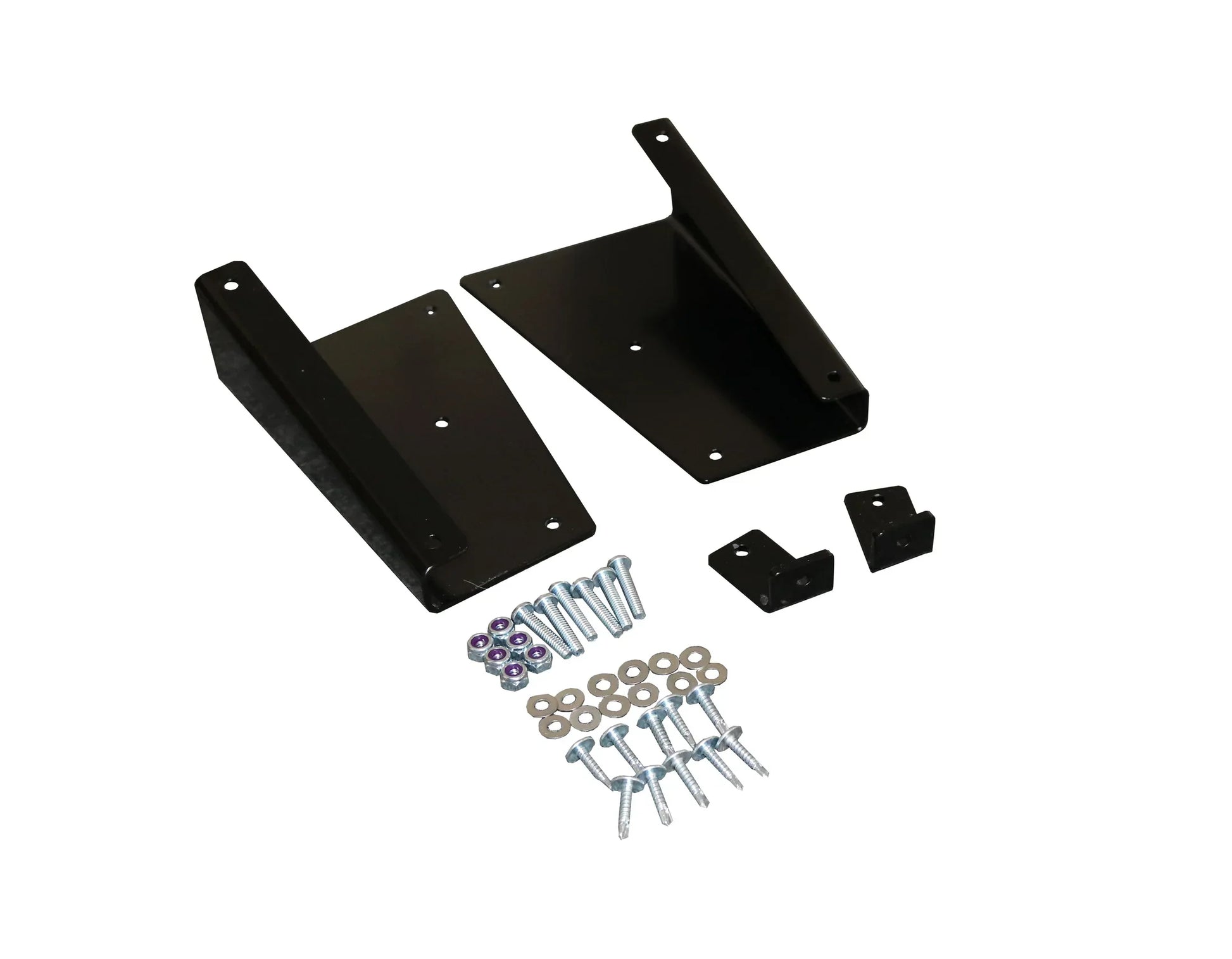

What's Included?

• Left and Right Front Relocation Brackets
• Left and Right Rear Relocation Brackets
• Hardware

Fitment Guide

MODEL: SPRINTER 2500 and 3500

YEAR: 2019-PRESENT

DRIVE TYPE: 4X4, AWD, 2WD

Documents

Van Compass 2019+ Mercedes Sprinter Big Tire Mudflap Relocation Kit Installation Guide
