Van Compass 2019+ Mercedes Sprinter AWD 4X4 2500 - Stage 3 System

$2,432.75

Shipping calculated at checkout.

Shock Tune: STAGE 3 - 2019+ SPRINTER 2500 4X4 - FALCON 2.1 SHOCKS - MID TUNE

STAGE 3 - 2019+ SPRINTER 2500 4X4 - FALCON 2.1 SHOCKS - MID TUNE STAGE 3 - 2019+ SPRINTER 2500 4X4 - FALCON 2.1 SHOCKS - HEAVY TUNE

JOIN VAN LAND CLUB

Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more

Part#
MID TUNE: VCMP-7053-2500-M
HEAVY TUNE: VCMP-7053-2500-H

Need a suspension upgrade for your Mercedes Sprinter AWD 4x4? The Van Compass 2019+ Mercedes Sprinter AWD 4X4 2500 - Stage 3 System¬†is perfect for vans experiencing rear-end sag caused by heavy conversions or build-outs. Designed to significantly enhance your van's stability and handling, this package includes a tuned 4-corner shock upgrade, rear mini leaf spring kit, and advanced front bump stops.

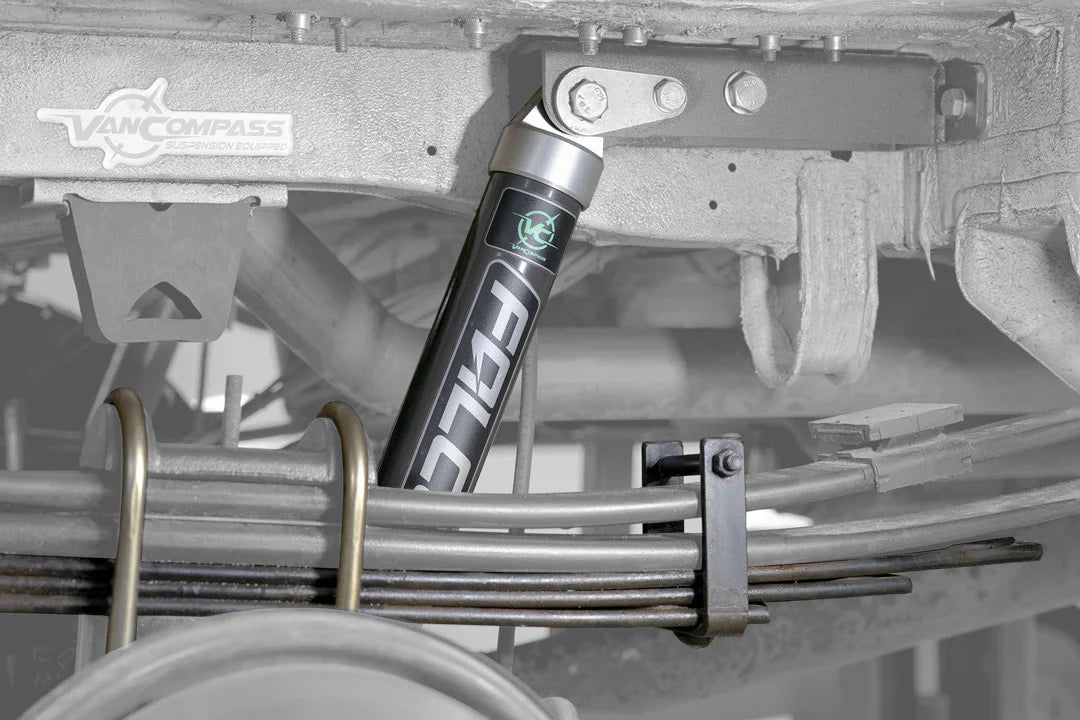

The rear mini leaf spring kit is precision-engineered to integrate seamlessly with your stock leaf springs, restoring approximately 1.25 inches of lost ride height. This effectively corrects rear sag and achieves a balanced, level stance while maintaining the quiet, comfortable ride associated with factory components.

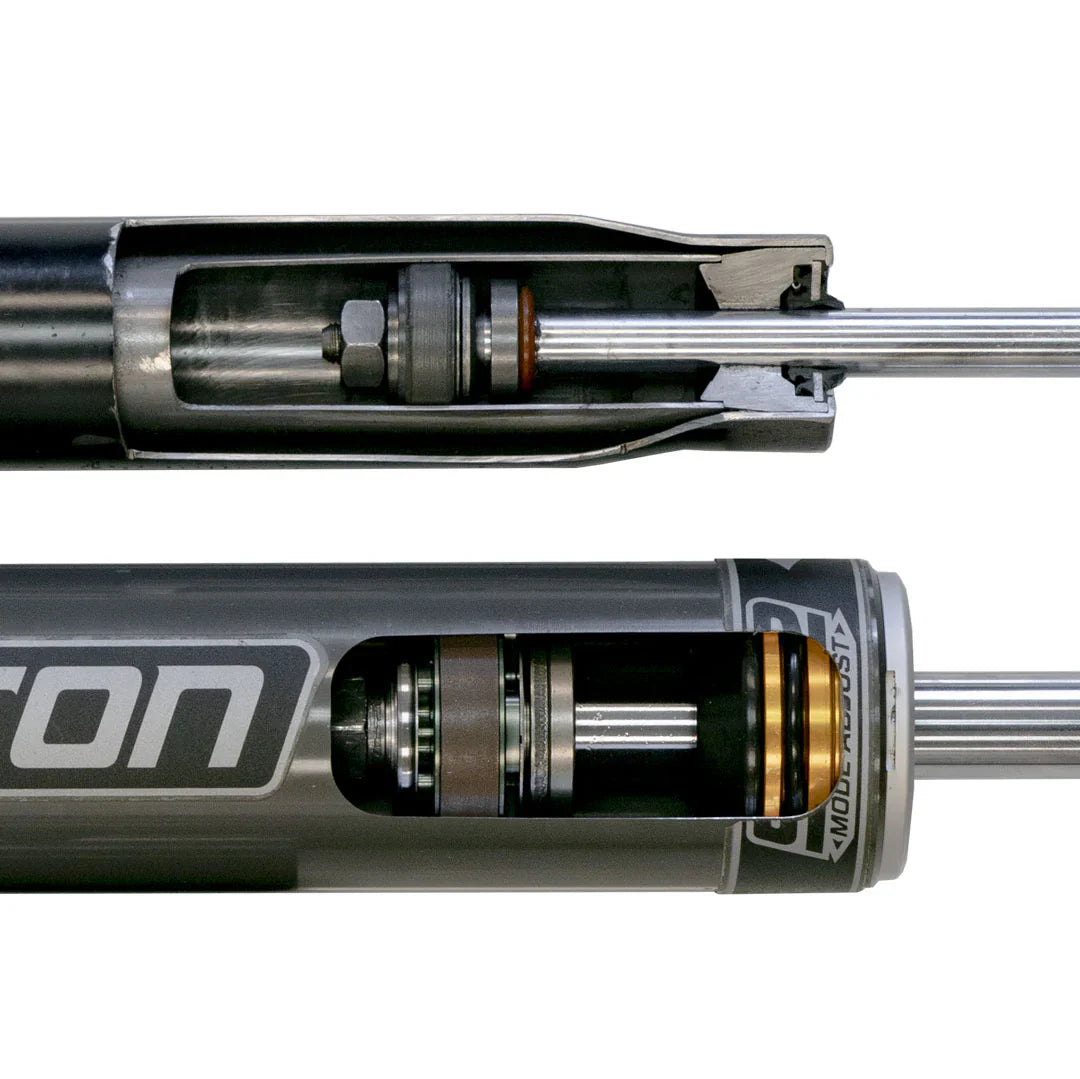

Falcon 2.1 Monotube Shocks, custom-tuned specifically for Sprinter vans, drastically improve handling dynamics. Their rugged design, featuring larger, high-performance damper pistons, significantly reduces corner lean, minimizes harsh swaying, and absorbs heavy impacts smoothly. This translates into enhanced safety, increased comfort, and reduced driver fatigue, particularly on challenging terrain.

Additionally, the progressive foam Bump Buddy replacement jounce bumpers provide a notable improvement over stiff, factory rubber bump stops. Their superior design ensures smoother spring progression, greater sway control, and enhanced bottom-out resistance without any additional noise or harshness, ensuring a comfortable ride in every driving situation.

Key Features

Fits 2019+ Mercedes Sprinter AWD 4X4 2500 vans only¬†
VC tuned Falcon 2.1 Monotube shocks, front and rear
Restores lost ride height and reduces sagging
Enhanced cornering stability and reduced wind sway
More effective control over large and small bumps off road
Improved handling feel on rough roads and broken pavement
Increased bottom out resistance
Adventure vans at or near GVWR full time
Heavy Class B RV's
Heavy Passenger vans seeking a handling upgrade

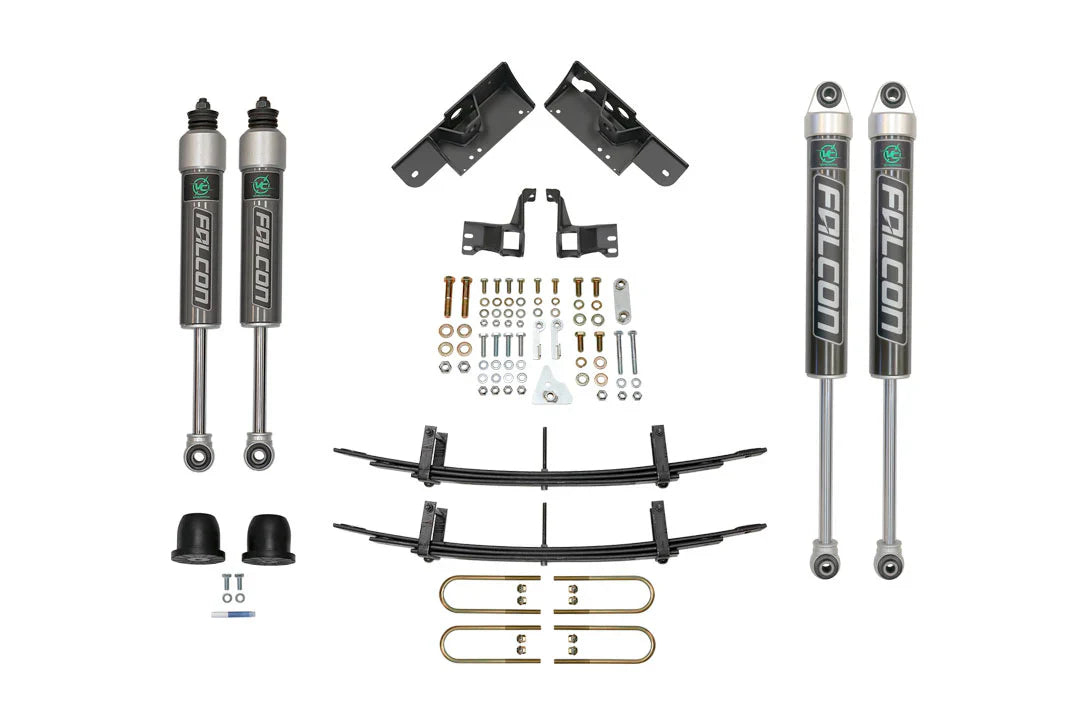

What's Included?

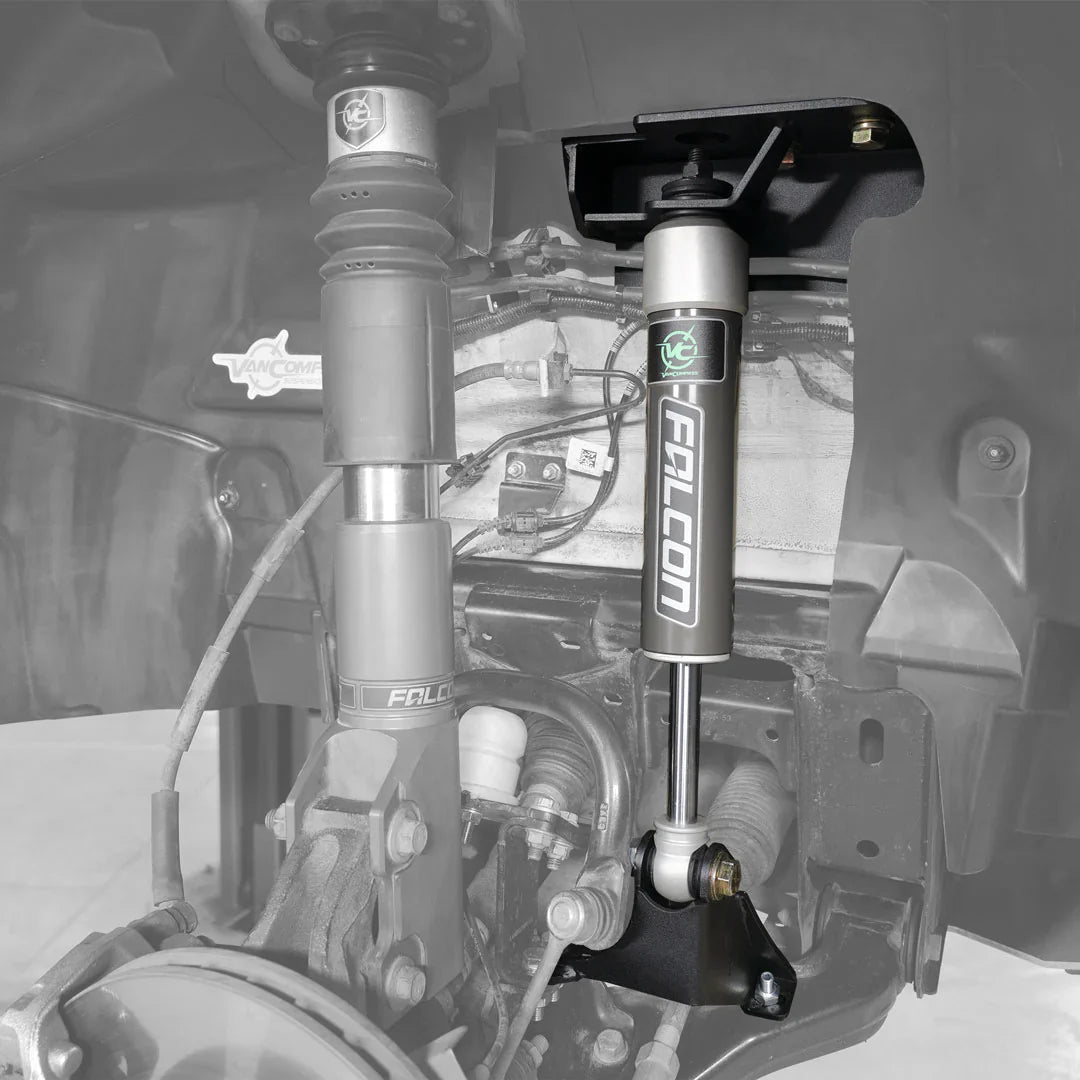

Falcon 2.1 Monotube Front Shocks with Mounting Brackets
Front Bump Buddies
Falcon 2.1 Monotube Rear Shocks
Rear Mini Leaf Spring Pack
Dust boots for all 4 shocks.
All necessary hardware and instructions for a simple installation

Fitment Guide

MODEL:¬†SPRINTER 2500

YEAR:¬†2019-PRESENT

DRIVE TYPE:¬†4X4 and AWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT?¬†USE THE CAT SCALE LOCATOR<<

Recommended Wheel Size:¬†17" x 8", +45mm offset

NOTE:¬†Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701

NOTE:¬†Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

NOTE:¬†NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
