Van Compass 2019-2022 Mercedes Sprinter 4X4 3500 - Stage 6.3 Dually 2" Lift System - Mid/Heavy Tune

Part#
VCMP-7205-MH

Make your van the ultimate adventure machine with Van Compass 2019-2022 Mercedes Sprinter 4X4 3500 - Stage 6.3 Dually 2" Lift System - Mid/Heavy Tune.

The Van Compass 2019-2022 Mercedes Sprinter 4X4 3500 - Stage 6.3 Dually 2" Lift System - Mid/Heavy Tune is the ultimate choice for drivers seeking the highest level of adjustability, stability, and performance. Designed for adventure vans, conversion builds, and heavy-duty passenger vans, this apex system delivers a true 2-inch lift, enhanced ground clearance, and superior ride comfort without sacrificing factory handling or suspension geometry.

The Stage 6.3 Dually kit features the innovative Striker 2" Lift Kit, engineered to properly raise your Sprinter’s ride height while preserving original suspension dynamics. This added clearance allows for larger tire fitment, improving your van’s approach, break-over, and departure angles for superior off-road capability—all while maintaining a smooth, stable ride both on and off the pavement.

At the core of this system are the VC-tuned Falcon 3.3 Adjustable Shocks. With 10 intuitive firmness settings controlled by a large, easily accessible Fast Adjust knob, you can quickly tailor your ride from soft and compliant to firm and controlled. The wider adjustment range ensures the shocks deliver maximum adaptability, enhancing your van’s handling across varied conditions and loads.

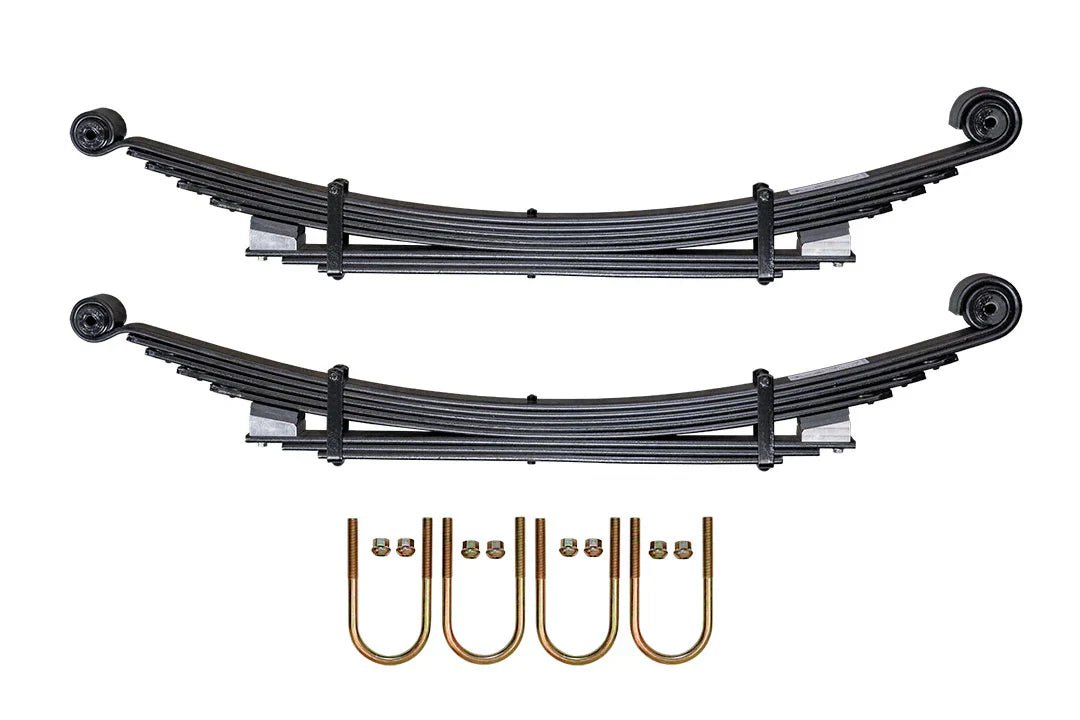

The Opti-Rate rear leaf spring pack provides flexible load support, restoring lost ride height and correcting rear sag. Designed to fit multiple rear axle weights, these springs maintain factory wheel position and suspension geometry while restoring suspension up-travel on heavily loaded vans. Glide pads on the spring tips ensure quiet, factory-like operation, and included U-bolts simplify installation.

Additionally, the progressive foam Bump Buddy replacement jounce bumpers replace harsh factory rubber stops, delivering smoother spring progression, reducing sway, and increasing bottom-out resistance without added noise or harshness.

STAGE 6.3 DRW - SPRINTER 3500 4X4 | 19-22 - 2 INCH LIFT - FALCON 3.3 | MID/HEAVY TUNE

Key Features

• Fits 2019-2022 Mercedes Sprinter 4X4 3500 Dually vans only
• Aggressive, 2" taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings
• Increased spring rate to counter sag
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps

• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

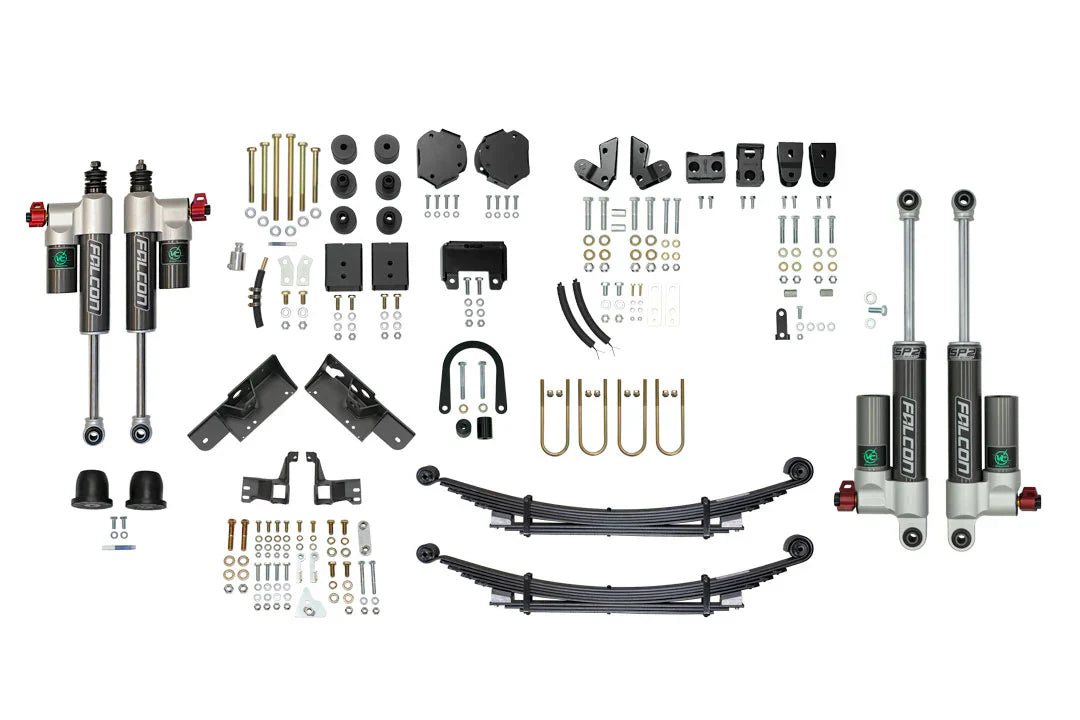

What's Included?

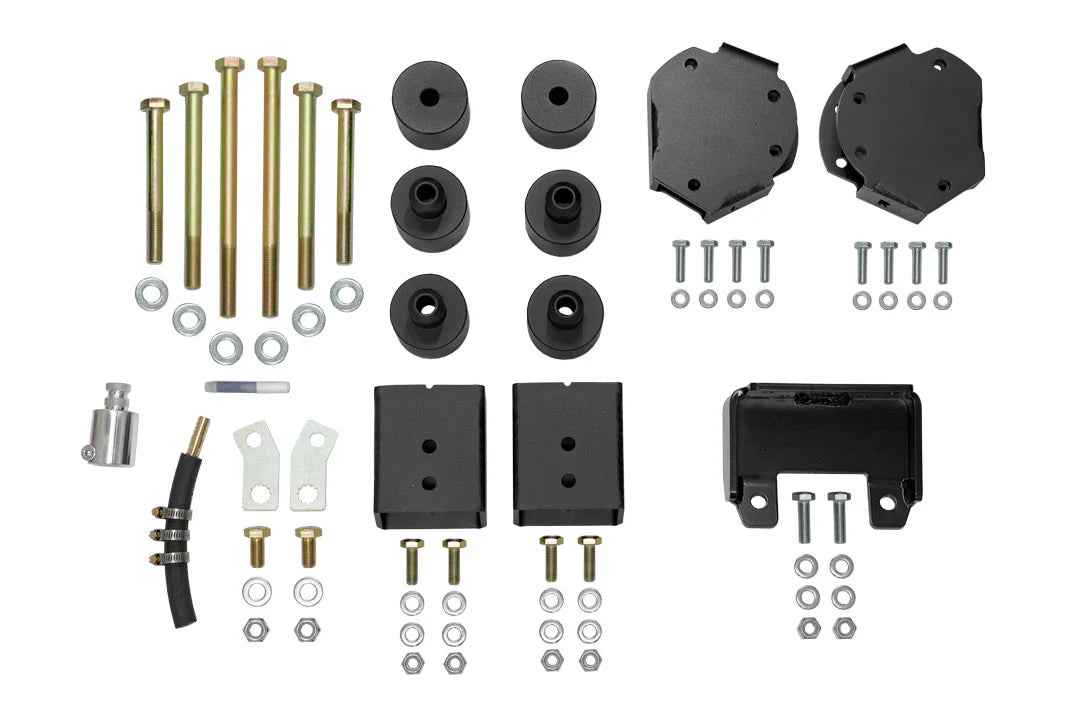

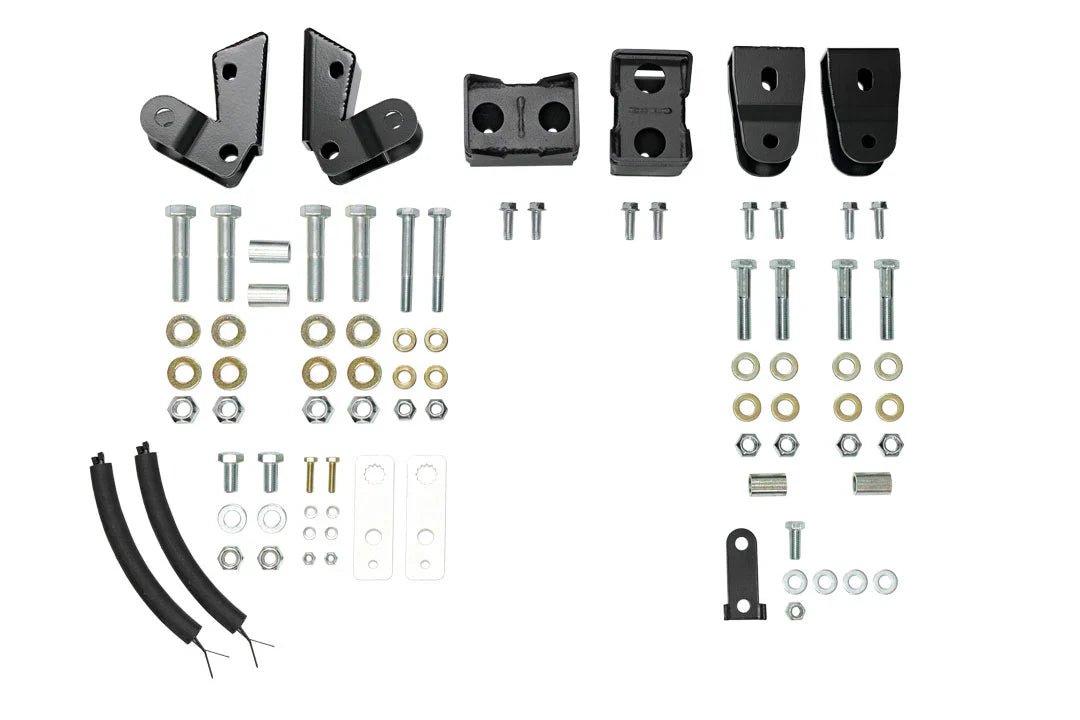

• Striker 3500 4x4 2" Lift Front and Rear
• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 3.3 Fast Adjust Rear Shocks with SP2
• Opti-Rate Full Replacement Rear Leaf Spring System
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation


Fitment Guide

MODEL: SPRINTER 3500

YEAR: 2019-2022

DRIVE TYPE: 4X4

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Documents

2019 VS30 Striker 4x4 Front Lift Kit Installation Instructions

2007+ Sprinter 3500 4WD Rear Lift Kit Installation Instructions

2019+ VS30 4x4 Falcon Front Shock Installation Instructions

Falcon 3.3 DRW Rear Shock Installation Instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions

Sprinter 3500 4WD Rear Spring Installation Instructions

Falcon 3.3 Shock Settings Guide
