Van Compass 2018+ Ford Transit AWD (SRW/DRW) - Stage 2 Topo 2.0 System

Part#

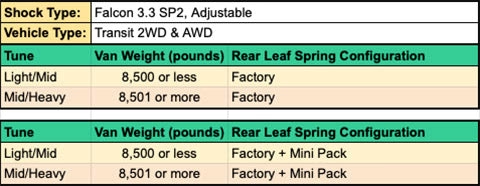

LIGHT/MID TUNE: VCMP-7212-LM
MID HEAVY TUNE: VCMP-7212-MH

Improve the ride quality and stance of your 2020-Present Ford Transit AWD with Van Compass 2018+ Ford Transit AWD (SRW/DRW) - Stage 2 Topo 2.0 System. It is the perfect solution for heavier vans and passenger vans looking for a more versatile ride and aggressive stance. Designed specifically around the packaging and front CV shaft constraints of the 2020+ AWD Transit platform, this system delivers a true 2-inch lift while maintaining excellent drivability and reliability.

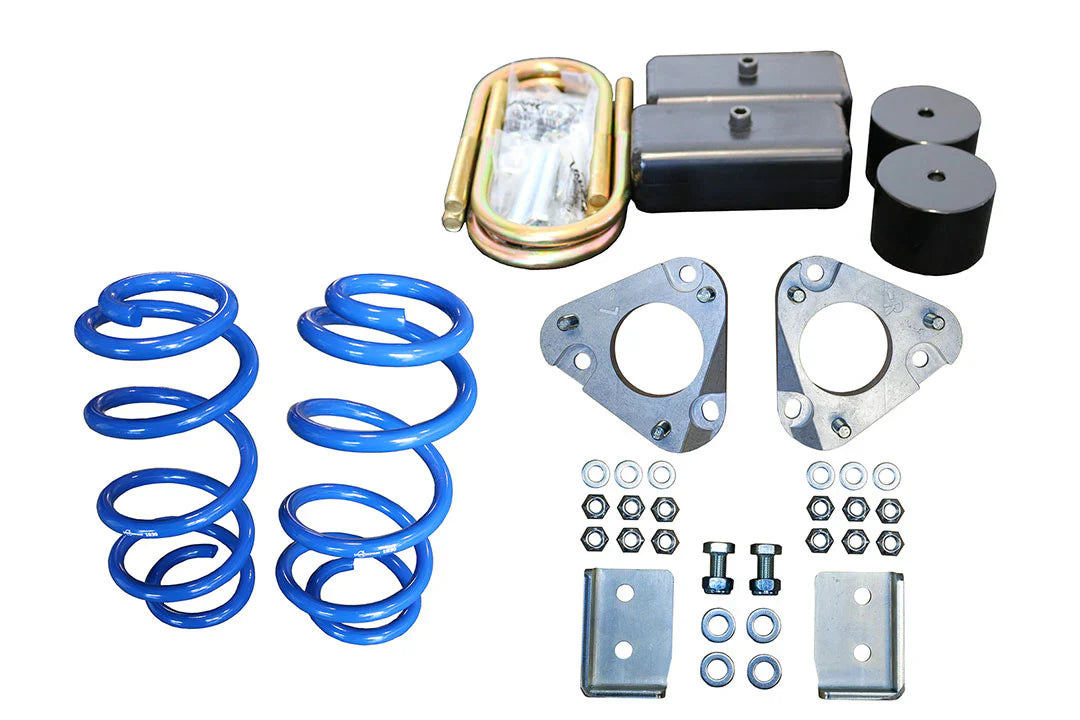

The Stage 2 Topo 2.0 kit includes a precision-engineered 0.75" lift camber correction plate paired with tuned coil springs, providing an additional 1.25" of front lift and increased compression travel for better handling on rough roads and uneven terrain. Rear lift is accomplished with a 2" billet aluminum block and bump stop spacers, preserving proper rear suspension geometry. Rear shock relocation brackets are also included, allowing the low-hanging factory mounts to be trimmed for improved axle clearance and better overall ground clearance.

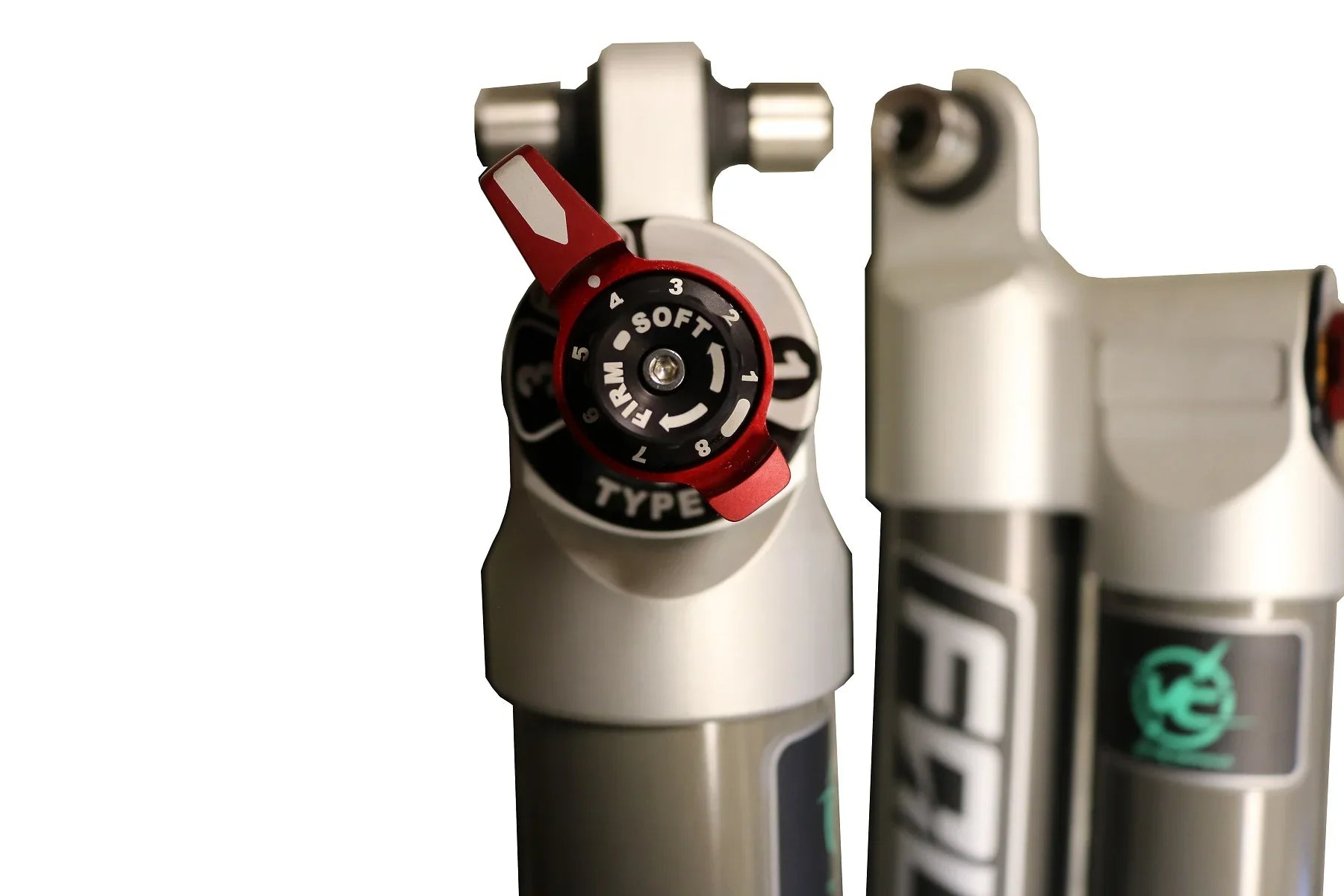

At the heart of this system are VC-tuned Falcon 3.3 Adjustable Rear Shocks, featuring 10 intuitive firmness settings controlled by a large, easy-to-access Fast Adjust knob. Quickly switch between soft, compliant ride settings for rough terrain and firm, stable settings for highway travel. This wide range of adjustability offers superior control and adaptability across all driving conditions.

Key Features

• Fits 2018+ Ford Transit AWD/RWD (Single and Dual Rear Wheel)

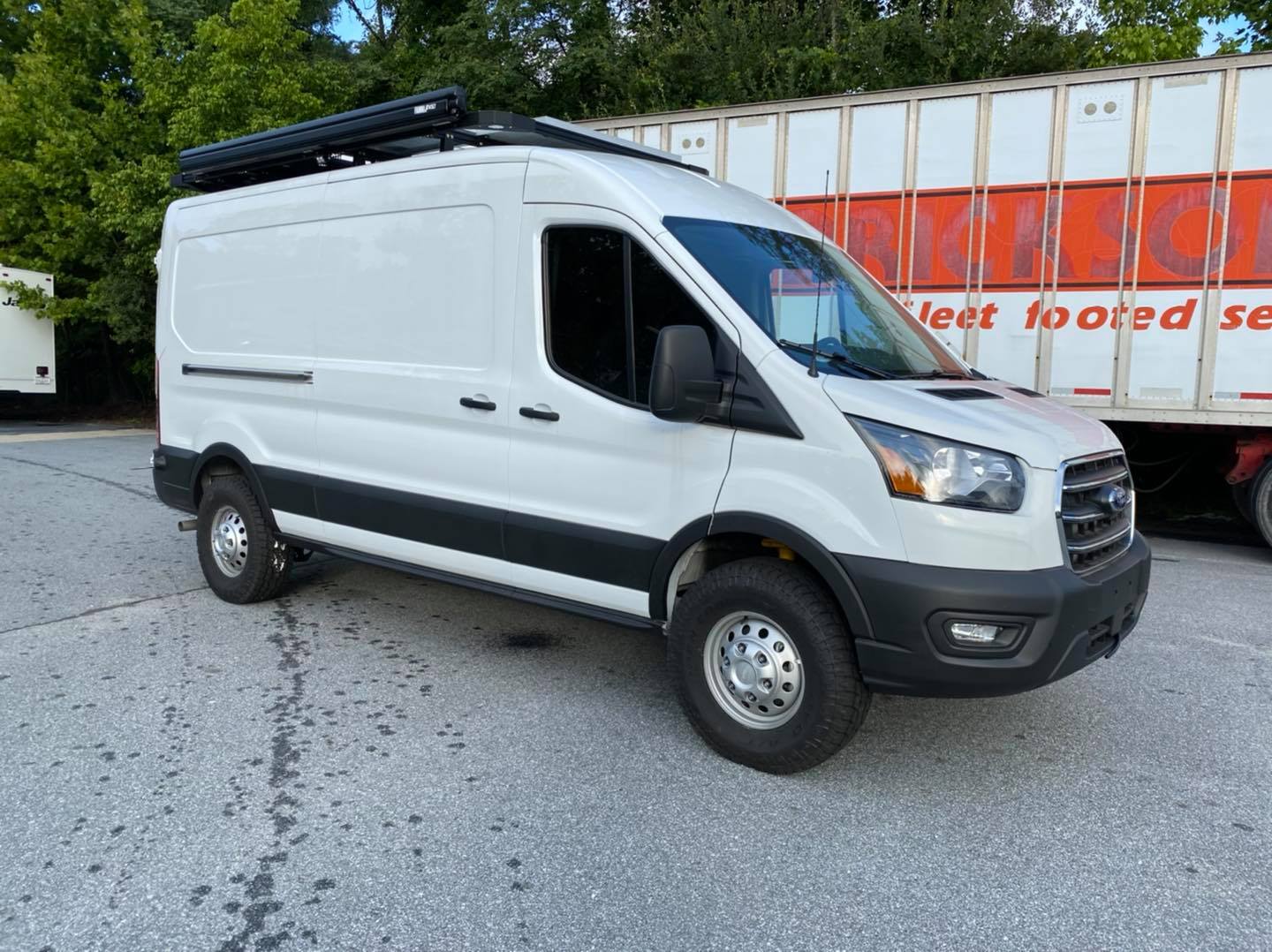

• Aggressive, 2" taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 3.3 Adjustable rear shocks with 10 intuitive firmness settings

• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps

• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

What's Included?

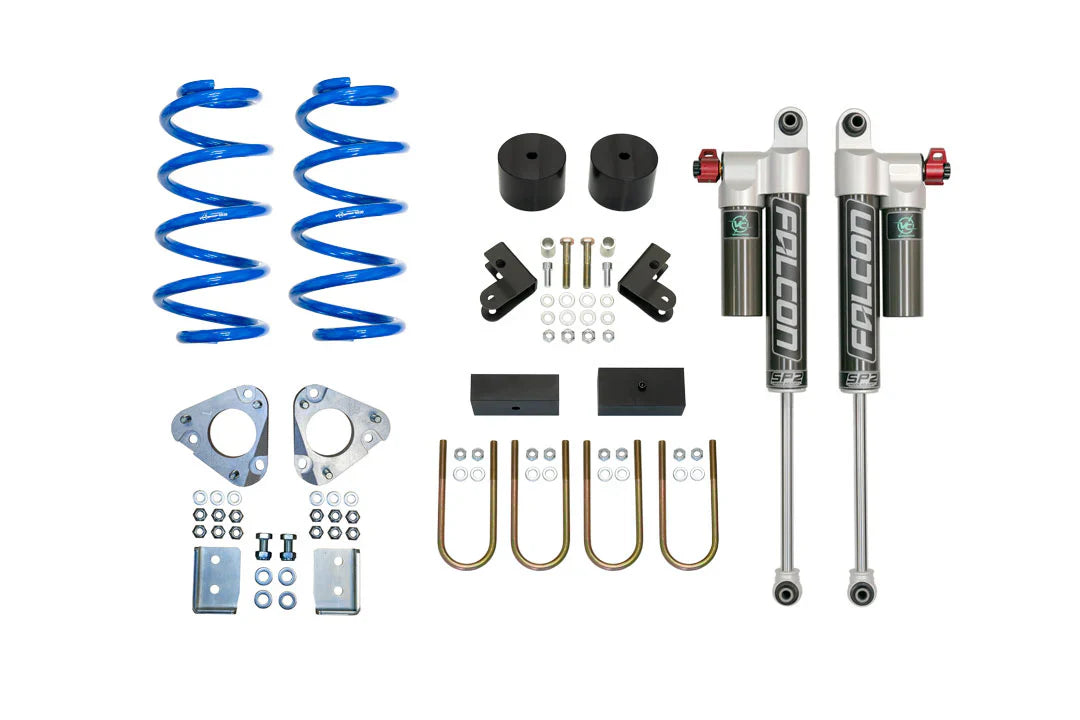

• Topo 2.0 Front and Rear Lift Kit

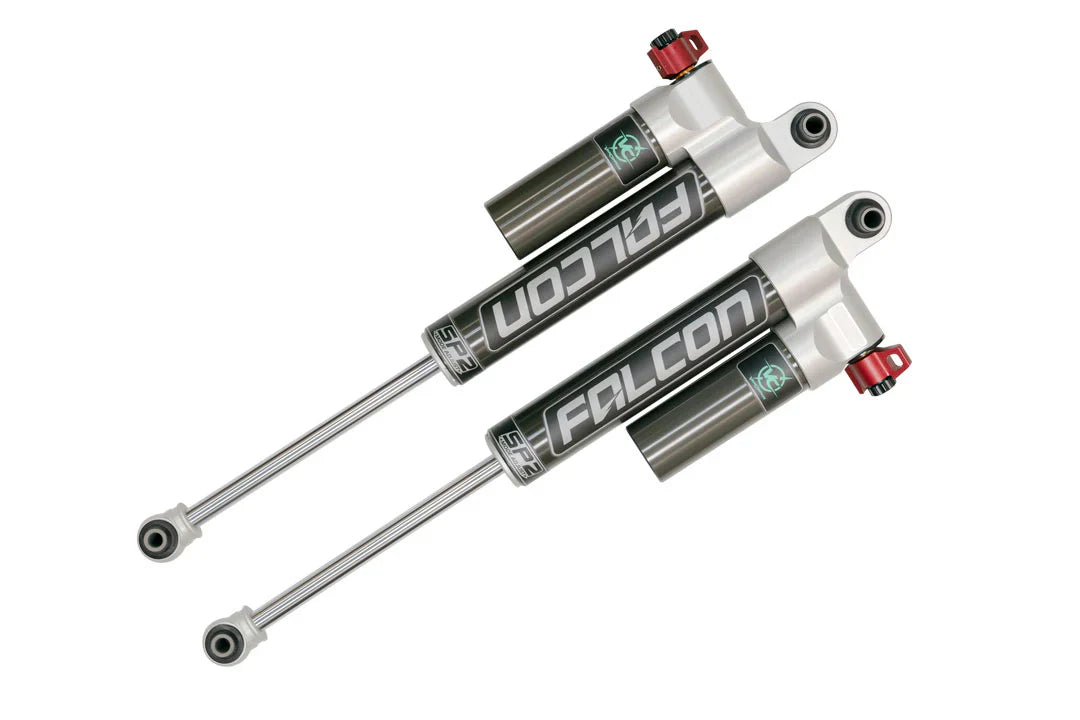

• Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)
• High Clearance Rear Shock Brackets

Fitment Guide

MODEL: TRANSIT

YEAR: 2018-PRESENT

DRIVE TYPE: AWD & RWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

NOTES: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

NOTE: Bilstein B6 strut not recommended for AWD models.

Documents

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Falcon 3.3 Shock Settings Guide
