Van Compass 2015+ Mercedes Sprinter Falcon 3.3 SP2 Fast Adjust Rear Shocks

$1,126.95

Shipping calculated at checkout.

Shock Version: Mid - Less than 8500lb

Mid - Less than 8500lb Heavy - More than 8500lb

JOIN VAN LAND CLUB

Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more

Part#
VCMP-3041 - Mid - Less than 8500lb
VCMP-3042 - Heavy - More than 8500lb

This fully adjustable Falcon Shock has been developed to improve the Mercedes Striker 4x4 Sprinter's handling both on and off the trail. Our custom-tuned Falcon shocks smooth out the harshness experienced on washboard roads and sharp, abrupt impacts. The bounce experienced over large bumps is reduced and the side to side sway over uneven surfaces is minimized.

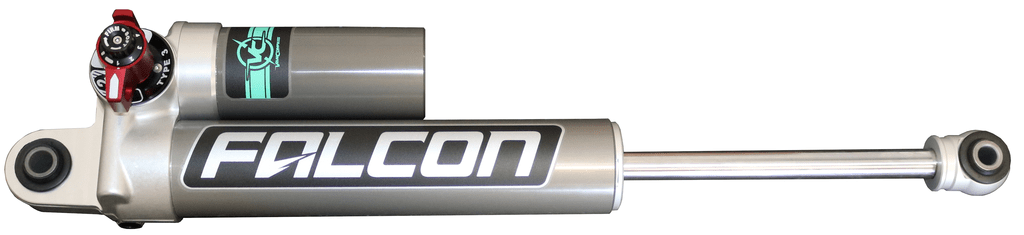

Aluminum bodied, 2.25 diameter piggyback reservoir shocks offer a huge range of adjustment. The SP2 mode adjust feature is an internal bypass valve (free bleed circuit) that is adjusted by rotating the shaft when the shock is fully extended. Closing off the internal bypass valve by rotating the shock shaft will drastically change the shock rebound and compression characteristics. This setting is chosen when installing the shocks based on vehicle weight and ride preference.

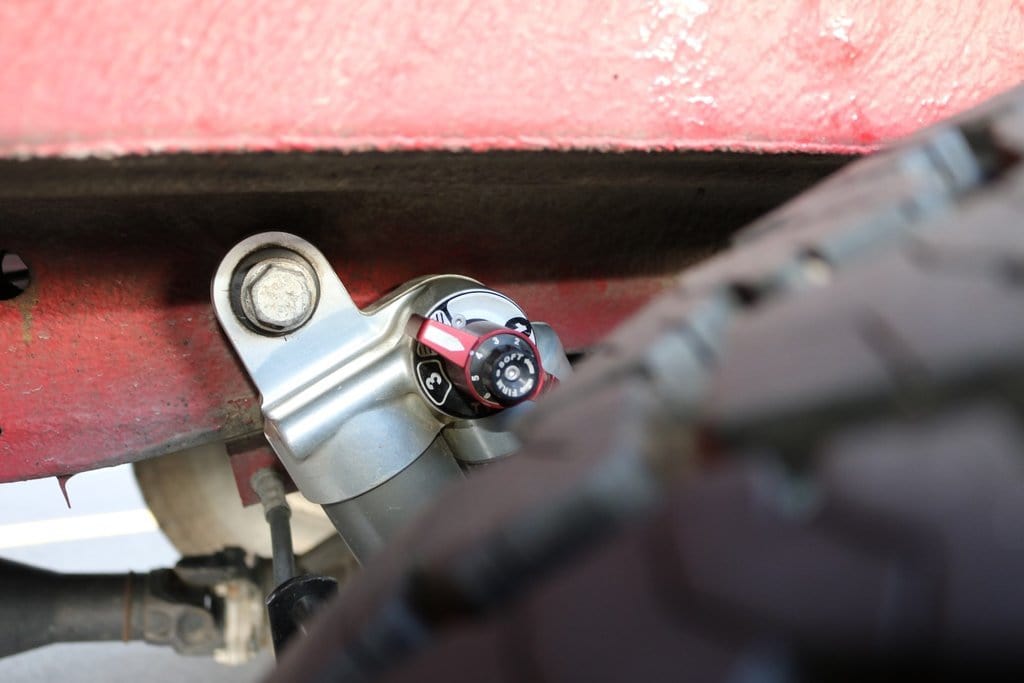

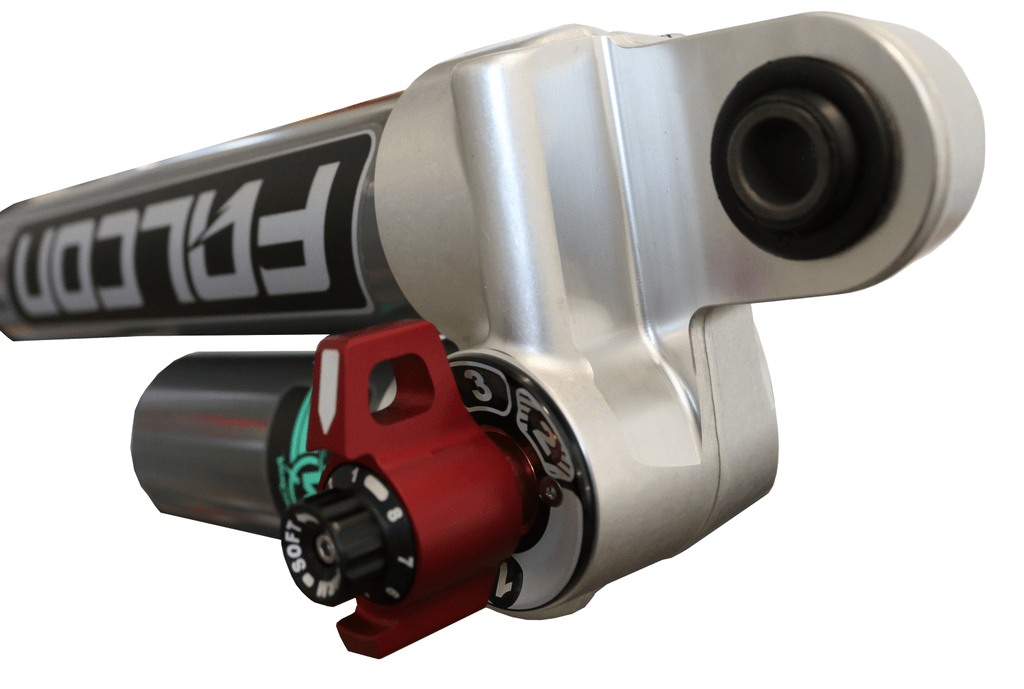

The 3.3 fast adjust knob offers quick and easy compression adjustment when the shock is installed. Position one is the lightest setting, great for blasting down washboard roads or rough city streets. Position 2 is a mid setting with 8 micro-adjustments, a great way to dial in the ride and handling setting for driver preference. Position 3 is the firmest setting, used for occasional heavy loads or when driving conditions require the most control.

Falcon 3.3 fast-adjust rear shocks deliver the ride quality and handling precision that adventure van owners demand. These purpose-built dampers excel at managing both large impacts and small vibrations, while the innovative red adjustment knob lets you fine-tune compression on the fly‚Äîno tools required. Choose from three settings: Position 1 for rough terrain, Position 2 with eight micro-adjustments for dialing in your perfect daily setup, or Position 3 for maximum control under load. The SP2 mode feature adds a second tuning profile via an internal bypass port, effectively giving you two shocks in one. Engineered specifically for 2015+ Mercedes Sprinter vans, these left-right paired shocks reduce wind sway and body roll while keeping your rig planted and comfortable mile after mile.

¬†

Key Features

Fits 2015+ Mercedes Sprinter 4x4
10 compression damping settings with the 3.3 fast adjust knob
Internal SP2 free bleed adjustment allows for 2 distinct tune profiles
Increase in comfort and vehicle control
Enhanced cornering stability
Reduced sway and wind buffeting
Controls large and small bumps more effectively than factory shocks
2.3" aluminum body dissipates heat and resists corrosion.
Full 2" Damper piston (238% increase over stock)
3/4" diameter hard chromed shaft resists impact and corrosion.
High pressure nitrogen charge ensures cavitation free operation

What's Included?

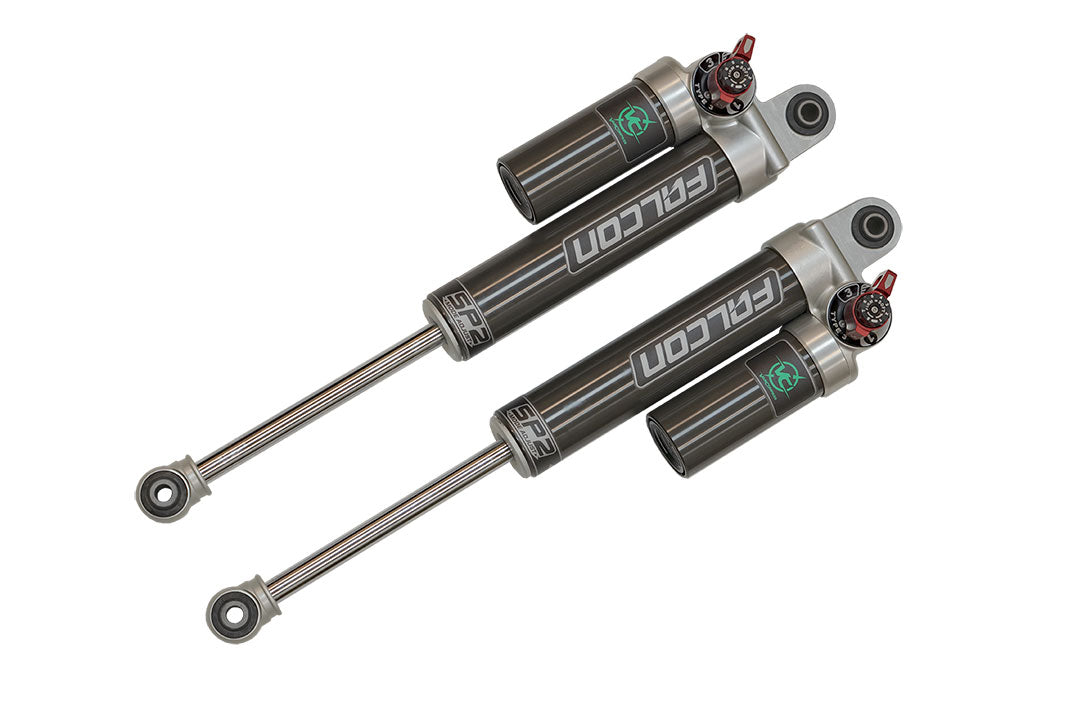

Tuned 3.3 Fast Adjust Reservoir Shocks, 1 pair
Shock Boots

Fitment Guide

MODEL:¬†SPRINTER 2500

YEAR:¬†2015-PRESENT

DRIVE TYPE:¬†4X4 and AWD

NOTE:¬†NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Documents

NCV3, VS30 4x4 Falcon 3.3 Rear Shock Installation Instructions

Falcon 3.3 Shock Settings Guide
