Van Compass 2015+ Mercedes Sprinter AWD 4X4 3500) - Stage 4.3 Dually System Mid/Heavy Tune

$4,970.60

Shipping calculated at checkout.

JOIN VAN LAND CLUB

Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more

Part#
VCMP-7203-MH

Make your van the ultimate adventure machine with¬†Van Compass 2015+ Mercedes Sprinter AWD 4X4 3500) - Stage 4.3 Dually System Mid/Heavy Tune¬†suspension package.

The Van Compass 2015+ Mercedes Sprinter AWD 4X4 3500) - Stage 4.3 Dually System Mid/Heavy Tune¬†is the best-selling solution for adventure vans, conversion vans, Class B RVs, and passenger vans operating near or over GVWR. Designed to correct common handling problems associated with heavy builds, this system dramatically improves stability, ride comfort, and control both on and off-road.

At the core of the Stage 4.3 kit are VC-tuned Falcon 3.3 Adjustable Shocks, featuring 10 intuitive firmness settings easily controlled through the large, accessible Fast Adjust knob. Whether you need a softer ride for rough off-road trails or firmer control for highway travel and windy conditions, the shocks offer a broad adjustment range unmatched by competitors, ensuring maximum adaptability and improved handling dynamics.

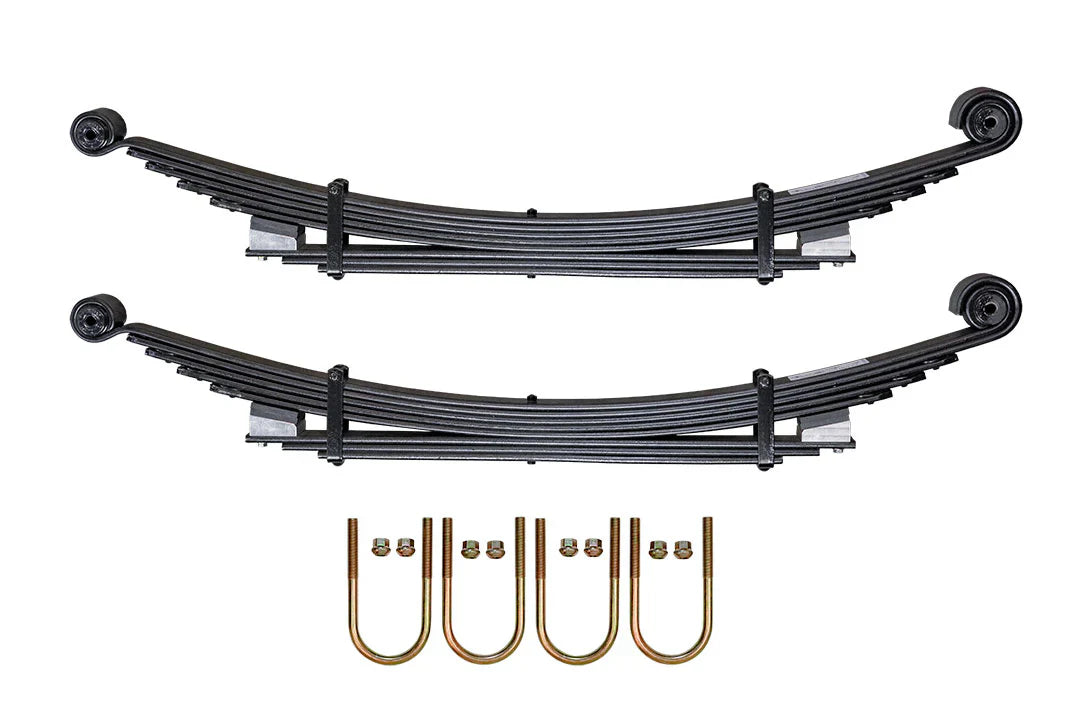

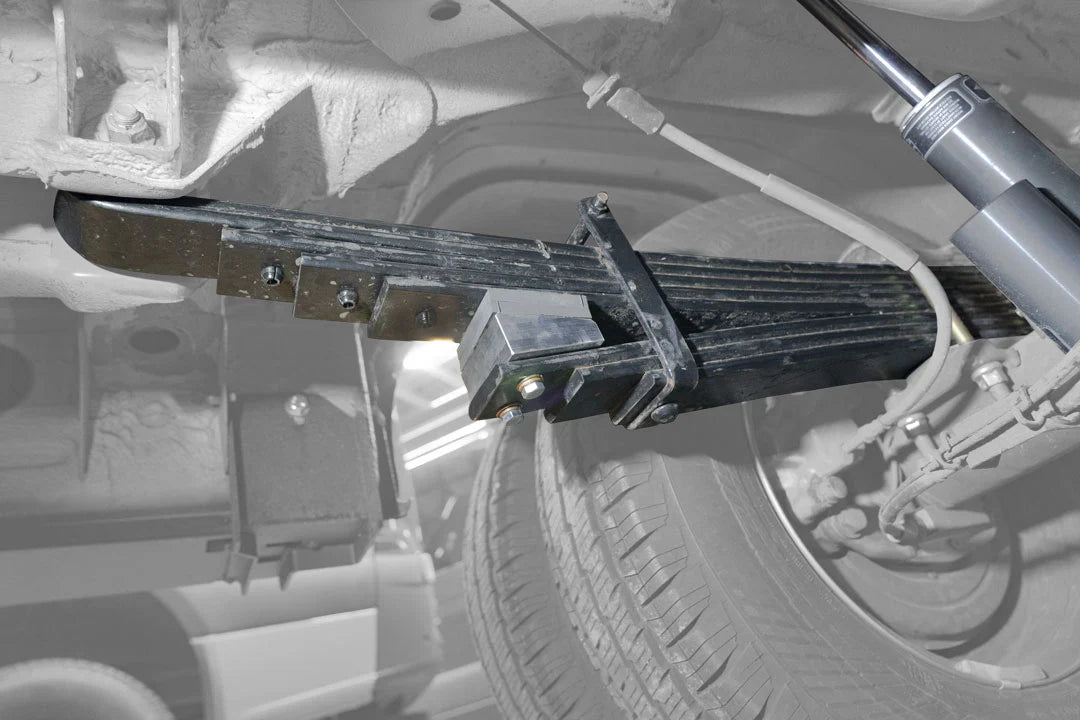

The Opti-Rate rear leaf spring pack is engineered for flexibility across different van weights, restoring approximately 1.25" of rear lift to correct sag while maintaining a smooth, quiet ride. This upgrade results in a balanced, leveled stance without sacrificing the factory ride comfort your Sprinter was built to deliver.

Additionally, our progressive foam Bump Buddy replacement jounce bumpers replace the stiff factory rubber stops, offering smoother spring progression, reducing sway, and increasing bottom-out resistance ‚Äî all without adding unnecessary clunking or harshness.

NOTE:¬†Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

NOTE:¬†NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

STAGE 4.3 DRW - SPRINTER 3500 4X4 | 15-22 - FALCON 3.3 MID/HEAVY TUNE

Key Features

Fits 2015+ Mercedes Sprinter 4x4 AWD 3500 Dually vans only
VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings
Restores lost ride height and reduces sagging
Enhanced cornering stability and reduced wind sway
More effective control over large and small bumps
Improved handling feel on rough roads and broken pavement
Increased bottom out resistance
100% bolt on

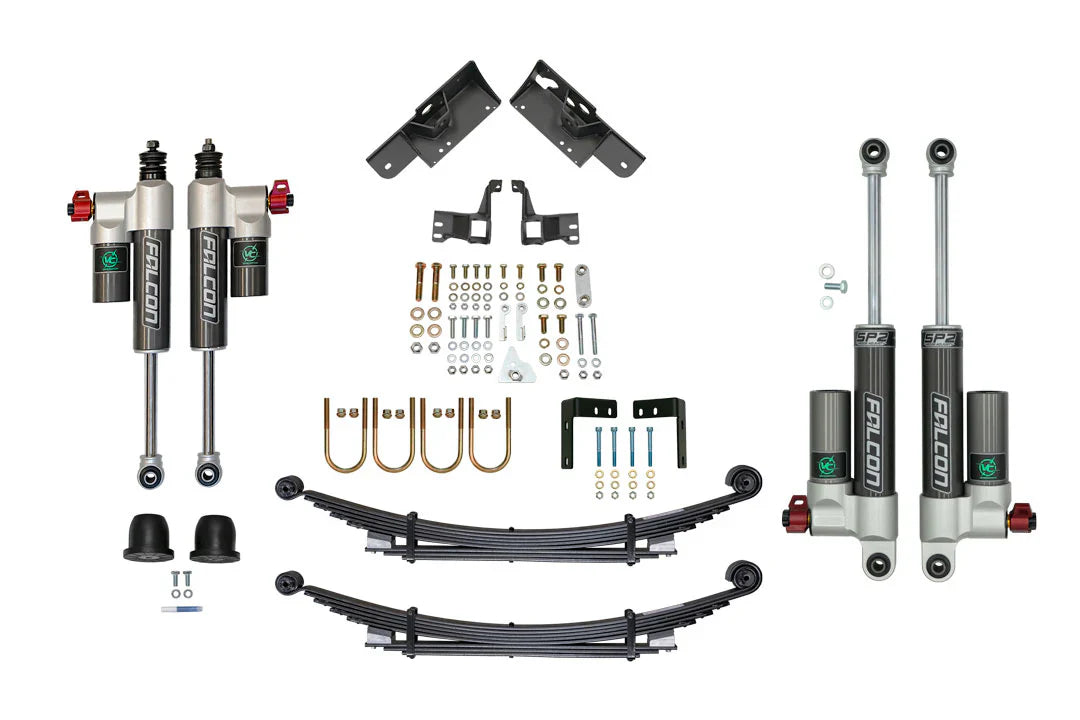

What's Included?

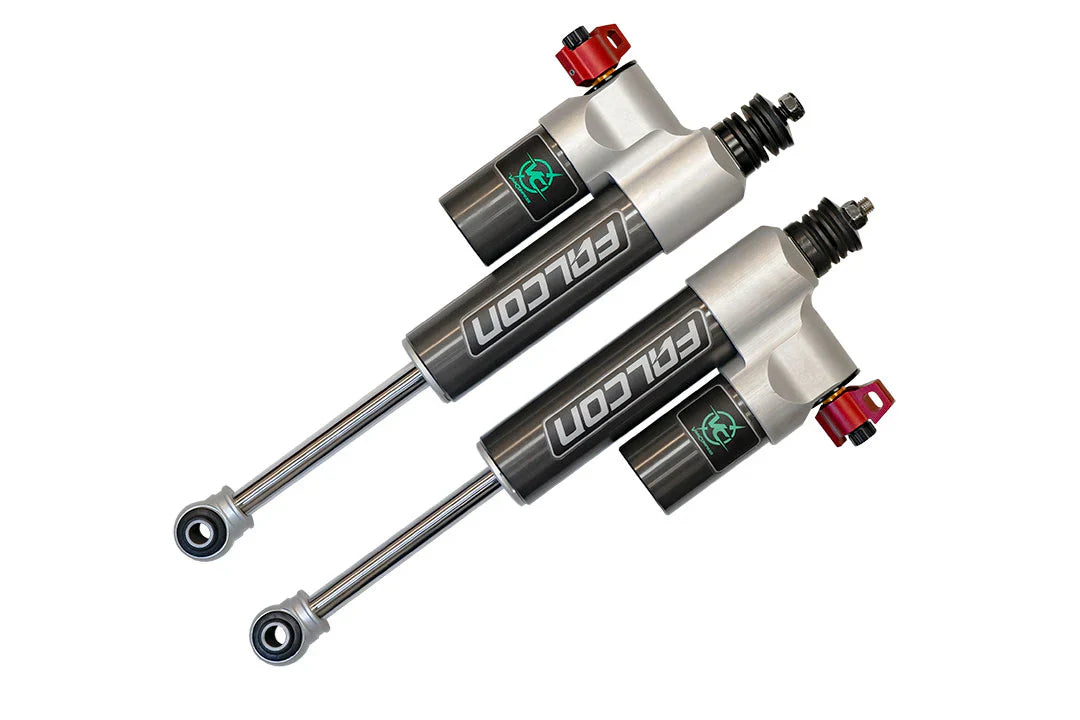

Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
Front Bump Buddies

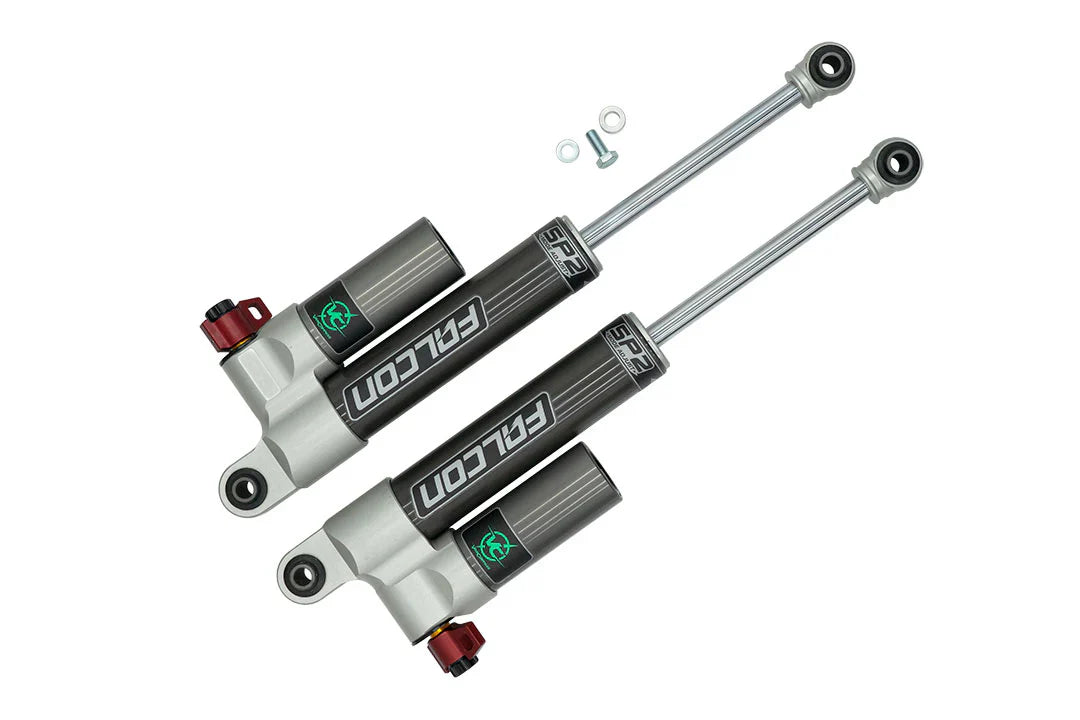

Falcon 3.3 Fast Adjust Rear Shocks with SP2
Opti-Rate Full Replacement Rear Leaf Spring System
Dust boots for all 4 shocks.
All necessary hardware and instructions for a simple installation

Fitment Guide

MODEL:¬†SPRINTER 3500

YEAR:¬†2015-PRESENT

DRIVE TYPE:¬†4X4 and AWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT?¬†USE THE CAT SCALE LOCATOR<<

NOTE:¬†Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

NOTE:¬†NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
