Van Compass 2015+ Mercedes Sprinter 4x4 and AWD - Falcon 3.3 Fast Adjust Inverted Rally Struts

Part#
VCMP-1051 (New Units!)

The pinnacle of suspension performance is being shifted to a new apex with our new inverted front struts, co-developed with Falcon. Using proven damper technology from Falcon, along with our expertise in chassis tuning, the result is a truly phenomenal increase in damping performance, which translates to more stable and predictable handling, greater control across all conditions, and the ability to actually use the suspension to its full potential on and off road. Further, the struts ideal location near the wheel makes the 3.3 Fast Adjust compression adjustment even more effective.

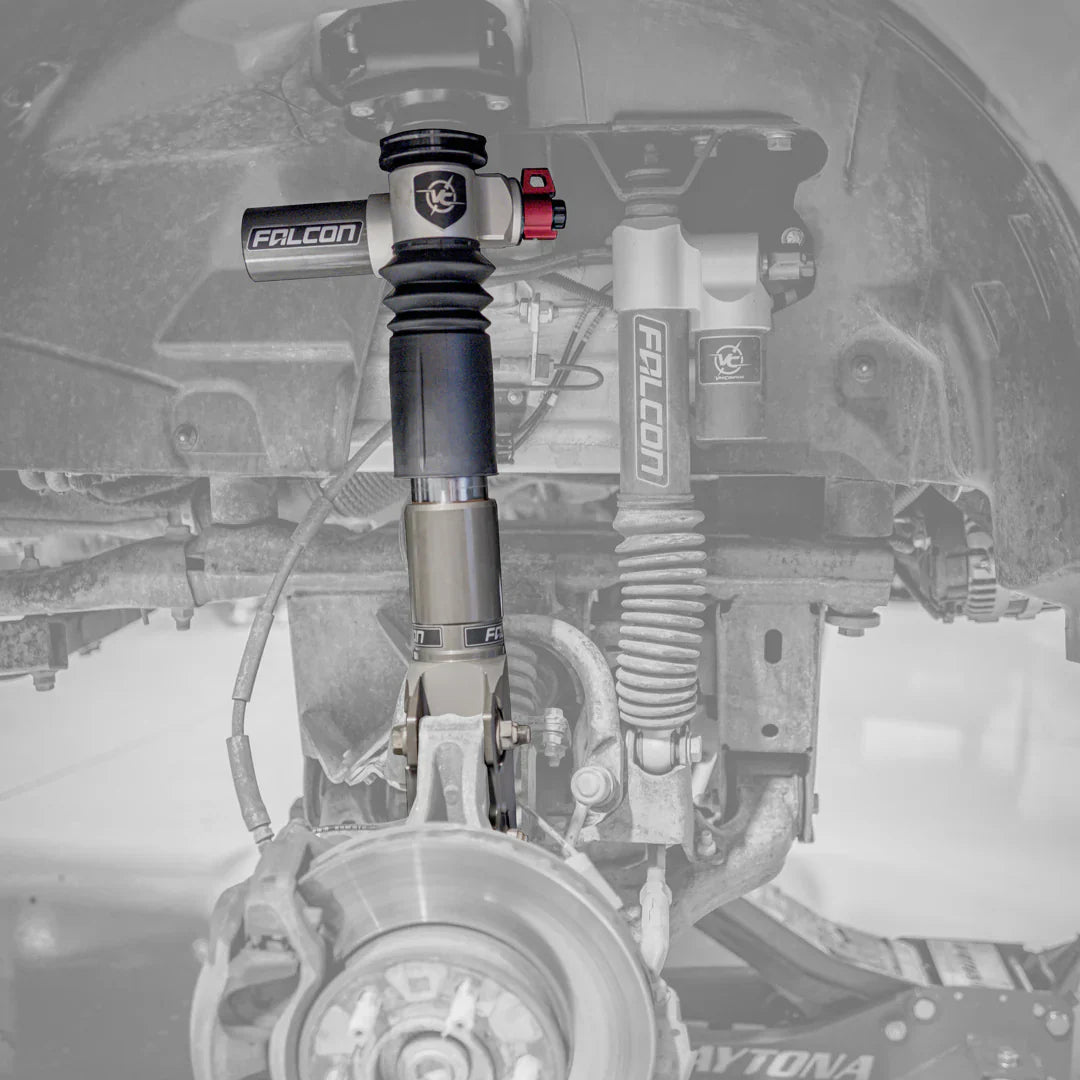

Inverted dampers flip the idea of the conventional strut upside down, and use the damper body as the upper strut shaft, with the load bearing unit contained in a massive lower housing that connects to the steering knuckle. This is the same application of technologies you will find on Dakar and World Rally Championship cars, which see some of the harshest driving conditions imaginable.

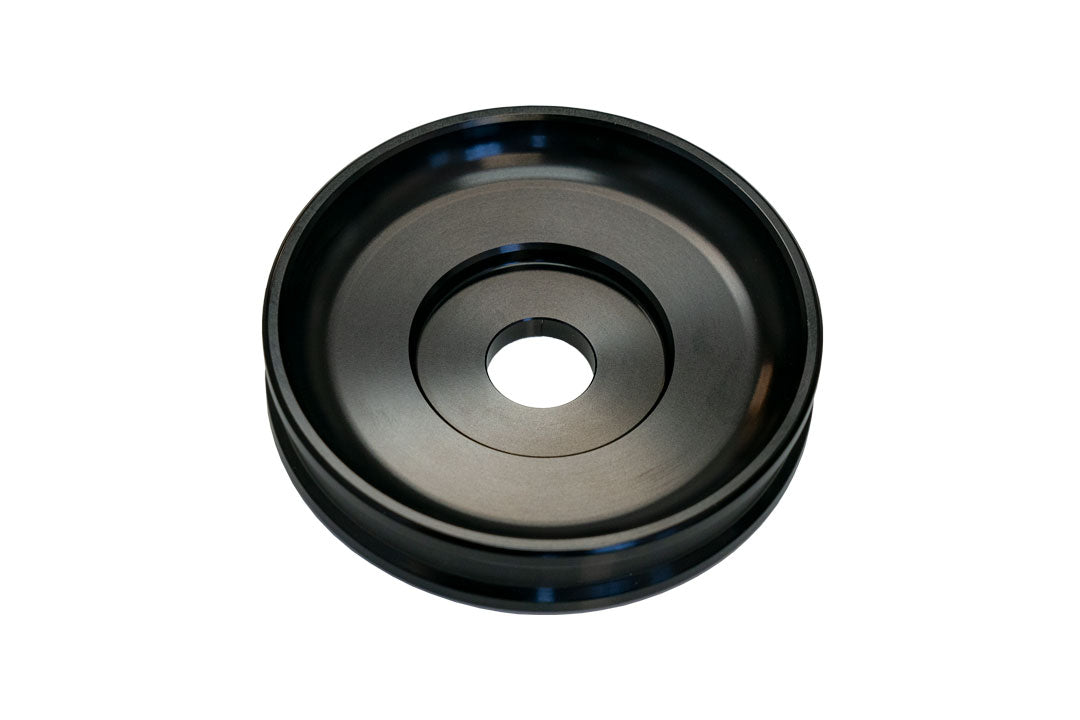

Our proprietary 'Rate Cup' retains the OEM strut bushing for easy installation and retention of OEM NVH characteristics by preloading the bushing for tighter road feel. This dispersing the damping forces over the entire surface area of the bushing to prevent annoying clunks and premature bushing wear common with competing solutions.

Key Features

• Fits 2015+ Mercedes Sprinter 4x4 and AWD vans
• Significantly increased load bearing surface area for long service life

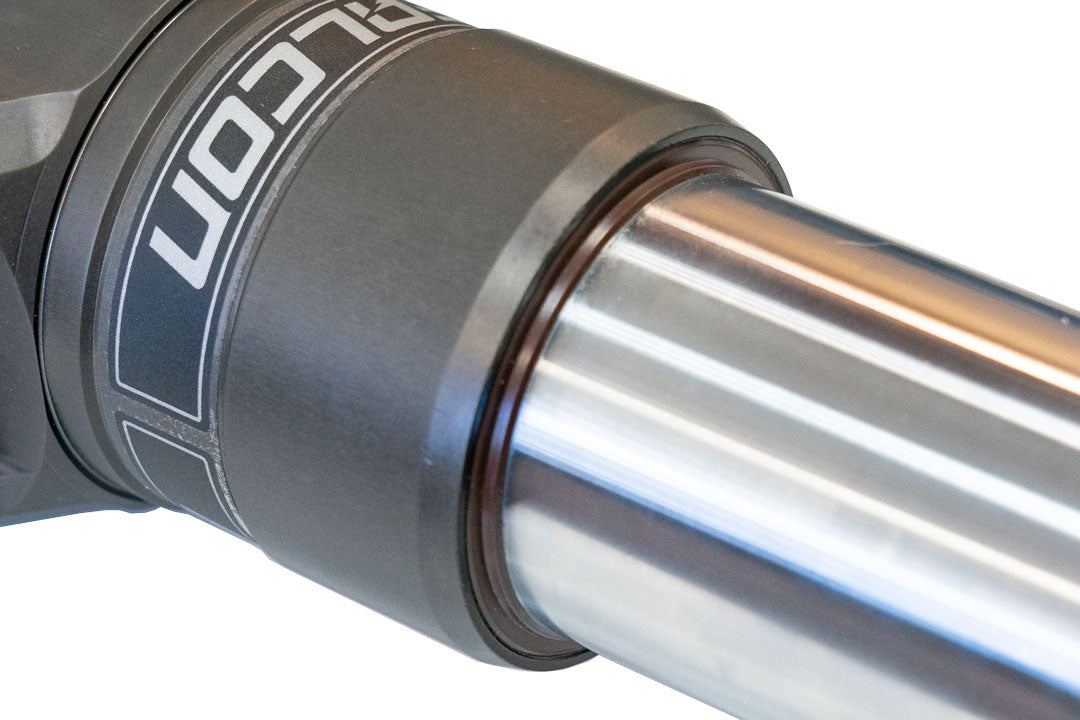

• Damper shaft and seal surfaces are protected inside lower housing
• Much larger damping piston vs OEM
• Greater clamping force for alignment specs

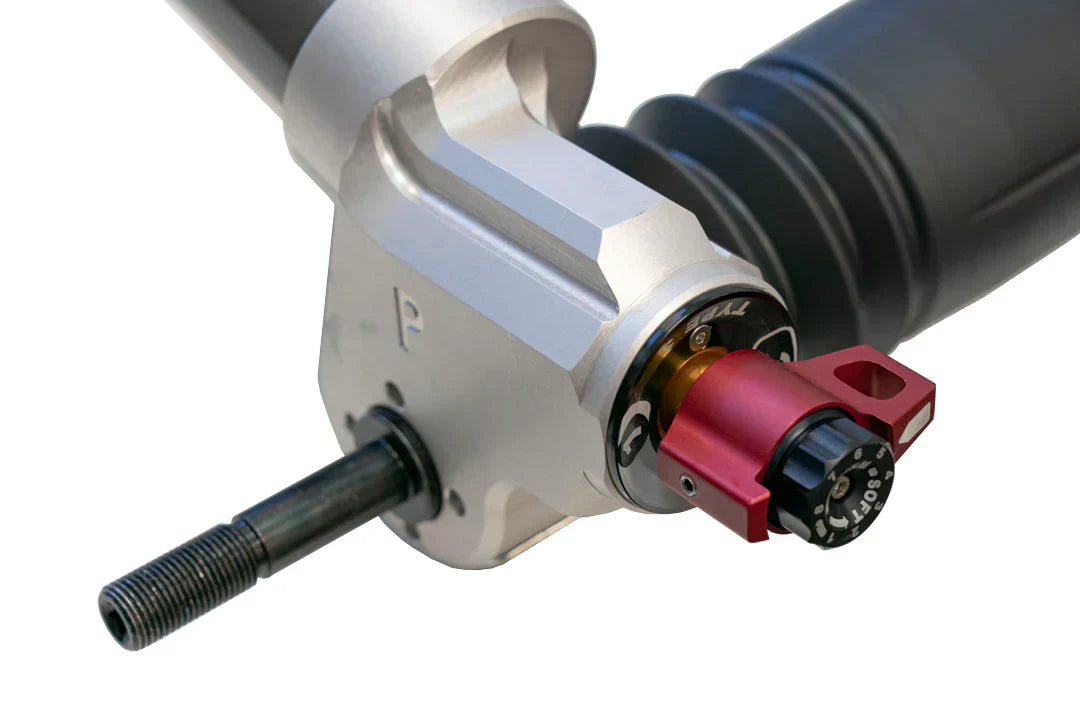

• 10 position adjustable compression adjustment

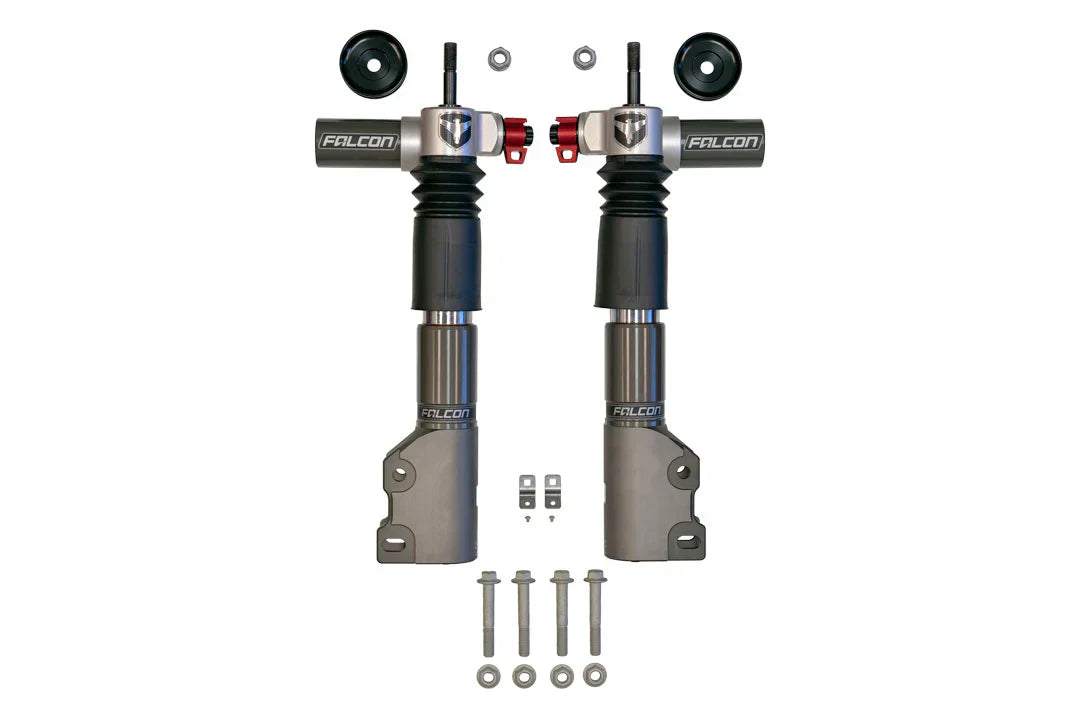

What’s Included?

• Tuned 3.3 Fast Adjust Rally Struts, 1 pair
• Rate Cup, Bushing Preload Washer, 1 pair
• Shock Boots
• Mounting Hardware

Fitment Guide

MODEL: SPRINTER 2500 and 3500

YEAR: 2015-PRESENT

DRIVE TYPE: 4X4 and AWD

NOTE: Vans with shock brackets made before October 2022 will either need their brackets modified, or the latest shock brackets, VCMP-7042-UPPERS.

Documents

Van Compass 3.3 Inverted Rally Struts - 2015+ Mercedes Sprinter 4x4 and AWD Installation Guide
