Van Compass 2015+ Mercedes Sprinter 4X4 2500/3500 - Front Falcon 3.3 Fast Adjust Shock Kit

Part#
VCMP-7128

Need a major upgrade for your Sprinter’s ride quality and handling? The Van Compass 2015+ Mercedes Sprinter 4X4 2500/3500 - Front Falcon 3.3 Fast Adjust Shock Kit are designed to transform your Sprinter 4x4’s performance both on and off the road. Built to address the stiff factory ride, excessive sway, and rough impacts common in Sprinter vans, these custom-tuned shocks deliver a dramatically smoother, more controlled driving experience across all terrains.

Each set of 3.3 Fast Adjust Shocks is tuned specifically to your van’s weight range, ensuring optimal performance whether fully loaded or lightly packed. Designed as left and right pairs, the easy-to-access Fast Adjust knob is positioned for quick changes, allowing you to fine-tune your ride quality in seconds without removing the shocks.

The 3.3 Fast Adjust system offers 10 compression damping settings and an internal SP2 free bleed adjustment, giving you two distinct tuning profiles for maximum versatility. Position 1 delivers the lightest setting, perfect for blasting down washboard roads and rough city streets. Position 2 offers a mid-range setting with 8 micro-adjustments to fine-tune handling for driver preference. Position 3 provides the firmest ride, ideal for heavy loads or demanding driving conditions.

Built with a 2.3" aluminum body and 2" internal damper piston, these shocks offer superior heat dissipation, corrosion resistance, and impact control, providing a 238% performance increase over stock.

Key Features

• Fits 2015+ Mercedes Sprinter 4X4 2500/3500
• 10 compression damping settings with the 3.3 fast adjust knob
• Internal SP2 free bleed adjustment allows for 2 distinct tune profiles
• Increase in comfort and vehicle control
• Enhanced cornering stability
• Reduced sway and wind buffeting
• Controls large and small bumps more effectively than factory shocks
• 100% bolt on with basic tools
• 2.3" aluminum body dissipates heat and resists corrosion.
• Full 2" Damper piston (238% increase over stock)
• 3/4" diameter hard chromed shaft resists impact and corrosion.
• High pressure nitrogen charge ensures cavitation free operation

• Proudly made in the USA by Van Compass.

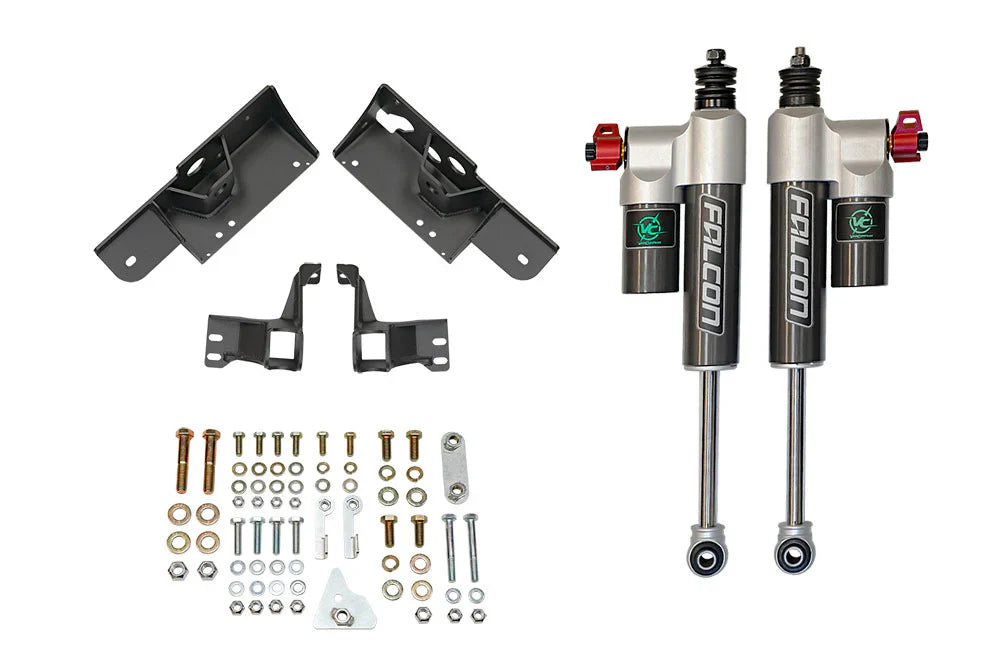

What's Included?

• Tuned 3.3 Fast Adjust Reservoir Shocks, 1 pair
• Auxiliary Front Shock Bracket Set
• Shock Boots
• Mounting Hardware

Fitment Guide

MODEL: SPRINTER 2500

YEAR: 2015-PRESENT

DRIVE TYPE: 4X4 and AWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

Recommended Wheel Size: 17" x 8.5", +45mm offset

WHEEL FITMENT NOTE: 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.

NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

Documents

2019+ VS30 4x4 Falcon Front Shock Installation Instructions

Falcon 3.3 Shock Settings Guide
