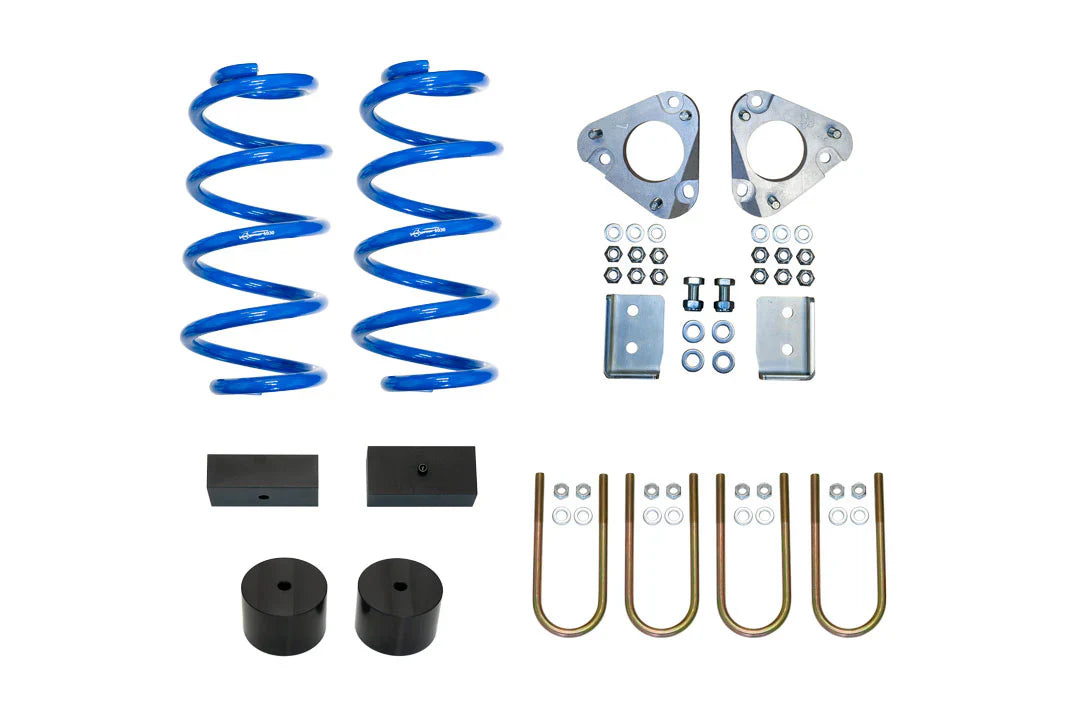

Van Compass 2015+ Ford Transit Topo 2.0 Front and Rear Lift Kit (Single or Dual Rear Wheel)

Part#
2015-2017 models: VCMP-7095
2018+ models: VCMP-7097

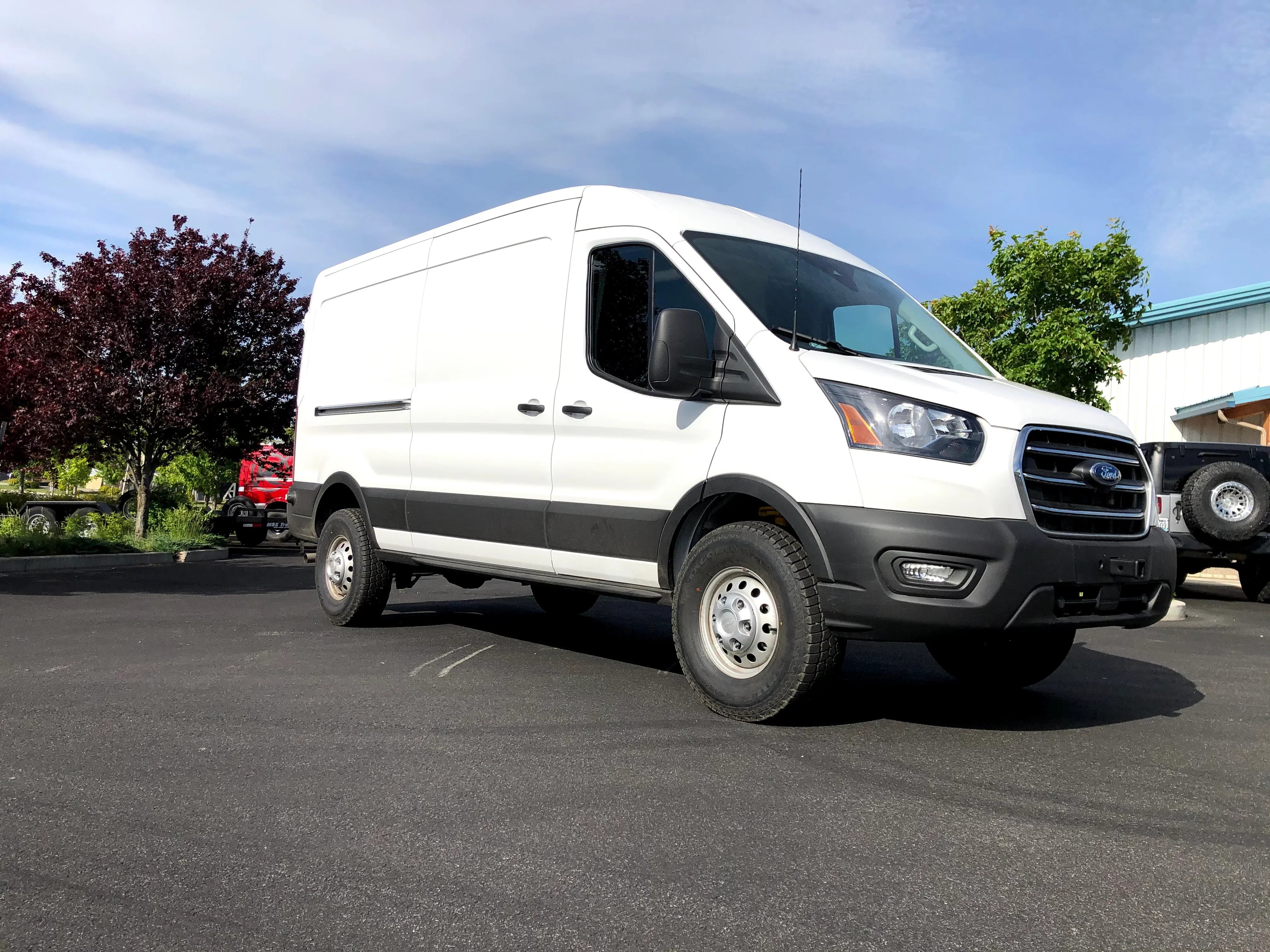

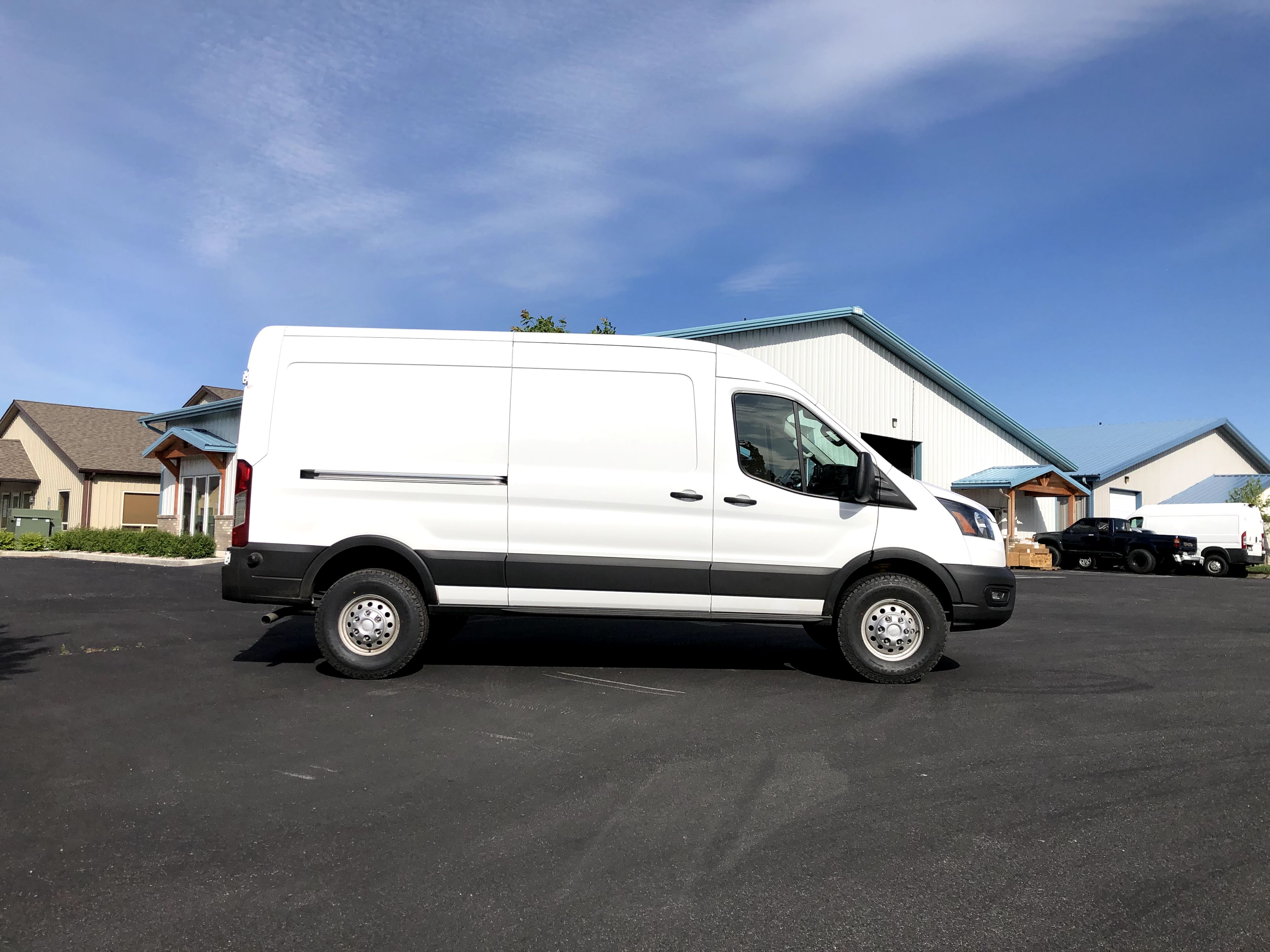

Improve the ride quality and stance of your Ford Transit with the Van Compass 2015+ Ford Transit Topo 2.0 Front and Rear Lift Kit (Single or Dual Rear Wheel), developed specifically to work around the packaging and front CV shaft constraints presented with the 2020 AWD Transit platform, this kit is compatible with both RWD and AWD Transit models from 2015-present to deliver a true 2.0” of quality suspension lift.  This kit fits both single- and dual-rear-wheel vans.

Improve the ride quality and stance of your 2013-Present Ford Transit with the Van Compass Ford Transit Topo 2.0 front and rear Suspension Package. Developed specifically to work around the packaging and front CV shaft constraints presented with the 2020 AWD Transit platform, this kit is compatible with both RWD and AWD Transit models from 2013-present to deliver a true 2.0" of quality suspension lift. This kit fits single and dual rear wheel vans.

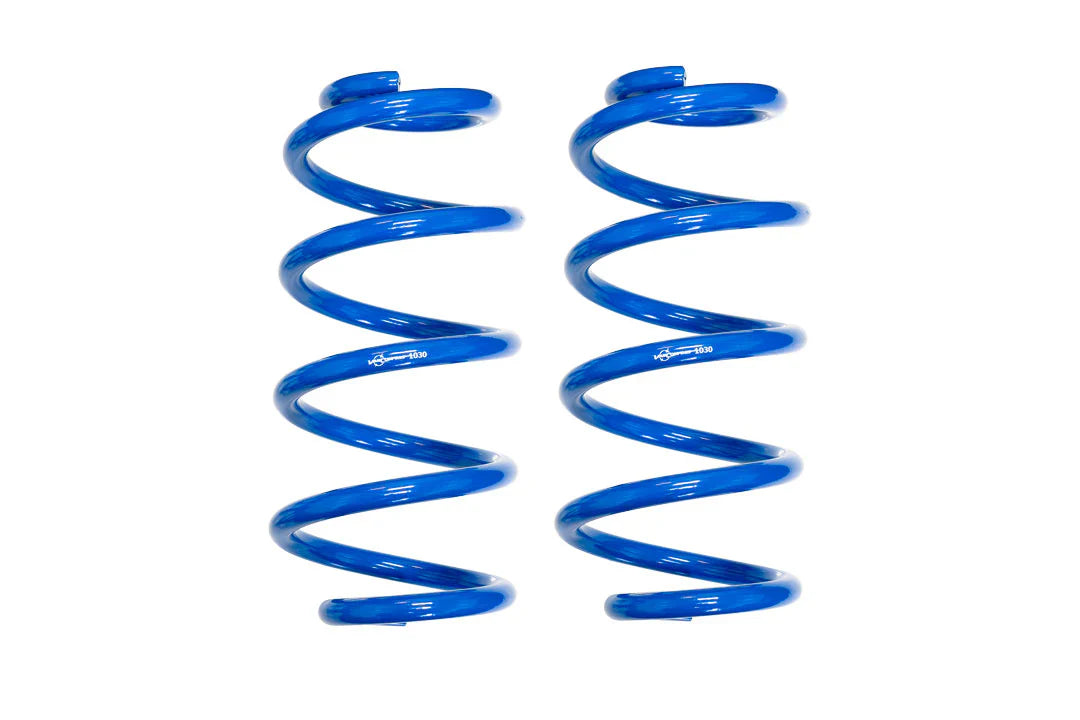

The first component is a carefully engineered 1.25" lift coil, which coil retains the factory spring rate and returns the same plush ride as OEM while sitting 1" higher in the suspension travel for an increased 1.25" of compression travel. Note, spring lift heights will vary due to weight but we typically see 1.25" of lift out of our Transit springs over the factory springs.

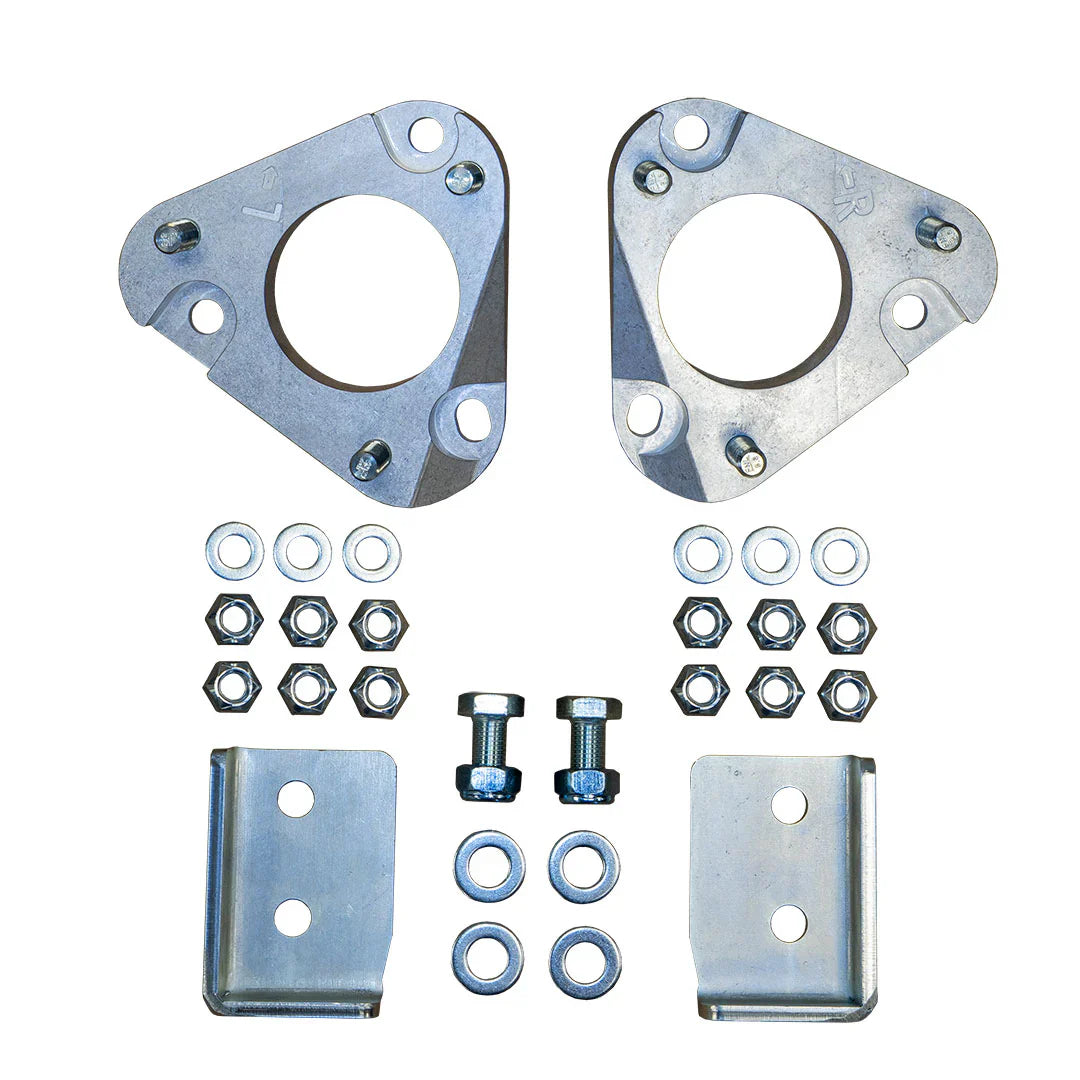

The second critical component of the Topo 2.0 kit addresses one of the downsides to the Ford Transit platform which is the lack of any real camber or caster adjustment built into the front suspension design of the van. This comes into play when trying to lift the vehicle for more ground clearance and improved ride quality since nearly any amount of lift will put the vehicle out of alignment specs and increase tire wear. An additional hurdle presented with the AWD Transit platform is the extremely short passenger side CV shaft. This CV joint will go into a bind if it is over-extended by more than 1.0" of additional droop over stock. To remedy the alignment issues as well as not over-extend the passenger side CV shaft on AWD models, we developed a 3/4" strut spacer with built in camber and caster correction for the 2.0" of total lift gained when installing the 1.0" lift coils and strut spacer to have a complete front end upgrade that won't accelerate wear on other critical suspension and steering components such as control arm bushings, tie rod ends and front axle shafts on AWD models. Front sway bar link extensions are included to maintain proper sway bar position.

For optimum ride quality improvement, pair the Topo 2.0 front kit with a Bilstein B6 strut for an additional 5/8" of lift and a great improvement in damping control. The Bilstein strut has the coil spring perch welded onto the strut body at a¬†5/8" higher height than the factory strut which preloads the coil spring an additional 5/8" for slightly more lift. The one disclaimer we must specify for AWD models is the Bilstein strut shaft is approximately 7/8" longer than the OEM strut which means at full droop the suspension is at a total of +1-5/8" of extended downward travel which does put the passenger side CV joint into a bind at droop. We cannot guarantee optimum CV life with this setup and do not recommend running Bilstein struts on AWD vans.

We recommend running a maximum tire size of 265/75R16 with this suspension package. This tire size will require some trimming of the inner pinch seam, details of which are covered in the instructions for this kit. With a Bilstein strut, an astounding 12-3/4" of ground clearance is achieved under the center of the front suspension cross member with this tire size.

Key Features

• Designed for 2015+ Ford Transit RWD and AWD vans only
• Engineered specifically to address 2020+ AWD CV shaft and suspension constraints
• Provides a true 2.0" suspension lift for improved stance, ride quality, and ground clearance
• Fits both single and dual rear wheel Transit vans
• Includes a 1.25" front lift coil that retains factory spring rate and OEM-like ride comfort
• Lift coil increases compression travel by positioning the suspension higher in its travel
• Spring lift height typically achieves ~1.25", depending on vehicle weight
• Features a 3/4" strut spacer with built-in camber and caster correction
• Maintains proper alignment specs and helps prevent accelerated tire wear
• Prevents over-extension of the passenger-side CV shaft on AWD models
• Reduces stress on suspension and steering components, including control arm bushings and tie rod ends
• Includes front sway bar link extensions to maintain correct sway bar geometry
• Optional pairing with Bilstein B6 struts (RWD only) adds ~5/8" of additional lift and improved damping
• Bilstein struts not recommended for AWD models due to CV joint binding at full droop
• Supports a maximum recommended tire size of 265/75R16
• Minor inner pinch seam trimming required for larger tire fitment (instructions included)
• Achieves up to 12-3/4" of ground clearance under the front suspension cross member with recommended tire size and Bilstein struts

Fitment Guide

MODEL: TRANSIT

YEAR: 2015-PRESENT

DRIVE TYPE: AWD and RWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

NOTE: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

Documents

2015+ Transit Topo Front Kit Installation Instructions

2015+ Transit Topo Rear Kit Installation Instructions
