Van Compass 2015+ Ford Transit RWD 4" Complete Lift Kit (Single Rear Wheel)

Part#
2015-2017: VCMP-7234
2018+: VCMP-7233

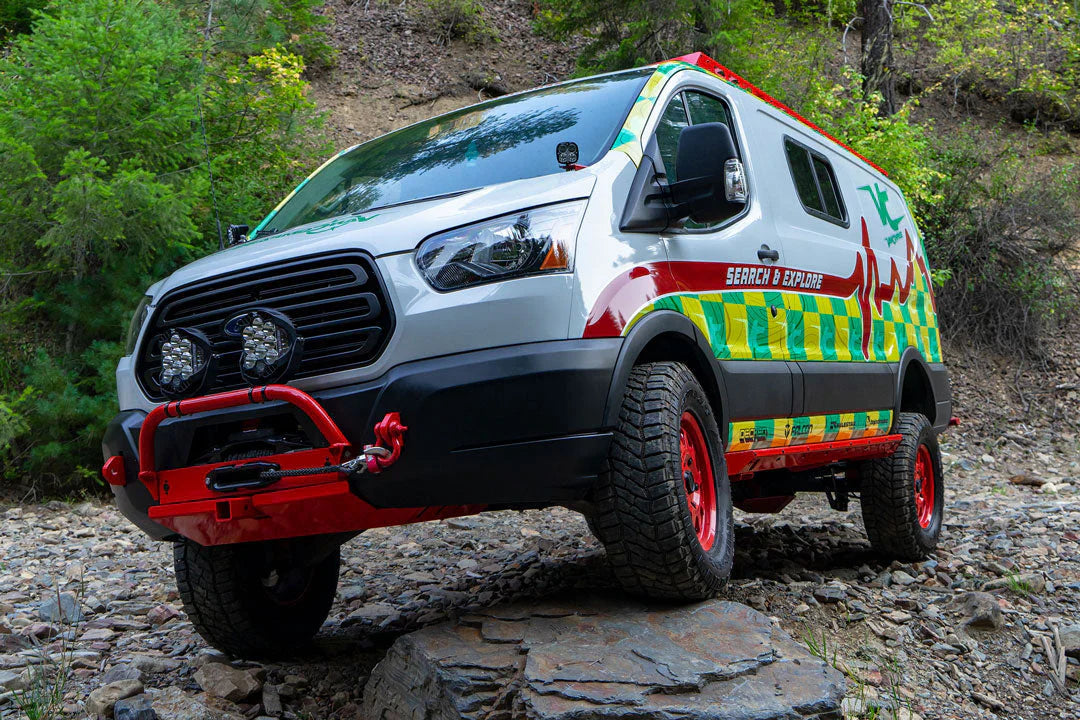

Need a lift kit upgrade for your Ford Transit (2015-Present) RWD? The Van Compass 2015+ Ford Transit RWD 4" Complete Lift Kit (Single Rear Wheel) is the ultimate solution for adventure van owners looking to run larger tires, increase ground clearance, and push their 2WD vans farther off the beaten path. Combining our proven Topo 2" lift system, a tuned rear mini leaf spring pack, and newly developed 2" lift spindles, this kit transforms your Transit into a true off-highway machine.

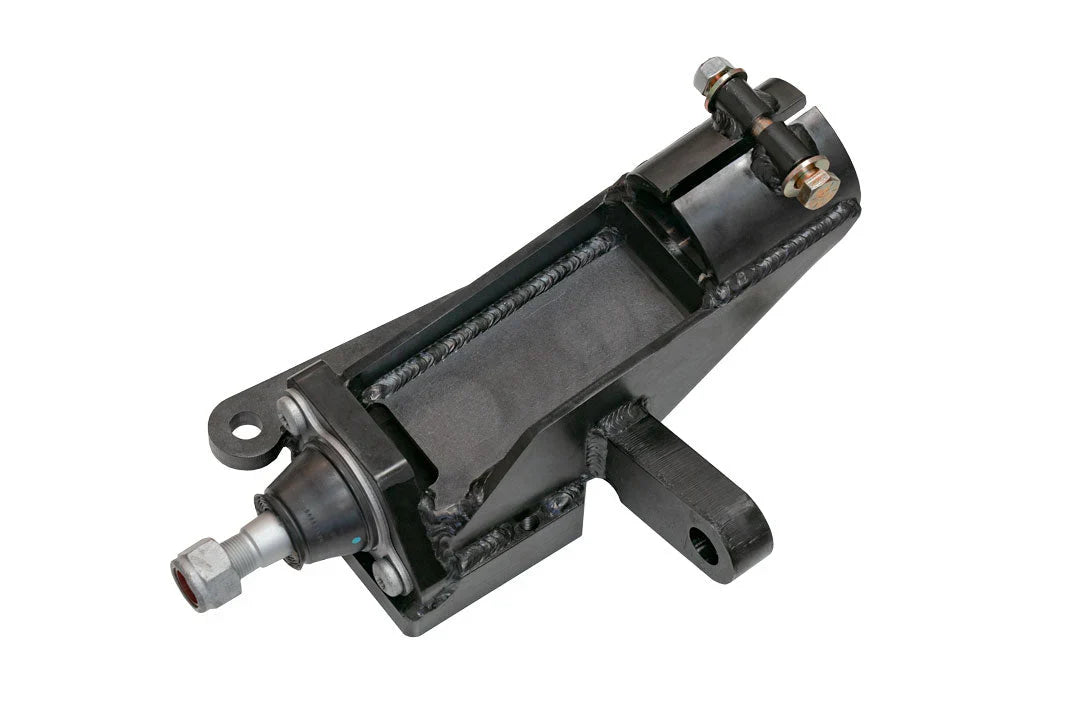

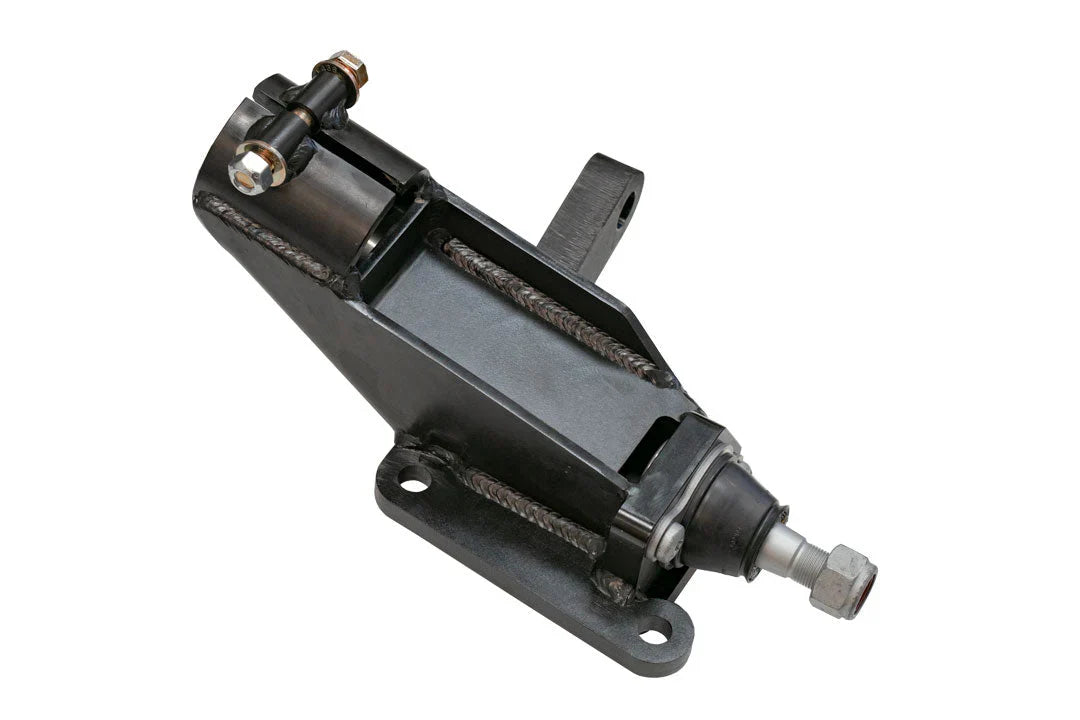

At the heart of the system are the lift spindles, a staple of desert racing engineering. These spindles provide front-end clearance where it's needed most — under the control arms, cross members, and frame — making it much easier to fit larger tires and giving you better clearance on rough terrain. Track width is modestly increased by 1/2" per side (1" total), improving stability and scrub radius when running bigger tires.

Our spindles are meticulously designed to preserve the Transit’s complex front-end geometry, keeping tie rod angles, camber, caster, and Ackerman angles within factory specifications. Precision-cut and machined parts key together for durability and strength, with Motorcraft ball joints pre-installed for ease of installation and long-term reliability. The kit also includes a complete hardware pack, and the spindles are plated with zinc oxide for superior corrosion resistance.

In addition, the 2" Topo lift components include a taller coil spring and camber correction plates for proper front-end alignment, along with a rear lift block and mini leaf spring pack to add rear spring rate and lift — perfect for heavier vans and build-outs.

This kit is fully compatible with Van Compass Falcon rear shocks and Bilstein front struts, offering even greater handling and ride quality improvements. When properly set up, a 4" lifted Transit can clear a 285/70R17* tire — a versatile choice for both highway and off-road adventures.

NOTE: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

NOTE:  Vans equipped with a rear sway bar will require 3067 - Extended sway bar links

Recommended Wheel Size: 17" x 8" with +45mm offset

Key Features

• Fits 2015-2017 and 2018+ Ford Transit RWD vans only(select in menu)
• Increased ground clearance under control arms, cross members, and frame
• Modest track width increase (1/2" per side) for improved stability
• Precision-engineered spindles maintain correct tie rod, camber, caster, and Ackerman angles
• Motorcraft ball joints pre-installed for easier setup
• Zinc oxide plating on spindles for corrosion resistance

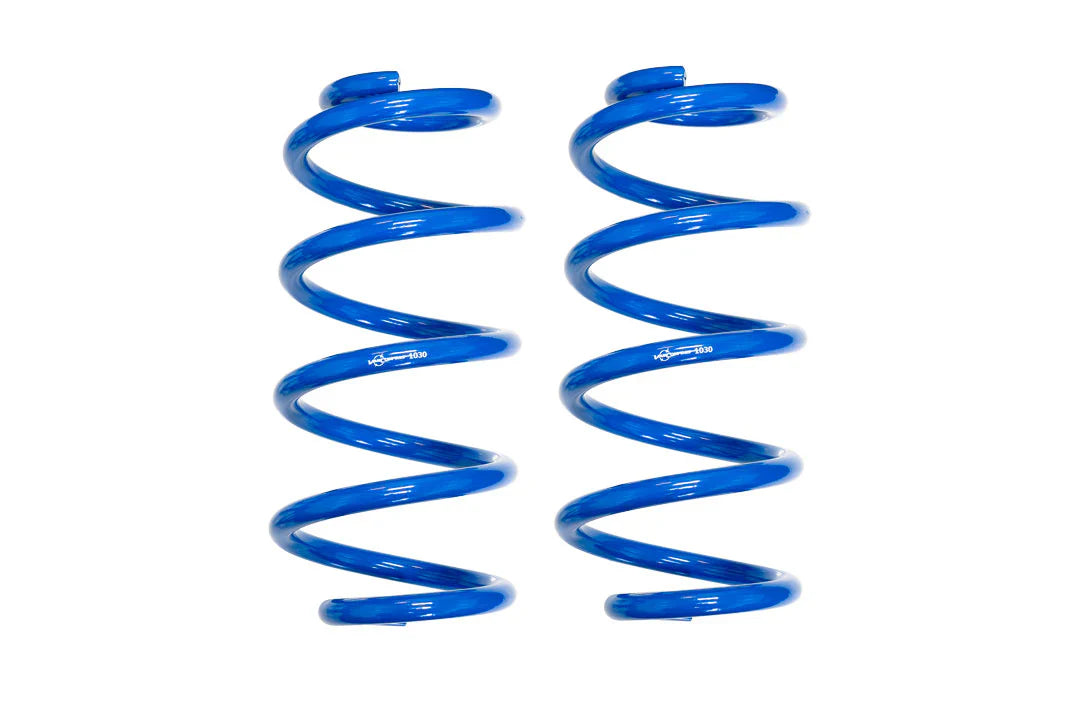

• Taller coil springs and camber correction plates for proper front-end geometry
• Rear lift block and mini leaf spring pack add ride height and spring rate
• Fully compatible with Falcon rear shocks and Bilstein front struts for handling upgrades

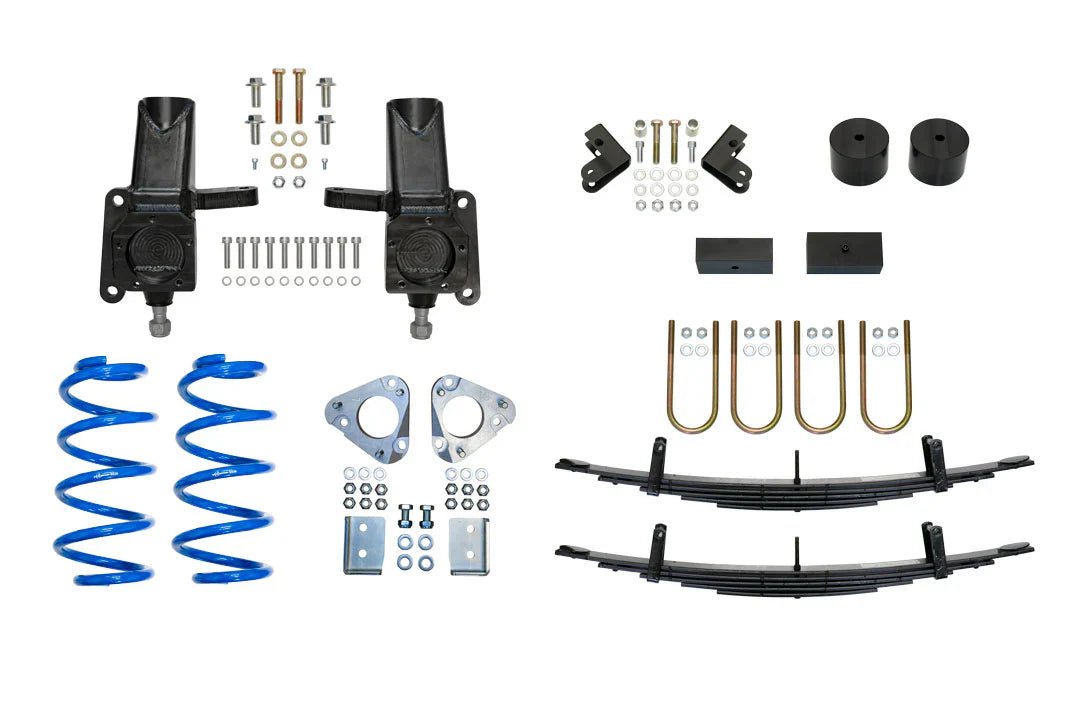

What's Included?

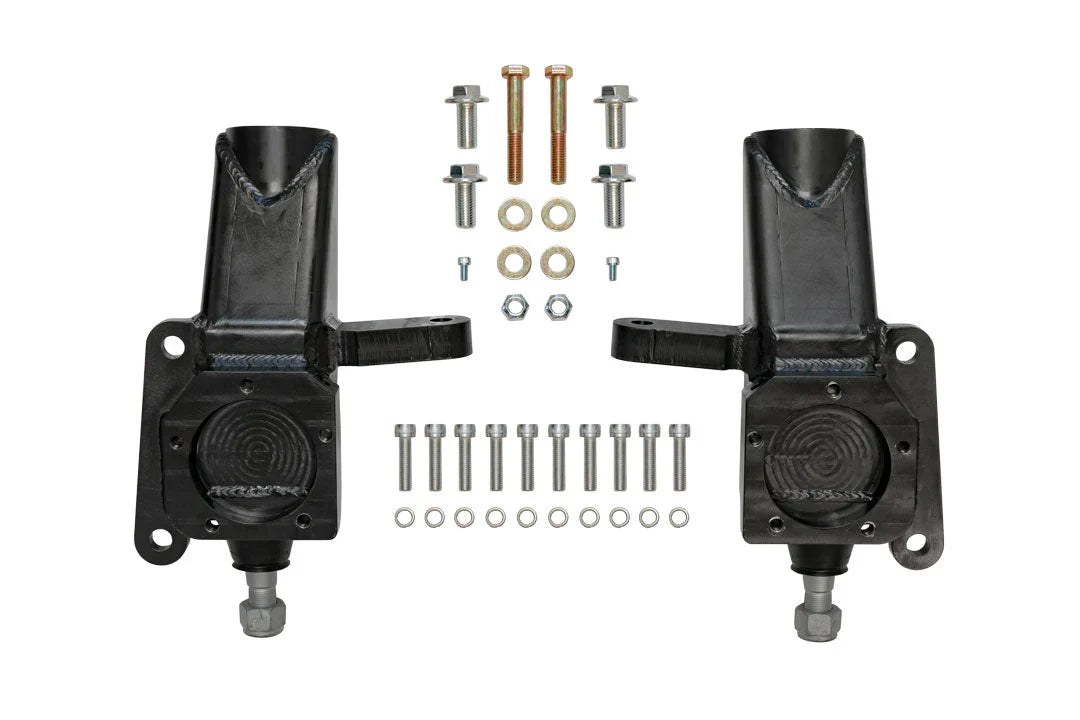

• Transit 2" Lift Spindle
• 2" Topo Front Leveling Kit

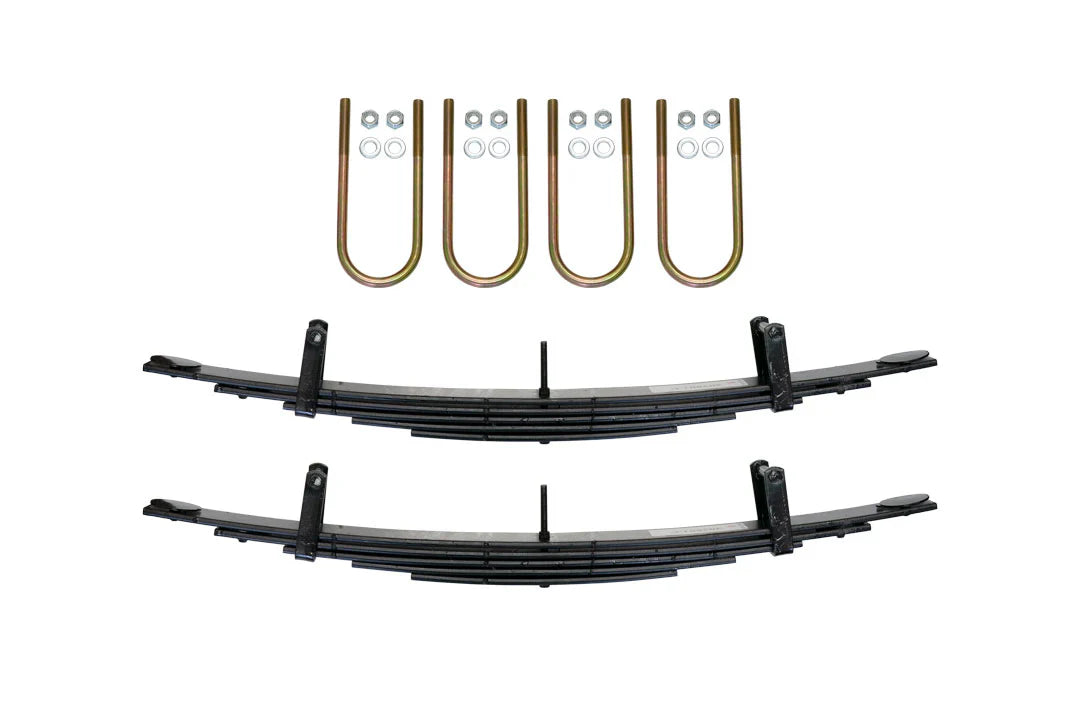

• Rear Mini Spring Pack
• Rear High Clearance Shock Brackets
• 2" Bump Stop Drop
• 2" Rear Lift Block
• U-Bolts and Mounting Hardware


Fitment Guide

MODEL: TRANSIT

YEAR: 2015-PRESENT

DRIVE TYPE: RWD ONLY

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

NOTE: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

NOTE: Vans equipped with a rear sway bar will require 3067 - Extended sway bar links

Recommended Wheel Size: 17" x 8" with +45mm offset

Document

2015+ Transit RWD Front 2" Lift Spindle Installation Instructions

2015+ Transit Topo Front Kit Installation Instructions

2015+ Transit Topo Rear Kit Installation Instructions

2015+ Transit Topo Rear Leaf Pack Installation Instructions

Transit high clearance shock mount installation instructions
