Van Compass 2015+ Ford Transit Inverted Monotube Rally Strut (Pair)
Couldn't load pickup availability
Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more
Part#
VCMP-1062
After three years of dedicated development with Falcon, Van Compass introduces a breakthrough suspension solution for the Ford Transit platform, the Van Compass 2015+ Ford Transit Inverted Monotube Rally Strut (Pair).
Drawing from the inverted architecture that revolutionized Sprinter performance, these monotube rally struts feature an expanded load-bearing surface and oversized damping piston for superior impact absorption and body control. The inverted design effectively manages top-out events while minimizing lateral sway during cornering. Purpose-built for AWD applications, the geometry eliminates additional CV boot strain. Compatible with both Topo lift systems and stock configurations, adjustable preload grooves enable precise ride height customization at installation. Paired sway bar links are included. Supplied as a matched set.
Key Features
- Fits 2015+ Ford Transit AWD and 2WD vans only
- Monotube rally struts featuring an inverted design for improved strength and performance
- Expanded load-bearing surface and oversized damping piston for enhanced impact absorption
- Improves body control and stability during aggressive driving and rough terrain
- Inverted architecture helps manage top-out events and reduce lateral sway while cornering
- AWD-specific geometry designed to avoid additional CV boot strain
- Compatible with both Topo lift systems and factory suspension configurations
- Adjustable preload grooves allow precise ride height customization during installation
- Includes paired sway bar links for proper suspension geometry
- Supplied as a matched set for balanced performance

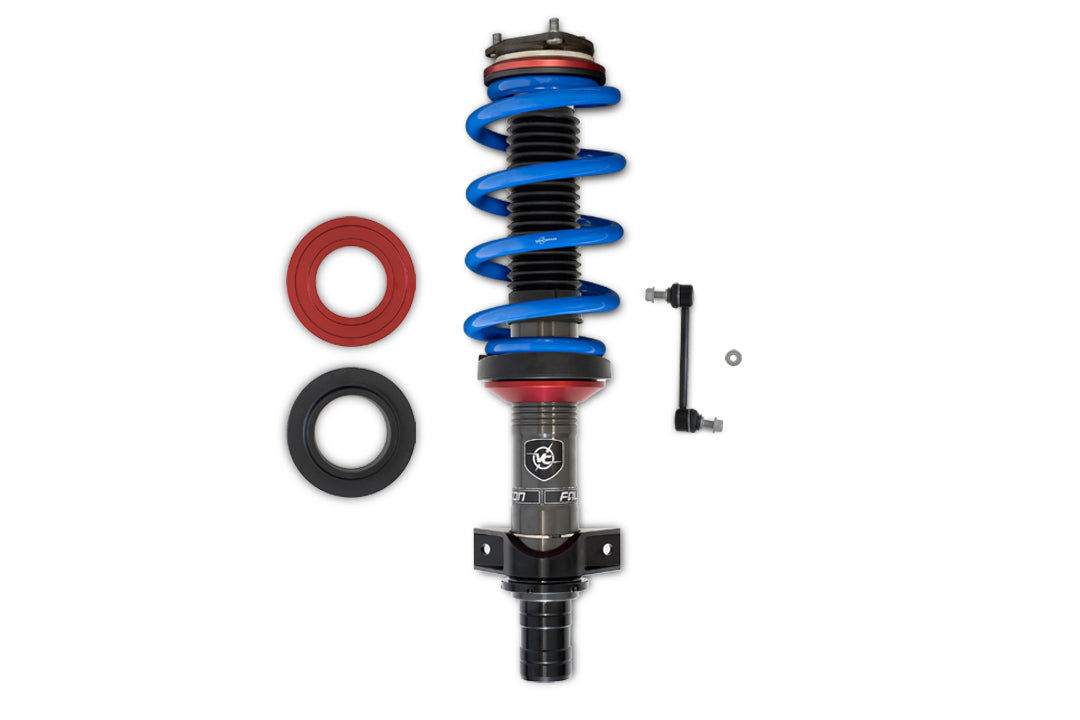

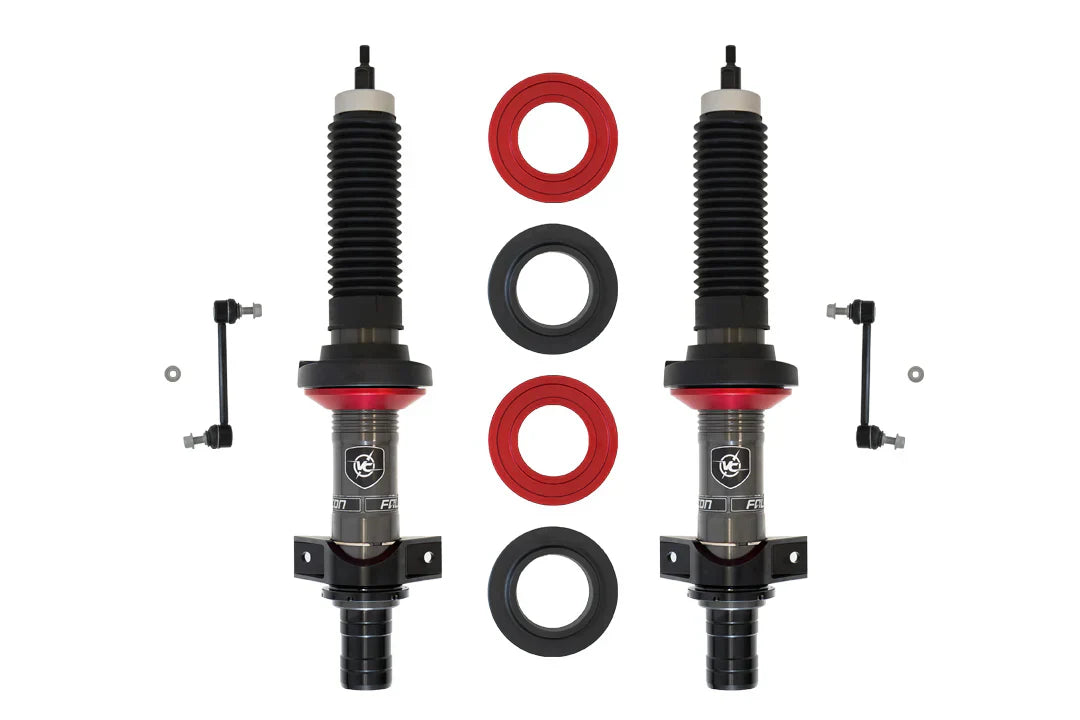

What's Included?
- Inverted Monotube Rally Struts (Pair)
- Sway Bar Links (Pair)
- Coil Spring Mounting Hardware (Spring sold separately)
- Upper Strut Mount not included, re-use factory
Fitment Guide
MODEL: FORD TRANSIT
YEAR: 2015-PRESENT
DRIVE TYPE: AWD and 2WD
NOTE: Motorcraft AD1110 strut bearing REQUIRED on 2024-newer vans.
NOTE: Upper strut mount not included, re-use OE part. Recommend using Motorcraft AD1110 if replacing worn strut mounts.
NOTE: Coil springs NOT included.
Documents: Van Compass 2015+ Ford Transit Inverted Monotube Rally Strut (Pair)
Van Compass Ford Transit Inverted Rally Strut Installation Guide
