Van Compass 2015-2017 Ford Transit RWD - Stage 4 Topo 2.0 System

Part#
LIGHT/MID TUNE: VCMP-7118-LM
MID/HEAVY TUNE: VCMP-7118-MH

Need a suspension upgrade for your Ford Transit RWD? The Van Compass 2015-2017 Ford Transit RWD - Stage 4 Topo 2.0 System delivers maximum versatility, improved ride quality, and an aggressive stance for heavier vans and passenger vans alike. Designed to provide a true 2-inch lift while giving you full control over your ride settings, this system is tuned to handle extra weight without sacrificing comfort or drivability.

The Stage 4 Topo 2.0 package includes a precision-engineered 0.75" lift camber correction plate paired with tuned coil springs, providing 1.25" of lift up front and increased compression travel for improved handling over rough roads. At the rear, a 5-leaf mini pack works with the factory leaf springs to increase spring rate by 10–15%, lifting the rear of the van between 2.0" and 2.5" depending on vehicle weight. Friction-reducing tips on the leaf springs ensure smooth, quiet operation. Rear shock relocation brackets are included to allow trimming of the factory mounts for better axle tube clearance and ground clearance.

The highlight of this system is the VC-tuned Falcon 3.3 Adjustable Rear Shocks, featuring 10 intuitive firmness settings controlled by a large, easily accessible Fast Adjust knob. This wide adjustment range gives you the ability to switch from a soft, compliant off-road setup to a firm, stable highway ride in seconds, offering unmatched flexibility for all driving conditions.

Key Features

• Aggressive, 2" taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 3.3 Adjustable rear shocks with 10 intuitive firmness settings
• Increased rear spring rate fights sag
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps

• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

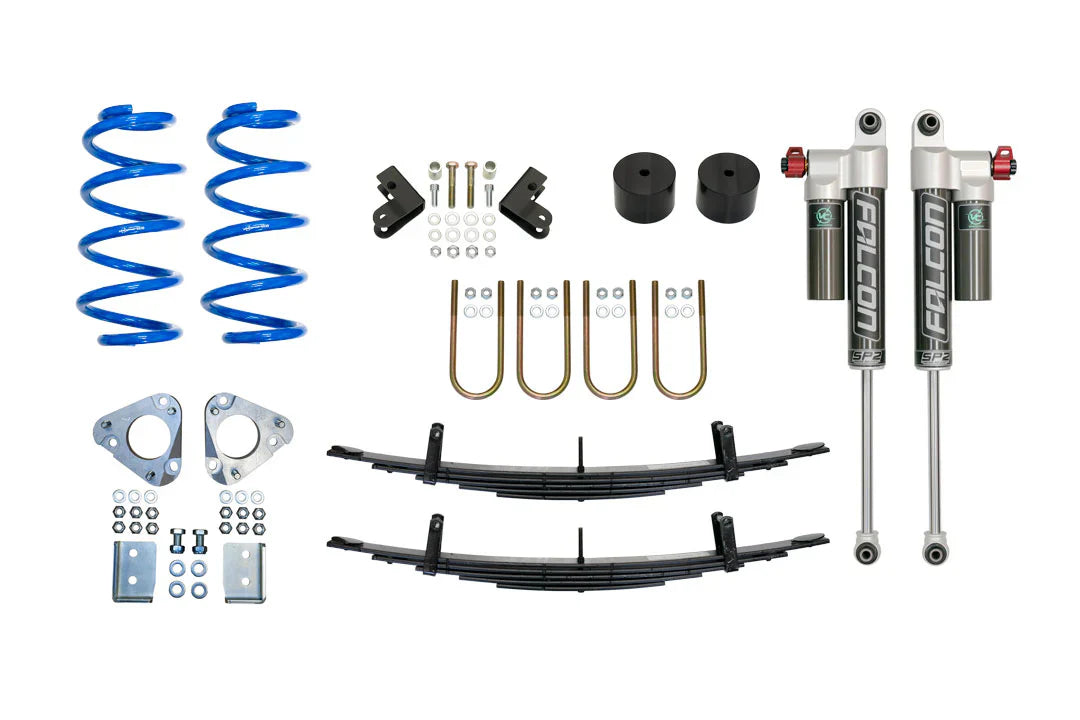

What's Included?

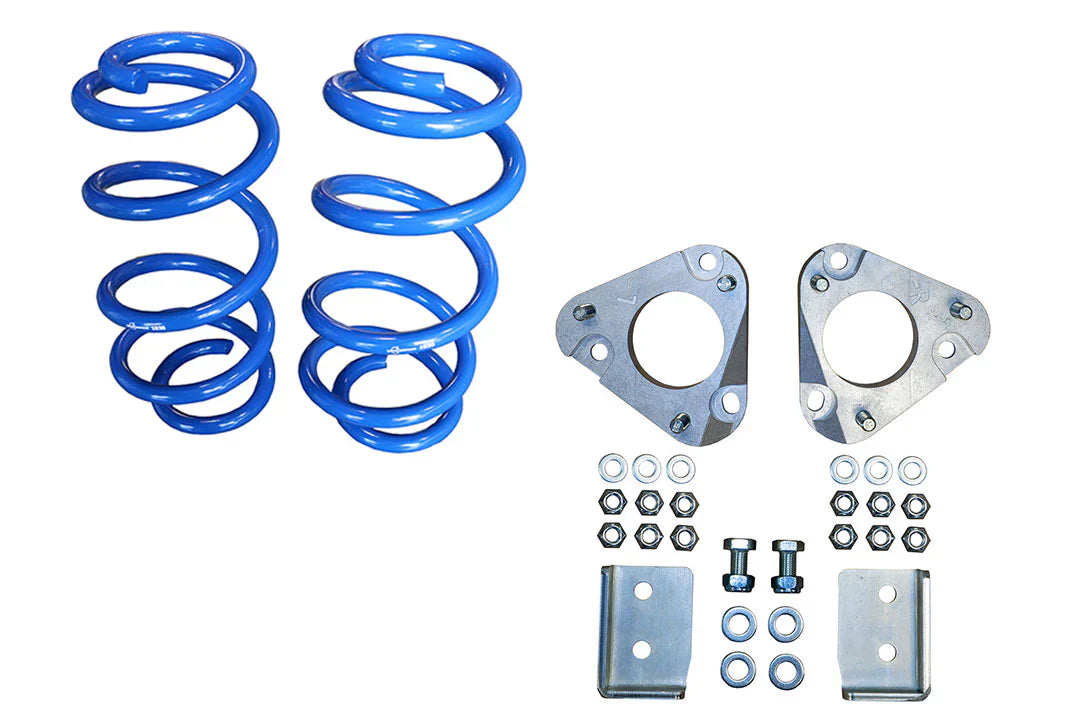

• Topo 2.0 Front Lift Kit

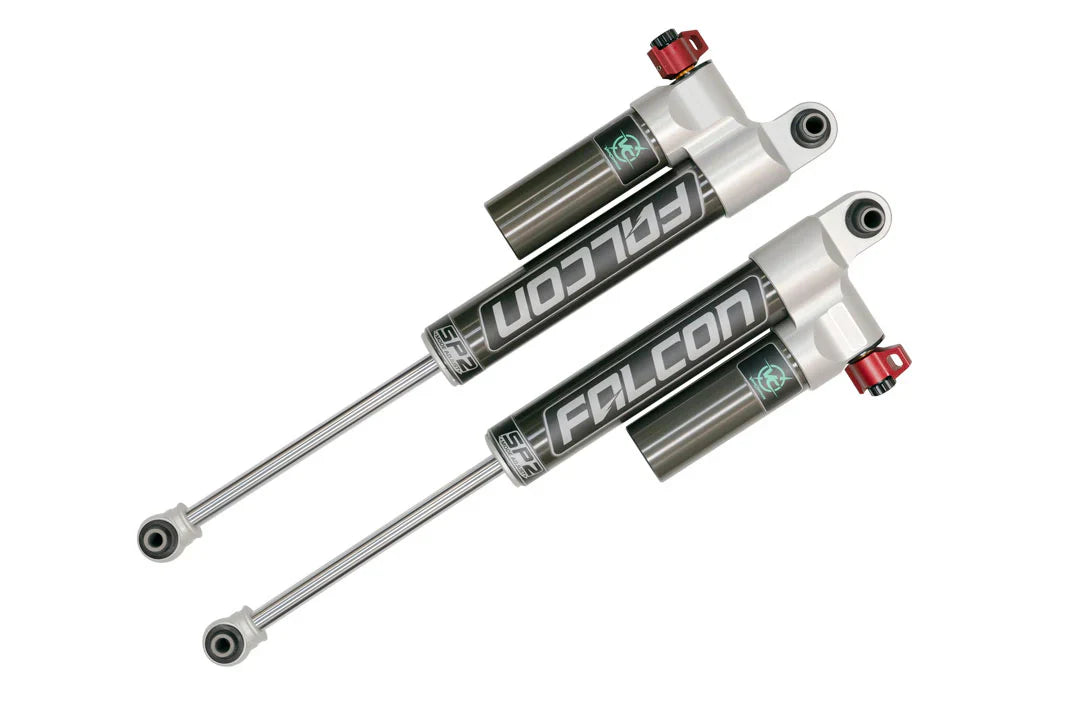

• Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)

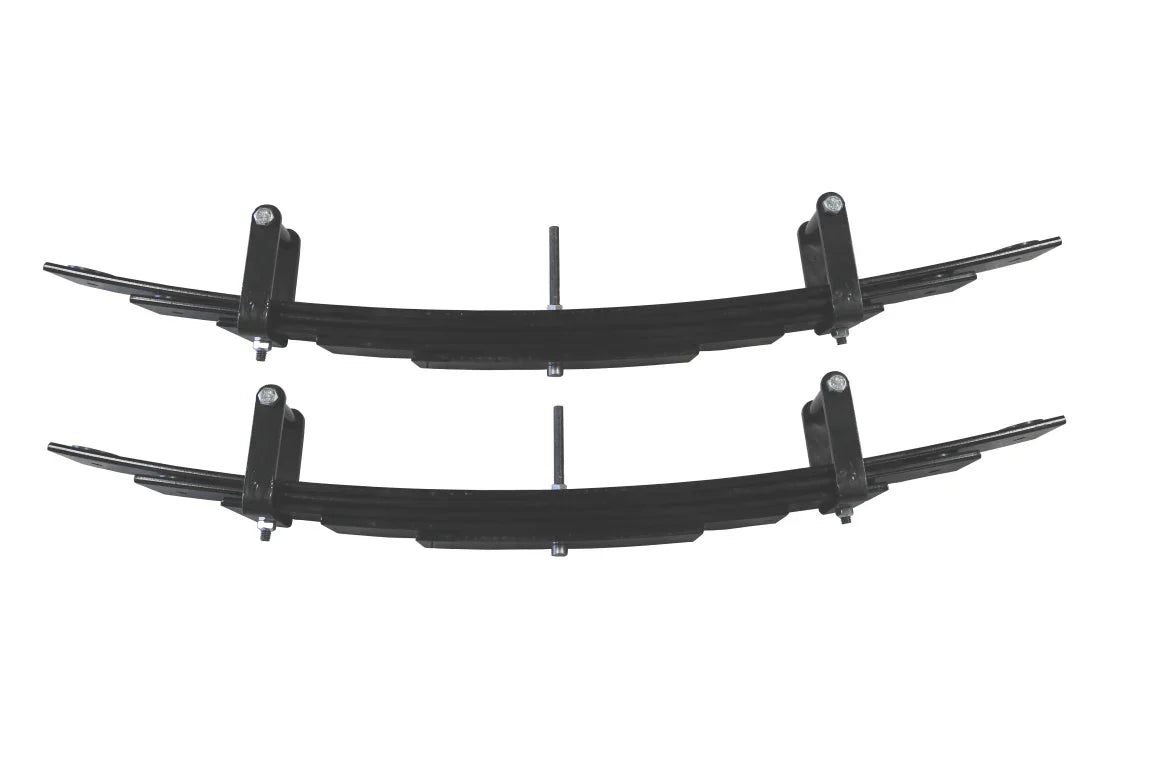

• Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
• High Clearance Rear Shock Brackets

Fitment Guide

MODEL: TRANSIT SINGLE REAR WHEEL

YEAR: 2015-PRESENT

DRIVE TYPE: RWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

NOTE: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

Documents

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

Falcon 3.3 Shock Settings Guide
