Van Compass 2015-2017 Ford Transit RWD - Stage 3 Topo 2.0 System (Mid/Heavy Tune)

$2,059.80

Shipping calculated at checkout.

MODEL YEAR | SHOCK TUNE: STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 15-17 | MID TUNE

STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 15-17 | MID TUNE STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 15-17 | HEAVY TUNE

JOIN VAN LAND CLUB

Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more

Part#
MID TUNE: 7116-M
HEAVY TUNE: 7116-H

Need a suspension upgrade for your Ford Transit RWD? The Van Compass 2015-2017 Ford Transit RWD - Stage 3 Topo 2.0 System (Mid/Heavy Tune)¬†is the perfect entry-level solution for heavier vans experiencing rear sag and passenger vans wanting a more aggressive stance. Designed to deliver a true 2-inch lift while improving ride comfort, stability, and off-road capability, this system is tuned specifically to handle additional weight while maintaining a smooth, quiet ride.

The Stage 3 Topo 2.0 package features a precision-engineered 0.75" lift camber correction plate paired with tuned coil springs, gaining 1.25" of lift up front and increasing compression travel for enhanced handling. At the rear, a 5-leaf mini pack works in conjunction with the factory leaf springs, increasing rear spring rate by 10‚Äì15% and lifting the back of the van between 2.0" and 2.5", depending on vehicle weight. Friction-reducing tips on the leaves ensure a smooth and quiet ride even under load. Rear shock relocation brackets are included, allowing the low-hanging factory brackets to be trimmed for improved ground clearance under the axle tube.

The system also includes VC-tuned Falcon 2.1 Monotube Shocks, built with superior construction and larger damper pistons to dramatically improve vehicle handling. These shocks reduce corner lean, minimize violent sway, and absorb harsh bumps, significantly enhancing overall ride comfort and control.

Additionally, the RWD-specific Topo systems come equipped with Bilstein B6 front struts for increased damping performance, further stabilizing the van and improving handling dynamics.

NOTE:¬†Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

Key Features

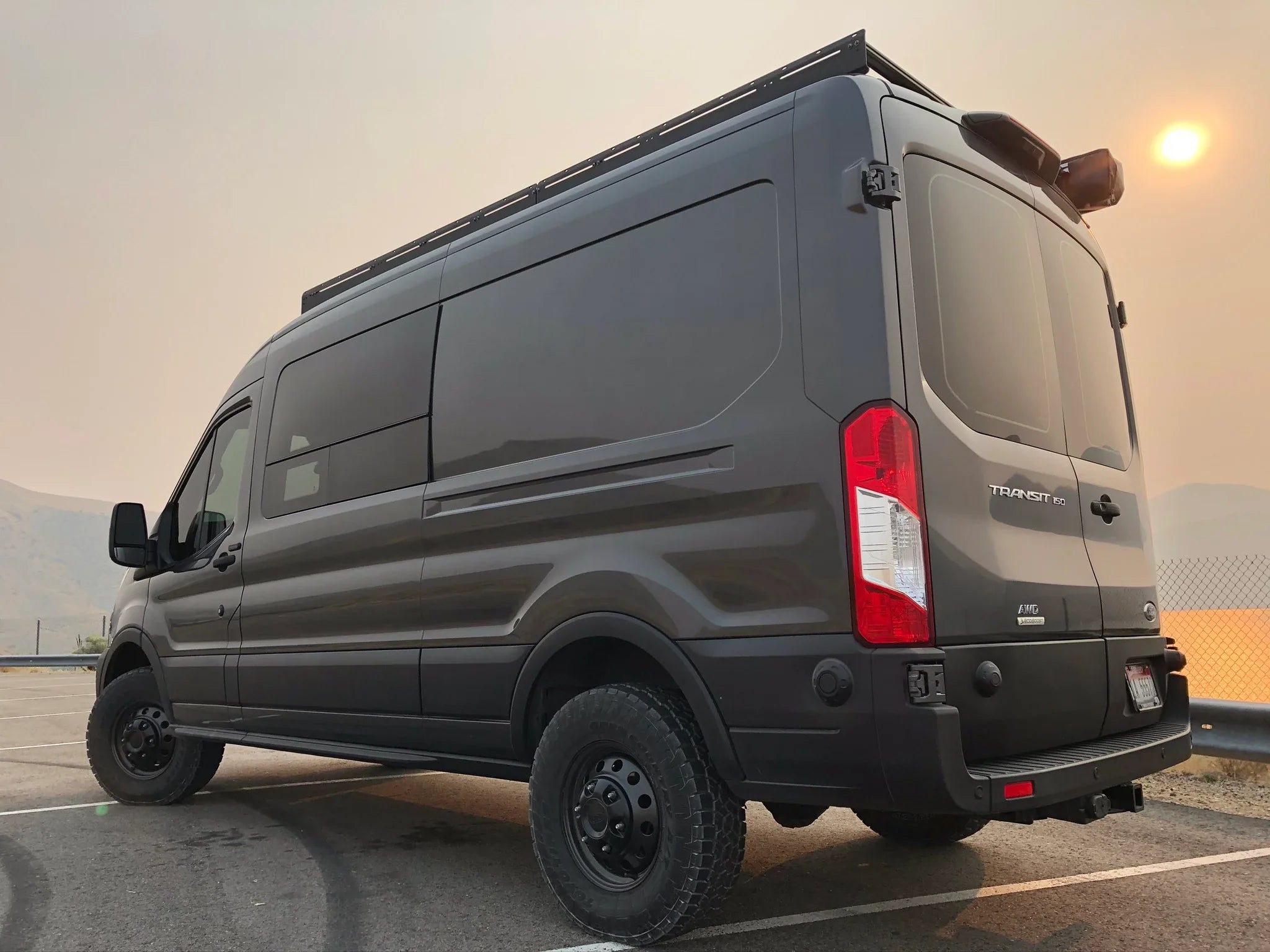

Aggressive, 2" taller stance allows larger tires to smooth out terrain
Increased approach, break over and departure angles
VC tuned Falcon 2.1 Monotube Shocks
Increased rear spring rate fights sag
Enhanced cornering stability and reduced wind sway
More effective control over large and small bumps
Improved handling feel on rough roads and broken pavement
Increased bottom out resistance

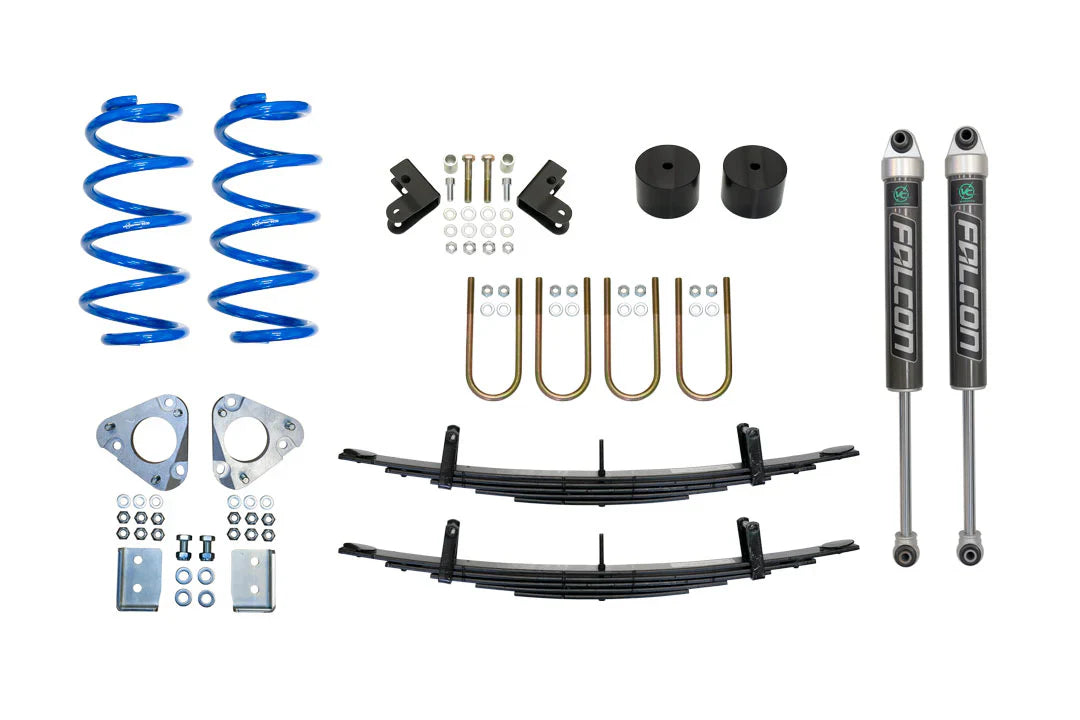

What's Included?

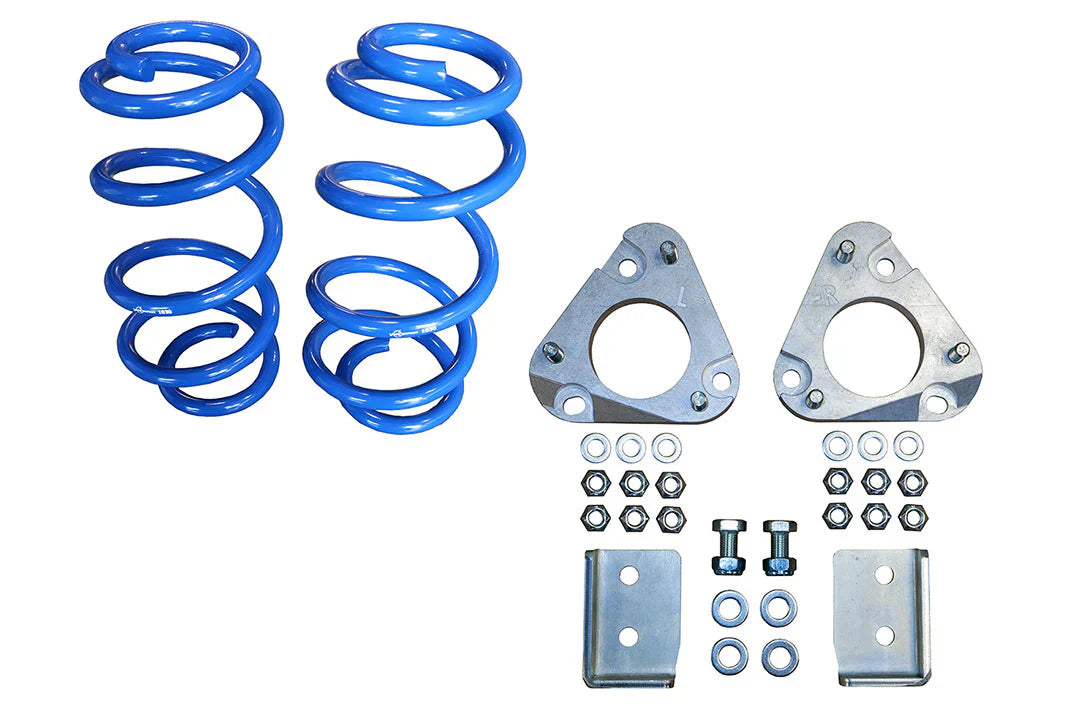

Topo 2.0 Front Lift Kit

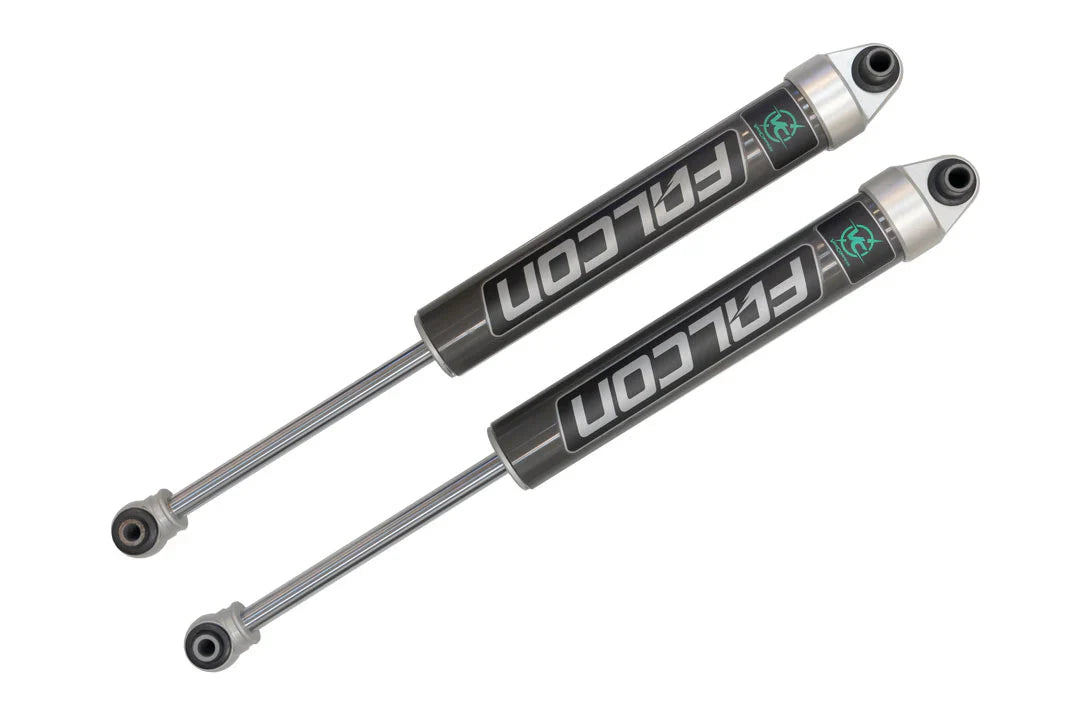

Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)

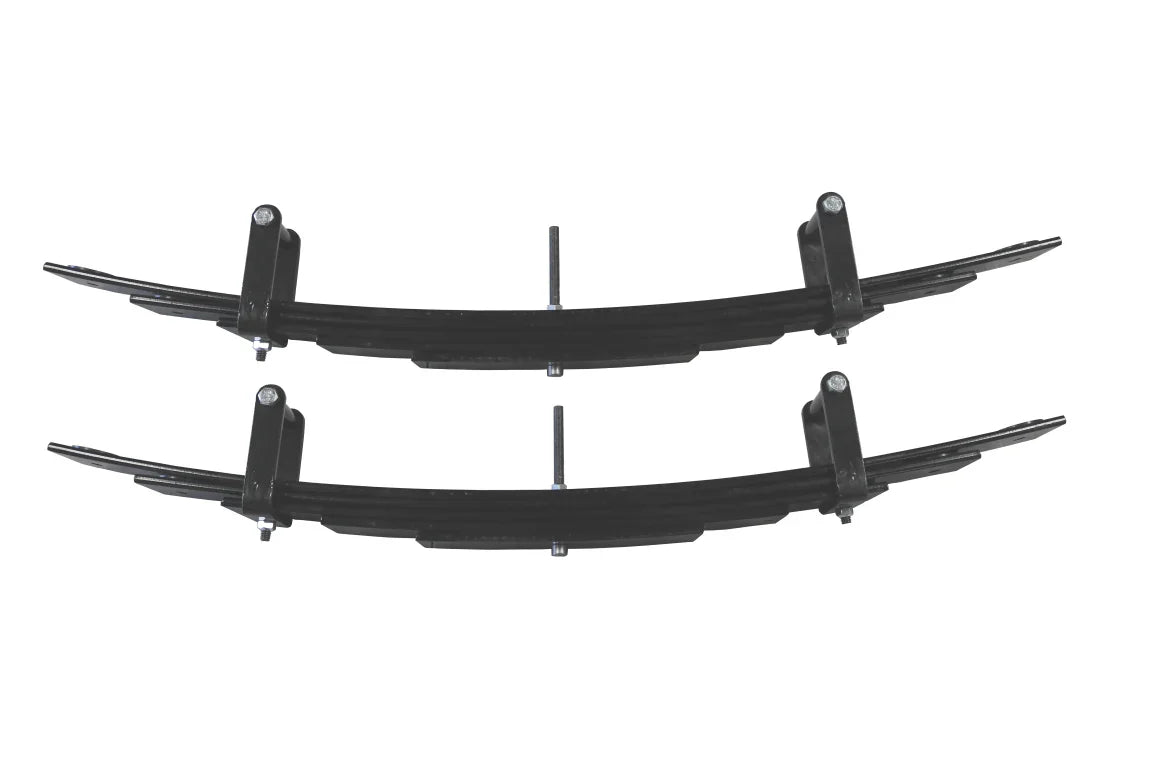

Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
High Clearance Rear Shock Brackets

Fitment Guide

MODEL:¬†TRANSIT SINGLE REAR WHEEL

YEAR:¬†2015-PRESENT

DRIVE TYPE:¬†RWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT?¬†USE THE CAT SCALE LOCATOR<<

NOTE:¬†Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
