AMA Van Bunk Half-Slider Window Passenger Side 40" x 15" 2007-2024
The AMA Van Bunk Half-Slider Window is an excellent choice for a Camper Van.

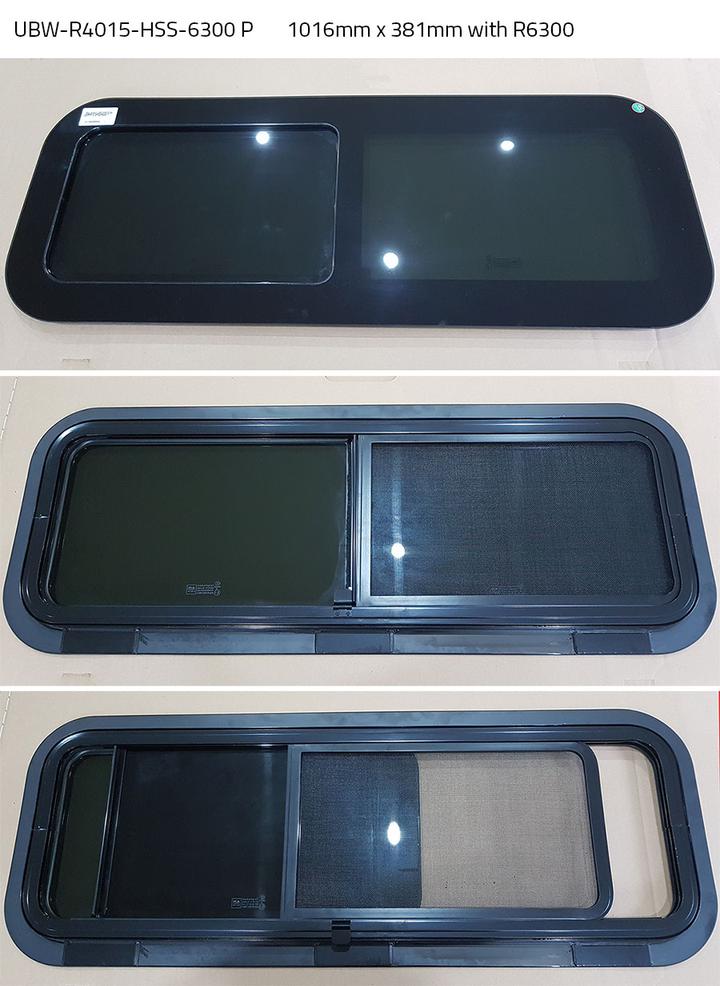

- Overall Dimension 40 x 15"
- Cut-Out Dimension: 37-1/2" x 12-1/2"
- Vented Opening: 13-7/8" x 9"
The AMA Van Bunk Half-Slider Window is an excellent choice for a Camper Van. The modern design has a frame-less exterior to match with OEM Glass or todays modern all glass style windows.
A easy to use hinged latch secures window in the closed position for security and the integrated screen will keep bugs or small debris out.
The glass is a 17% solar privacy tint safety glass for added privacy and UV protection.
|Whats needed to Install?|
This window is installed with Urethane Adhesive, you will need a primer base. Both items come together in a convenient kit. .
How will I install this window?
You will need to create a template to cut your window hole. Easiest way is to use the cardboard box it came use a square and make a rectangle . Approx 37-1/2" x 12-1/2" always double check measurements.
Once you have your rectangle created line up your rectangle on to the inner framing on the bunk window you should now be able to hand draw your corners, if you have a protractor great if not by hand generally suffices. Once you have your corners drawn and cut out you should now have a perfect template for your bunk window. Always double check to insure you have everything correct.
When drawing template to Van if there are two people great one can hold while the other draws it out. If your installing solo once you know the spot you will be placing the window you can screw the cardboard into the side wall to hold in place then draw your pastern.
Cut out your hole with your choice of tool reciprocating saw, sheers,disc, etc..
Once the Hole has been cut out its time to install the Bunk window clean the outside metal of the van with rubbing alcohol or PWR22 Cleaner this will insure a good hold of the urethane eliminating contaminants.
