Triple Stud Fitting with Pear Shaped Ring (32507)
Regular price
$12.95
Sale price
Regular price
Shipping calculated at checkout.
Couldn't load pickup availability
JOIN VAN LAND CLUB
Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more

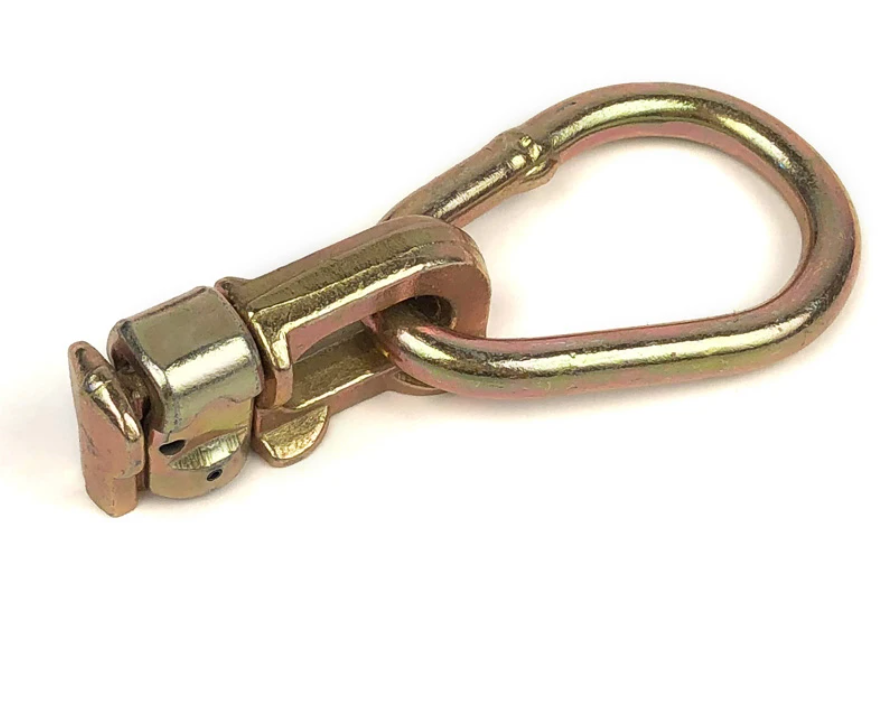

Tie-down Triple Stud Fitting with Pear Shaped Ring (32507).

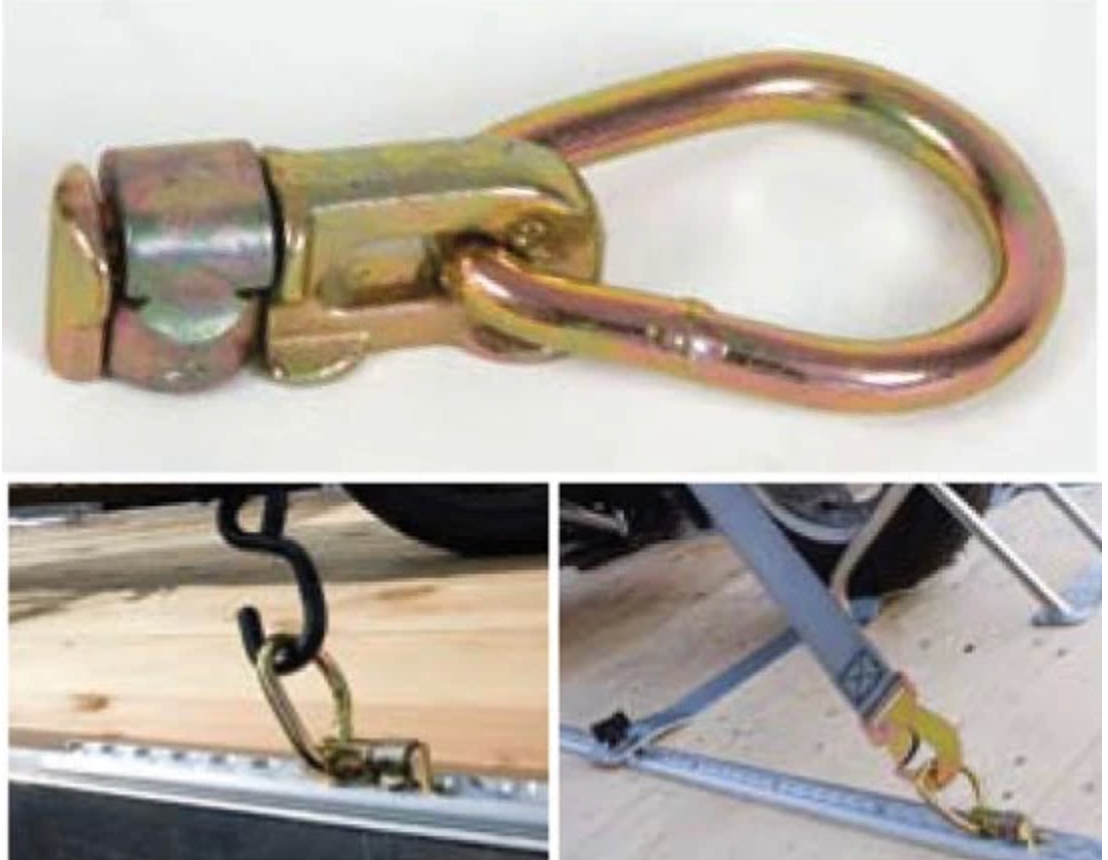

This fitting utilizes a "pear" ring that allows it to be pulled off-angle from the track. Ideal for applications where the track is installed close to obstructions such as cabinets, walls, etc.
- 0 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
- 45 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
- 90 Degree Working Load Limit: 1,670 Lbs. / 757 Kgs.
- Series Type: Series L Fitting

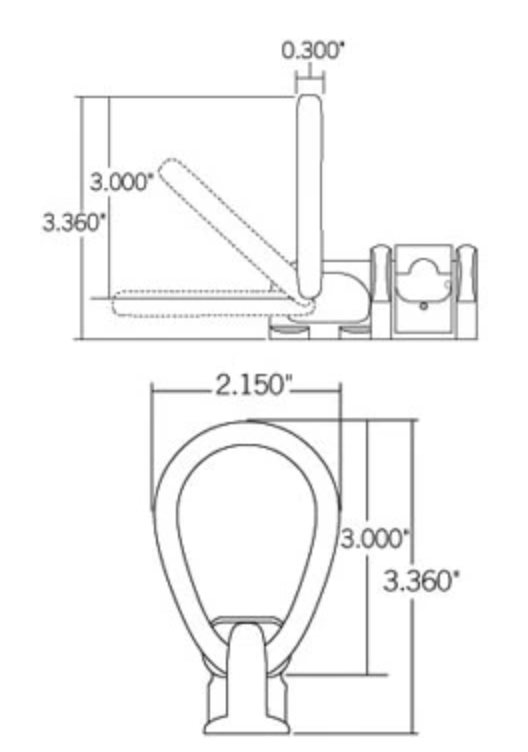

- Overall Height: 3.36 Inches
- Overall Width: 2.06 Inches
- Overall Length: 2.03 Inches
- Type of Ring: 4.90 Inches
- Height of Ring: Pear Shape Ring Standard
- Thickness of Ring: 2.3 Inches
- Length of Ring: 0.25 Inch
- Type of Stud Bolt: 2.06 Inches
- Weight: 0.78 Lbs. / 0.35 Kgs.
