Virtus Vans 2019+ Mercedes Sprinter Structural Rail System 144"/170"

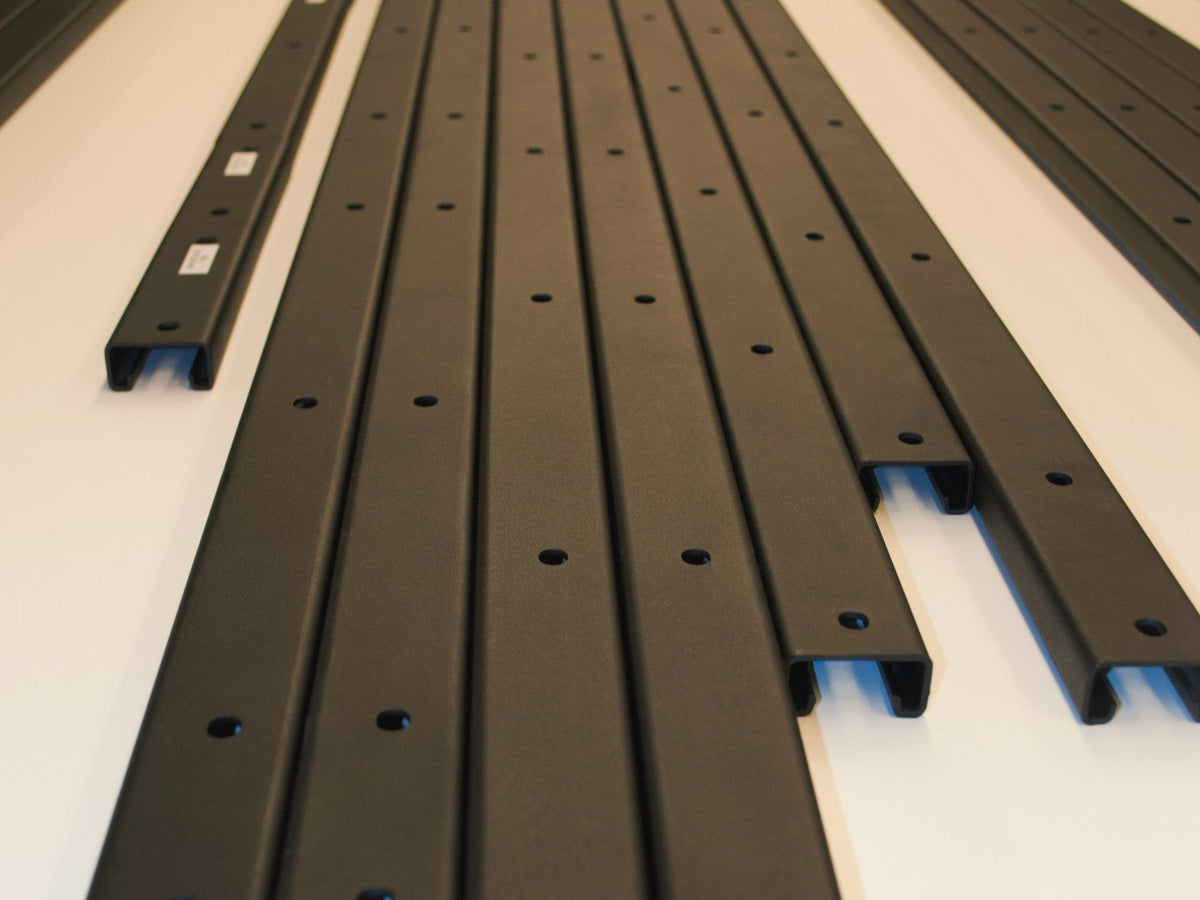

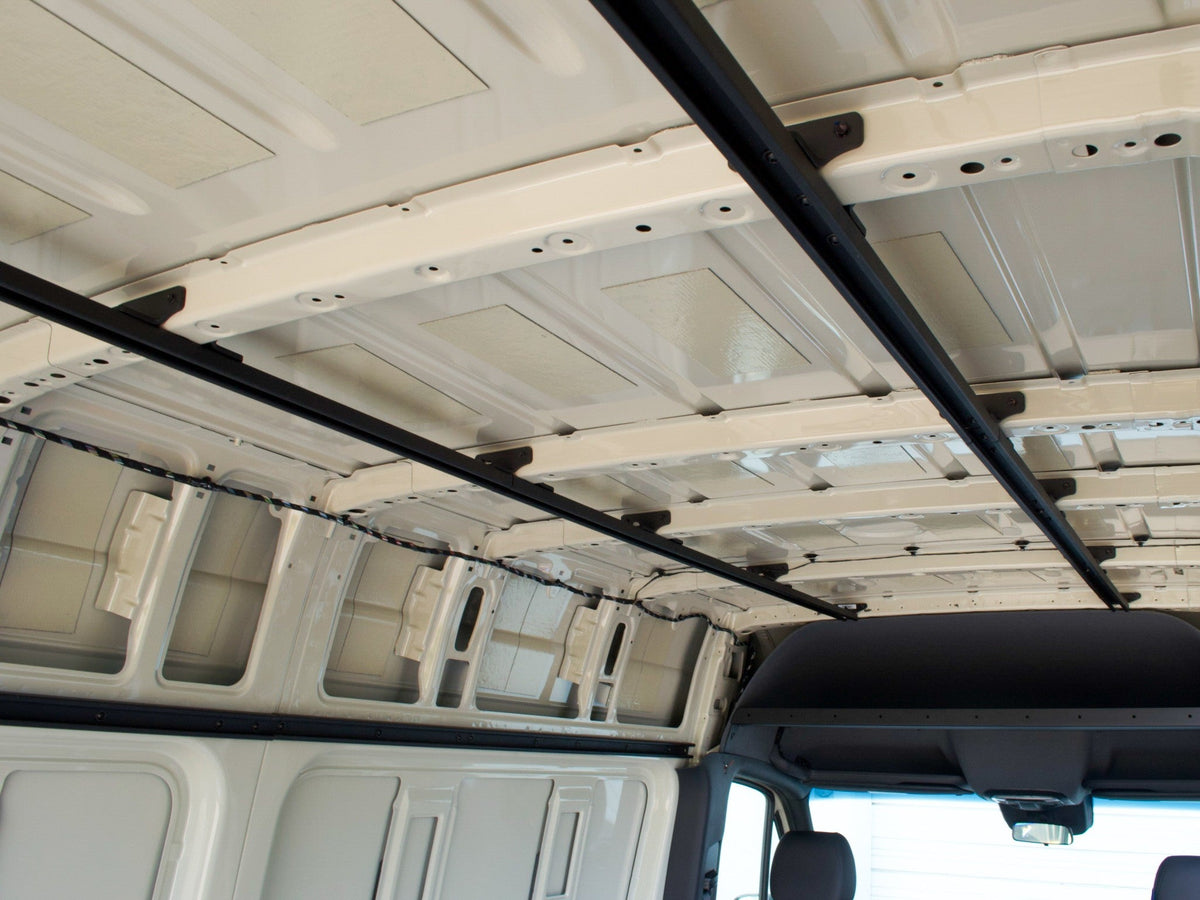

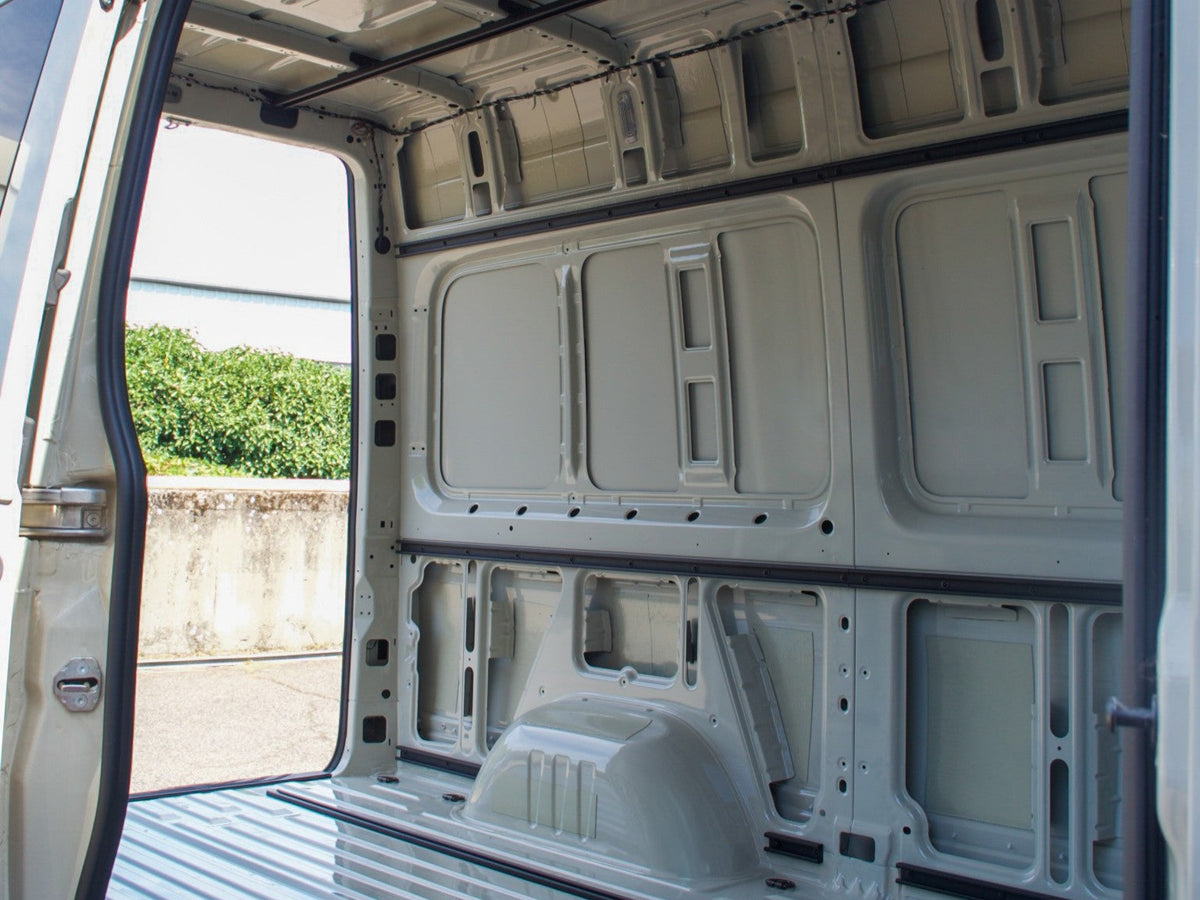

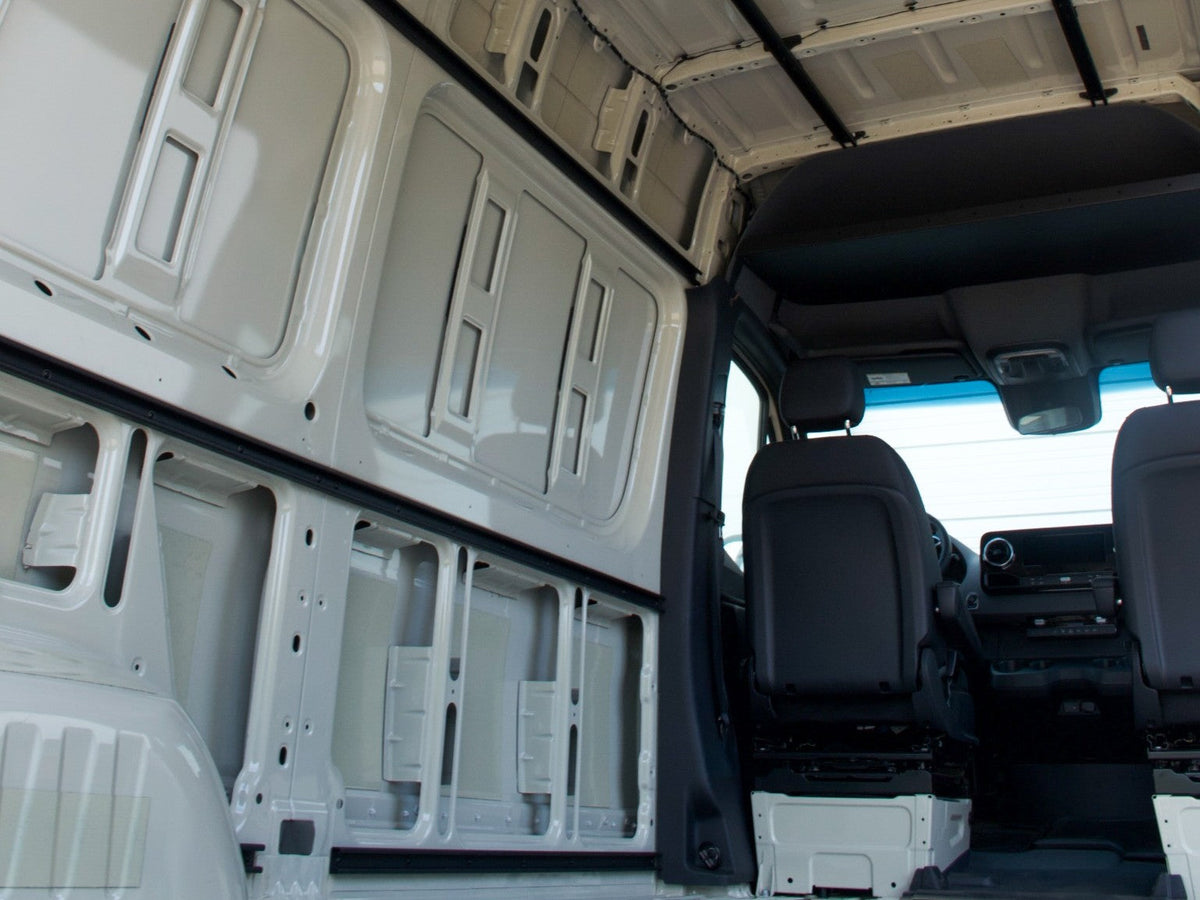

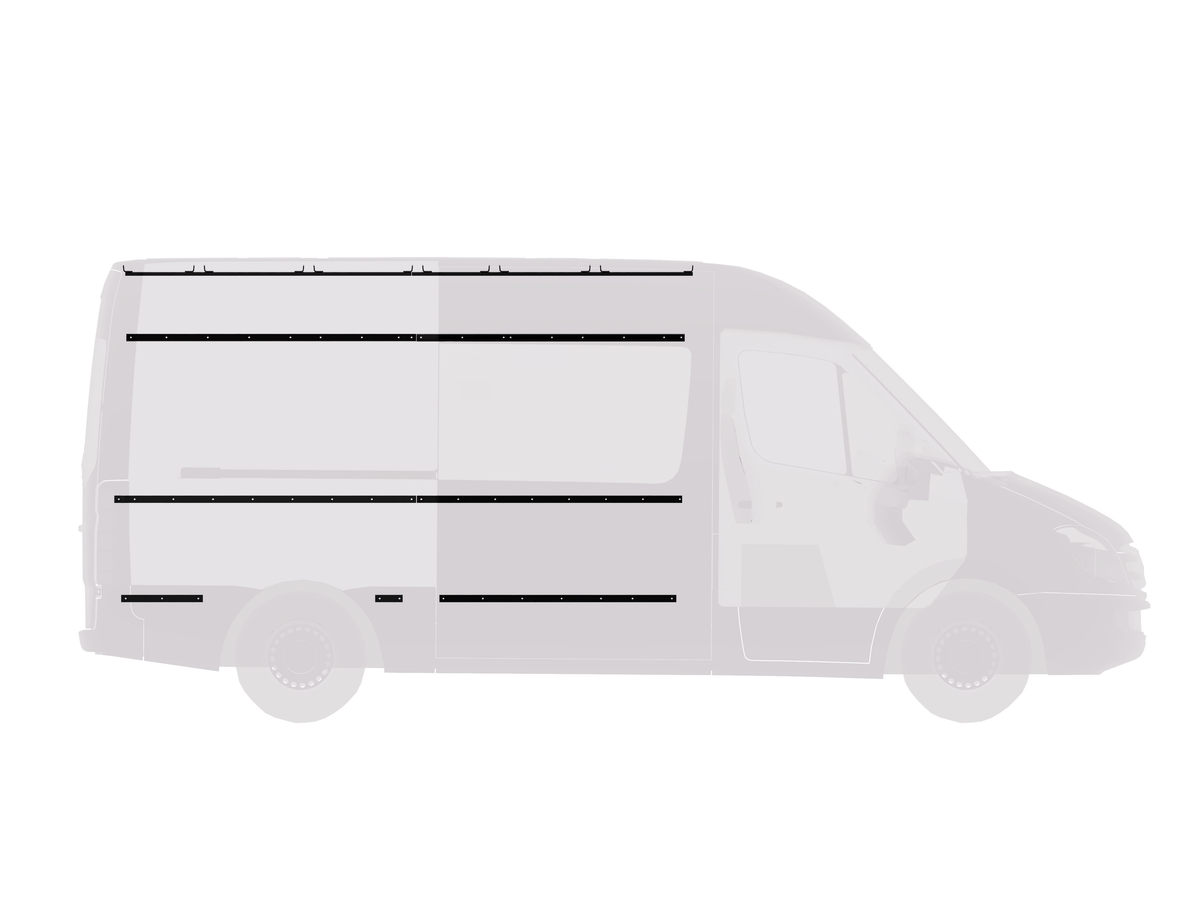

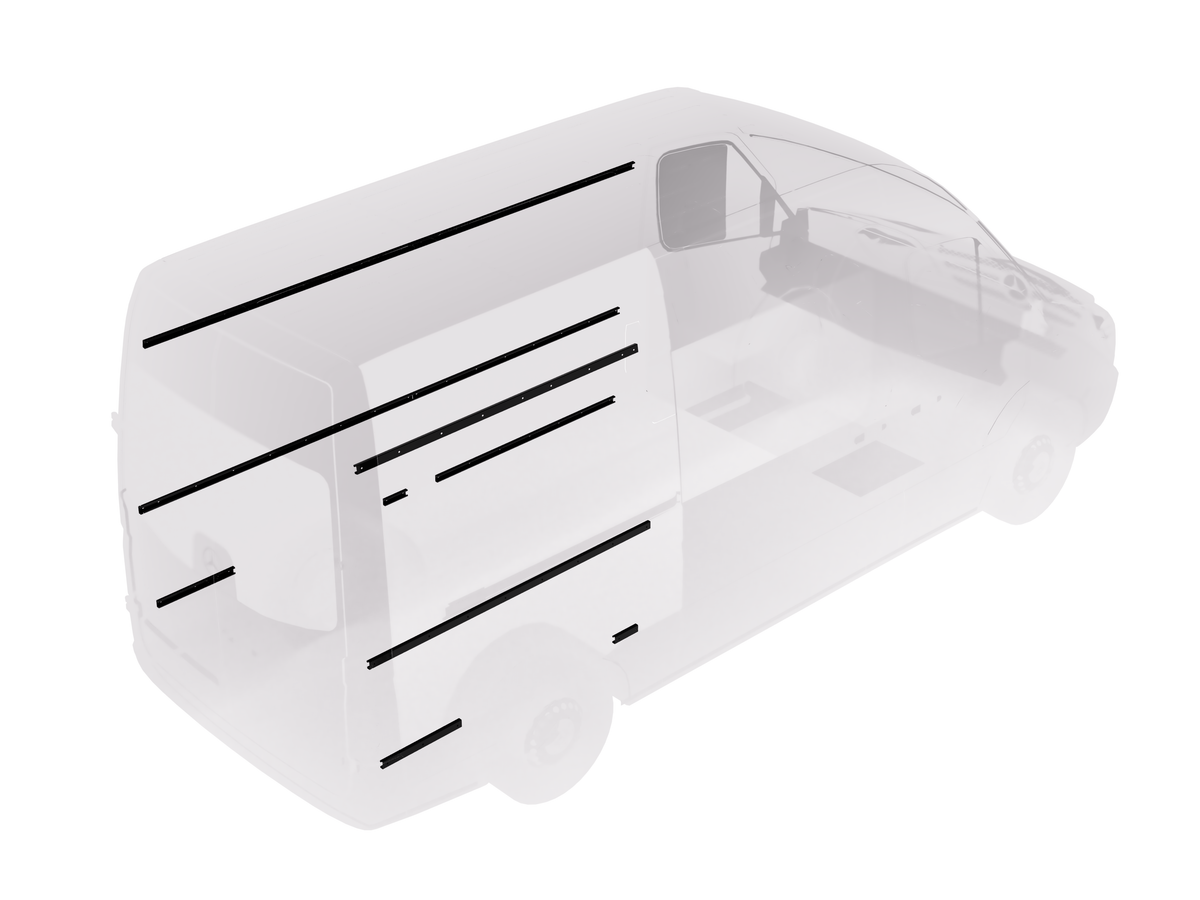

Virtus Vans Sprinter Structural Rail System is a powder-coated, Unistrut-style rail system that bolts to the factory ribs of a Mercedes Sprinter van, creating a continuous, reconfigurable mounting grid across the walls and ceiling. It gives you one structural foundation to attach walls, cabinetry, and gear to, instead of drilling new mounting points for every component.

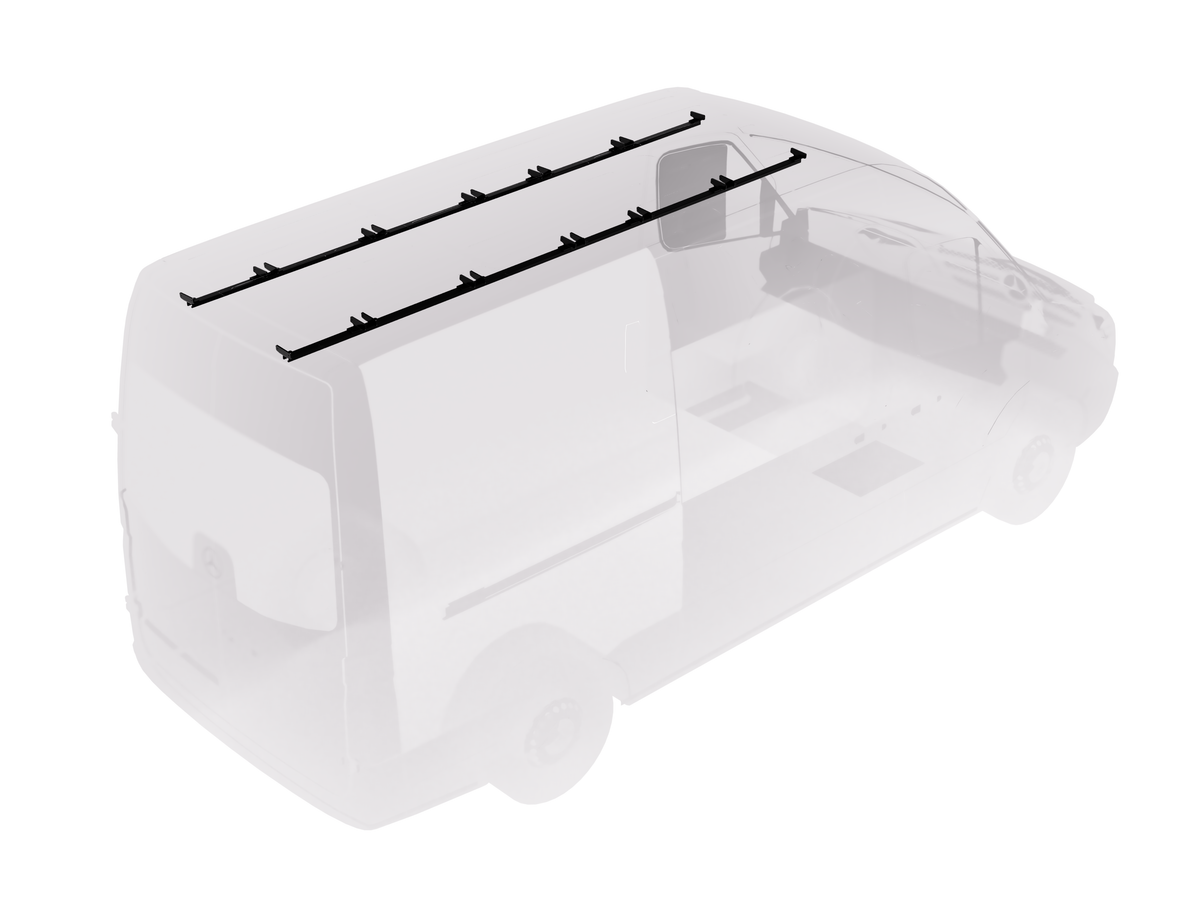

The rail system is built for 2019+ Mercedes Sprinter 2500 vans in 144" or 170" wheelbase, High Roof configuration, and is sold in Walls-only, Ceilings-only, or combined Walls-and-Ceilings kits. It is not currently compatible with standard-roof vans or pre-2019 Sprinter models ‚confirm your van's configuration before ordering. Once installed, the rails support Virtus wall and ceiling panels and upper cabinets, along with any standard Unistrut-compatible hardware.

Pre-drilled holes are spaced at 9 in. on-center to match Sprinter factory rib locations, so installation doesn't require measuring or templates ‚just a drill and the included hardware. An optional Virtus Install Toolkit (sold separately) is available for builders who want a curated tool set for the job.

Key Features: Virtus Vans 2019+ Mercedes Sprinter Structural Rail System 144"/170"

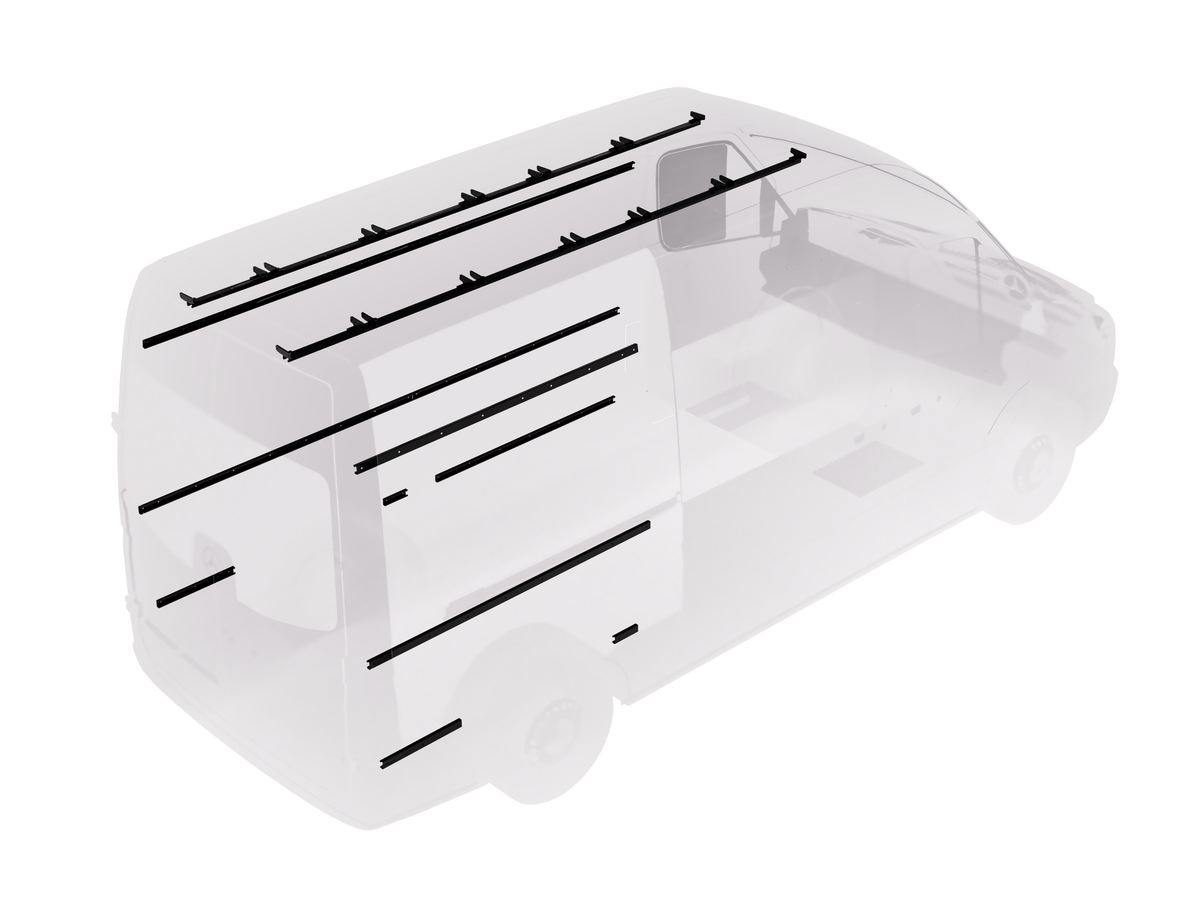

• Covers walls, ceiling, or both in one system ‚establishes the structural backbone for the whole build in a single install.
• Pre-drilled at 9 in. on-center to align with Sprinter factory rib spacing ‚no measuring or templates needed.
• Heavy-duty steel construction rated to carry bed platforms, wall panels, overhead cabinetry, and gear storage.
• Black powder-coat finish resists corrosion and blends behind panels or stands on its own.

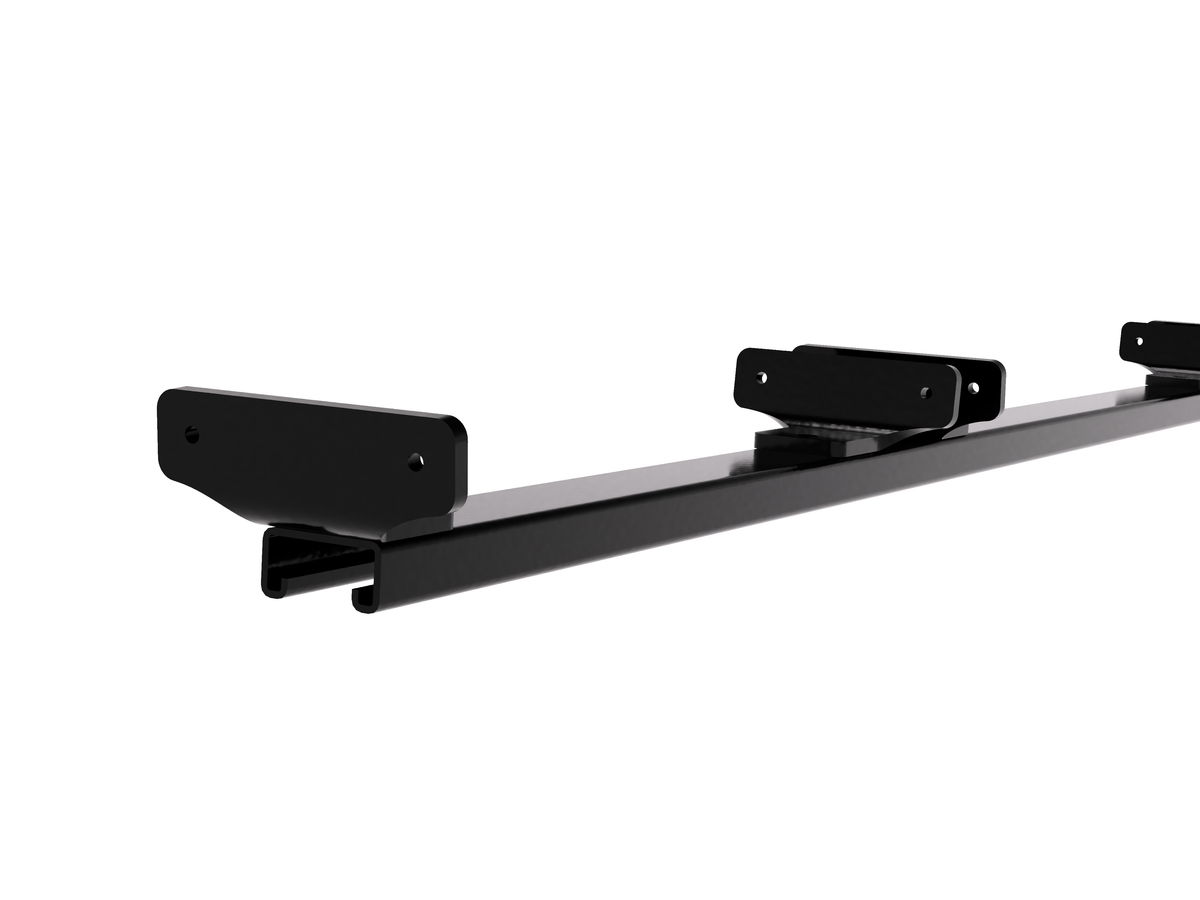

• Open Unistrut-compatible channel accepts standard Unistrut fasteners, so components can be added, moved, or reconfigured without modifying the rails.
• Complete hardware kit included ‚every bolt, washer, and fastener needed ships with the rails.

What's Included?

• Structural rail set (walls, ceiling, or both, per selected configuration)
• All mounting hardware (bolts, washers, fasteners)
• Installation reference card

Note: The Virtus Install Toolkit is sold separately.

Fitment Guide

Designed and tested for:

• 2019+ Mercedes Sprinter 2500 ‚144" Wheelbase, High Roof
• 2019+ Mercedes Sprinter 2500 ‚170" Wheelbase, High Roof

CONFIGURATION: 144" or 170" Wheelbase, High Roof only; Does not fit 170"EXT models.

Specifications: Virtus Vans 2019+ Mercedes Sprinter Structural Rail System 144"/170"
