Sprinter Two-in-one Tire Ladder Carrier

- $100 flat rate shipping to the Lower 48 states. Free warehouse pickup available(Tec Vanlife - Portland, OR warehouse).

- Download installation instructions [PDF]

Key Features:

• Fits 2019+ Mercedes Sprinter vans with 180 degree rear door hinges
• Combines a rear door ladder and spare tire carrier in a single space saving unit
• Supports full size all terrain spare tires up to 305 section width without sagging
• Compatible with factory alloy and most aftermarket alloy wheels (subject to wheel design and supply)
• Provides safe roof access with outward curved full foot steps
• Integrated tread on each step to help reduce slipping and improve footing

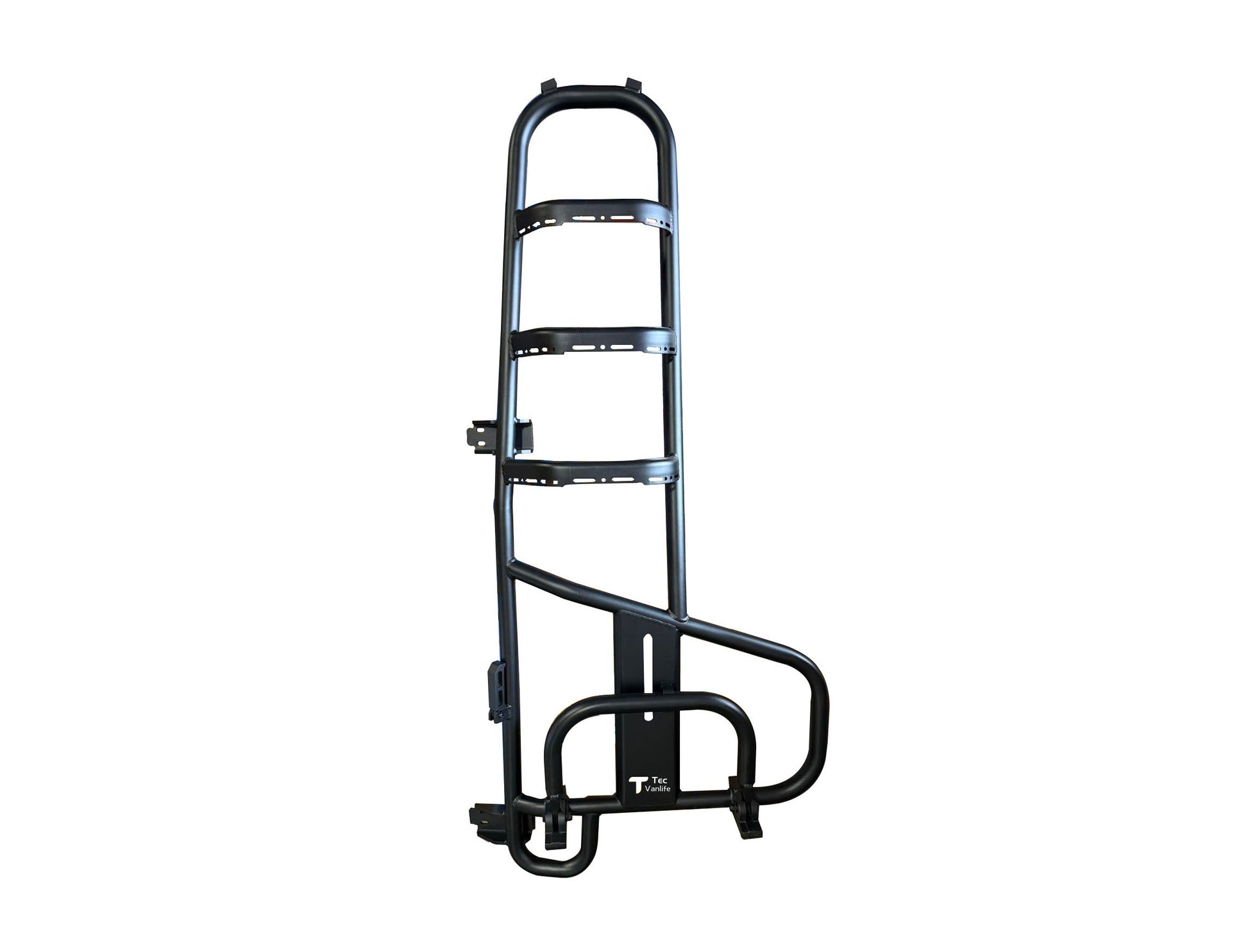

• Aluminum main frame reinforced with stainless steel components for strength and corrosion resistance
• Three piece bolted design for easier handling and installation

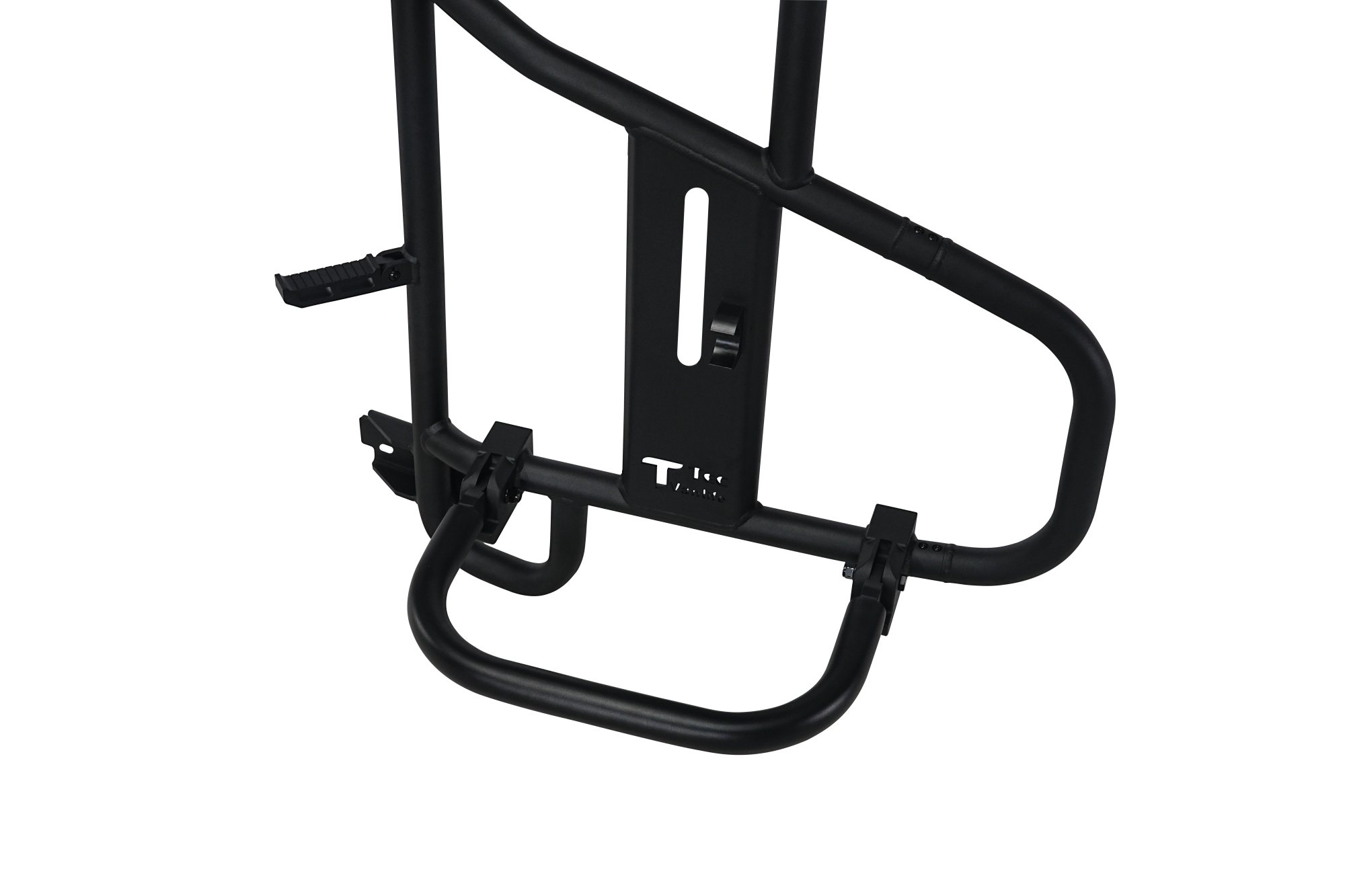

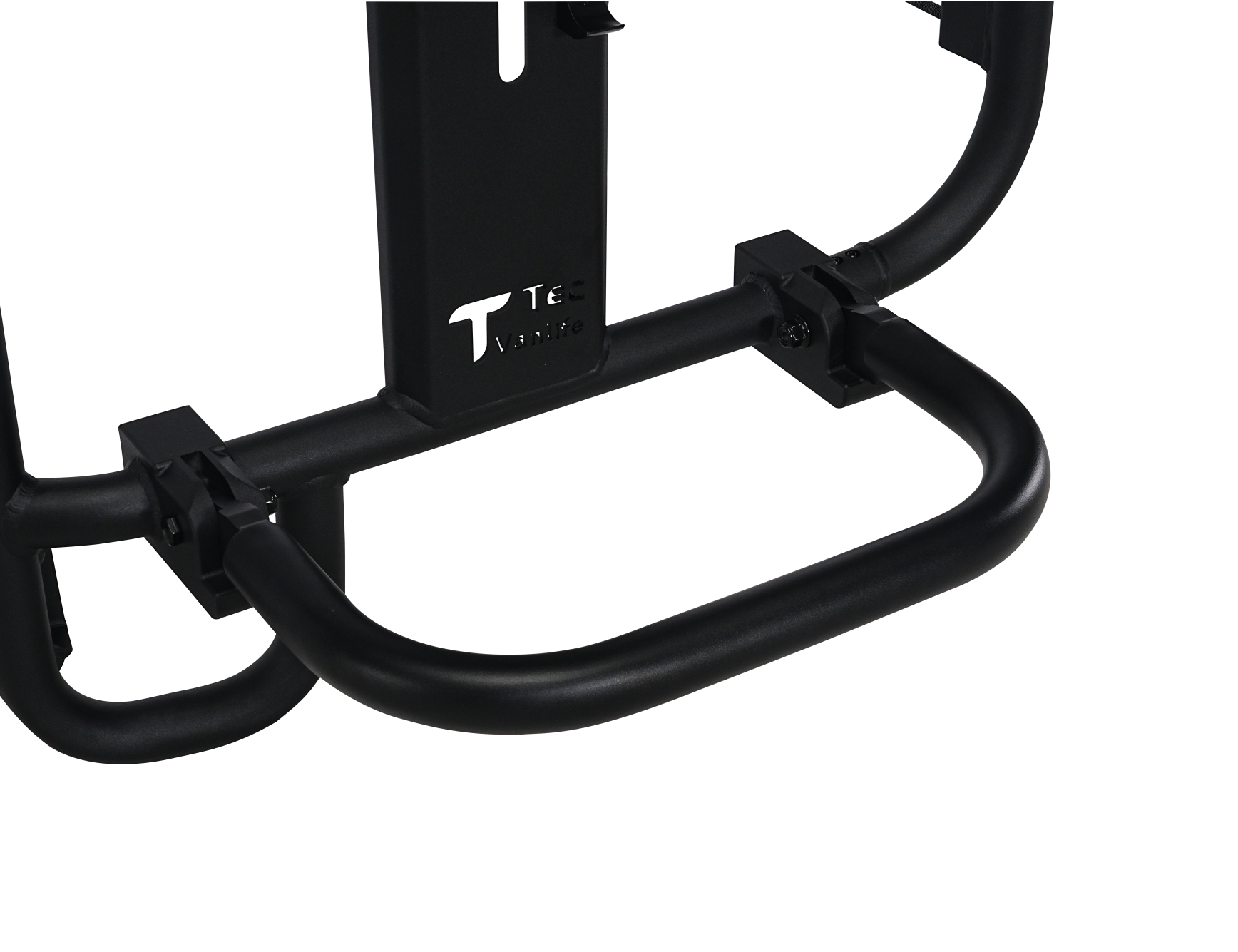

• Folding tire holder arm that tucks away when not in use for a cleaner look

• Frees up the OEM underbody spare location for undermount water tanks

• Overall dimensions: 75.6" × 39.4" × 10.25" (1920 mm × 1001 mm × 260 mm)
• Weight: 33.8 lbs (15.3 kg)

Description:

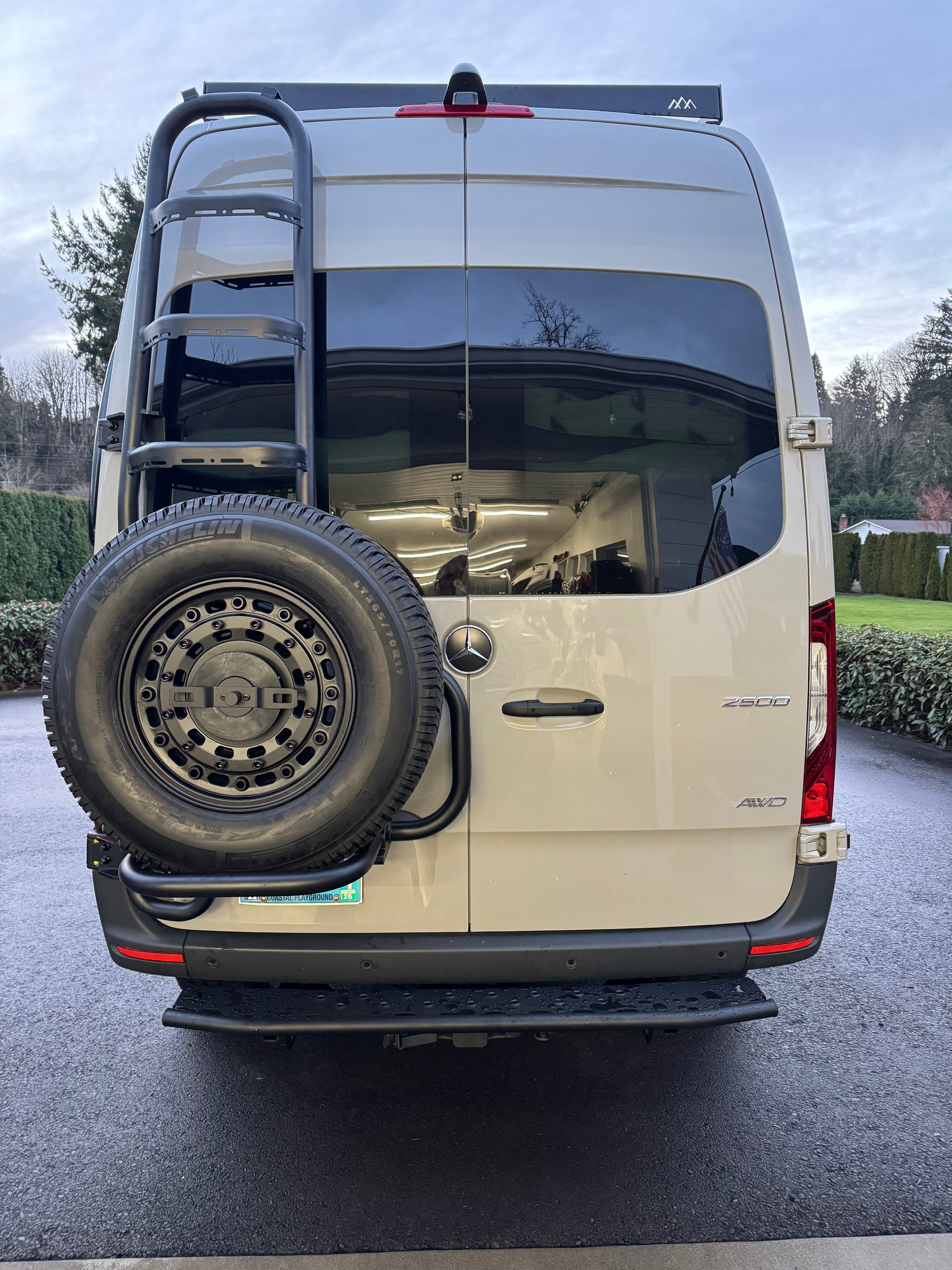

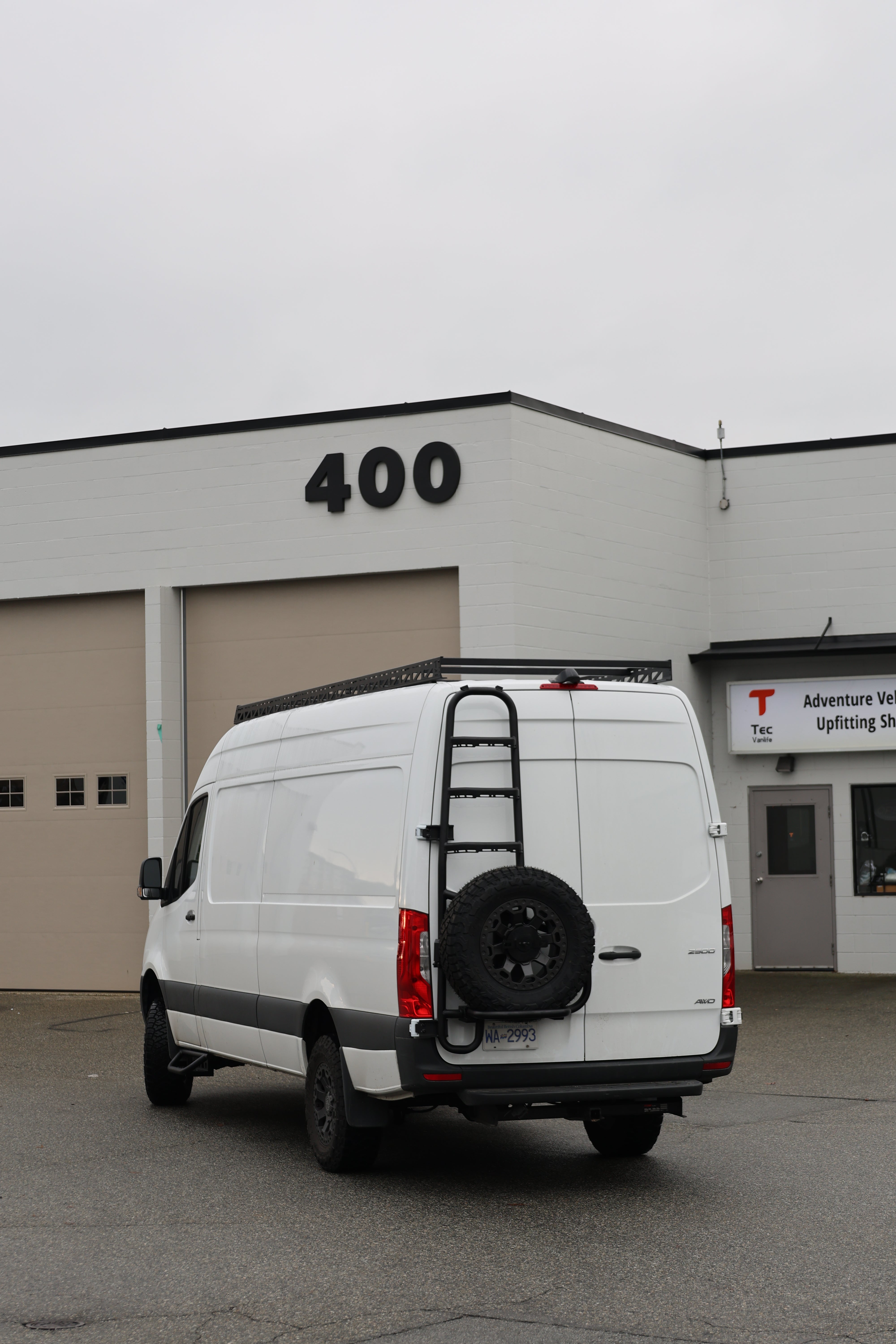

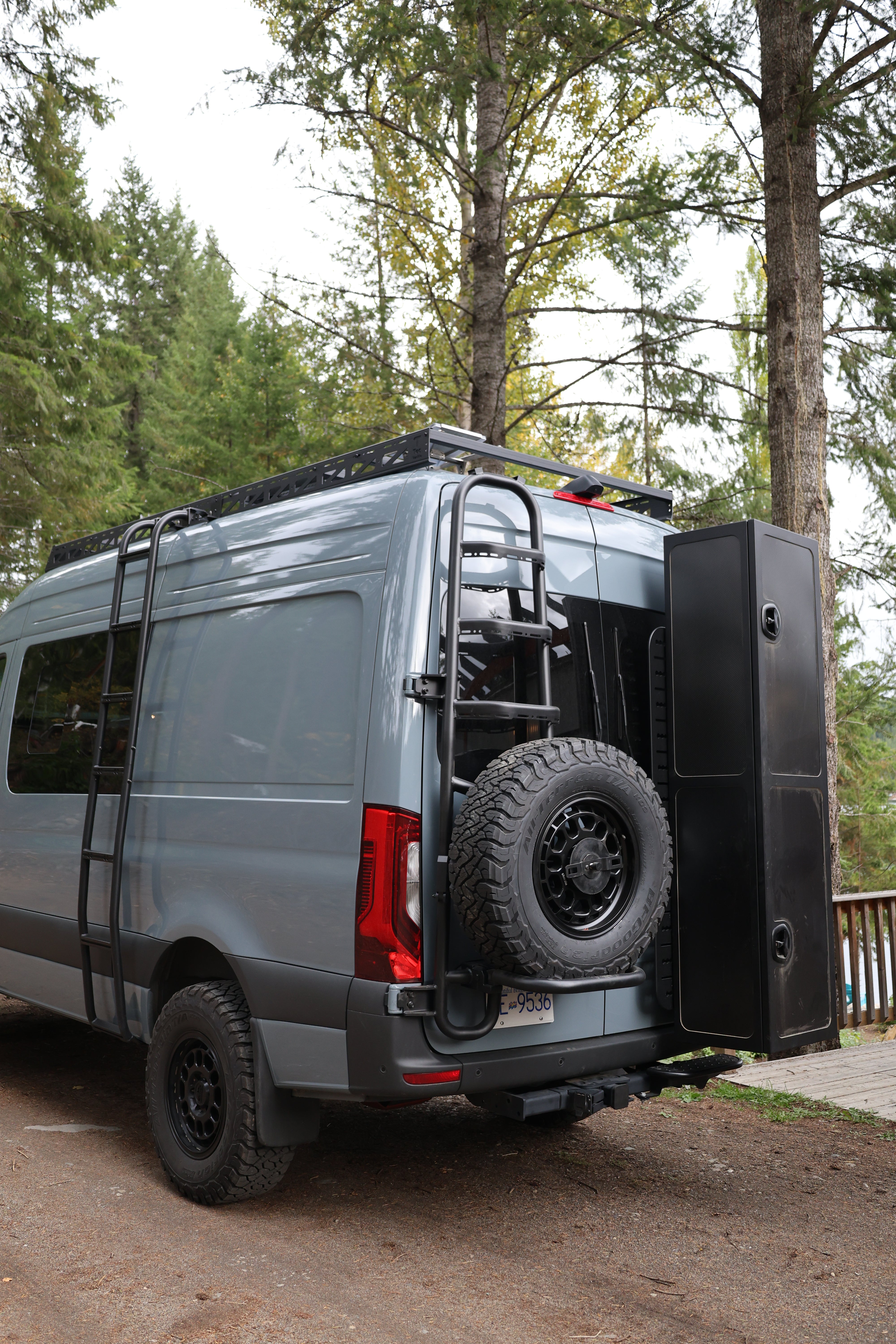

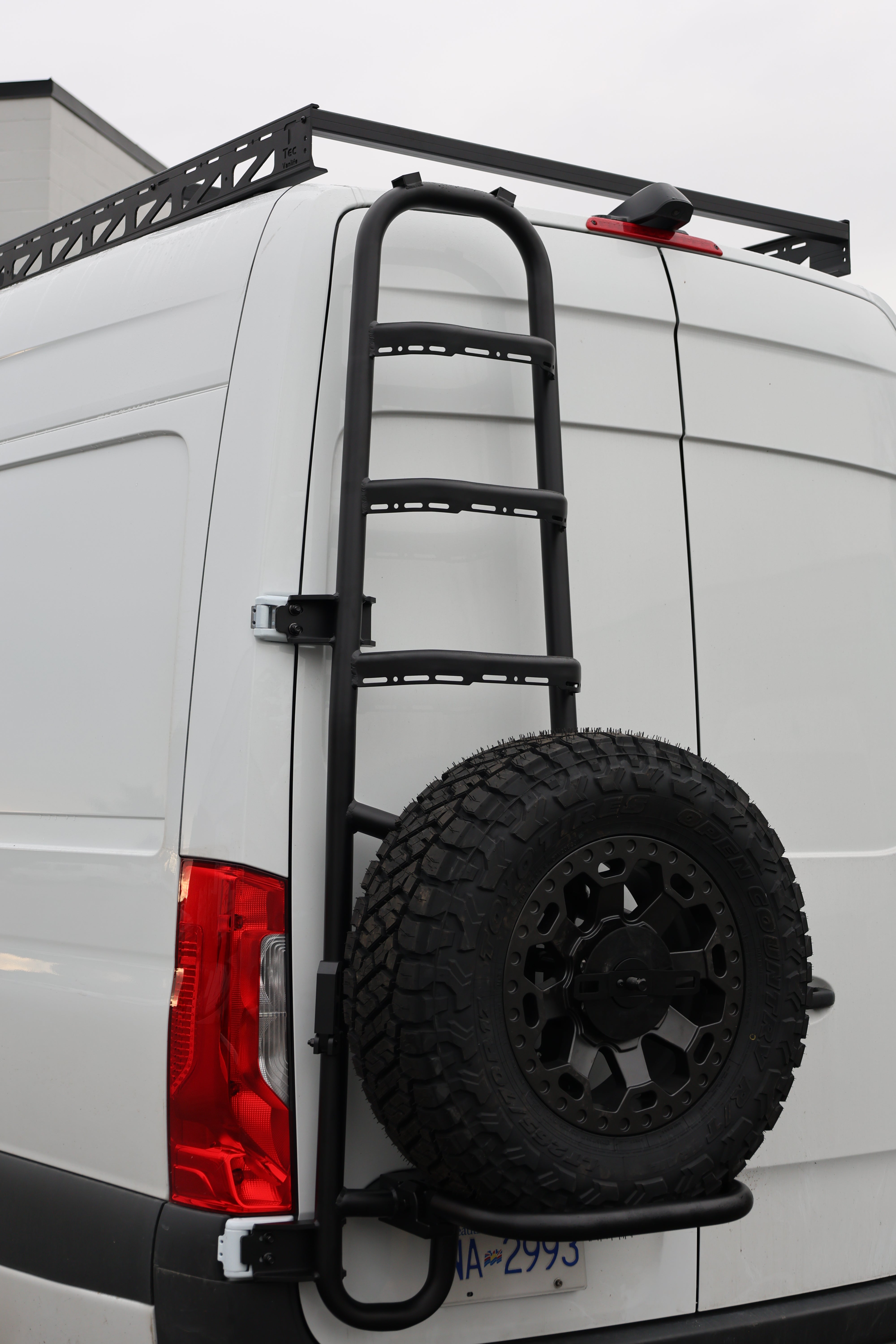

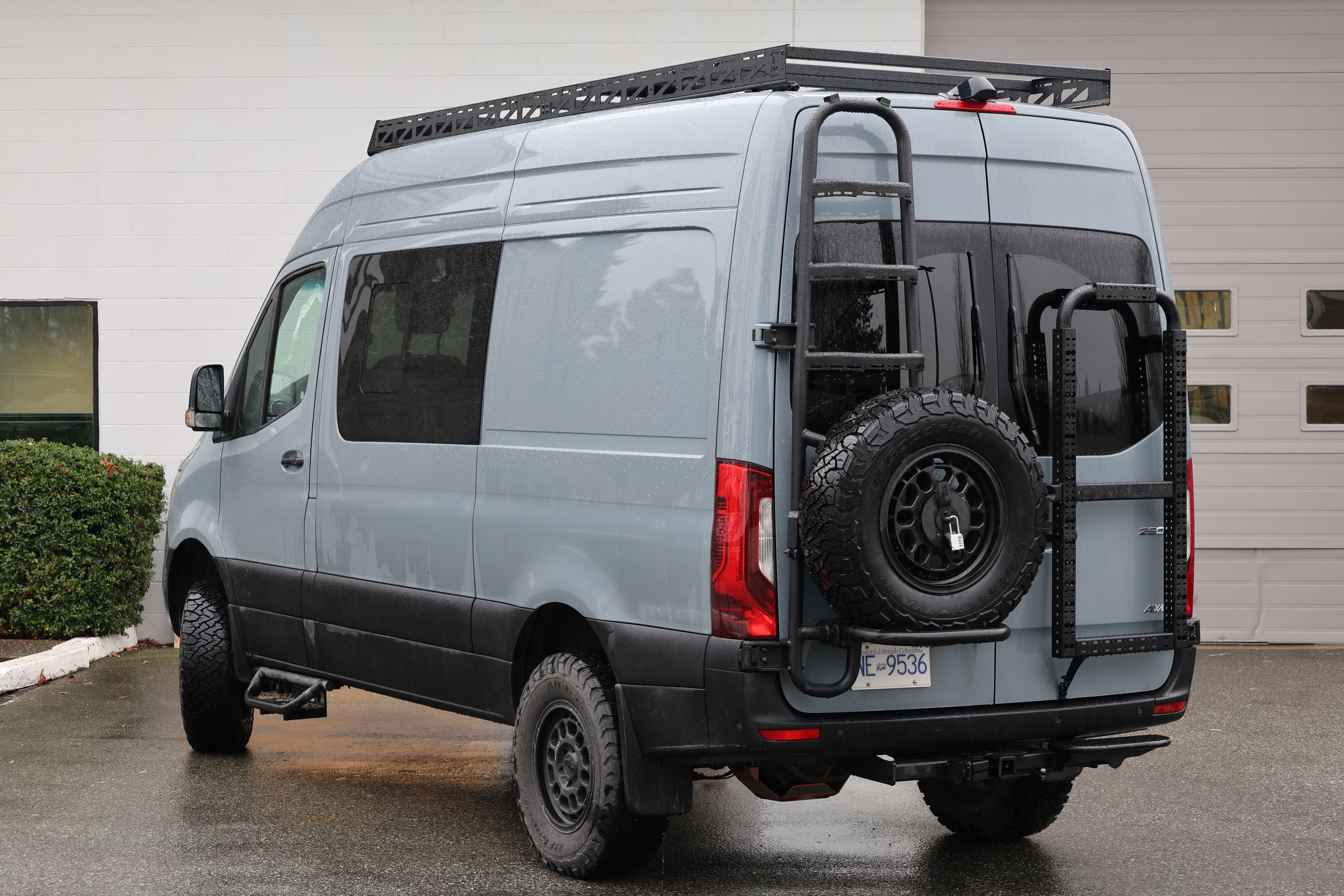

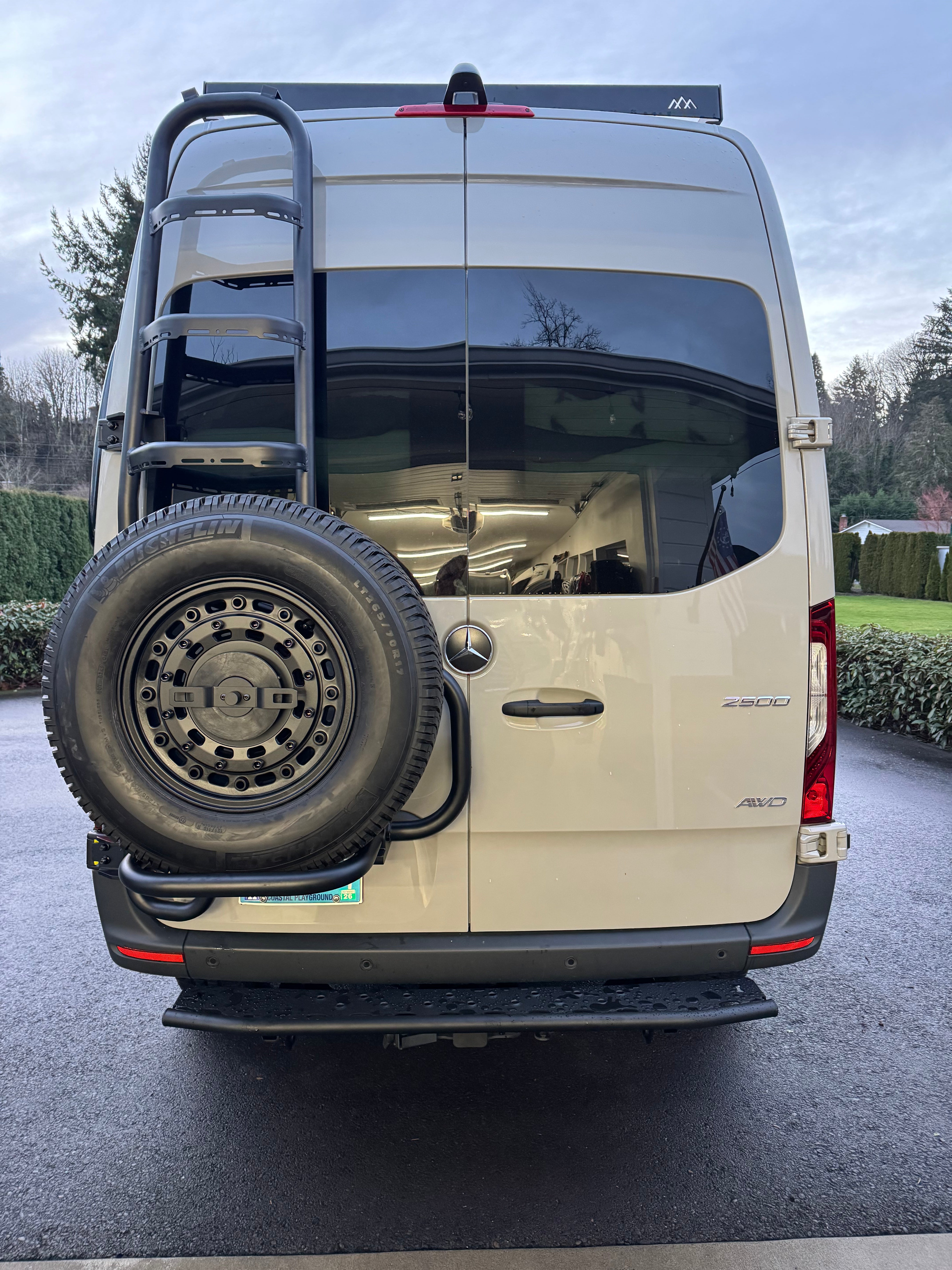

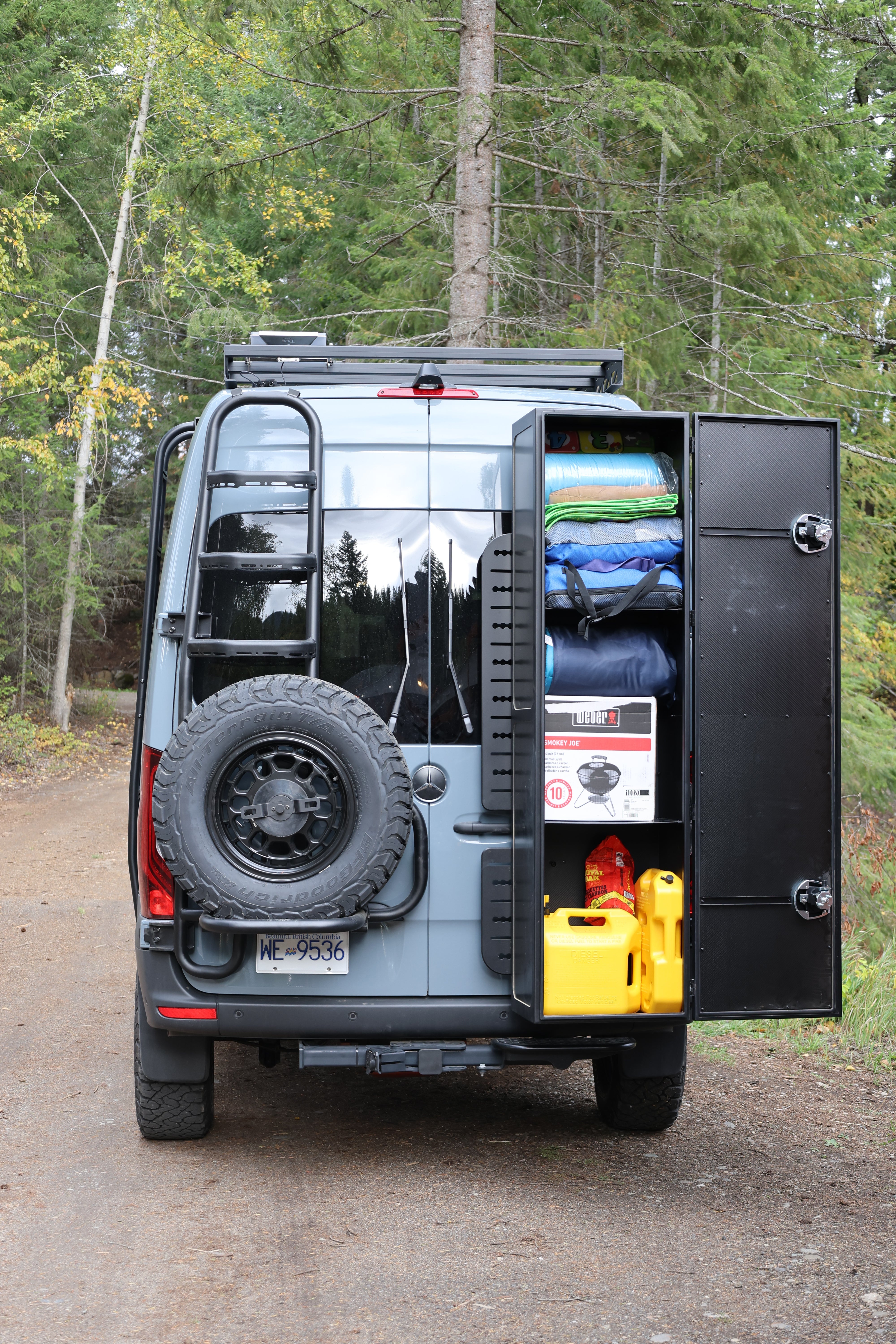

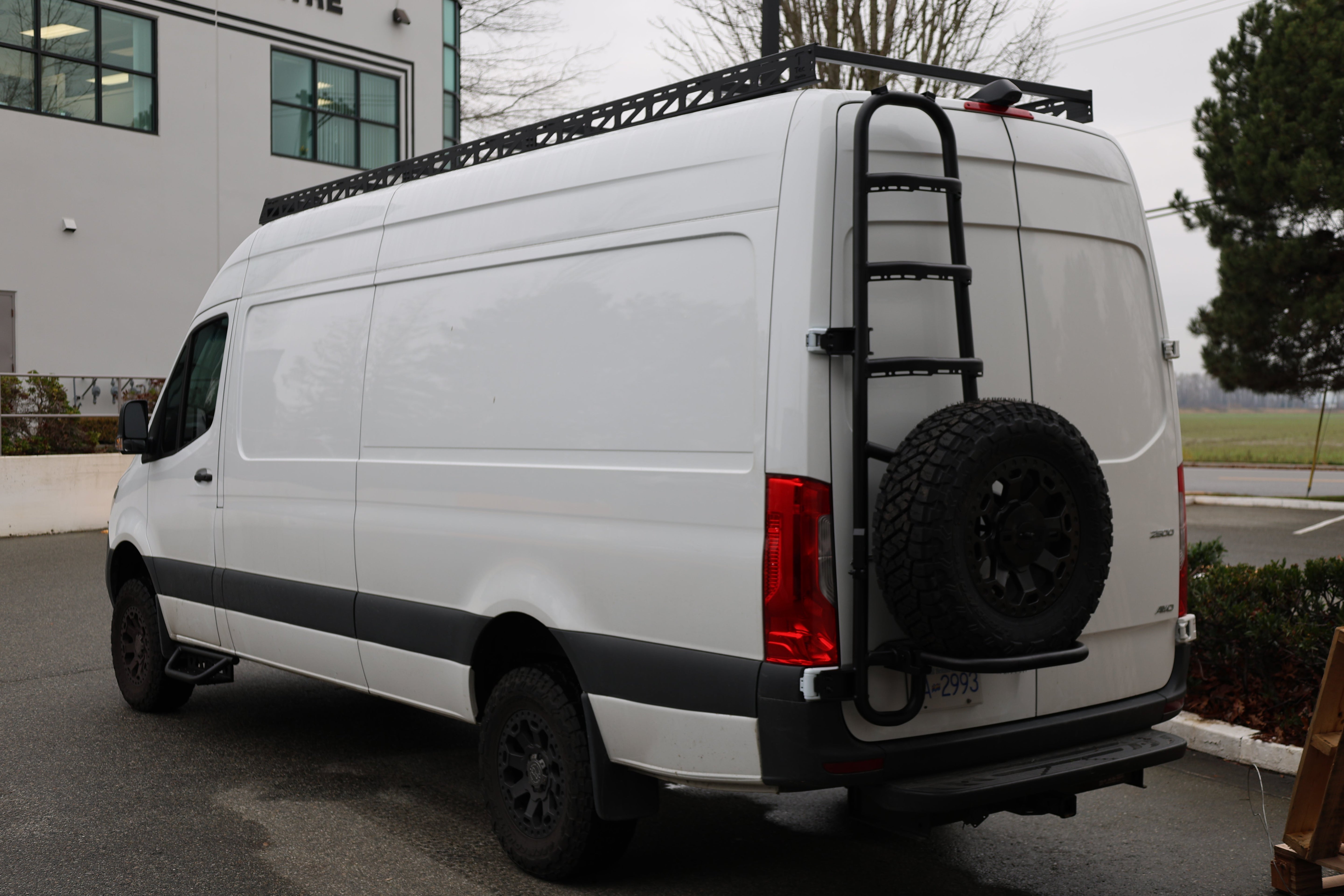

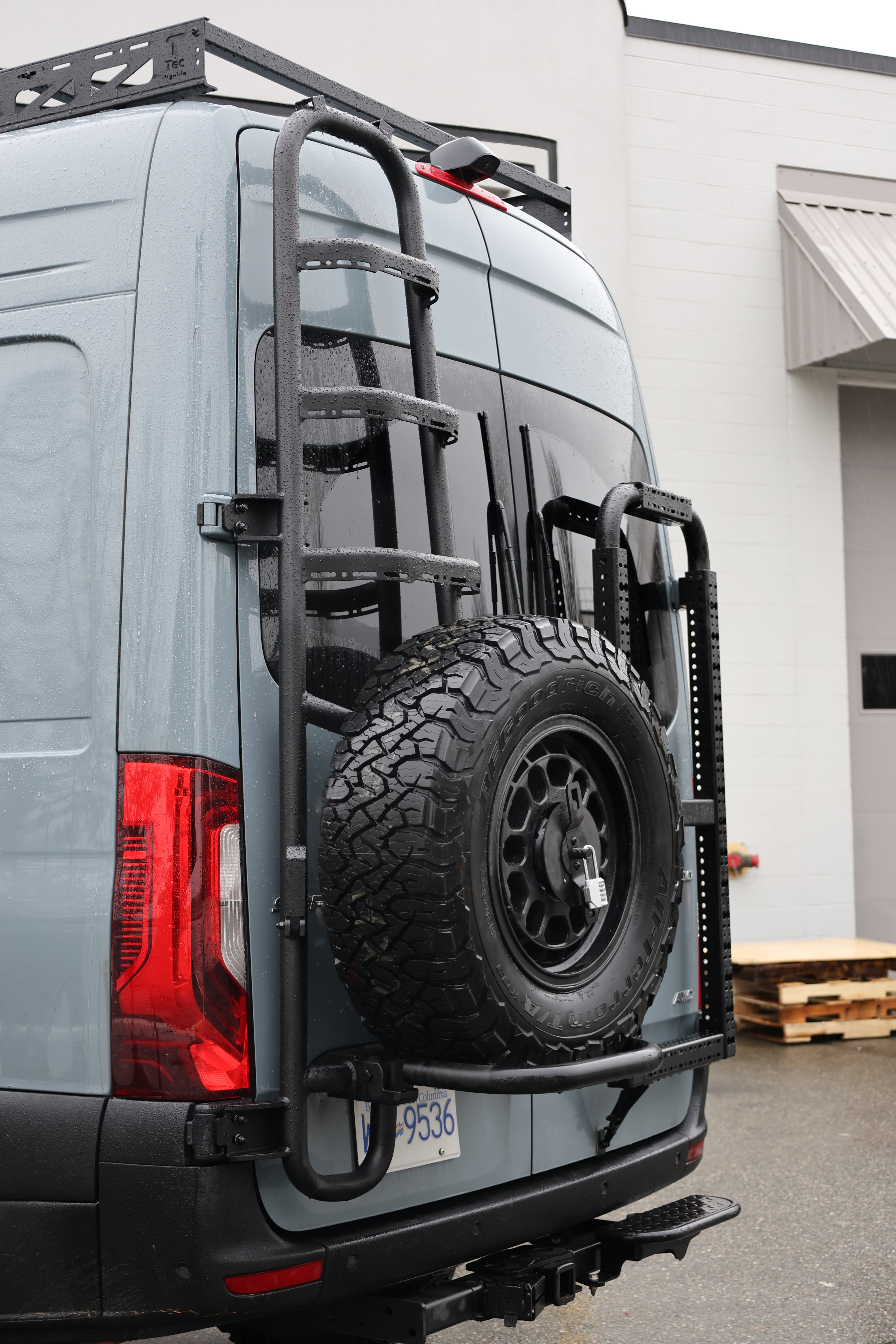

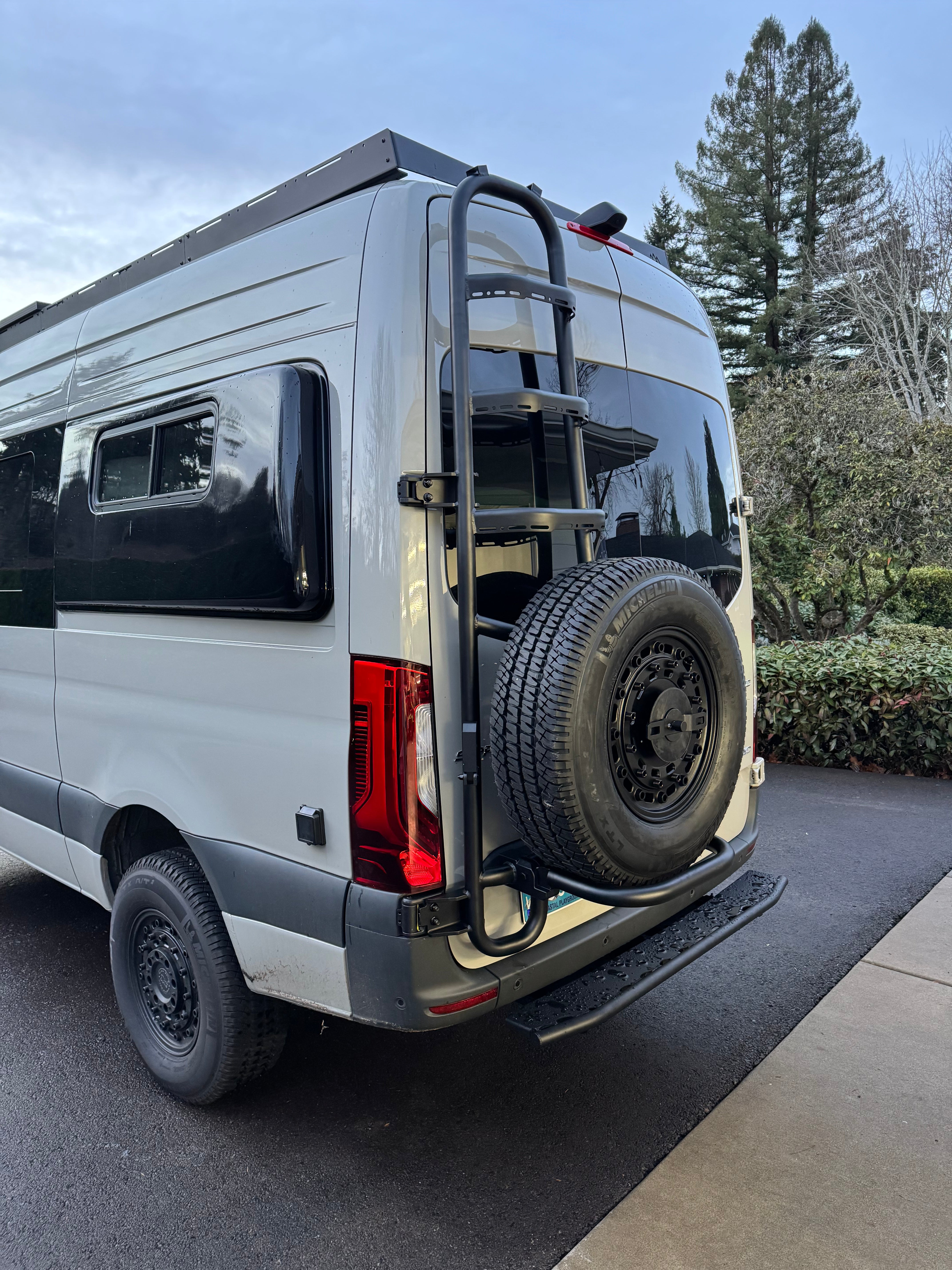

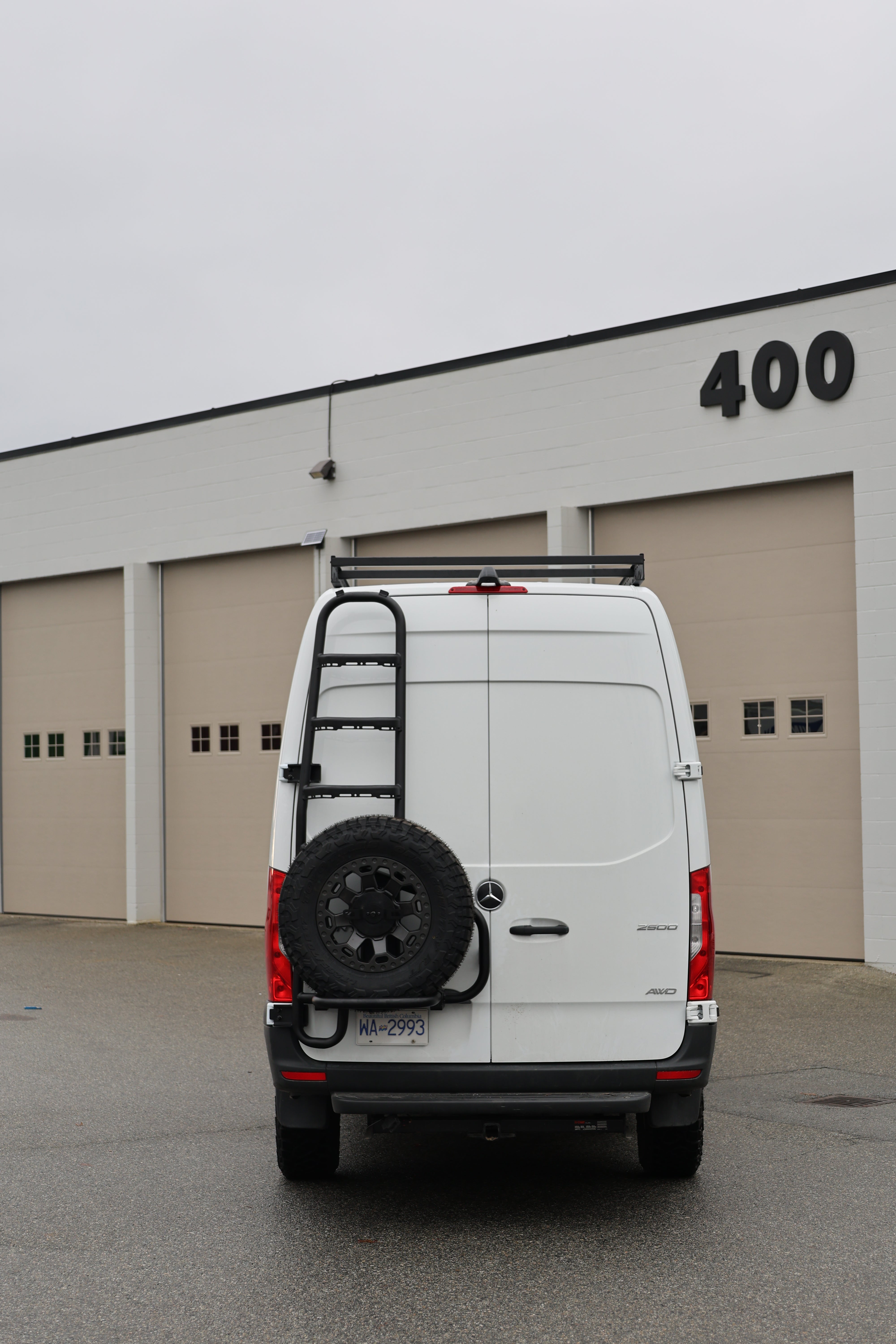

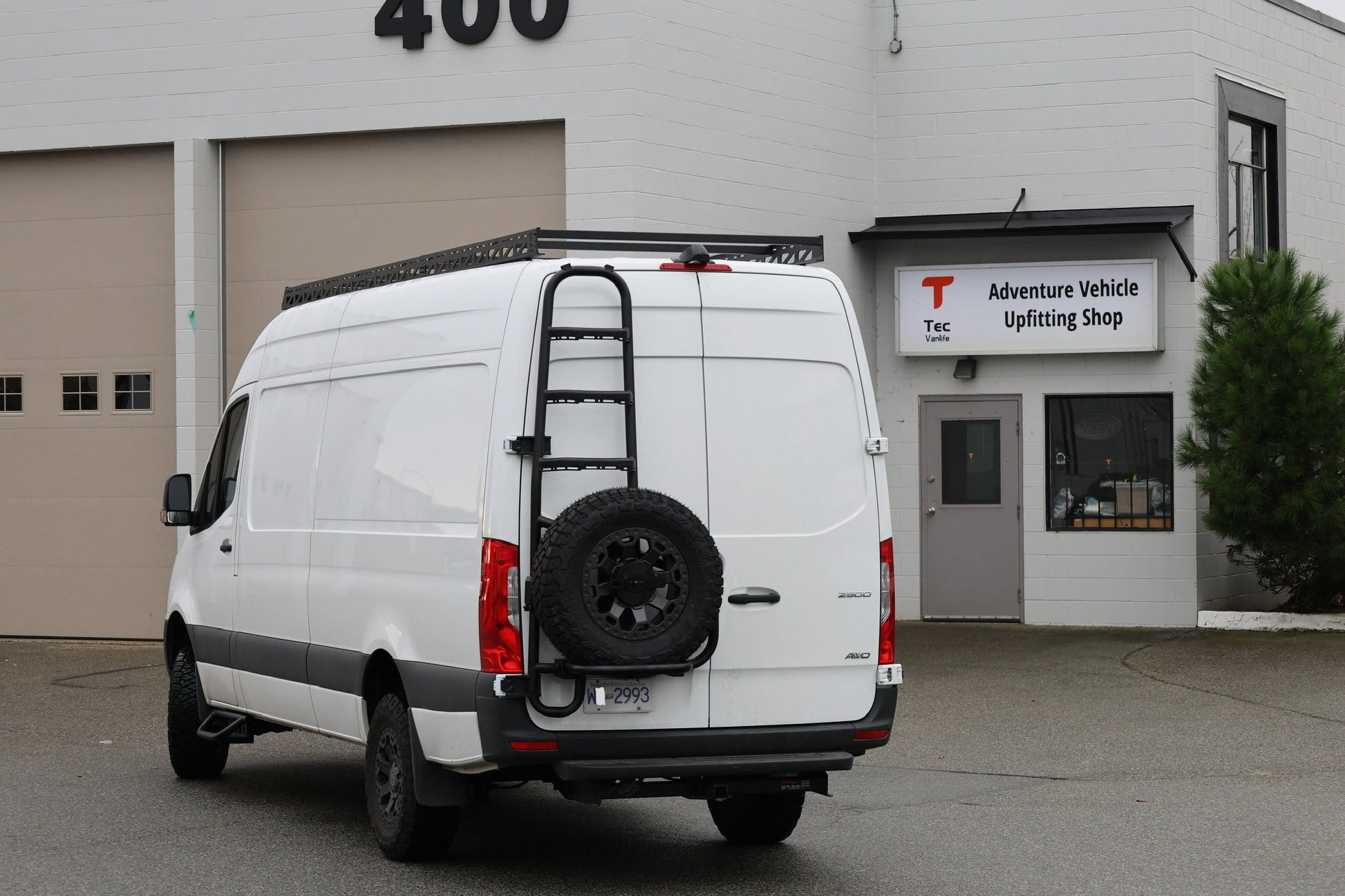

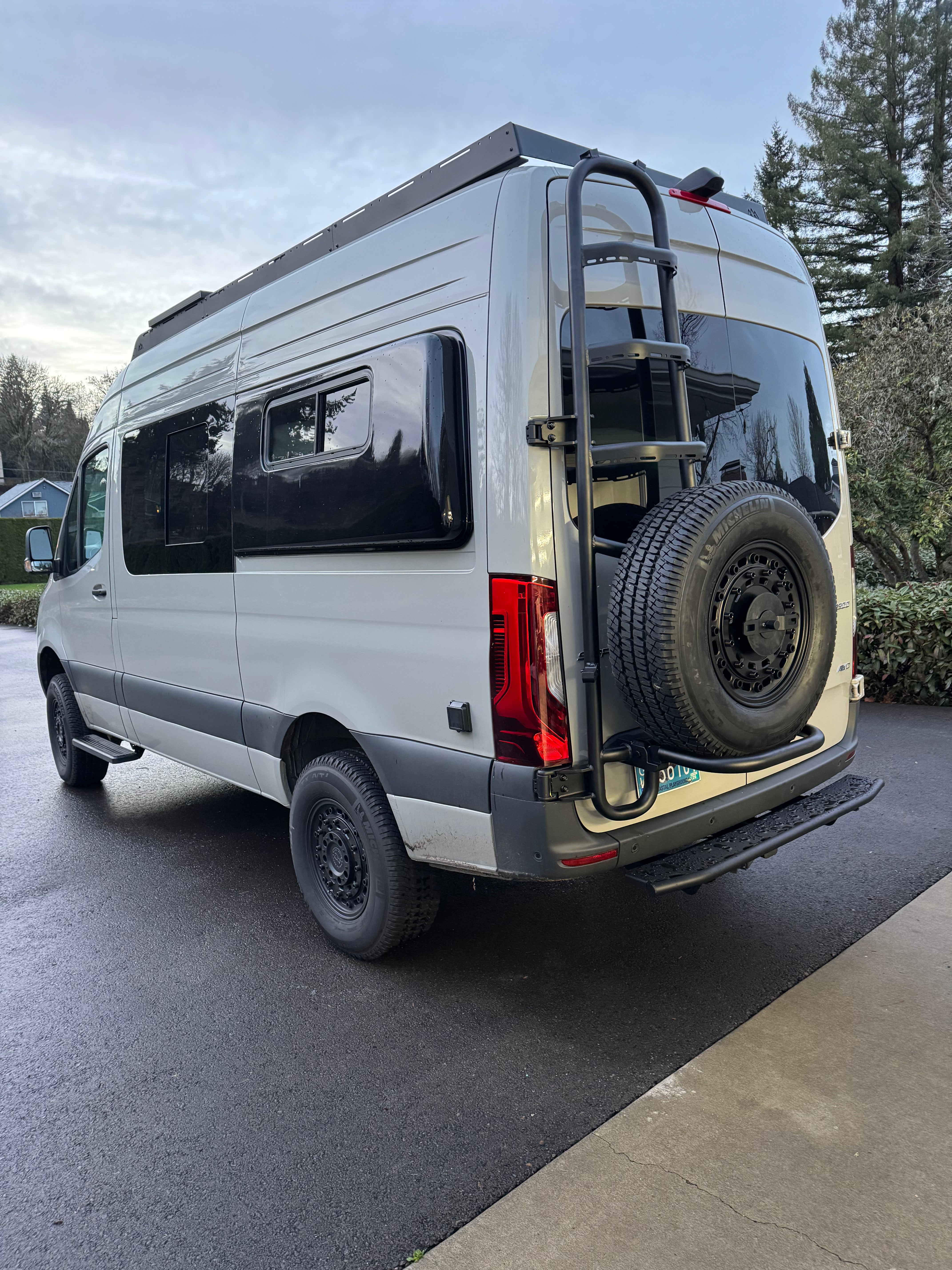

Designed for 2019 and newer Mercedes Sprinter vans with 180 degree rear door hinges, this two in one system combines a rear ladder and spare tire carrier into a single rear door mounted unit. It provides safe roof access and secure mounting for a full size spare tire while limiting the space used on the door, helping to keep the rear of the van organized and available for other equipment.

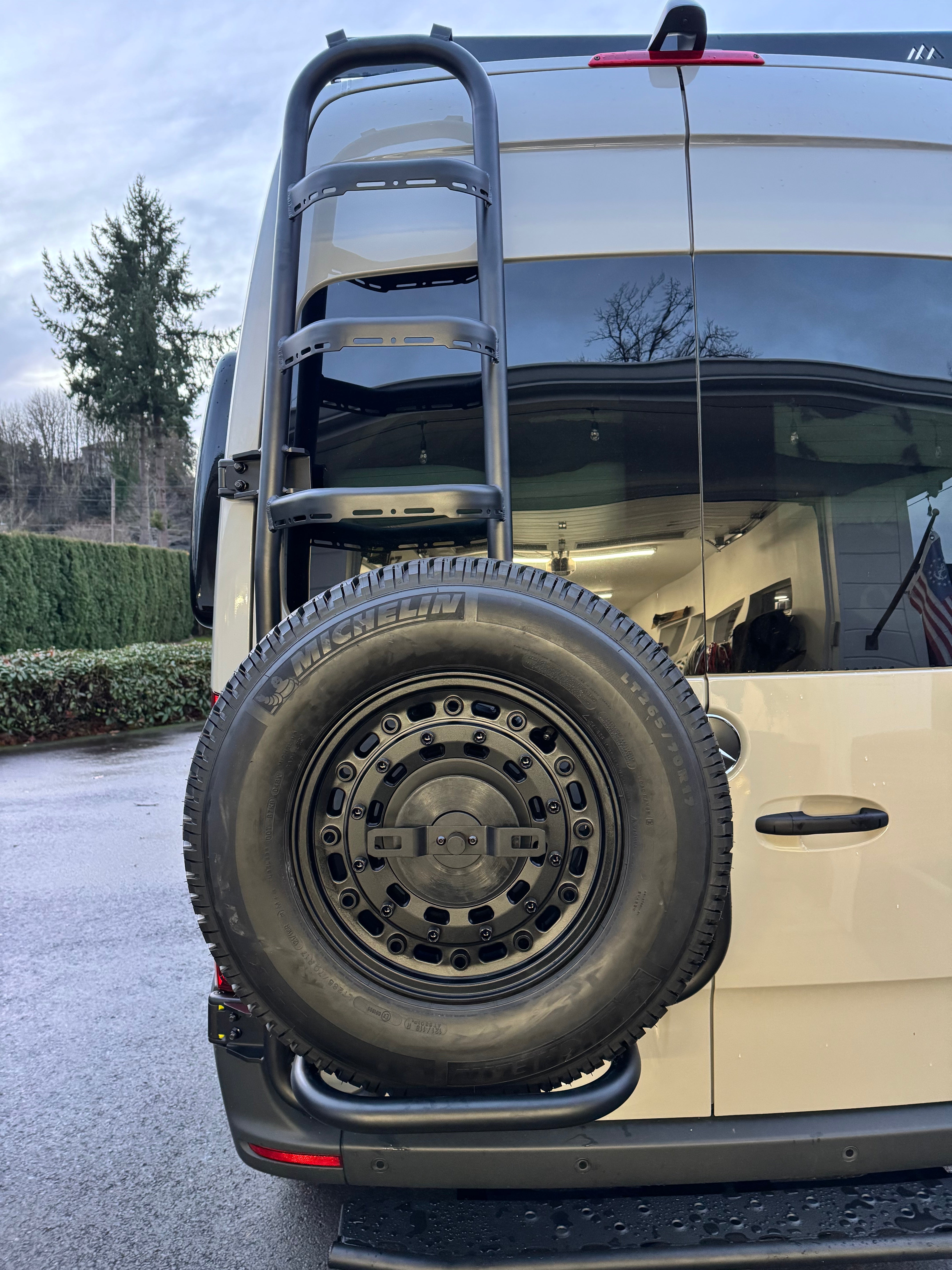

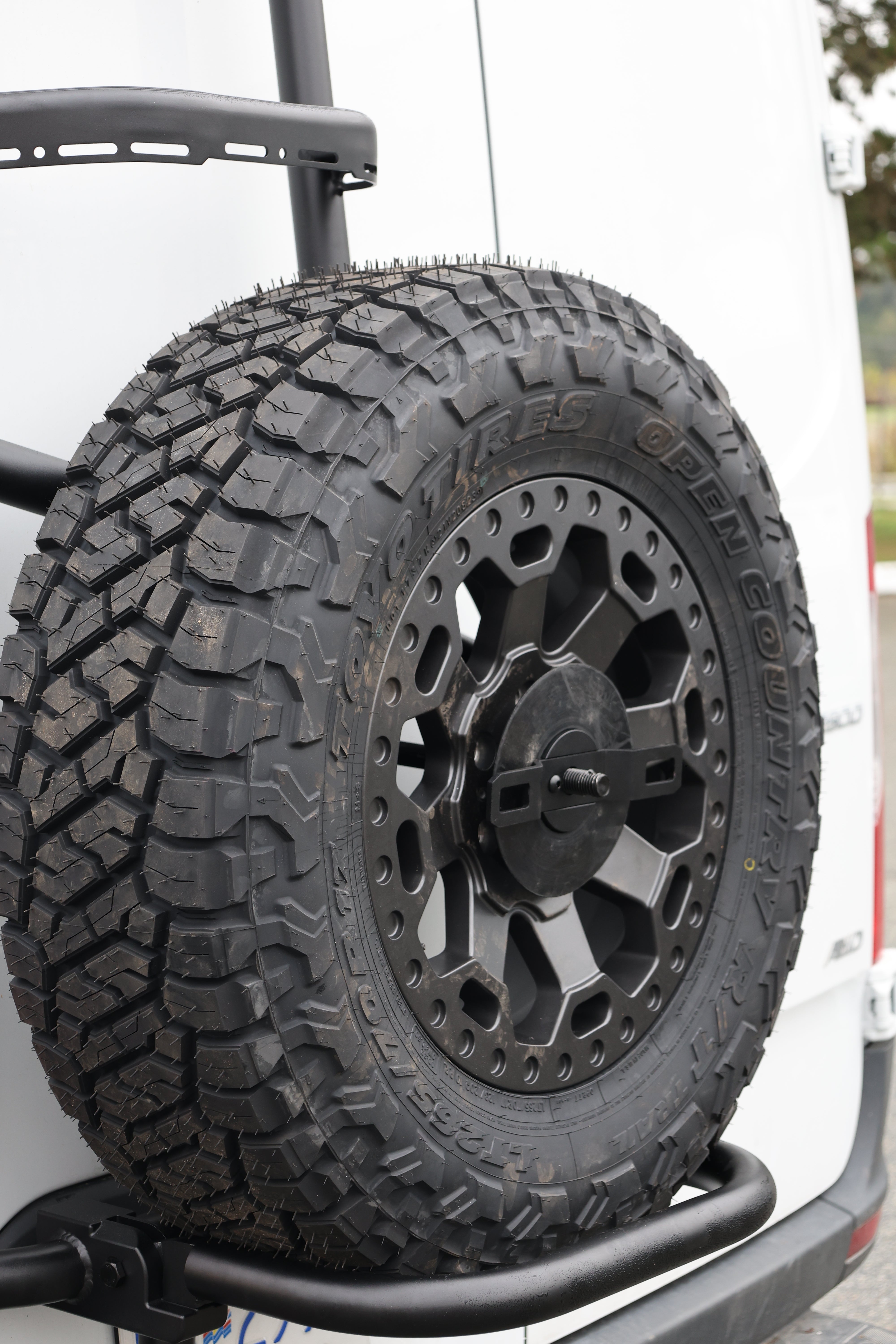

The main structure uses a lightweight aluminum frame reinforced with stainless steel elements to deliver a balance of strength, rigidity, and corrosion resistance. The reinforced folding tire holder arm is built to support full size all terrain tires up to 305 section width without sagging, and can be folded away when not in use to maintain a more streamlined appearance.

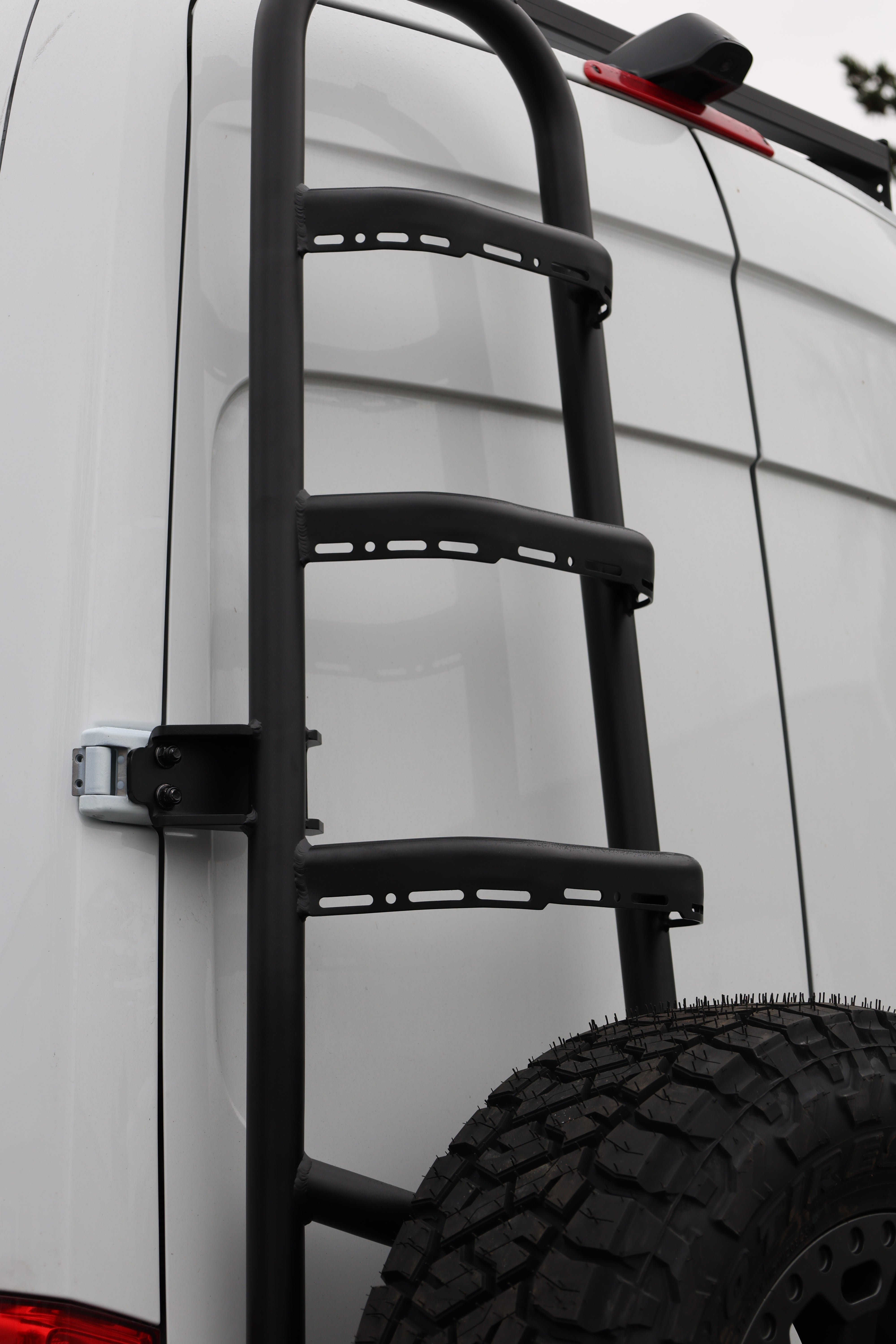

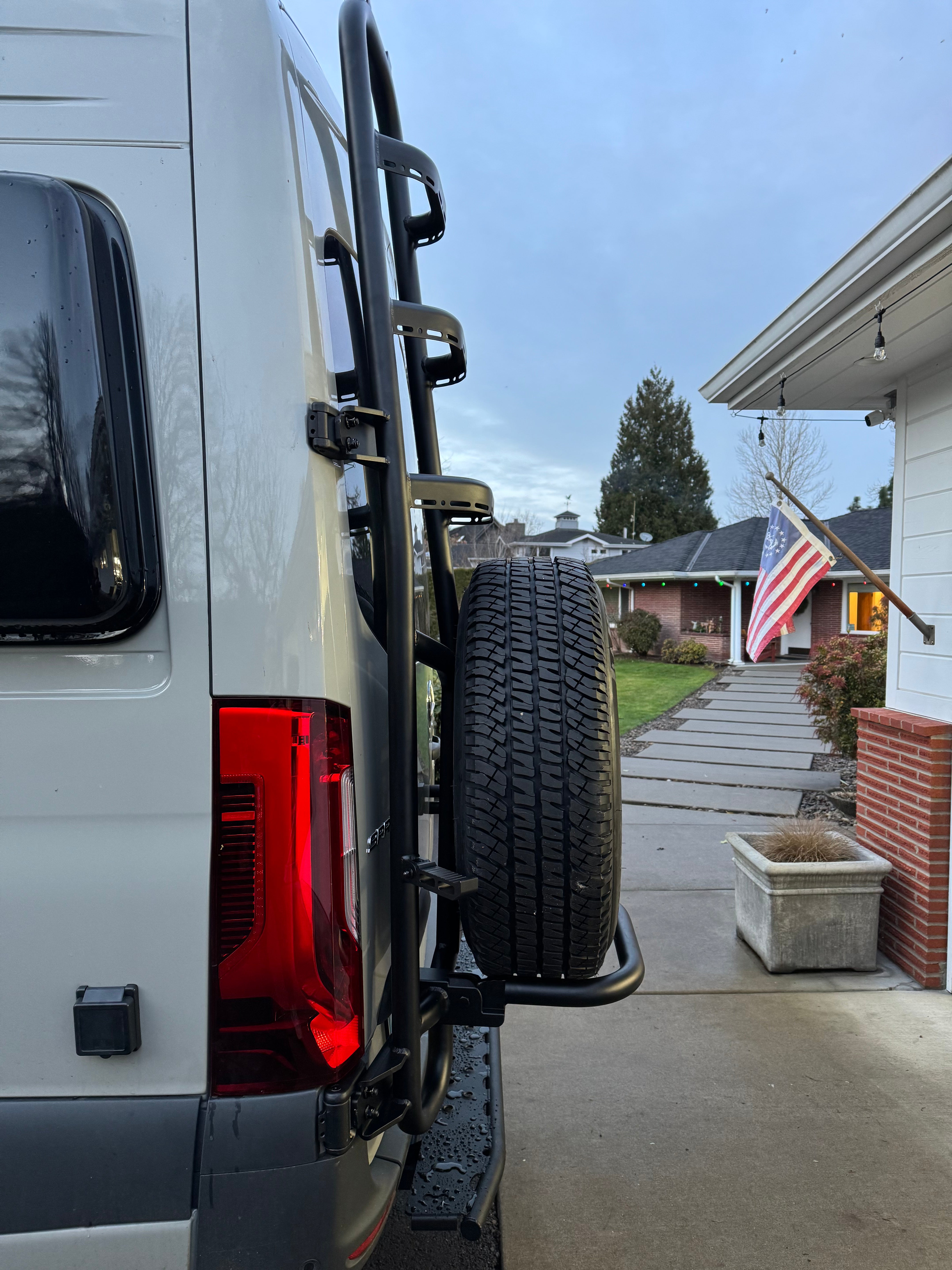

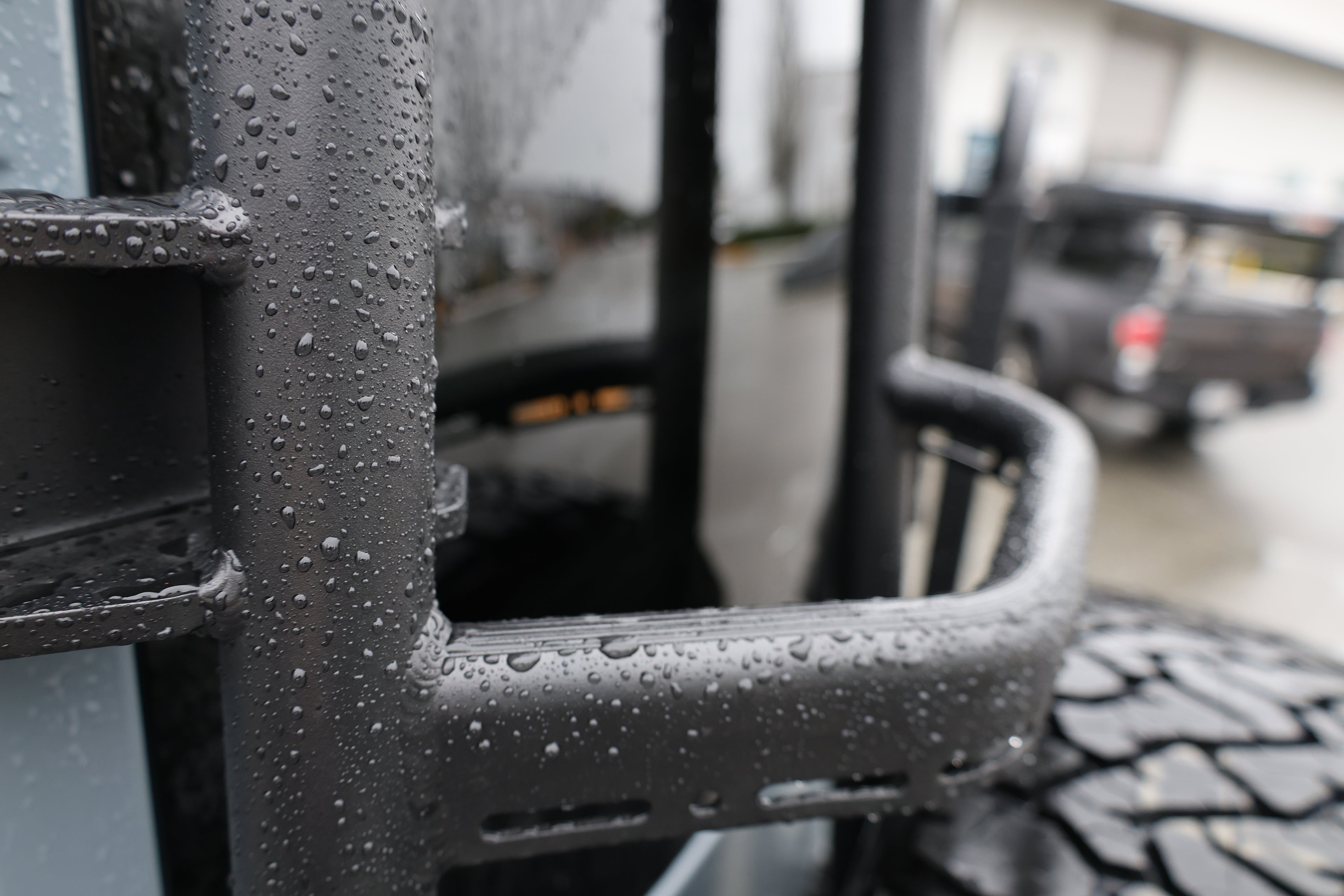

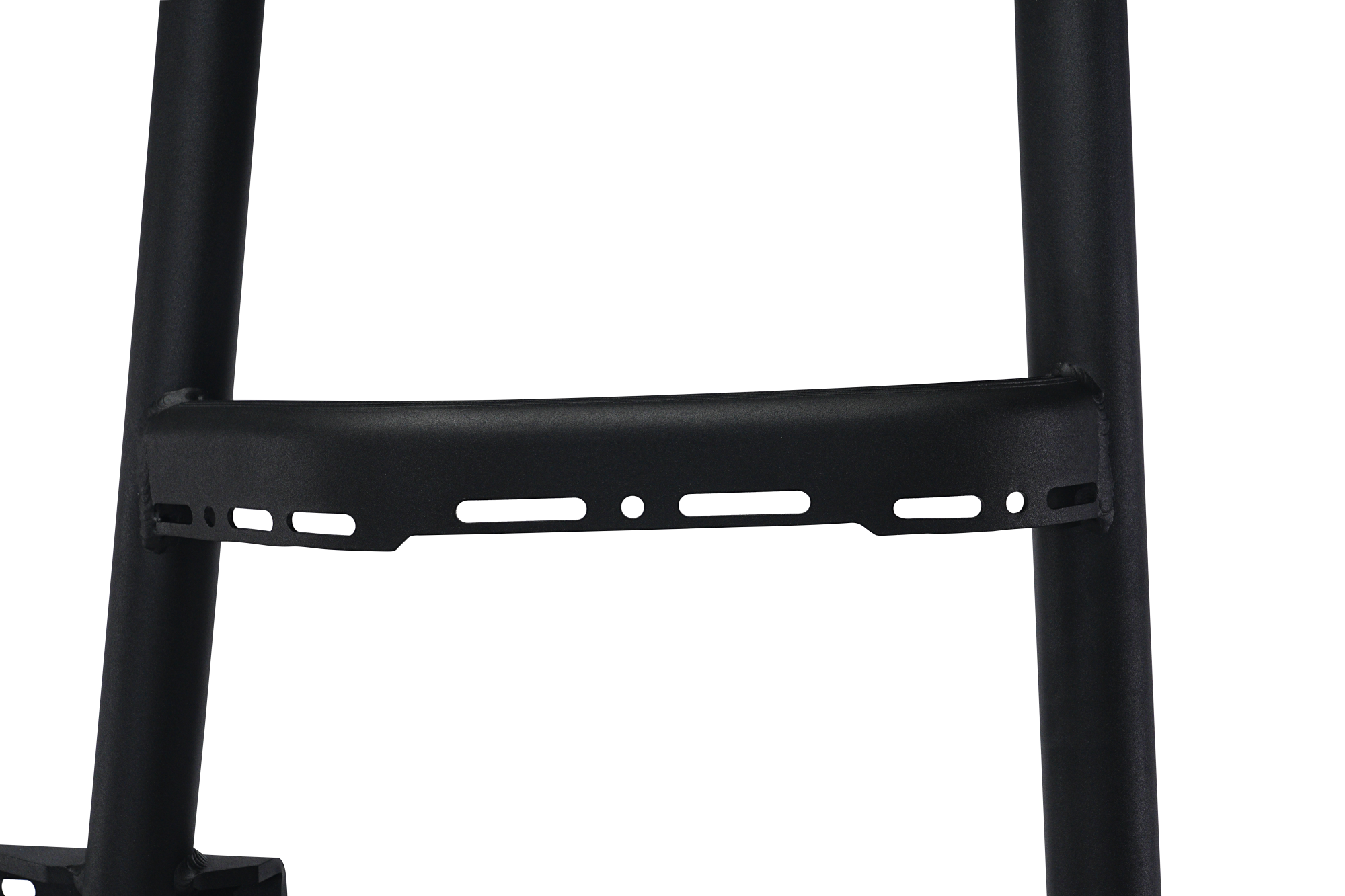

Curved full foot steps run the length of the ladder, providing additional foot room for more stable climbing. Each step incorporates a tread pattern to help reduce slipping and improve grip when accessing the roof in a range of conditions. Once installed, the carrier sits tight to the door and presents a clean, professional look suited to both daily use and extended travel.

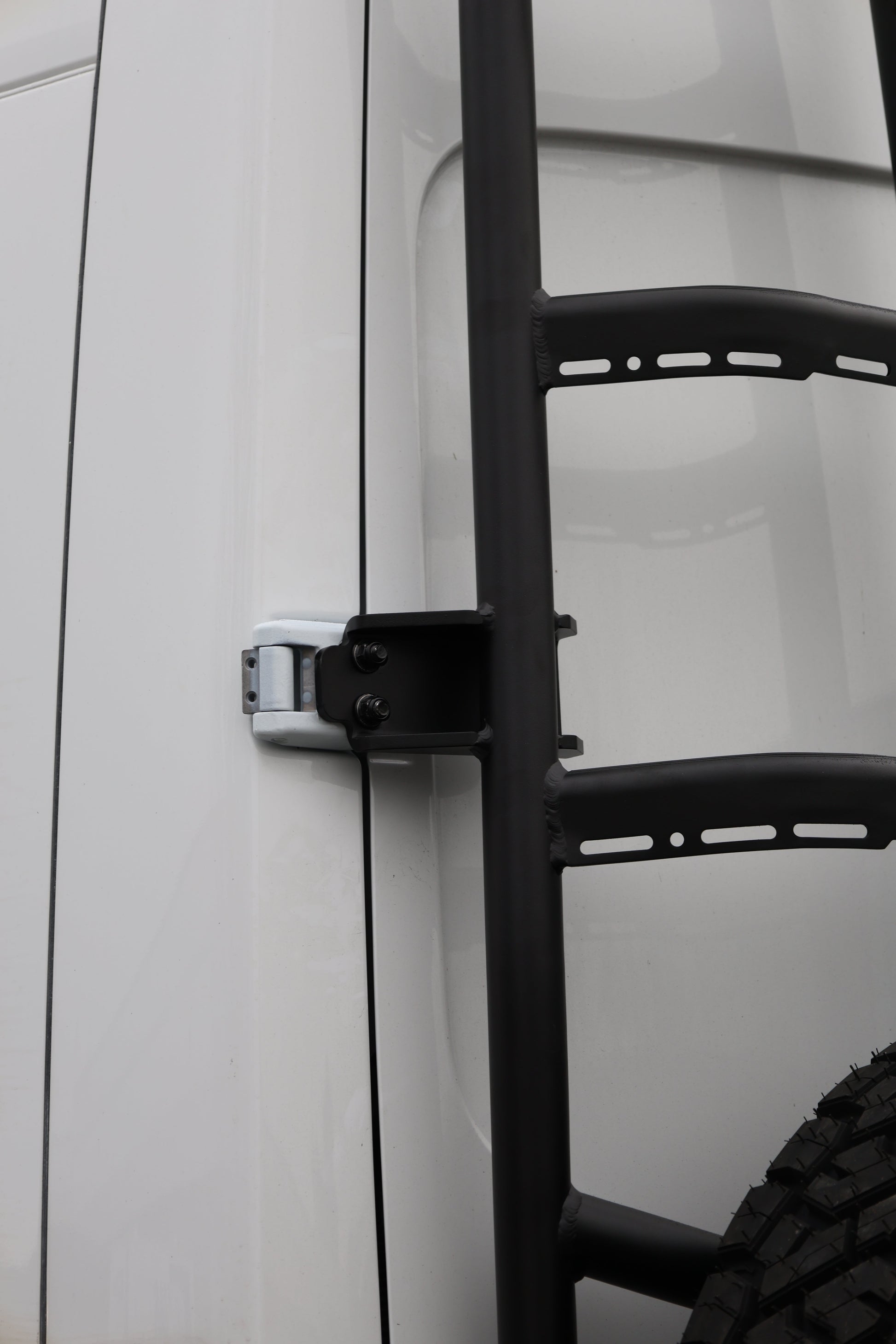

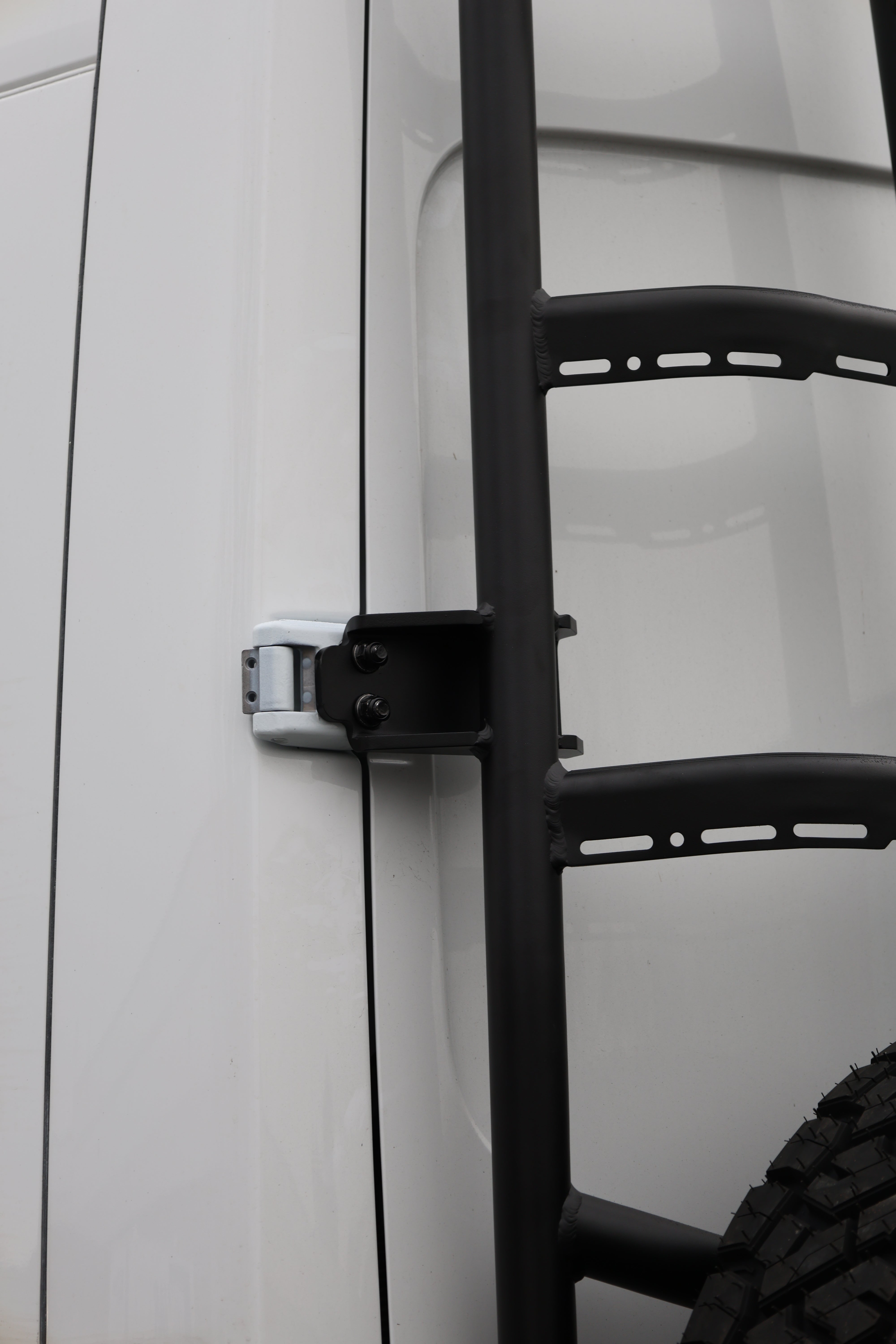

The mounting system is designed to work with vans that have 180 degree rear door hinges and is compatible with factory alloy and most aftermarket alloy wheels, subject to wheel style and available fitment. For a straightforward installation experience, refer to the dedicated YouTube installation video or the step by step installation guide supplied with the product.

Inspect and tighten all hardware after the first 100 miles of driving and every 600 miles thereafter. Check the overall condition of the carrier every 600 miles or at least once per month, whichever comes first.

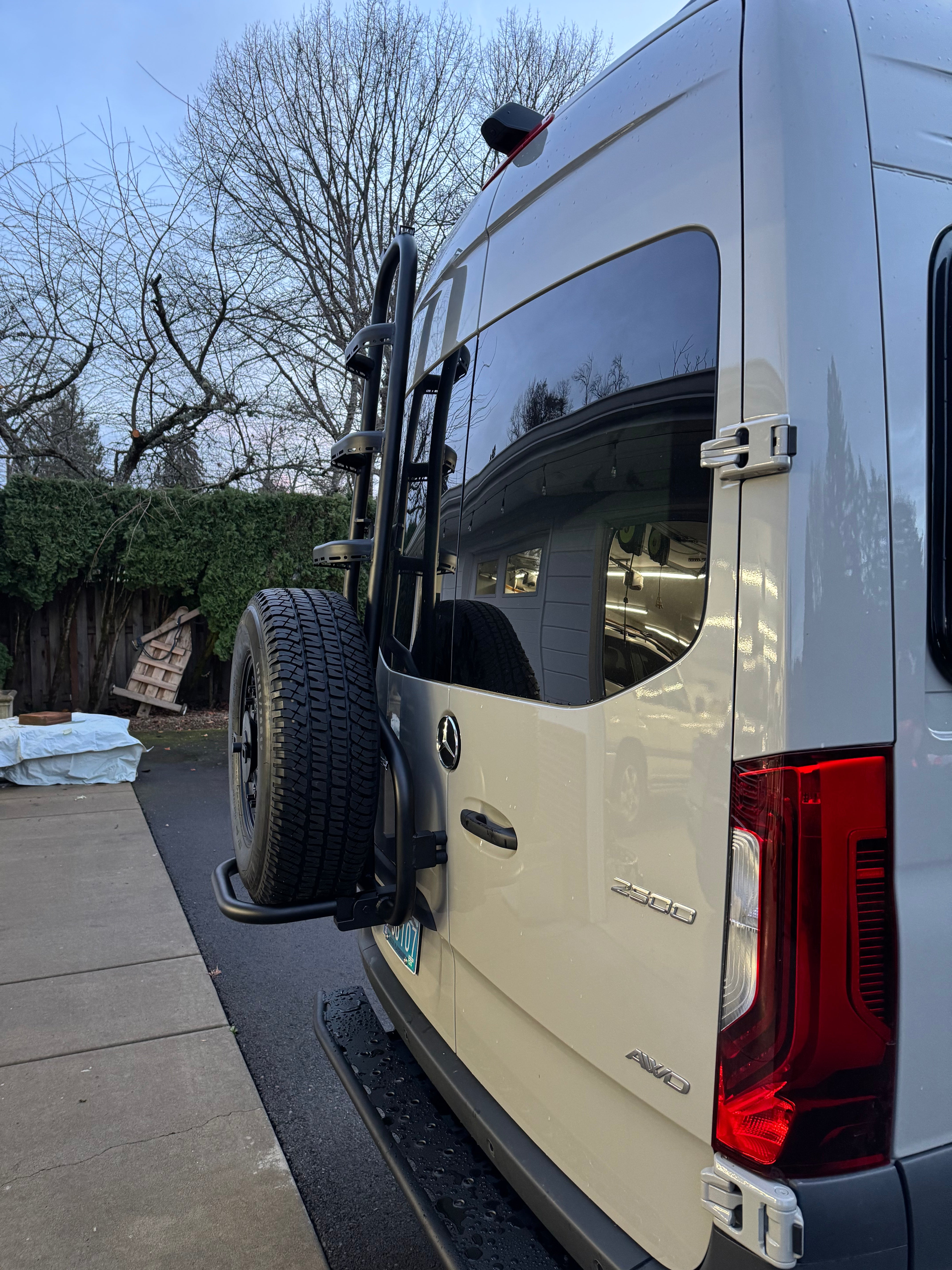

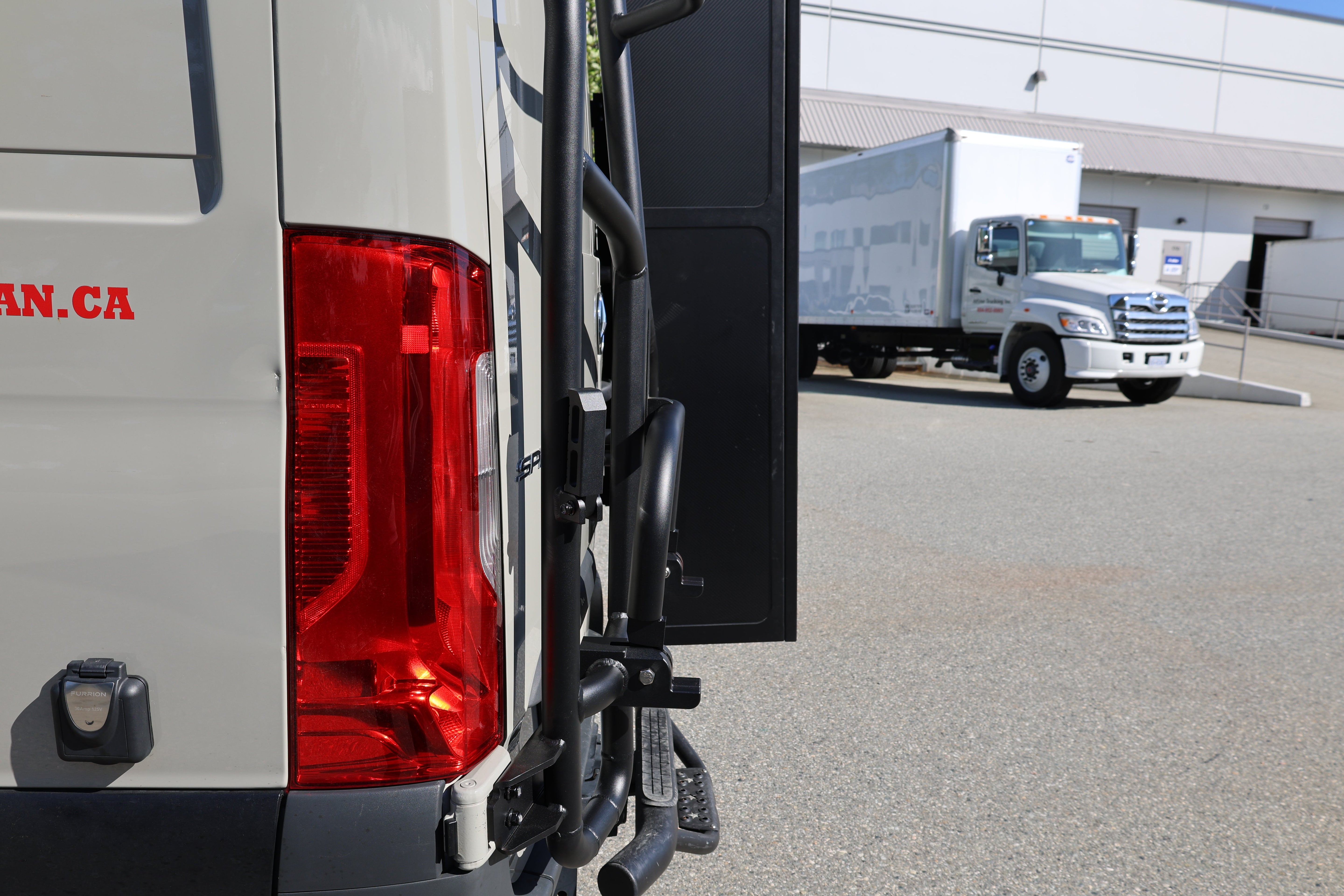

Please note that installing this rack will limit the driver-side rear door opening to approximately 130° to prevent the spare tire from contacting the vehicle body.
