Sprinter Differential Skid Plate - SPRINTER 2007+ 2500

Protect your Sprinter's rear differential from road debris, trail impacts, and rough driving conditions with this heavy duty steel skid plate.

Key Features:

• Constructed from 3/16" thick steel to provide heavy duty protection for the rear differential
• Formed steel design provides a strong barrier against road debris, trail impacts, and rough terrain
• Powder coated finish improves corrosion resistance and durability
• Engineered to provide reliable protection without adding unnecessary weight
• Bolt on installation requires no drilling or permanent modifications

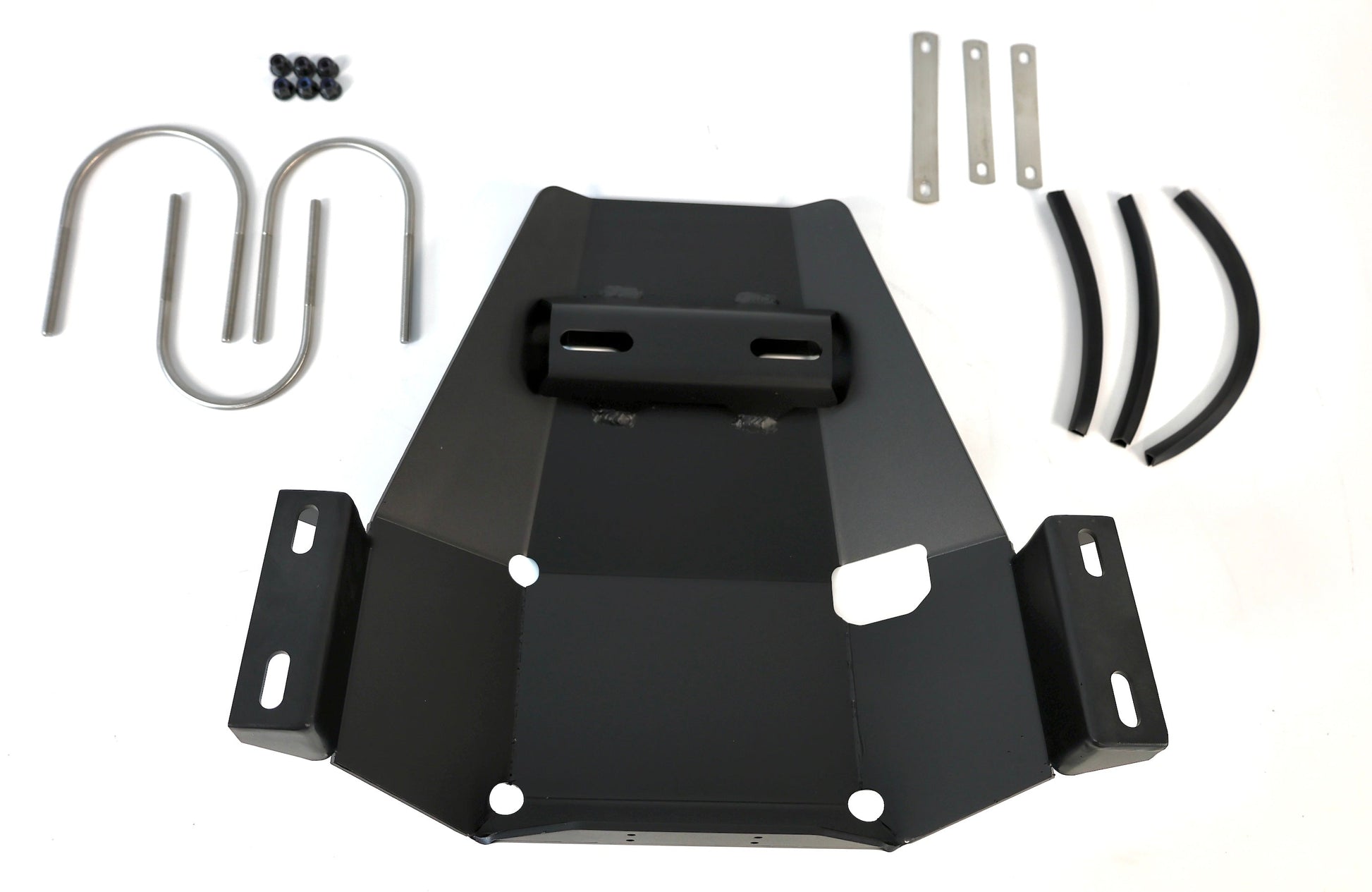

• Includes stainless steel U-bolts and the required mounting hardware
• Rubber sleeves on the U-bolts help prevent metal to metal contact and reduce vibration
• Compatible with 2007+ Sprinter RWD models and 2007–2022 Sprinter AWD/4x4 models

Specifications:

• Dimensions: 18 1/2" x 17 1/2" x 6 1/2" (470 x 445 x 165 mm)
• Material Thickness: 3/16" (4.8 mm)
• Weight: 18.7 lb (8.5 kg)
• Material: Steel

Compatibility:

• 2007+ Mercedes-Benz Sprinter RWD models
• 2007–2022 Mercedes-Benz Sprinter AWD/4x4 models
• Not compatible with 2023+ Sprinter AWD models

Installation Instructions:

1. Position the Skid Plate

• Locate the rear differential housing.
• Position the skid plate beneath the differential and align it with the axle tube mounting points.

2. Install the U-Bolts

• Wrap the U-bolts around the appropriate axle mounting points.
• Position the rubber sleeves between the U-bolts and the axle tubes.
• Insert the threaded ends through the corresponding mounting holes or slots in the skid plate.

3. Secure the Skid Plate

• Install the washer plates, lock washers, and nuts onto the threaded ends of the U-bolts.
• Hand tighten each nut to hold the skid plate in position.

4. Tighten the Hardware

• Tighten the nuts evenly while keeping the skid plate centered and securely seated.

5. Inspect the Installation

• Confirm that the skid plate is centered and does not interfere with nearby components or moving parts.
• Make sure all mounting hardware is fully tightened and the skid plate is stable.

Description:

Designed for compatible Mercedes-Benz Sprinter models, this rear differential skid plate helps protect one of the vehicle's most vulnerable underbody components from rocks, road debris, and trail impacts. Its formed 3/16" steel construction provides heavy duty protection while maintaining a practical weight for everyday driving and off-road use.

The black powder coated finish improves corrosion resistance and helps the skid plate withstand harsh road and trail conditions. Installation is completed using the included stainless steel U-bolts and mounting hardware, with no drilling or permanent modifications required. Rubber sleeves between the U-bolts and axle tubes help prevent direct metal contact and reduce vibration.
