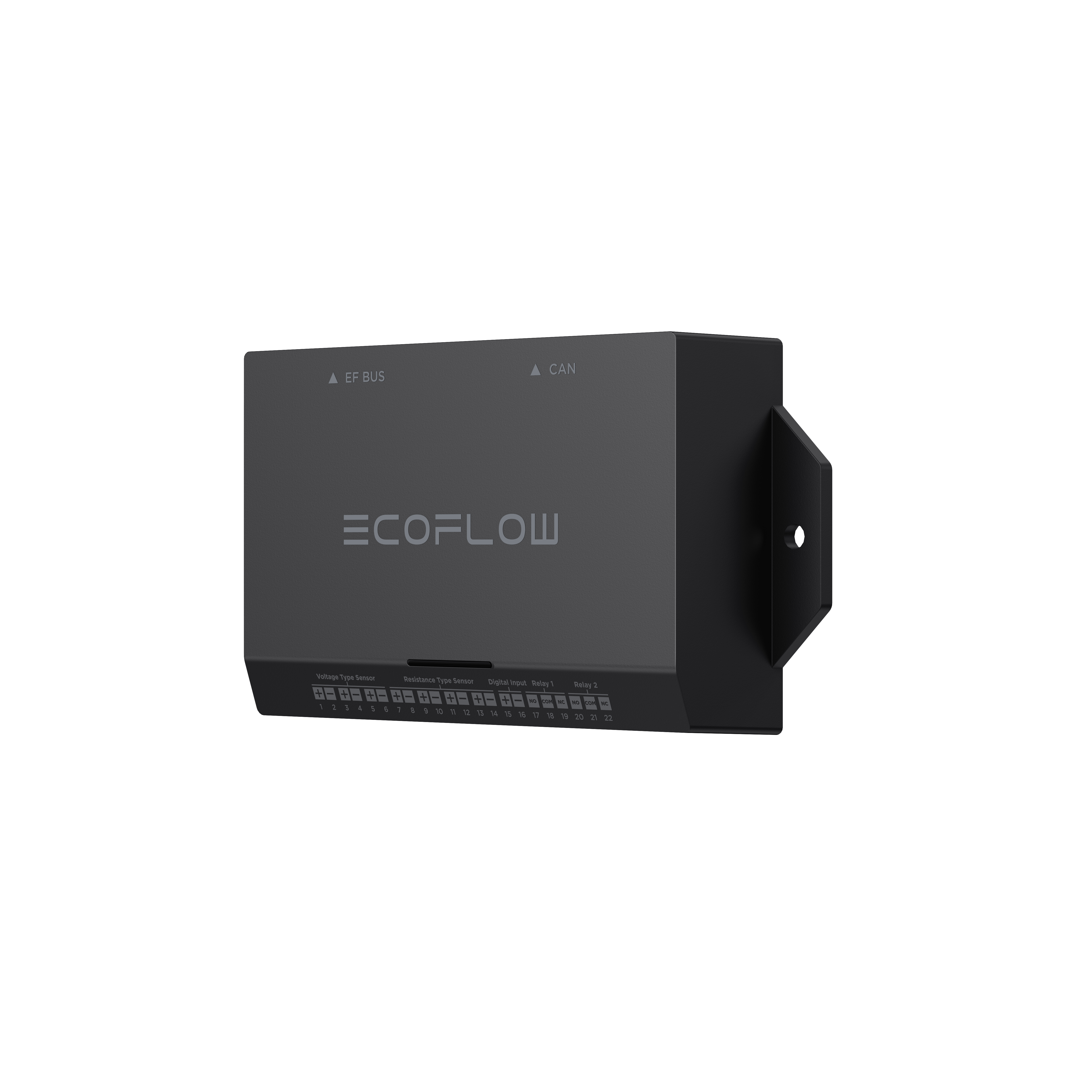

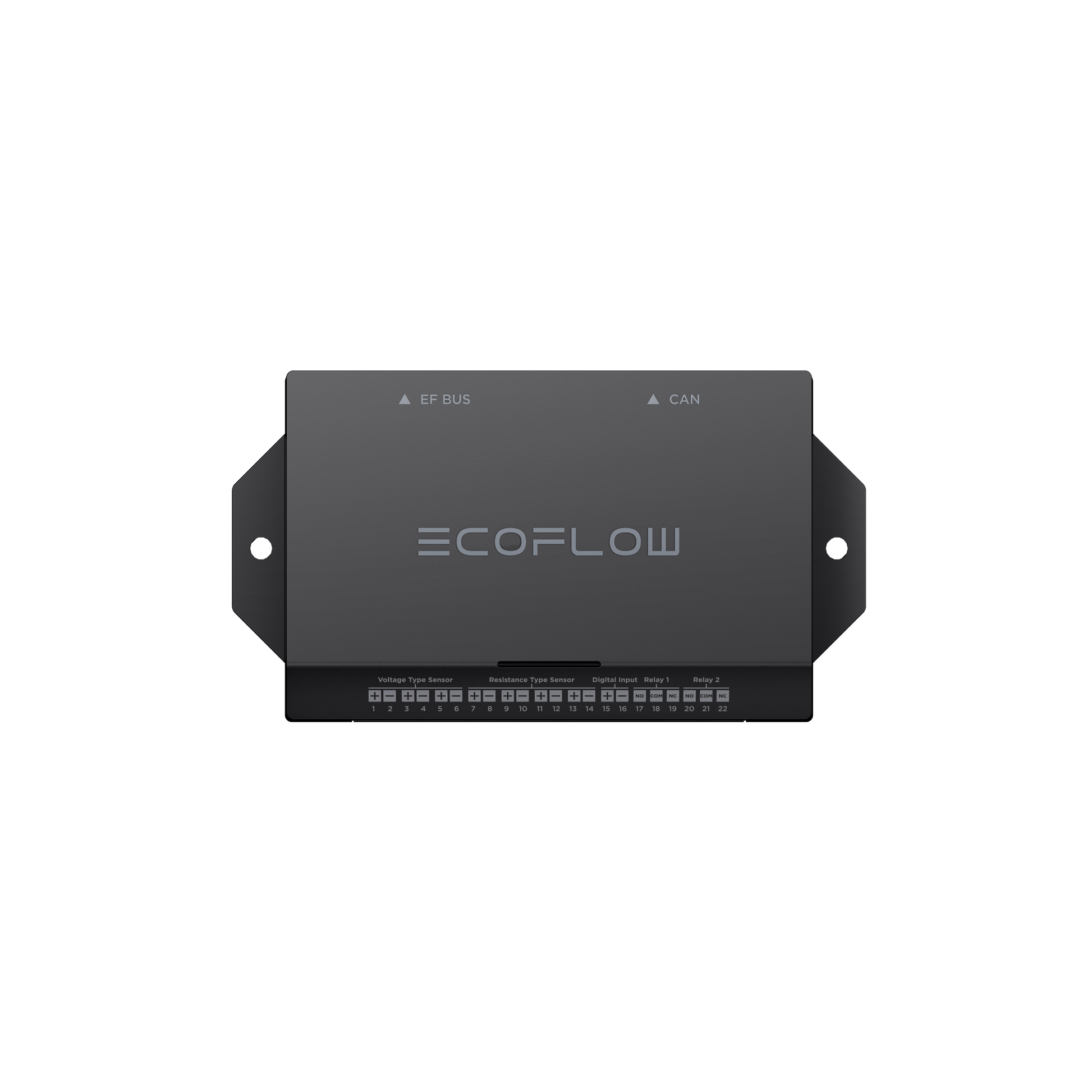

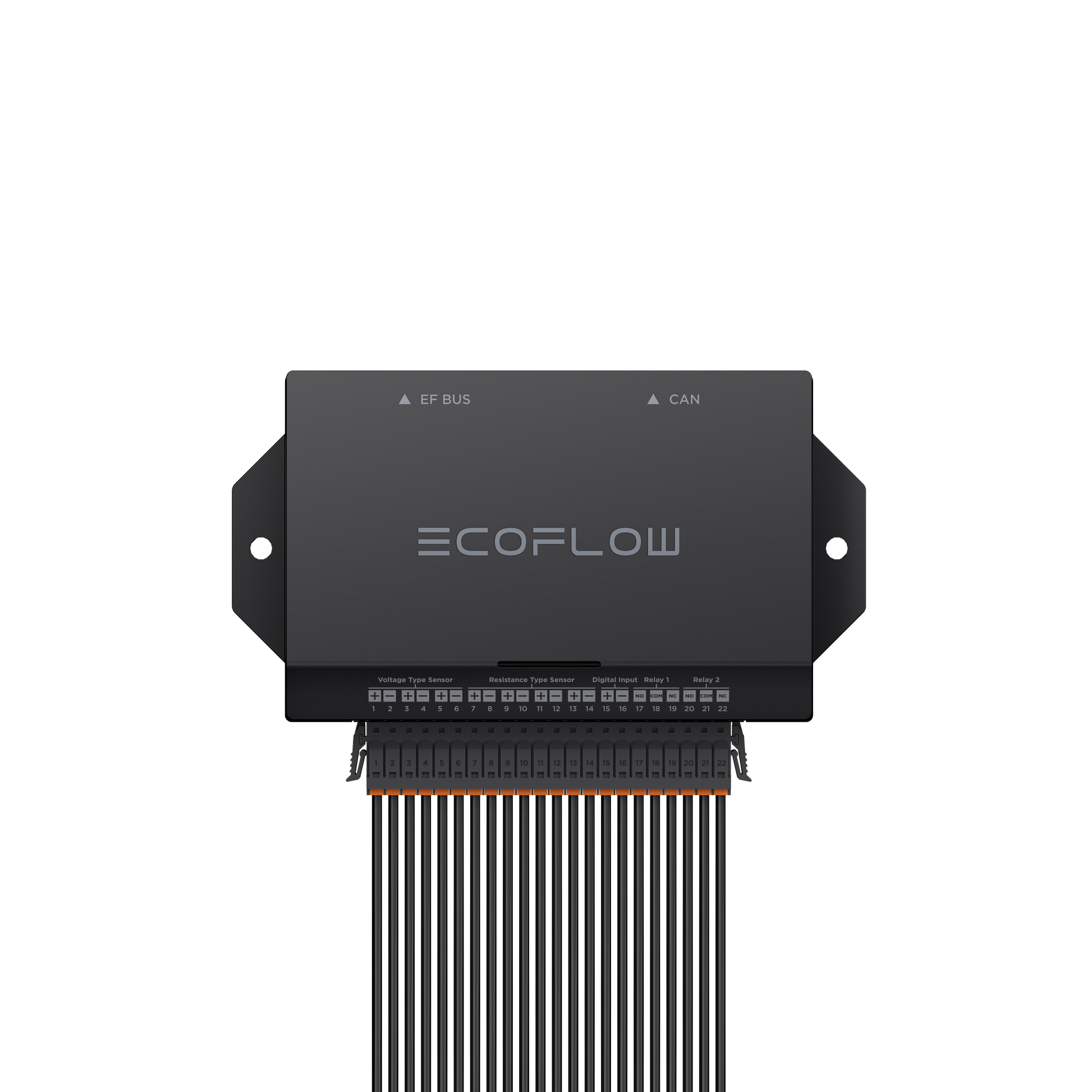

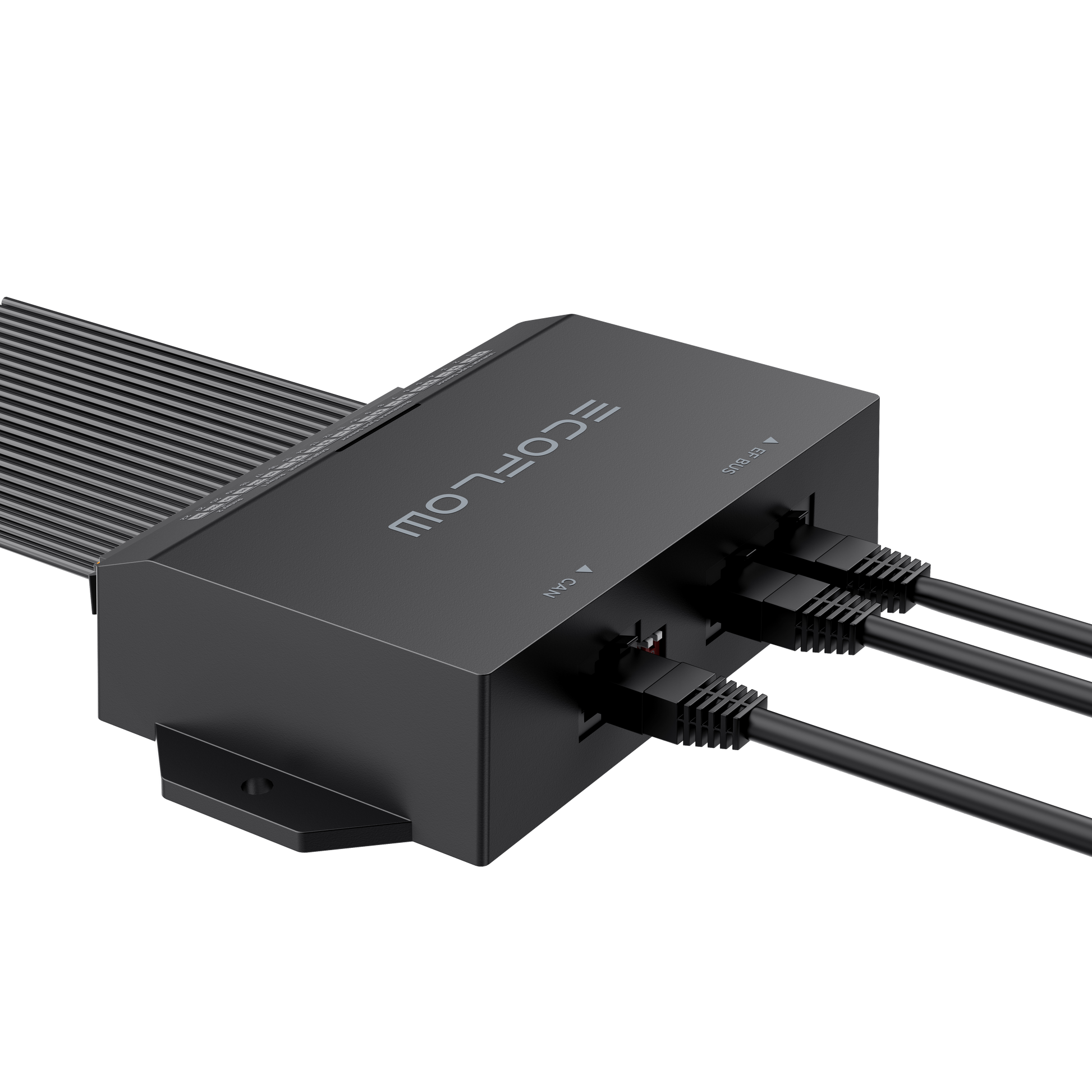

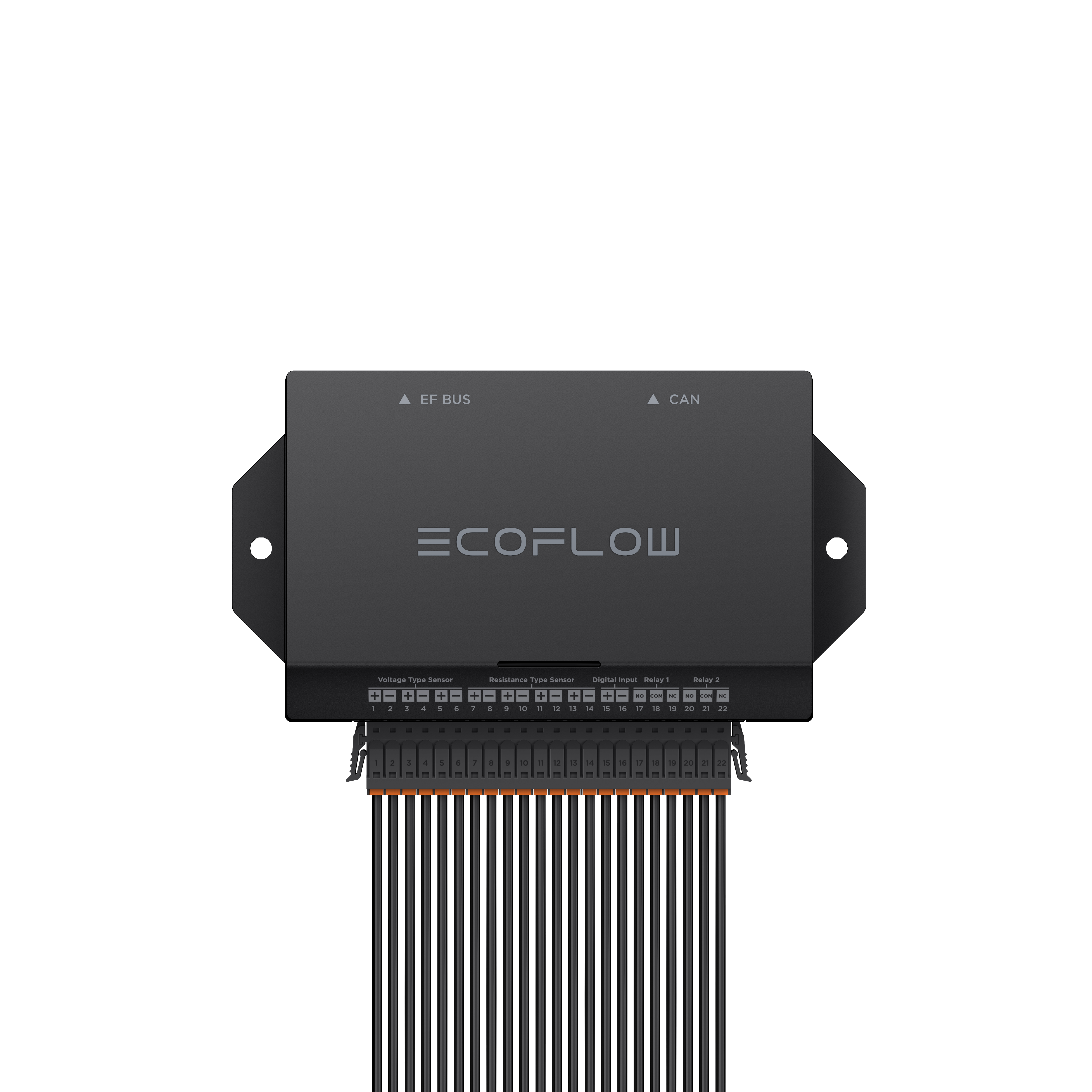

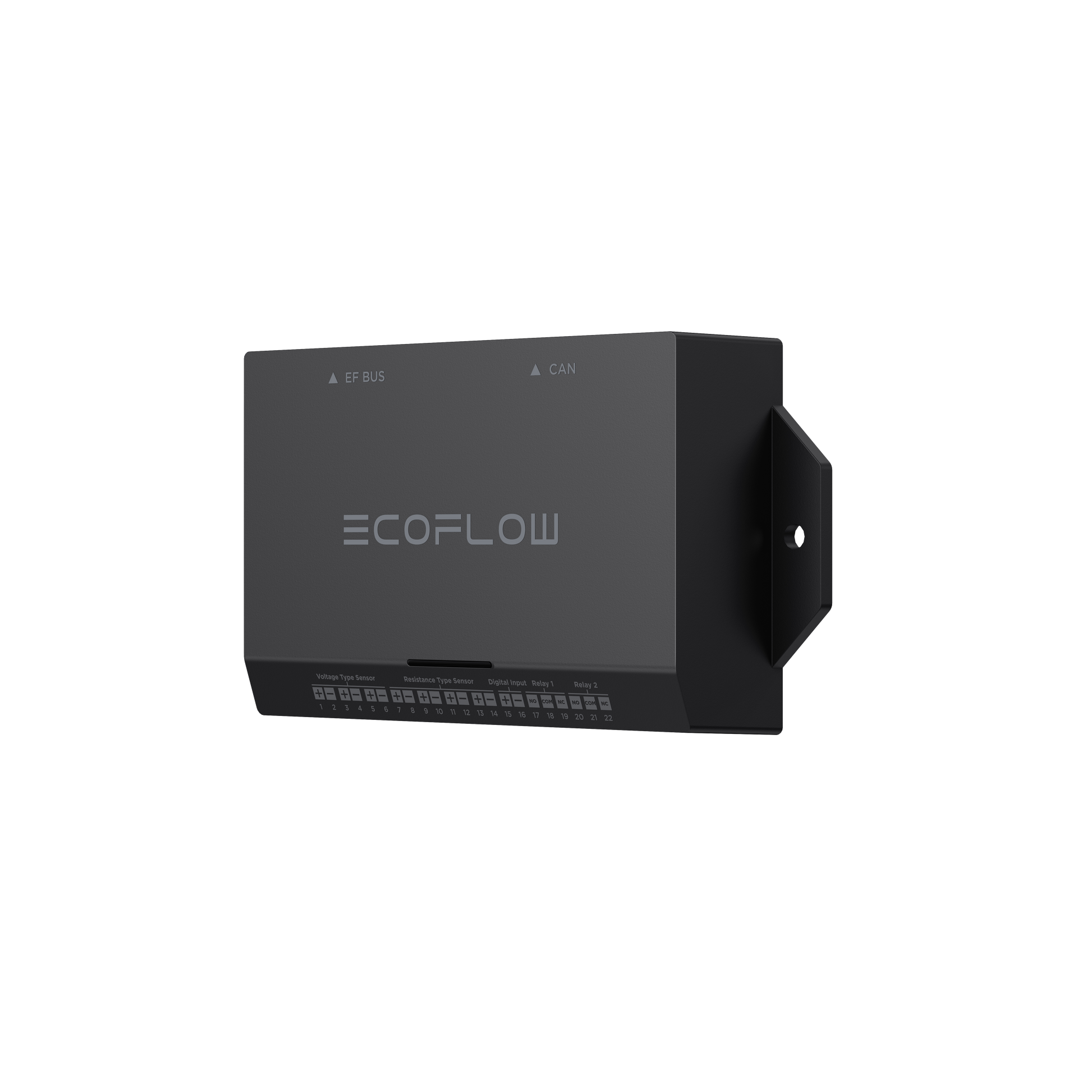

The EcoFlow Power Link consolidates data from the EcoFlow Power Hub, Smart Distribution Panels, sensors, and custom relays within your campervan, RV, or marine electrical system, delivering it to a centralized monitoring platform such as the EcoFlow PowerInsight, Power Kit Console, or EcoFlow app. Unlike other solutions that demand intricate components and specialized tools for calibration and communication setup, the Power Link establishes straightforward connectivity with the PowerInsight or Console alongside the Smart Distribution Panels. This integration enables precise monitoring of voltage-based, resistance-based, and 4-wire RTD level sensors across your vehicle or vessel.
Features
- Compatible with 5kVA and 3.6KVA EcoFlow Power Hubs
- Monitor with EcoFlow PowerInsight, Power Kit Console, and App
- Calibration process simplified for time saving set up
- Hideaway terminal block with simple connection process
- Connect 2x Power Links to a single Power Hub
- Made in China
Specifications
|
Weight |
Approx. 120 g (0.26 lb) |
|
Dimensions (W×D×H) |
137x31x74 mm (5.4x1.2x2.9 in.) |
|
EF BUS Input |
12V⎓1.5A Max |
|
EF BUS Output |
12V⎓1.33A Max |
|
Environment |
|
|
Operating Humidity |
0% to 95% RH (non-condensing) |
|
Operating Temperature |
–25℃ to 50℃ (–13℉ to 122℉) |
|
Storage Temperature |
–25℃ to 70℃ (–13℉ to 158℉) |
|
Altitude |
≤ 3,000 m (9,842 ft) |
|
IP Rating |
IP20 |
|
Voltage Type Sensor |
|
|
Number of Inputs |
3 |
|
Range |
0-35V⎓ |
|
Resistance Type Sensor |
|
|
Number of Inputs |
4 |
|
Range |
10 Ω-100 kΩ |
|
Digital Input |
|
|
Number of Inputs |
1 |
|
Relay |
|
|
Number of Inputs |
2 |
|
Max. Voltage |
42.4V⎓ |
|
Max. Current |
1.75A |
Documents
EcoFlow Power Link User Manual
