Nomadic Innovations S1 - 12V Split System Air Conditioner

Typically ships in 5-7 business days. Freight shipping calculated at checkout.

A Split System that brings Total Comfort

Effortless Installation and Removal: Built for the nomad in mind, the Nomadic S1 system offers a seamless installation process, allowing you to easily integrate into your mobile setup. Its straightforward removal means you can adapt as your environment or seasons change.

Unparalleled Cooling Power: The S1 Model packs a punch with a cooling capacity of 11,280 BTU for the 24V and 9,600 BTU for the 12V system, swiftly bringing down the temperature to create an oasis even in the peak of summer heat.

Robust and Quiet Operation: Constructed with powder-coated components and stainless steel hardware, this system is designed to last. Operating at under 60 dBa, the S1 ensures a peaceful environment, preserving the serene atmosphere of your off-grid locales.

Eco-Friendly and Efficient: With the ECO Mode feature, you can enjoy a cool environment while maintaining energy efficiency, ensuring you’re not only saving on energy costs but also contributing to a greener planet.

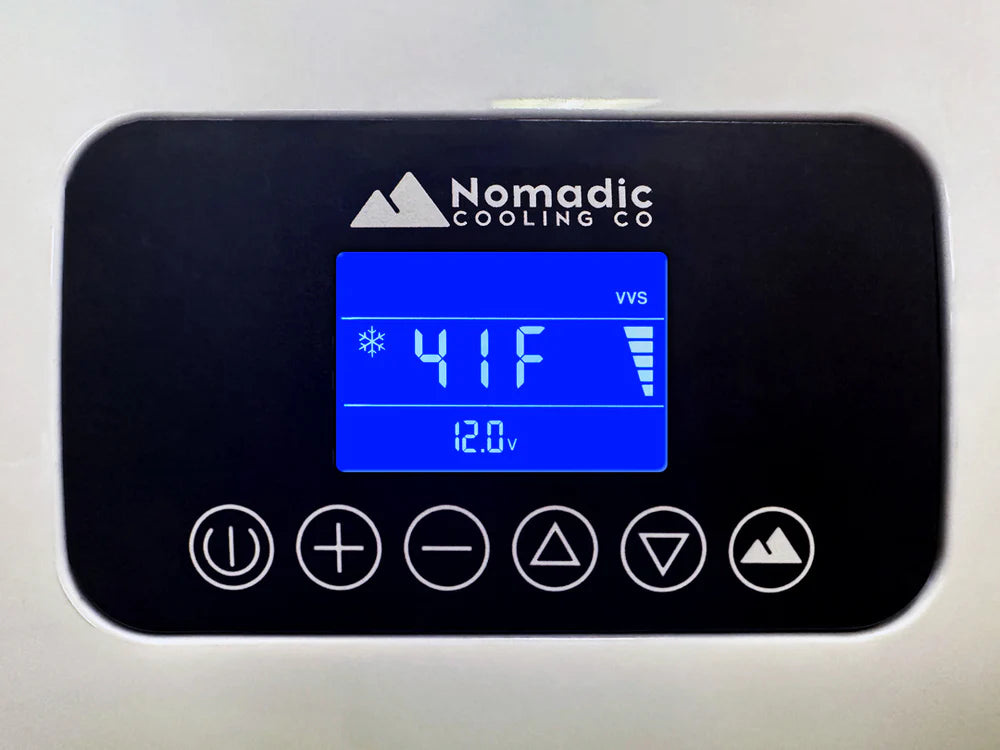

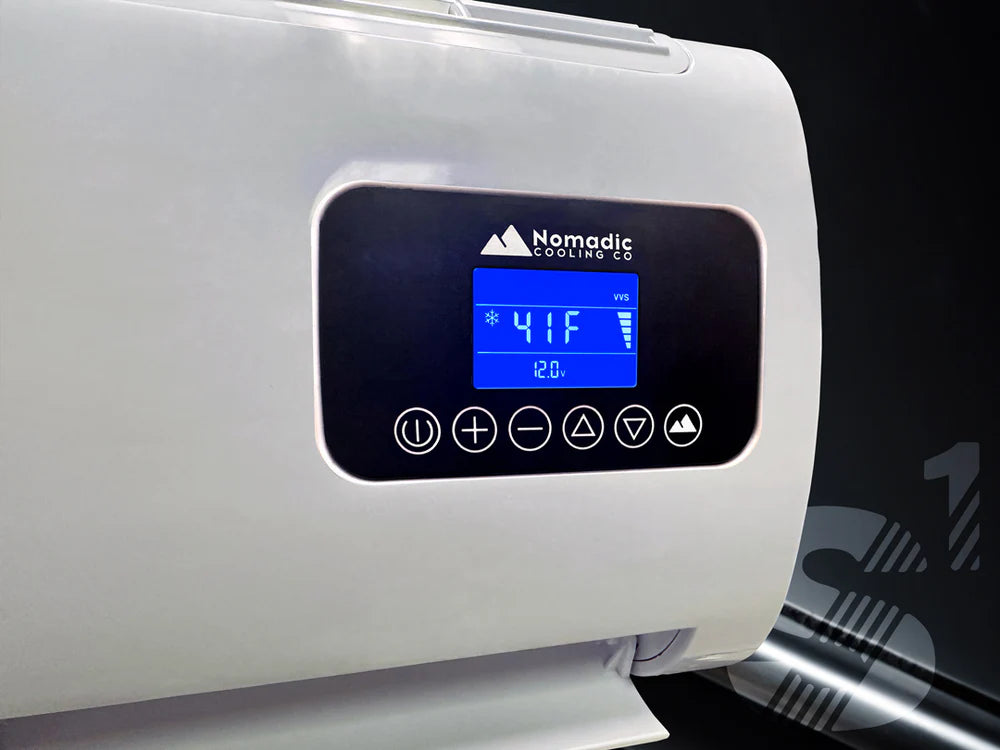

Cutting-edge Controls: The modernized LCD interior control panel offers crisp and clear visuals for monitoring your settings. For added convenience, a remote control puts power, fan speed, and temperature settings right at your fingertips, providing comfort without compromise.

Sleek Design and Color Options: Choose between Arctic White or Obsidian Black to match your personal style or your vehicle’s aesthetic. The S1's sleek design complements any interior without sacrificing functionality.

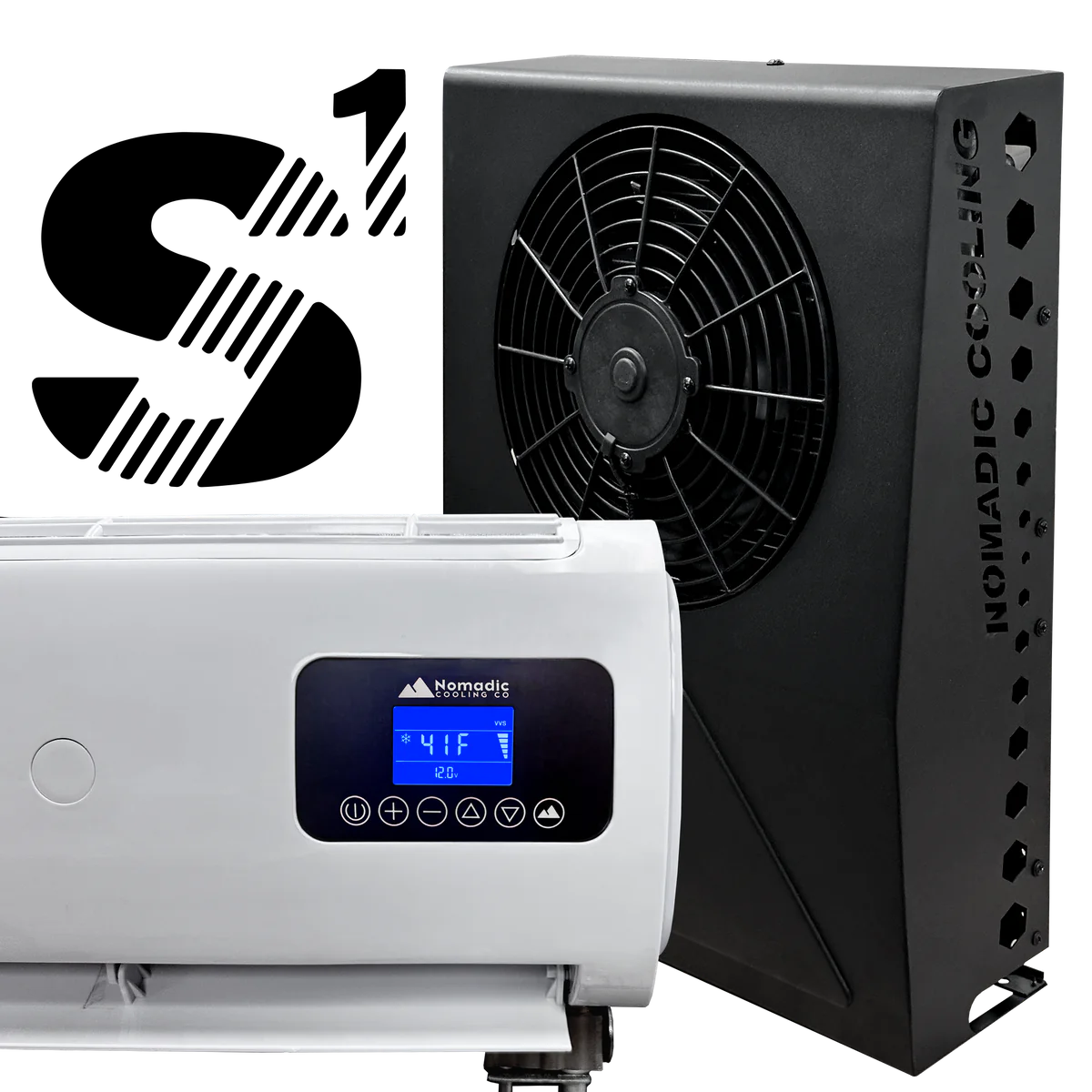

Nomadic S1 Split AC System

• Model Variants: NC-S-24 and NC-S-12
• Power Options: Available in 24V and 12V models to suit various power systems.
• Cooling Capacity: 11,280 BTU for 24V and 9,600 BTU for 12V, offering robust temperature control.
• Energy Efficiency: Features an ECO mode for energy-saving operation.
• Noise Level: Designed to operate quietly, with noise levels at or below 60 dBa.
• Size Dimensions: Compact exterior unit size of 25" x 17.625" x 6.625" to fit various setups.

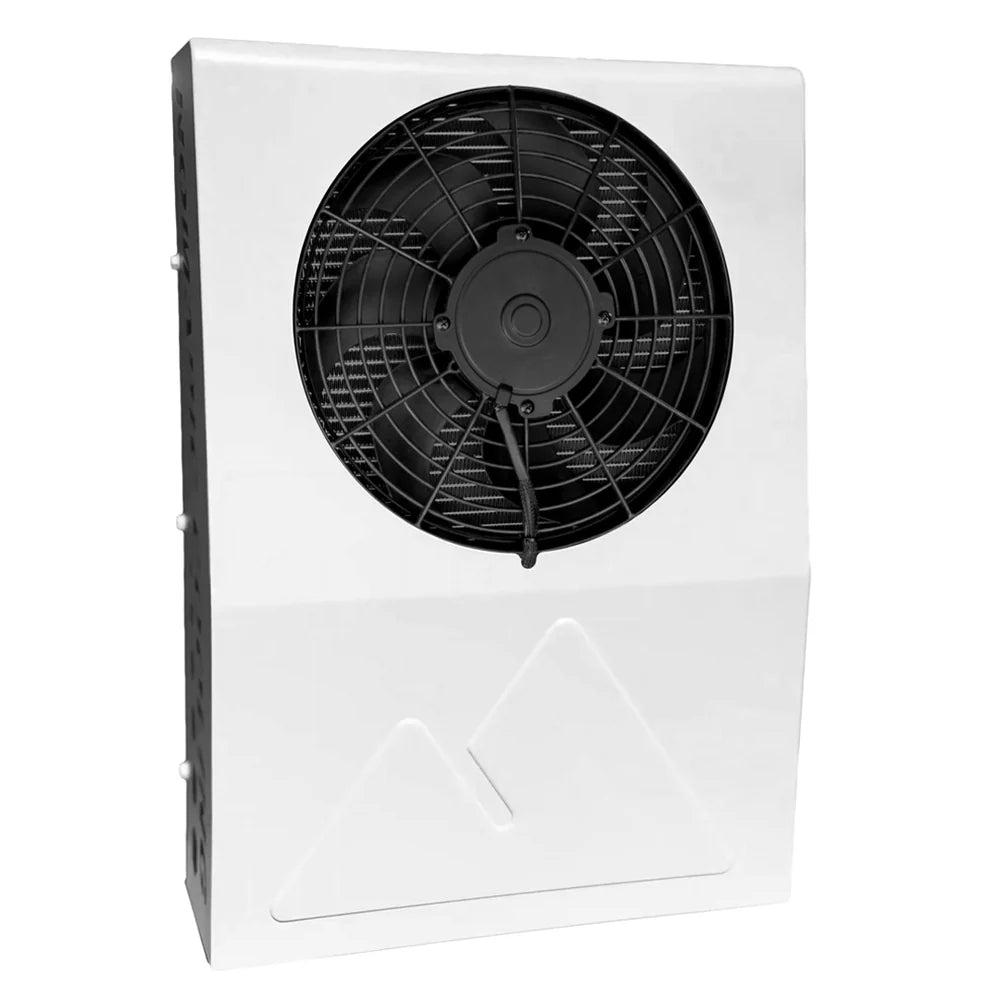

• Color Choices: Available in Arctic White or Obsidian Black, providing aesthetic flexibility.
• Installation Flexibility: Easy to install and remove, making it perfect for mobile living.
• Control Options: Comes with an LCD interior control panel and a remote control for convenience.
• Warranty: Backed by a one-year warranty for peace of mind.

Common Specs

• Cooling Capacity:
  • 24V Model: 11,280 BTU
  • 12V Model: 9,600 BTU
• Power Consumption:
  • 24V Model: 1,120W
  • 12V Model: 960W
• Voltage Rating:
  • Available in 12V with 24V/48V variants coming soon
• Current Draw:
  • 24V Model: 15-16A (ECO Mode) / 30-31A (STRONG Mode)
  • 12V Model: 30-31A (ECO Mode) / 47-50A (STRONG Mode)
• Air Volume Flow: 350f³/m
• Noise Level: ≤60 dBa
• Unit Weight:
  • Exterior: 39.7 lbs
  • Interior: 8.8 lbs
• Unit Dimensions:

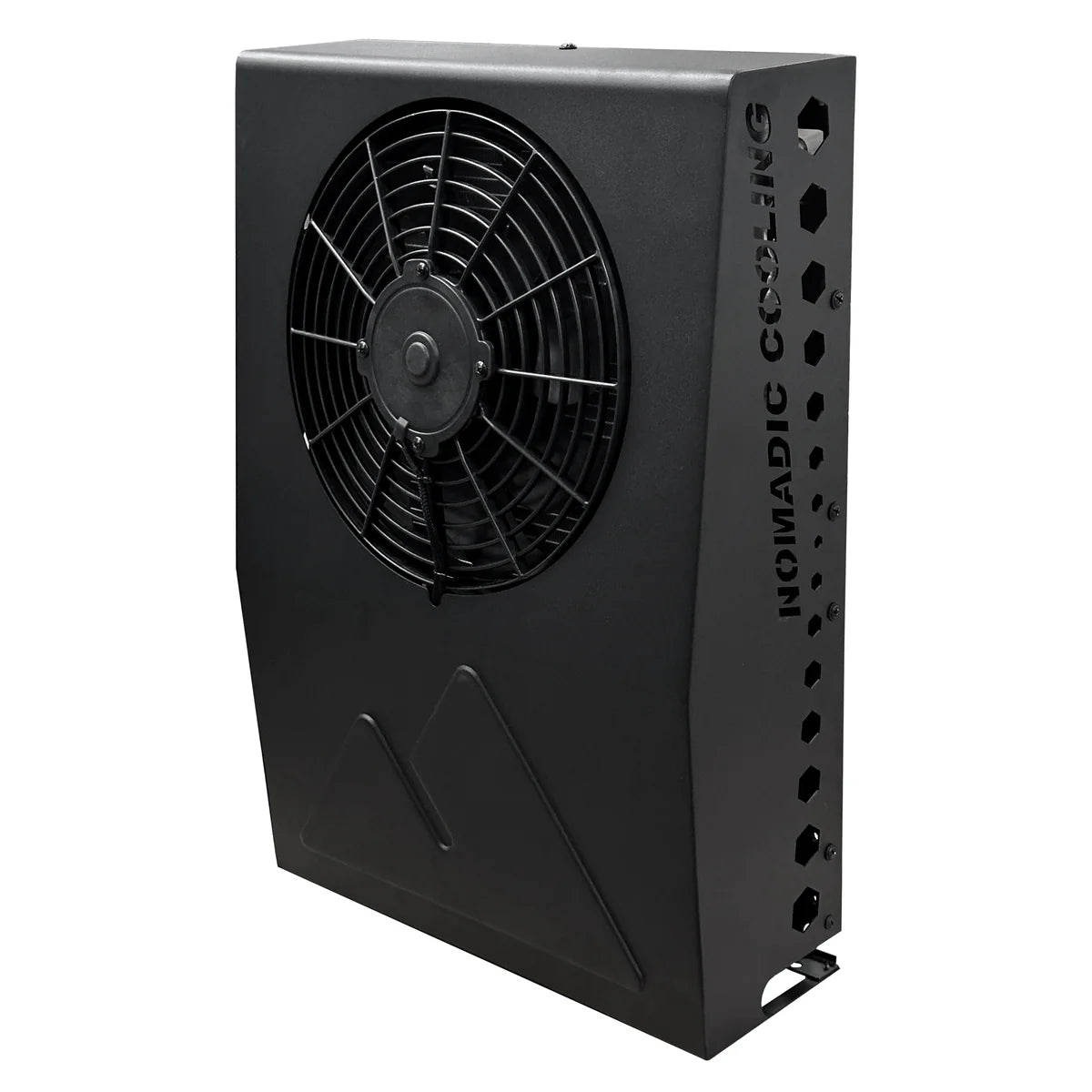

  • Exterior: 25"h x 17.625"w x 6.625"d
  • Interior: 20.75"w x 10.25"h x 6.75"d"
• Cooling Temperature Range: 41°F to 86°F
• Refrigerant Type: R134a @ 600g±30g
• Installation: Designed for easy installation and removal
• Warranty: 1-year warranty

Documents

S1 Installation/Operations Guide: Download
S1 Half Page: Download
S1 Information Sheet: Download
S1 Spec Sheet: Download
Wire Sizes for DC Circuits: Download
