MobiFrame 2007+ Mercedes Sprinter Floor System

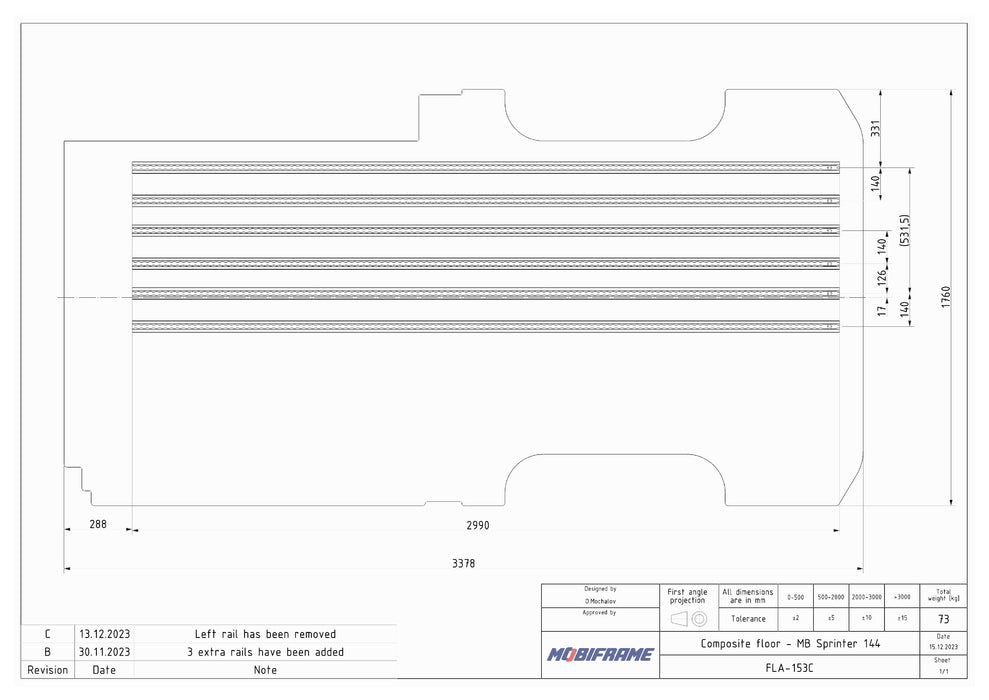

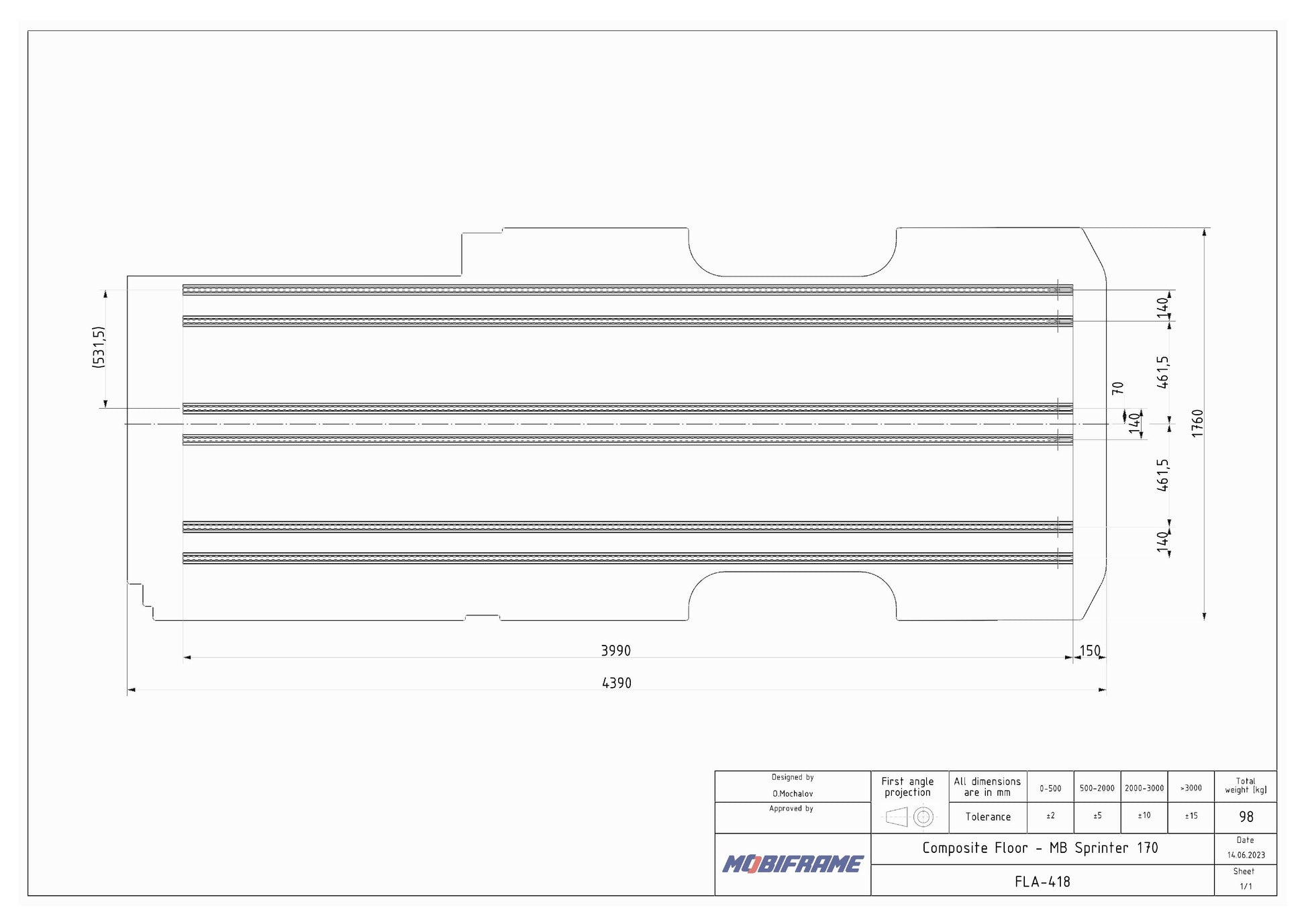

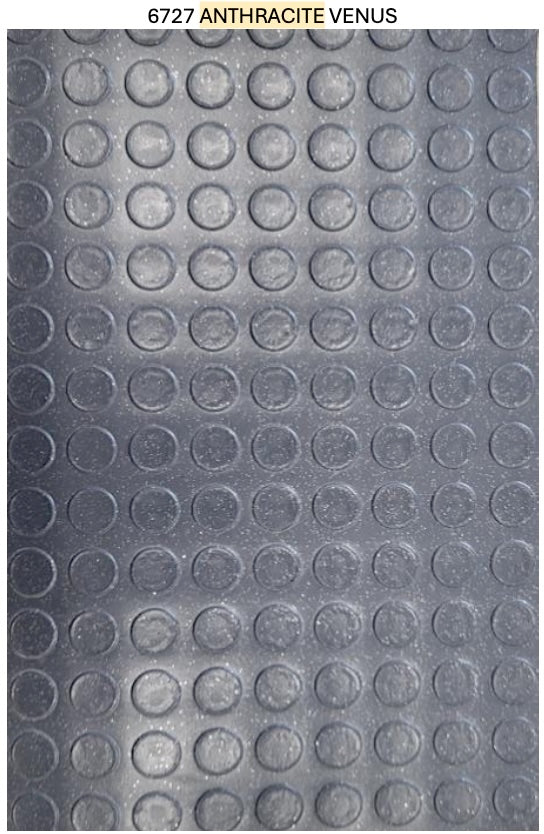

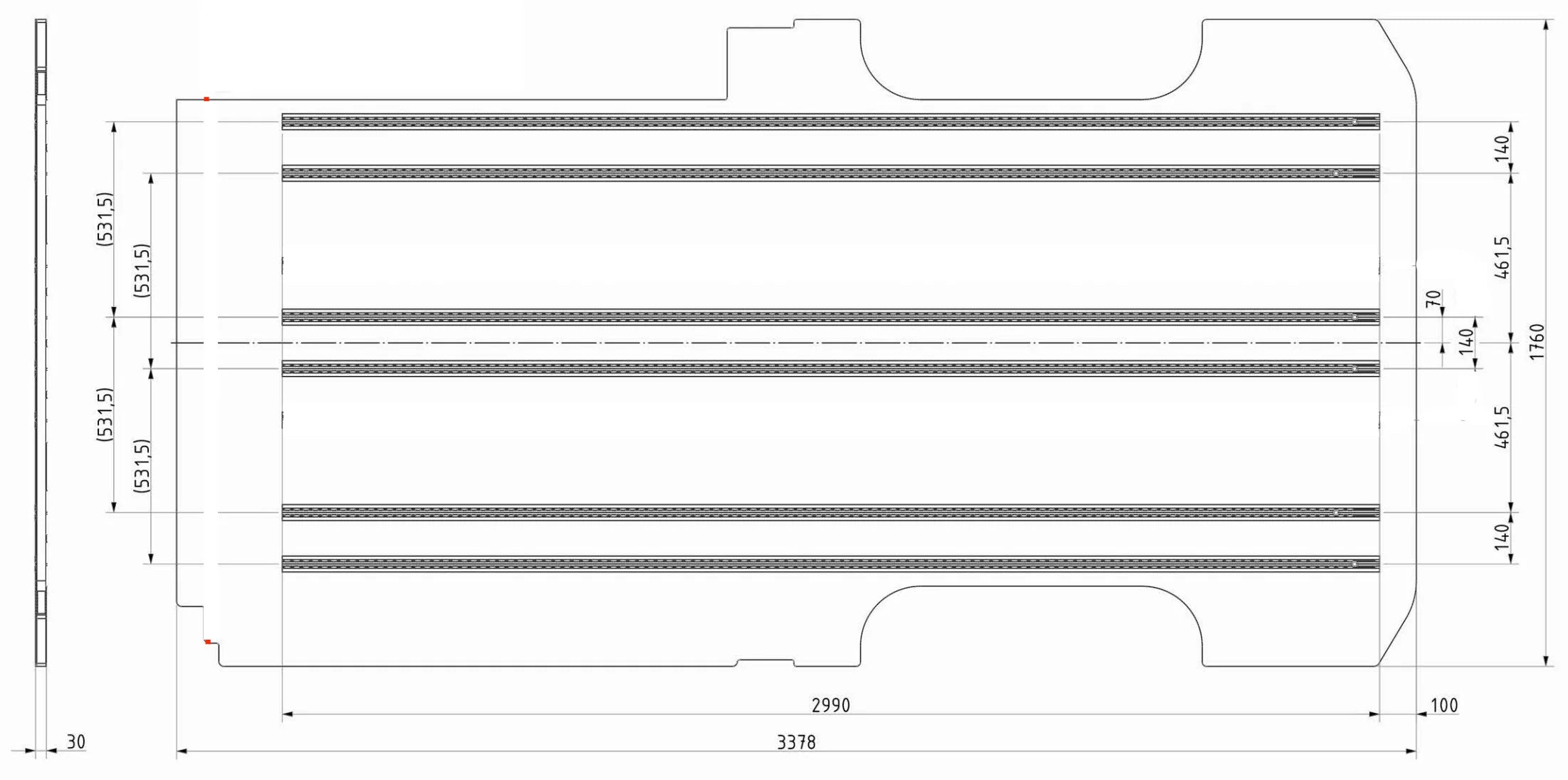

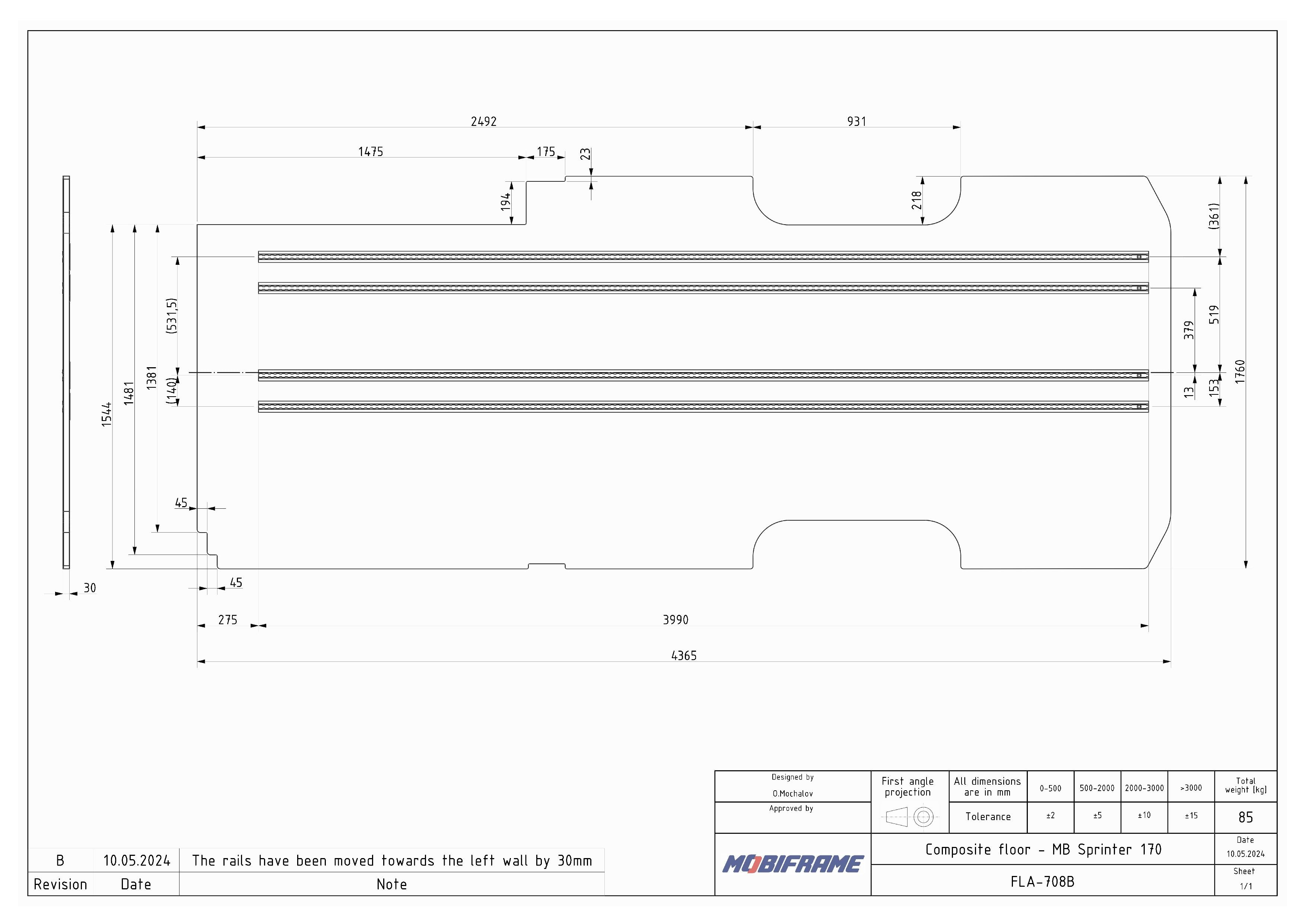

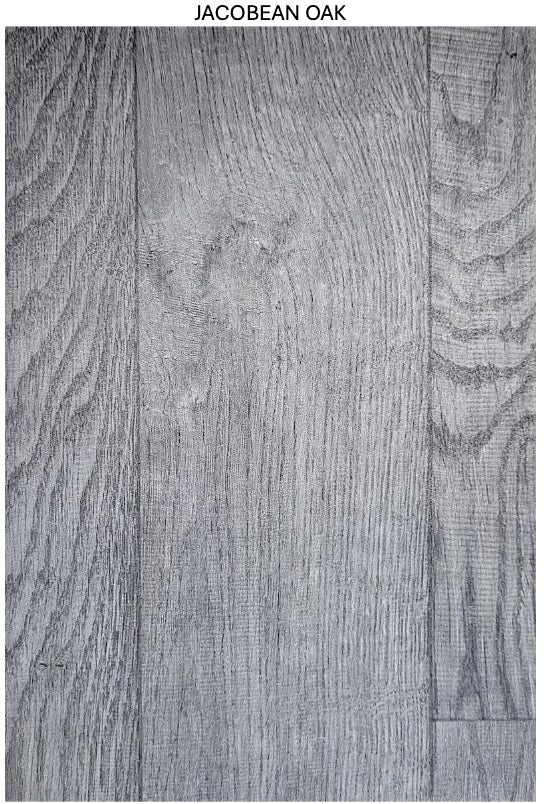

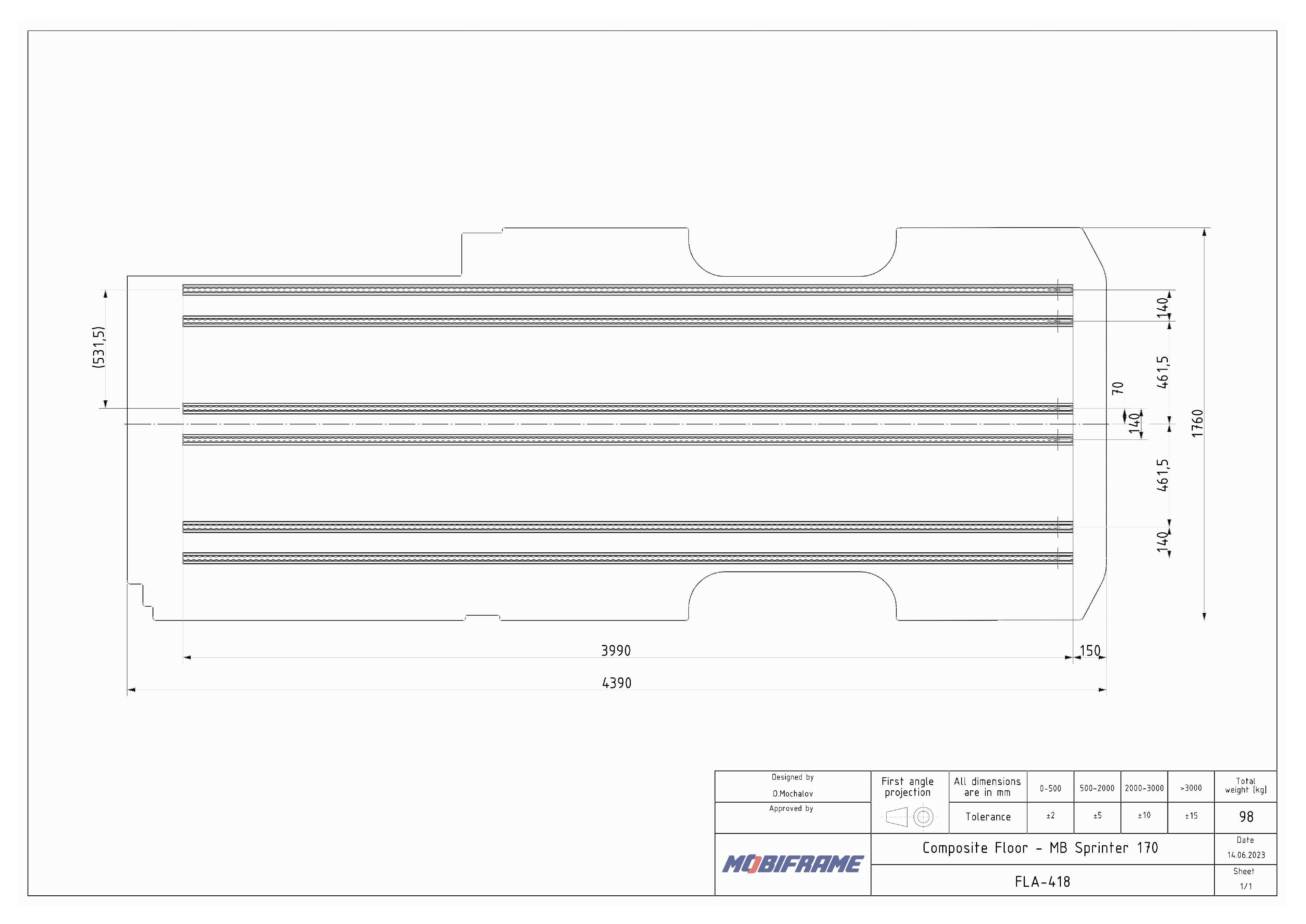

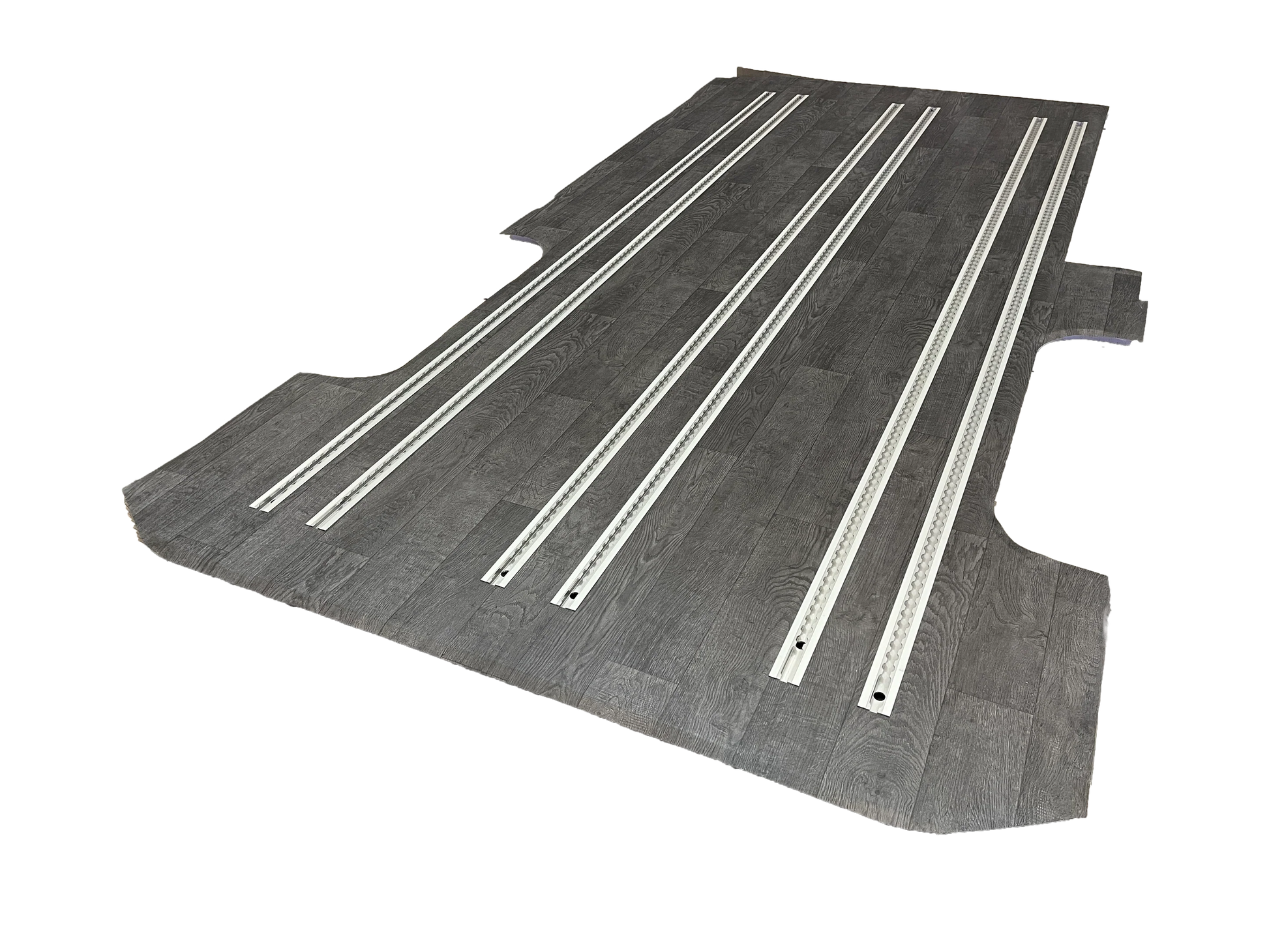

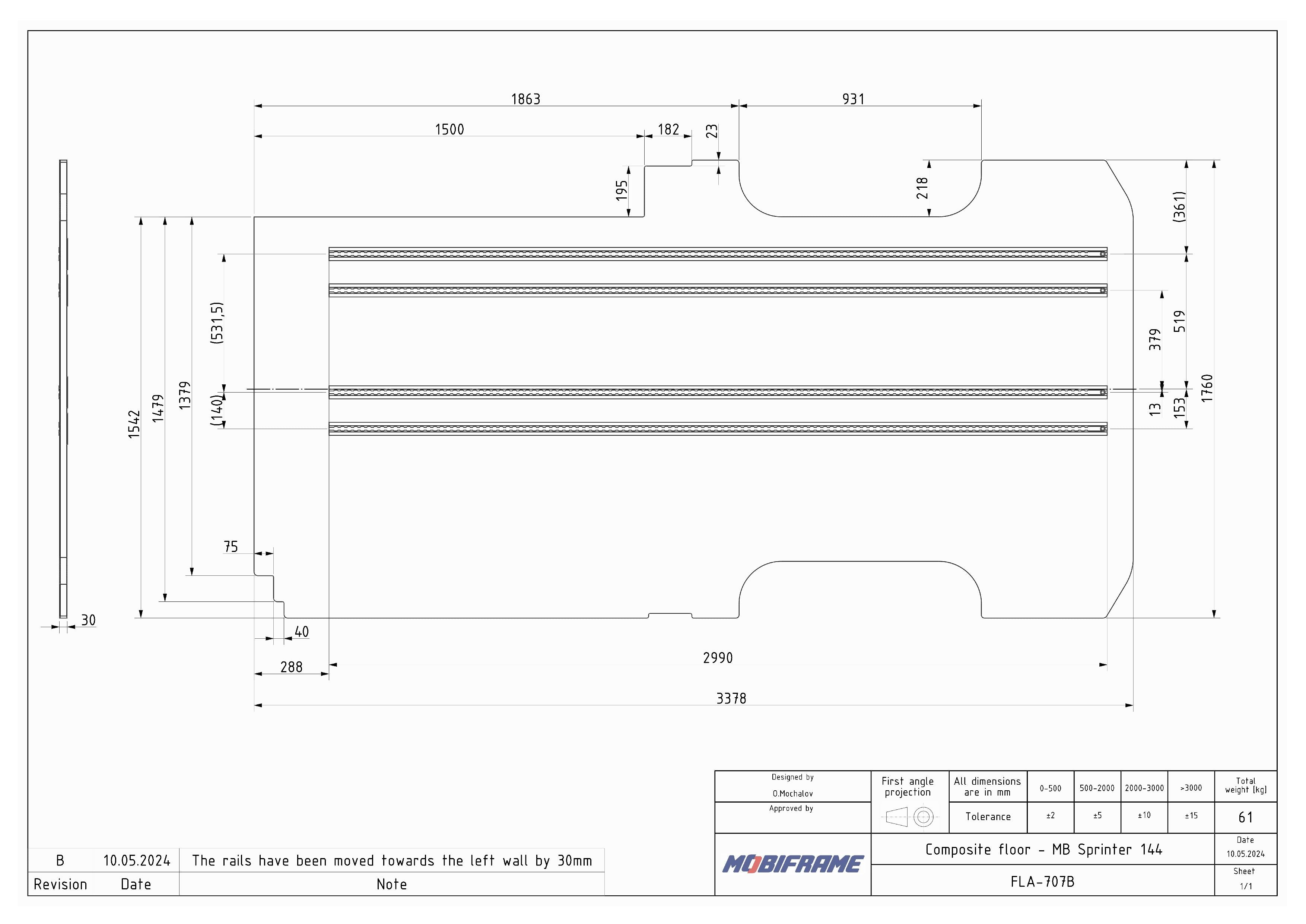

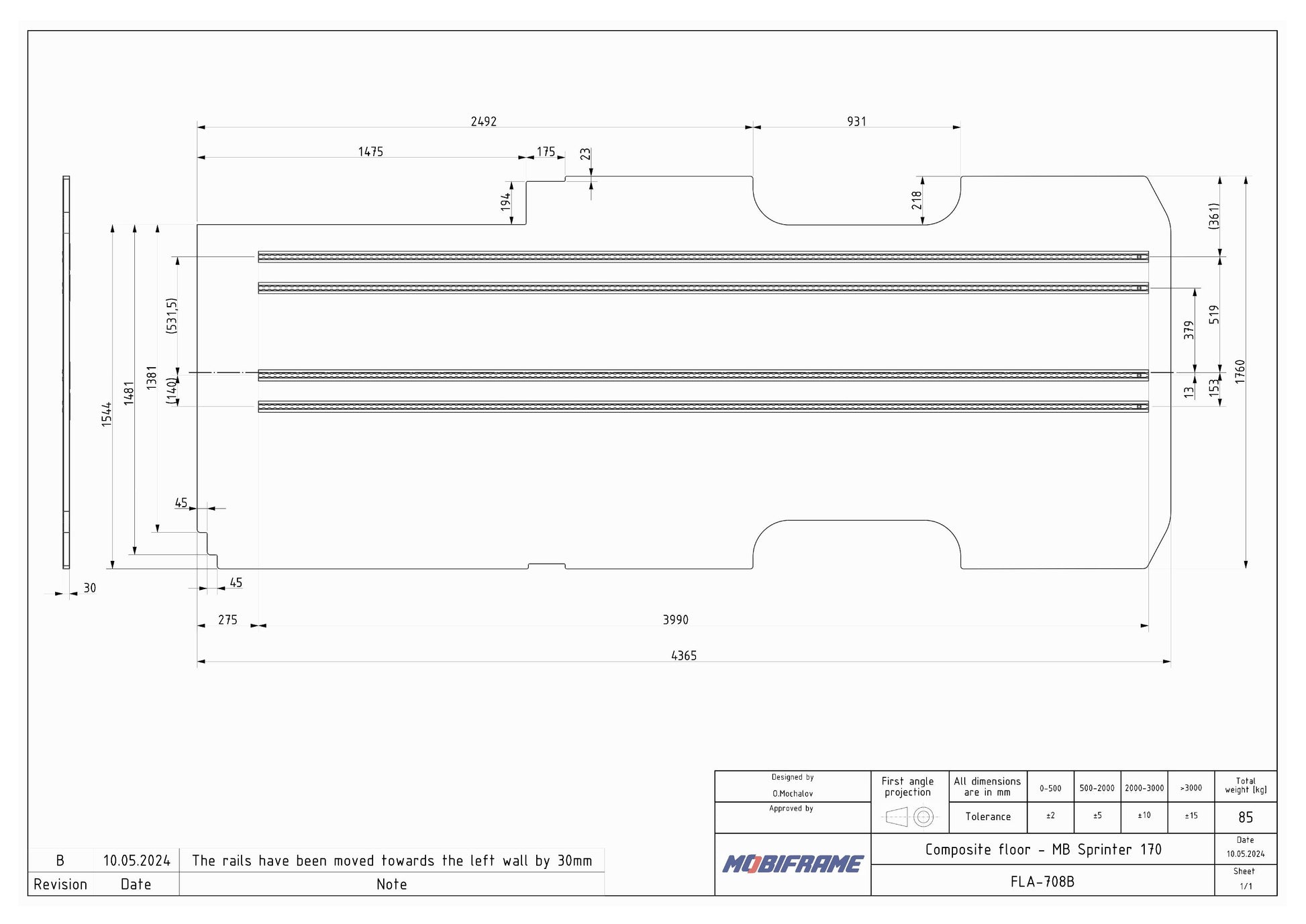

Requires a certified installer. Contact us before purchasing and we will assist with locating an installer near you. The 144" options offer 4 or 6 rails. The 170" - 4 Rails option is only available in Anthracite Venus(Coin). The 170" - 6 Rails option is only available in Jacobean Oak(Woodgrain).

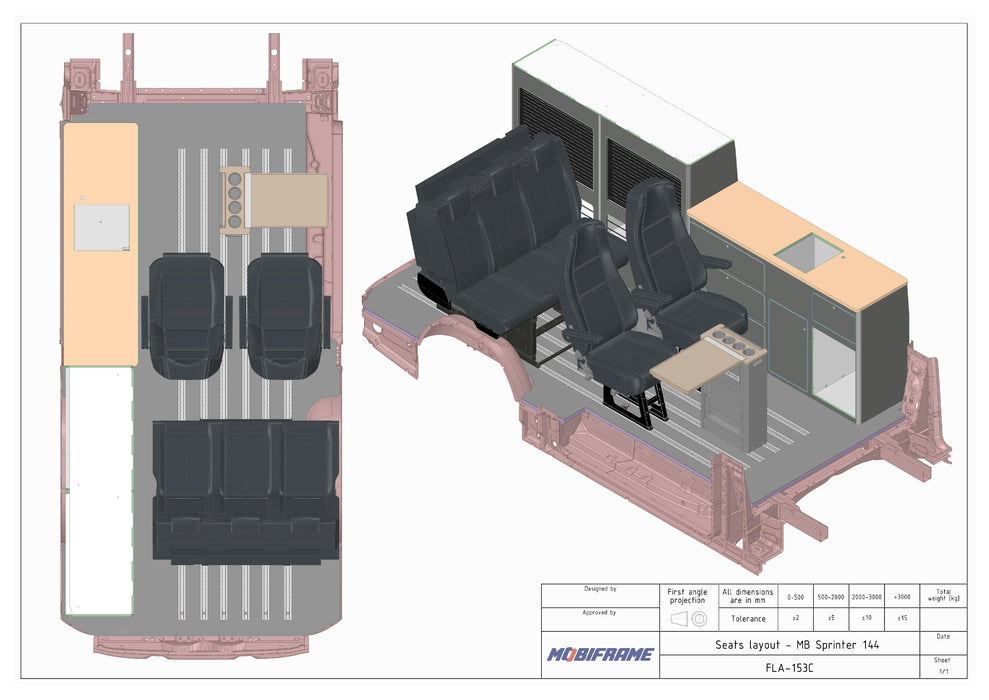

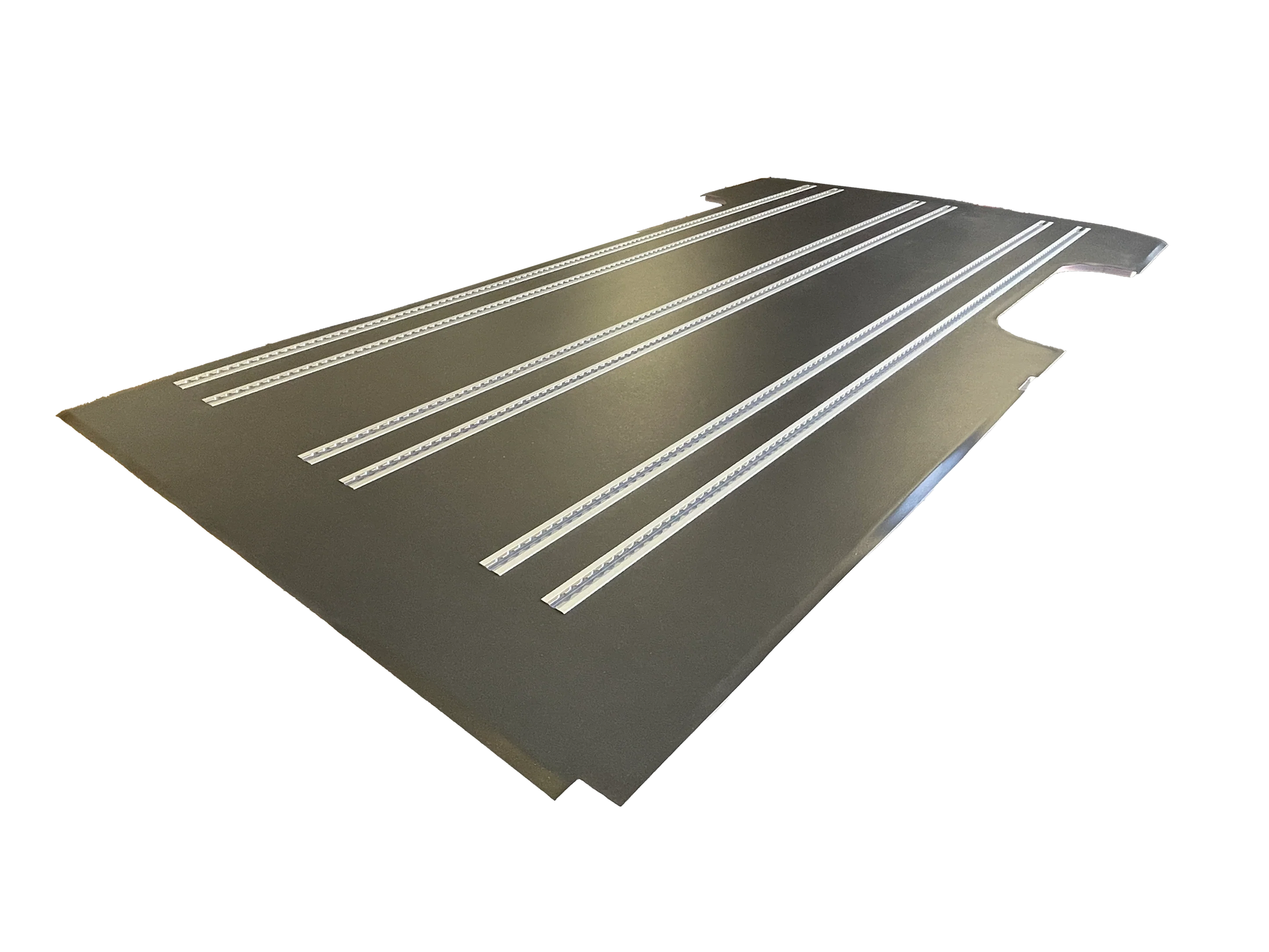

The MobiFrame 2007+ Mercedes Sprinter Floor System is a ready-made, form-fitted, insulated floor embedded with L-track. The L-track allows you to add modular accessories, such as MobiFrame or Travois RNR seat/beds, that are variable location on demand and easy in/out.  Variable location is great, for example, one weekend you can move the seat forward and have a bike garage, the next weekend you can push it back and maximize your cabin space.

The one-piece floor is a glued down install which is a huge time saver vs. floors requiring assembly and many bolt-in fixed location seat installs that may require dropping the tank and other under van complexities. Because it is one piece assembly, our floor does not squeak or make any additional noise. The insulation provides both thermal and audio protection.

European made and crash tested to North American and European standards. SafeTrack Composite floors and seat beds are M1, 30 second extended pull and 10 second reverse pull tested. Engineered, built and tested to relevant FMVSS standards.

The subfloor is composed of 3 component materials:

• Top floor - PVC
• Middle layer - XPS foam
• GRP/FRP

All MobiFrame products will ship truck freight and require curbside or loading dock deliveries only. Shipping address will need to be the certified installer confirmed.  Customer/installer is responsible for any additional freight services such as lift gate, residential delivery, storage/rescheduling fees and weekend delivery. Please reach out to us for more information before purchasing.
