CR Laurence Driver Side Half Slider Van Bunk Window 2007-2024

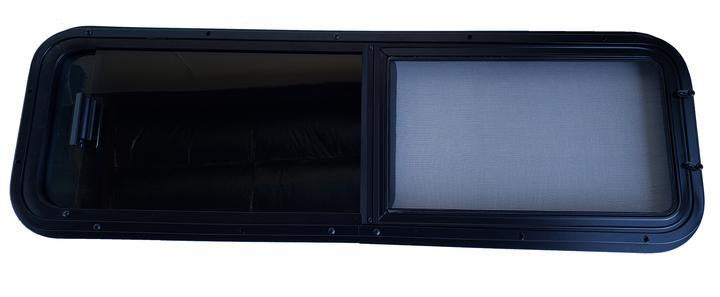

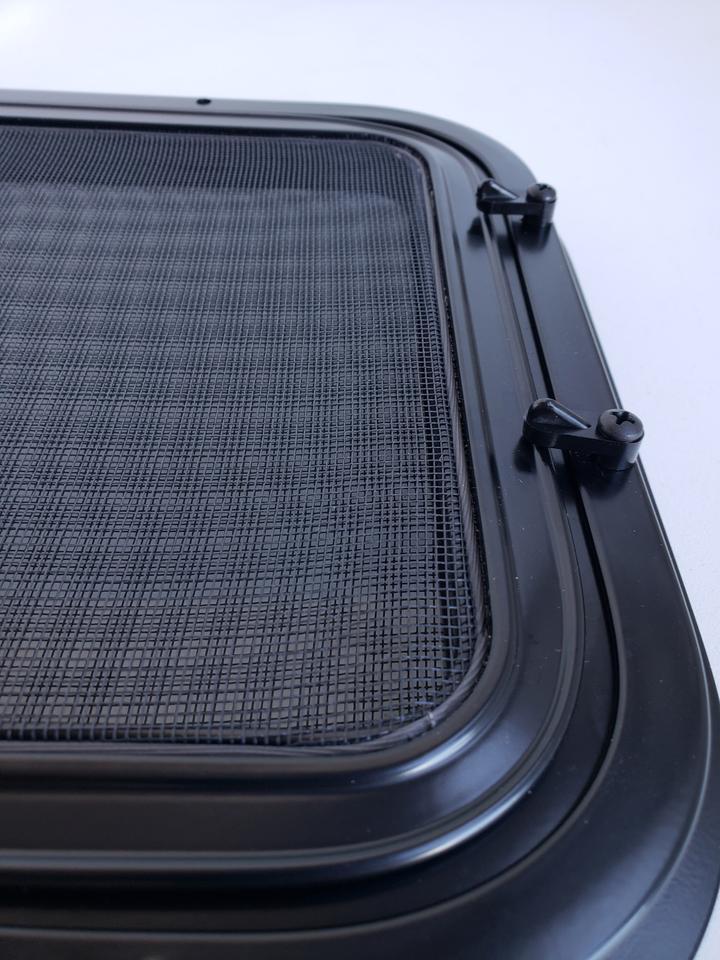

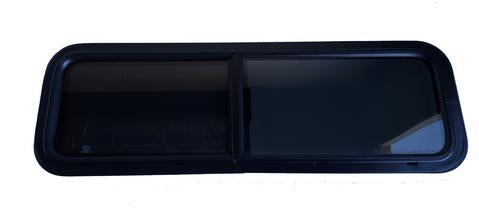

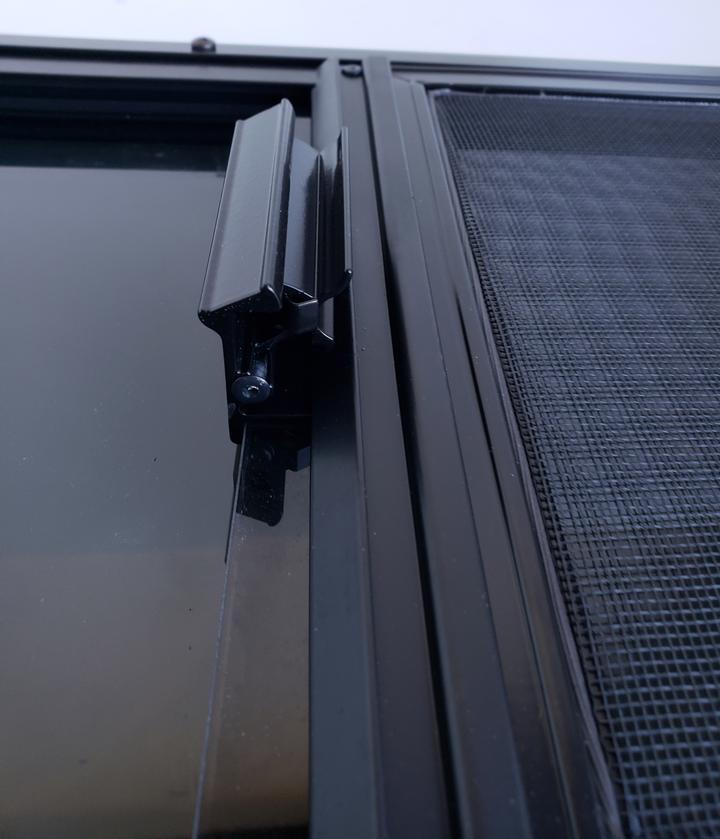

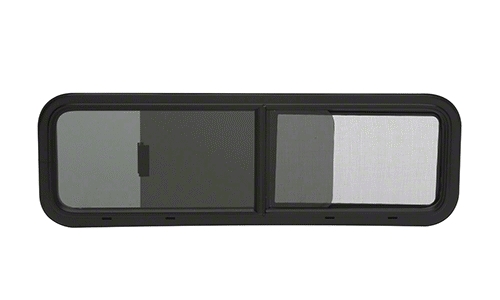

The CR Laurence Bunk Window is a great low cost option for any Camper Van. Add ventilation to the rear cargo area of your van with this easy to install flat half sliding window that features a removable screen and measures in at 33" long and 10" tall. The window is crafted with a black aluminum frame that encases solar privacy glass and is manufactured in the USA!
Bunk Window Outer Frame Dimensions: 33-7/8" x 10-7/8"
Bunk Window Cut-Out Dimensions: 33" x 10"
Bunk Window Clamp Ring Size: 1/8"
Opening Measurement: 13-9/16"x 8-3/16"
Whats needed to Install?
No Additional Products Needed
How will I install this window?
To install the VW1033 Series of windows you will need to create a template. To make a template you can either use the aluminum framing on the backside of the window or the clamp ring we will have illustrations on using the clamp ring. Be sure to use the edge of the clamp ringthat matches to the aluminum frame edge of the window (the aluminum frame that goes through the wall).
Make sure that the clamp ring is taped shut as it has an opening.
You will then trace you template onto the cardboard box sharpie, black marker ,etc.. you do not want to have to thick of a marker as you want to try and be as precise as possible.
After you have draw out the pattern on the cardboard it is time to cut the pattern from the cardboard.
Once you template is created clean up any little rough edges and we are ready to place on your van. You will want to measure out for placement to insure you have your template where you want it to be. To hold template in place you can put screws through cardboard to hold, have a partner hold or use tape. In our photo we used tape. Be sure to tape the template in place on the straight areas so those are easy to draw in your line later.
Draw your template onto the wall of the van.
Once you have drawn your pattern onto the wall of the van and are happy with the placement your ready to cut. Reciprocating saw, skill saw, disc, nibbler,shears, etc...
Once your hole is done dry fit the window to make sure window fits into hole no adjustments or extra trimming are needed. If your good you can add clear coat or paint to the cut edge its not necessary just a precaution.
Now time to install the window. Before putting the window on the van its best to go through make a small pilot hole in all the locations around the trim ring that way you do not round the heads of the screws when tightening the window.

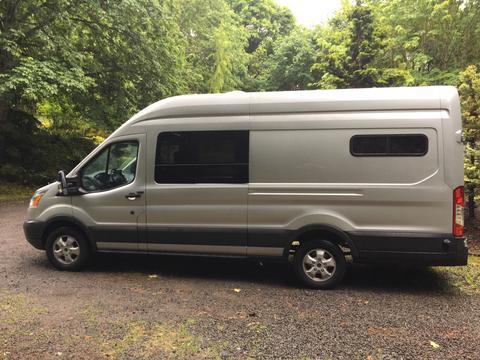

Put Window in place from outside of Van allowing the aluminum mounting frame to extend through hole in wall. Place clamp ring from inside most vans will have the split on the bottom. With one person holding window in place on the outside the other can start to screw from the inside generally start with the two at the split in the trim ring to have that lined up then top and around you do not want to fully tighten once all screws are in place, you can then go back around and tighten them be sure to tighten evenly around for proper seal.
