Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness
Couldn't load pickup availability
Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more

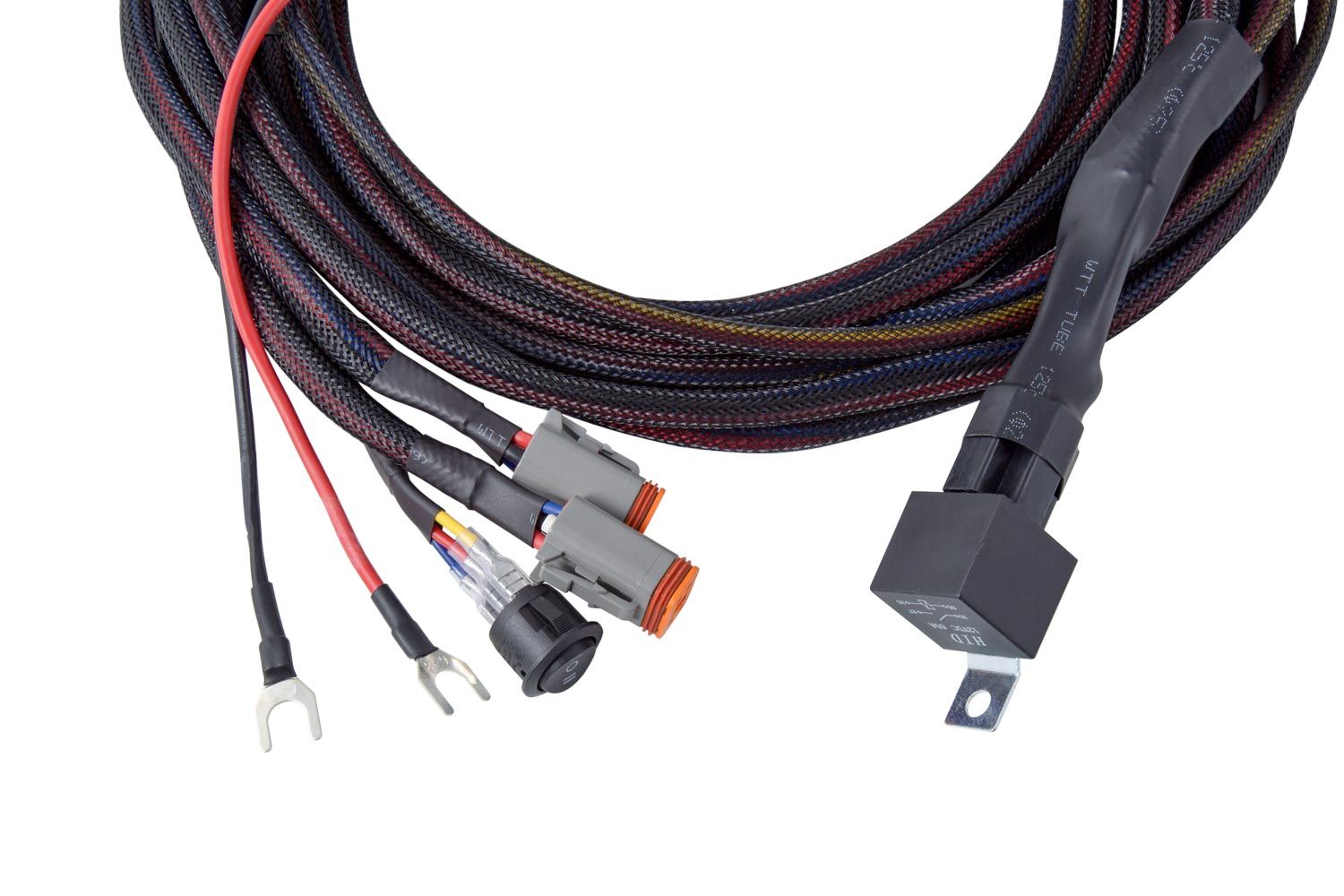

Need a clean and reliable way to wire your auxiliary LED lights? The Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness is a compact and easy-to-install wiring solution designed for powering dual auxiliary lighting setups. Engineered specifically for Diode Dynamics Stage Series LED pods with backlight functionality, this harness features dual-output Deutsch DT connectors, integrated fuse protection, and a convenient three-way switch for seamless lighting control.
The Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness is ideal for trucks, SUVs, Jeeps, UTVs, and off-road vehicles that require dependable auxiliary lighting performance without the complexity of custom wiring. Its lightweight yet durable construction makes installation quick and efficient while providing stable power delivery for your LED lighting system. Whether you're upgrading your off-road lights, ditch lights, fog lights, or work lights, this harness offers a professional-grade solution for cleaner installation and better reliability.
Why is the Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness so easy to use?

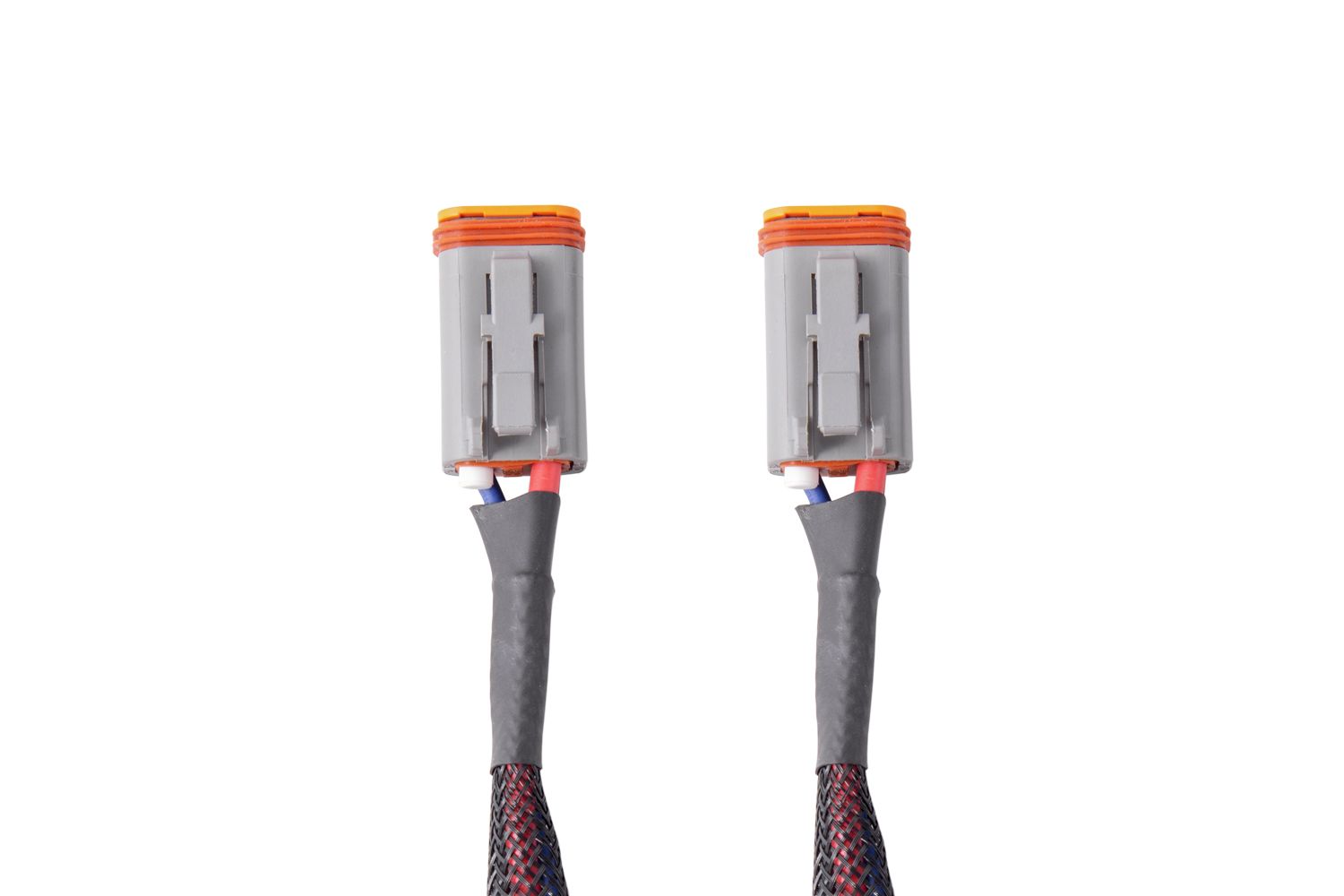

Easy installation – The harness includes pre-configured wiring and dual Deutsch DT connectors for a fast plug-and-play setup.
Convenient lighting control – A three-way toggle switch allows you to switch between backlight mode, off mode, and main beam operation.
Reliable performance – High-quality 16AWG wiring delivers dependable power flow for auxiliary lighting systems.
Enhanced protection – A waterproof inline fuse helps protect your lights and vehicle electrical system from overloads.
Compact design – The lightweight harness design is easy to route through engine bays and tight installation spaces.
The Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness is a great choice for anyone looking to simplify their auxiliary lighting installation while maintaining professional-level durability and performance.

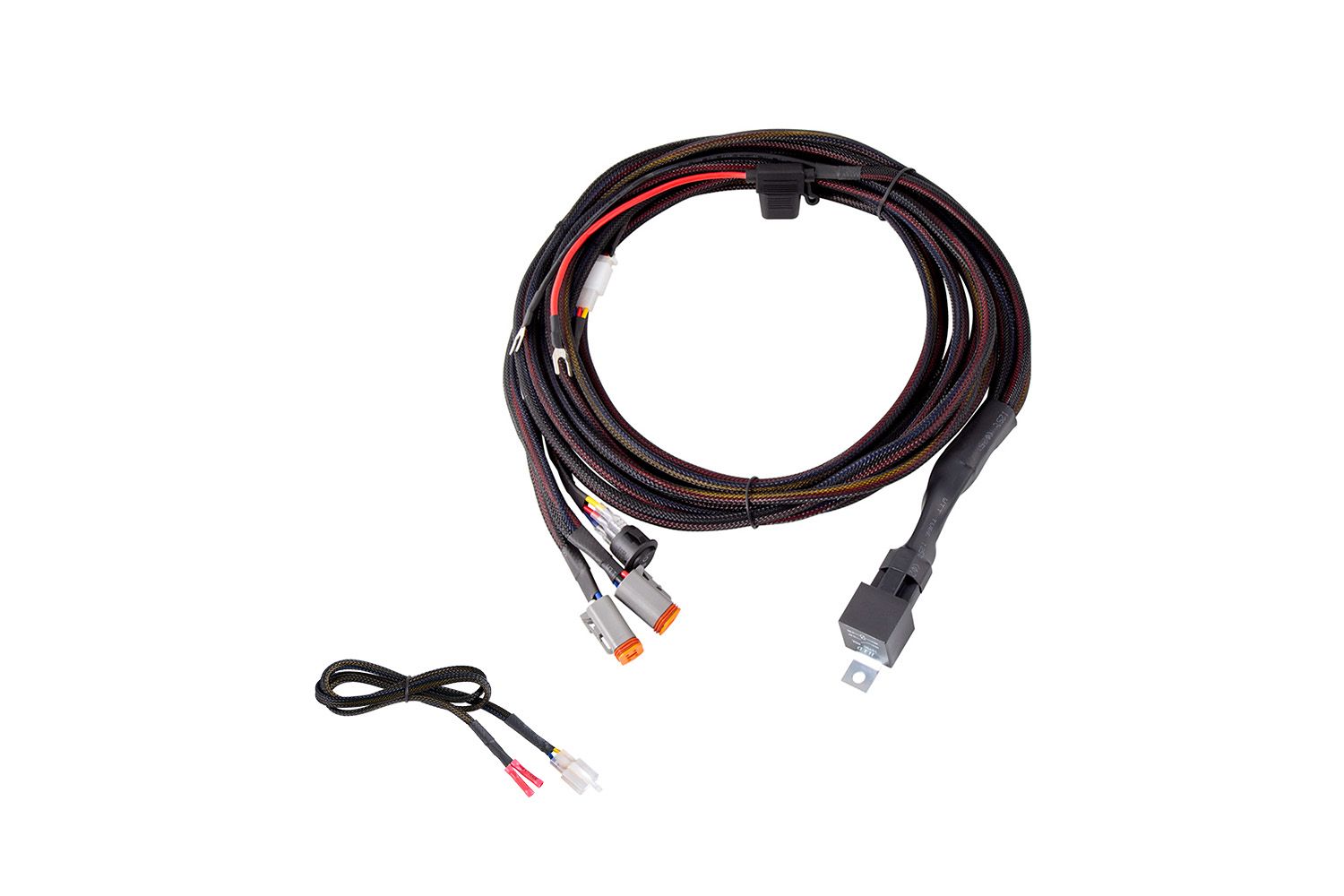

What Comes with the Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness
- One wiring harness
- One three-way toggle switch
- Integrated relay and fuse protection
- Dual-output 4-pin connectors
Note: This harness is specifically designed for Diode Dynamics Stage Series LED pods with backlight functionality. Compatibility with other lighting systems should be confirmed before installation. Professional installation is recommended for users unfamiliar with automotive electrical systems.
- One (1) wiring harness
- One (1) toggle switch
Key Features: Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness
- Dual-output 4-pin wiring harness
- Designed for Stage Series LED pods with backlight
- Plug-and-play installation design
- Three-way switch for backlight and main beam control
- Durable 16AWG wiring construction
- Waterproof inline fuse protection
- Reliable relay-controlled power delivery
- Compact and lightweight harness design
- Ideal for off-road and auxiliary lighting applications
- Compatible with trucks, SUVs, Jeeps, and UTVs
The Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness is an excellent solution for drivers who want a dependable, compact, and easy-to-install wiring setup for dual auxiliary LED lights.
Specifications: Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness
| Specification | Details |
|---|---|
| Product Type | Dual Output Wiring Harness |
| Connector Type | 4-Pin Deutsch DT |
| Outputs | Dual Output |
| Application | Auxiliary LED Lighting |
| Voltage Range | 9-16V |
| Wire Gauge | 16AWG |
| Fuse Protection | Waterproof Inline Fuse |
| Switch Type | Three-Way Toggle Switch |
| Compatibility | Stage Series LED Pods with Backlight |
| Installation Type | Plug-and-Play |
| Vehicle Compatibility | Trucks, SUVs, Jeeps, UTVs |
| Use Case | Off-Road & Automotive Lighting |
| Brand | Diode Dynamics |
Documents: Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness
The Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness is a reliable and user-friendly wiring solution that makes installing and controlling dual auxiliary LED lights simple, safe, and efficient for any off-road or automotive lighting setup.
Video: Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness
