Camper Van Expandable Elevator Bed

Expandable electric elevator bed system for camper vans, designed to save interior space during the day and provide a full size sleeping platform at night.

- $400 flat rate shipping to the Lower 48 states. Free warehouse pickup available.

- Download installation instructions [PDF]

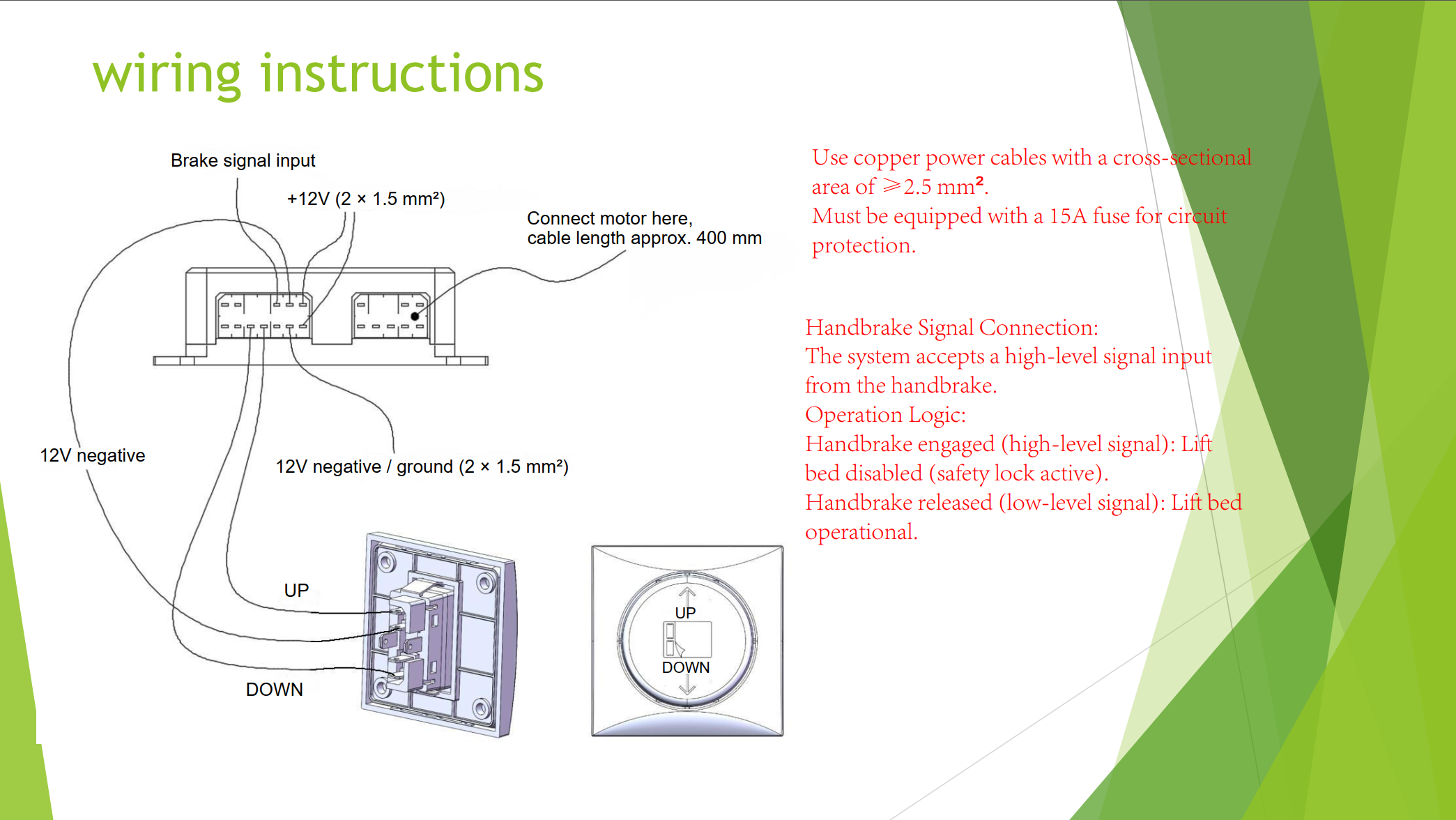

- Download wiring instructions [PDF]

Key Features:

• Electric lift system raises and lowers the bed platform by switch
• Manual extension system expands the sleeping surface from 63" to 77" long
• Retracted 63" x 55" size helps preserve living space during the day
• Expands to a 77" x 55" sleeping surface with enough room for two adults
• Low profile 3.1" (80 mm) frame helps preserve interior headroom
• 3" powder coated aluminum frame for strength and corrosion resistance
• Includes 2" bi-fold mattress designed to fold with the bed platform
• Manual emergency release allows the bed to be lowered during electrical issues
• Suitable for Sprinter, Transit, Promaster, and other van platforms with proper mounting support
• Designed to be lowered onto secondary supports before sleeping

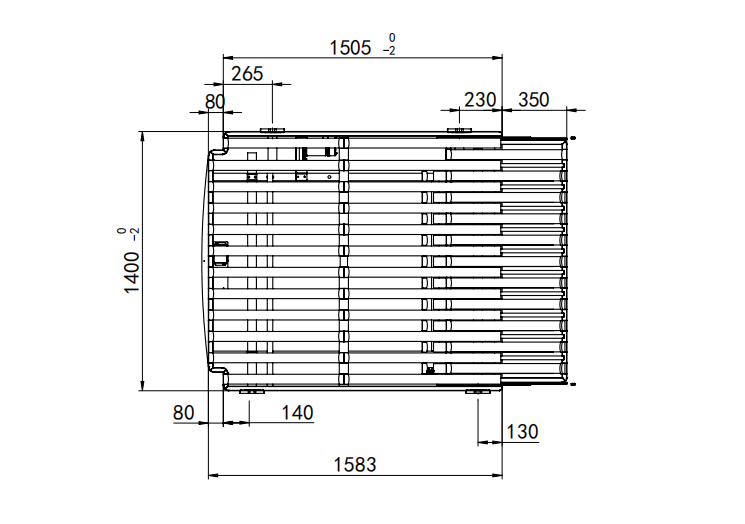

Measurements:

• Retracted Size: 63" x 55" (1600 mm x 1397 mm)
• Expanded Size: 77" x 55" (1956 mm x 1397 mm)
• Frame Thickness: 3.1" (80 mm), without slats or mattress
• Frame Material: 3" powder coated aluminum
• Included Mattress: 2" bi-fold mattress
• Weight: 66 lb (30 kg)

Description:

This expandable elevator bed system is designed for camper van builds where interior space is limited. The platform retracts during the day to open up the living area, then expands into a 77" x 55" sleeping surface at night.

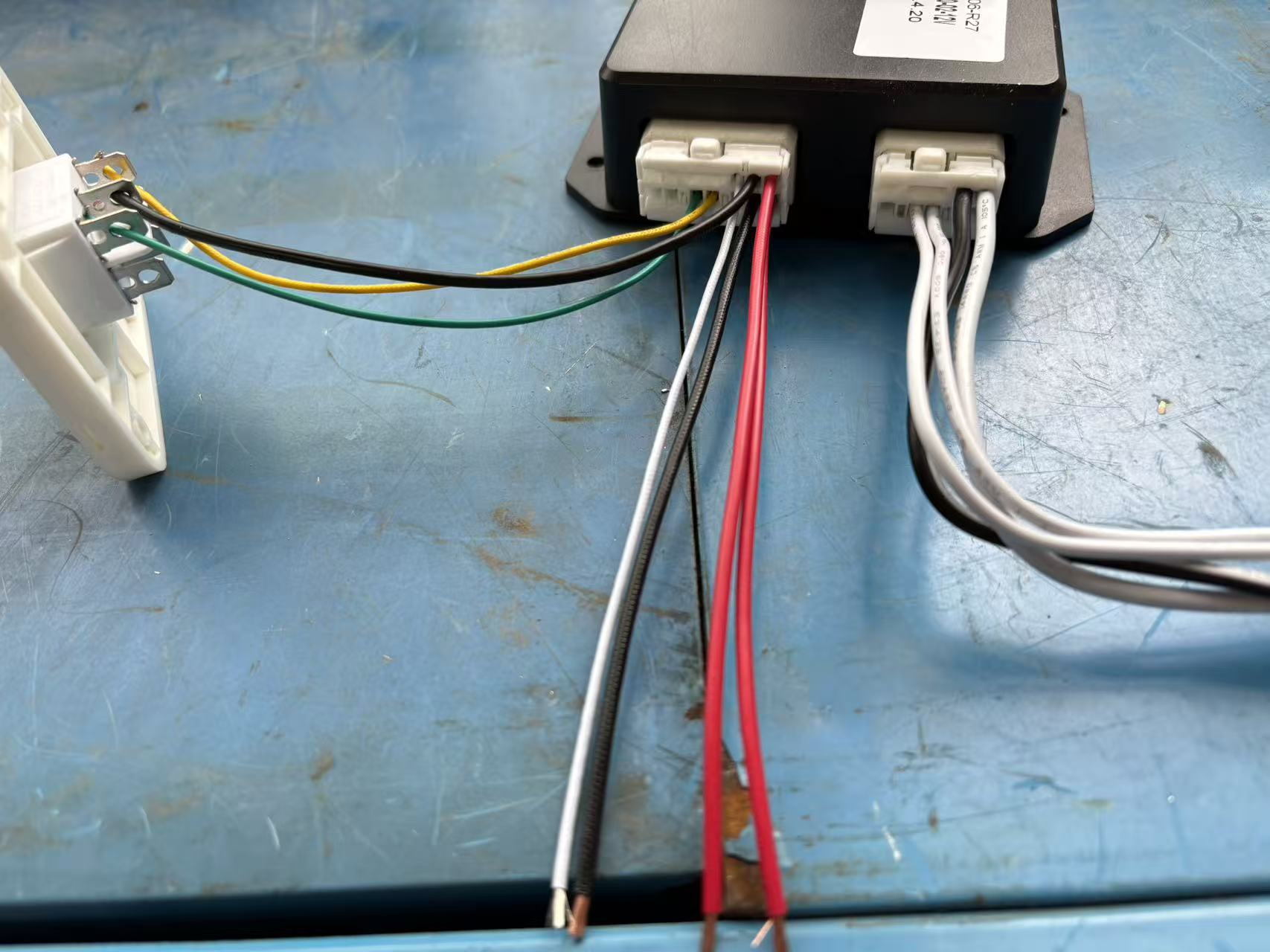

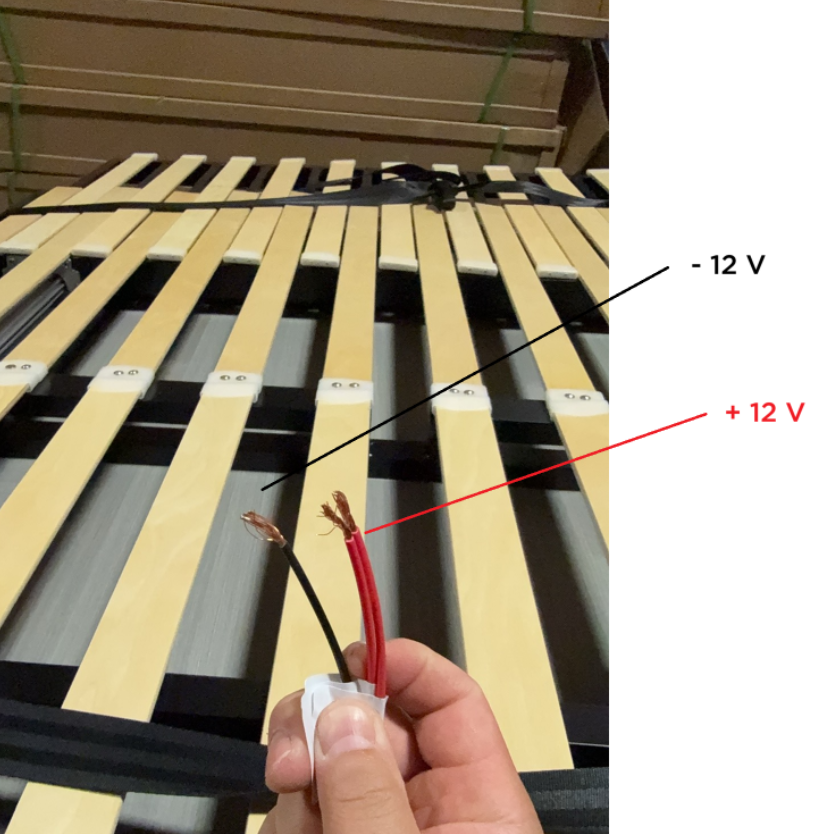

The lift system is powered by a 12 V electric motor and operated by switch for raising and lowering the bed. The extension section is manually adjusted, allowing the platform to slide between its retracted and expanded positions. A 2" bi-fold mattress is included and folds with the platform for easier daily use.

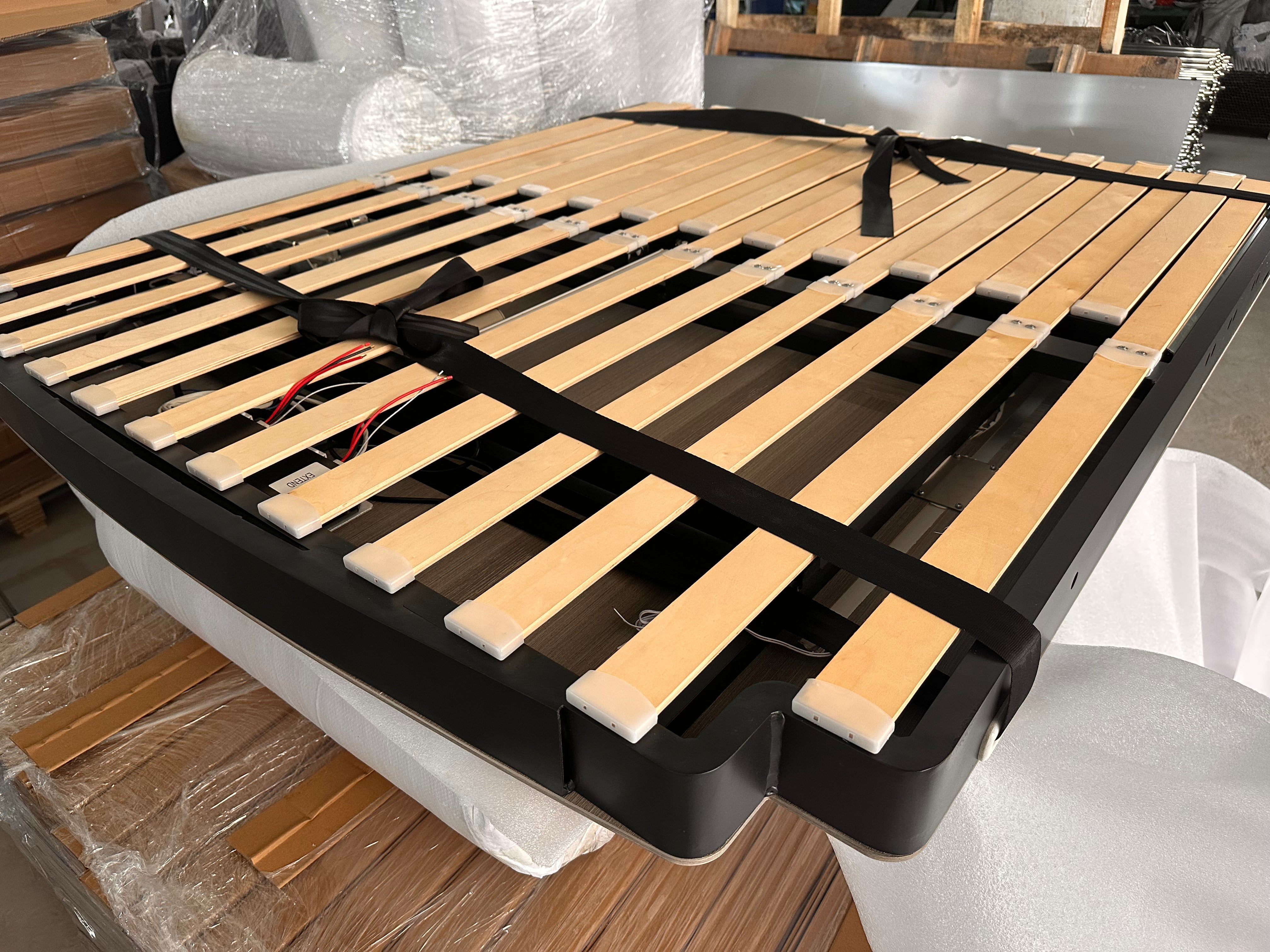

The frame is built from powder coated aluminum with a low profile 3.1" (80 mm) structure, helping preserve headroom when the bed is raised or lowered. The system is compatible with Sprinter, Transit, Promaster, and other van platforms when installed with proper structural support.

Important Notes:

• This model does not come with a remote.
• The current build has the control switch mounted intergrated on the underside of the bed frame. Depending on your interior layout, this switch location may interfere with cabinets, support platforms, or other structures installed below the bed.
• The mounting brackets must be installed level from side to side.
• If one side is mounted higher than the other, the bed can tilt during travel and place excessive strain on the lifting system, frame, and mounting points.
• The hanging belts are designed to support the bed frame only. They are not designed to support the weight of sleepers.
• The bed must be lowered onto a secondary support platform, such as cabinets or structural supports, before being used for sleeping.
• For safety reasons, we do not recommend having someone sleep below the elevator bed.

Motor Specifications:

Actuator Specifications (Older models only):
