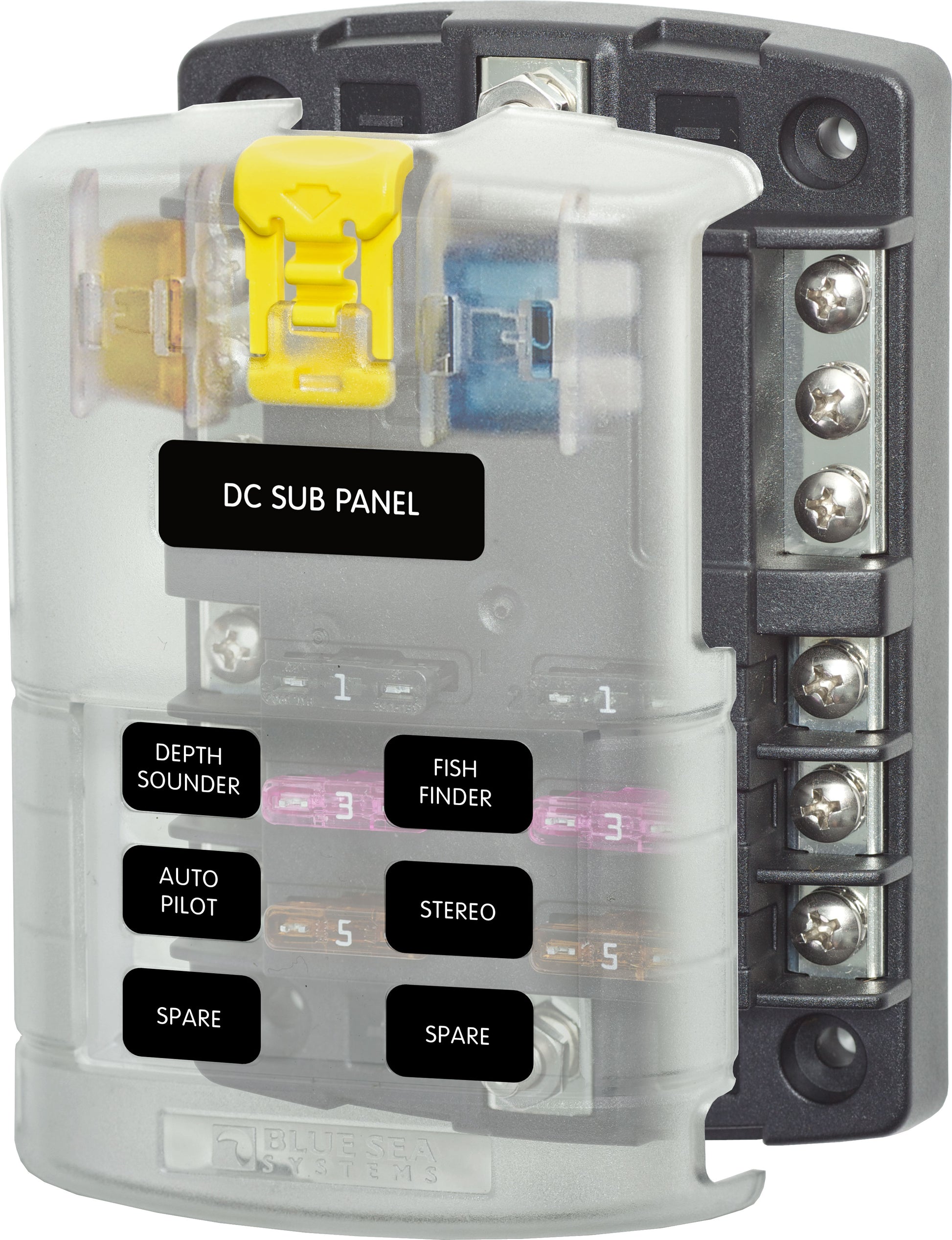

Blue Sea ST Blade Fuse Block, 6 Circuits with Negative Bus and Cover

Description

Organize and protect circuits with a covered fuse block

Fuse Blocks are an effective method of protection to prevent damage to wiring and possible fire in the event of an overloaded or short circuit. This Blue Sea Systems space-saving fuse block can provide protection for new installations or when the panel has run out of breakers. Often used for electronic installations, this fuse block can be fed by one breaker from the distribution panel and supply power to 6 additional circuits. Compact size allows it to be installed in tight spaces close to the loads they protect. Accept ATO/ATC fuses that provide protection from 1 amp to 40amps.

Features:

• Positive distribution bus with #10-32 stud
• Can be used for 24-hour circuits
• With cover
• Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy-to-open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels
• Tin-plated copper buses and fuse clips give up to 30A per circuit protection
• Accepts ring or snap fork type terminals
• Accepts ATO® and ATC® fast-acting blade fuses
• Fuses sold separately
• Includes 20 write-on labels included and accepts square pre-made labels
• Lifetime warranty

Specifications 6 Circuit w/ Neg bus

• Circuits: 6
• Maximum Amperage: 100A per block/ 30A per circuit
• Maximum Voltage: 32V
• Mounting: # 8 screw
• Negative bus fasteners: #10-32
• Positive bus fasteners: #10-32
• Dimensions: 4 7/8”L x 3 5/16”W x 1 ½”Deep
• Weight: .5 Lbs.

5025 Wiring Diagram

6 Fuse Dimensional Drawing
