Atlas PowerLift System E-Bike Rack (EBR1)

Pre-Order. Shipping late November-early December 2026! Free Shipping!

Confirm vehicle has 2” receiver hitch and 250 lbs. required tongue weight rating before purchasing.

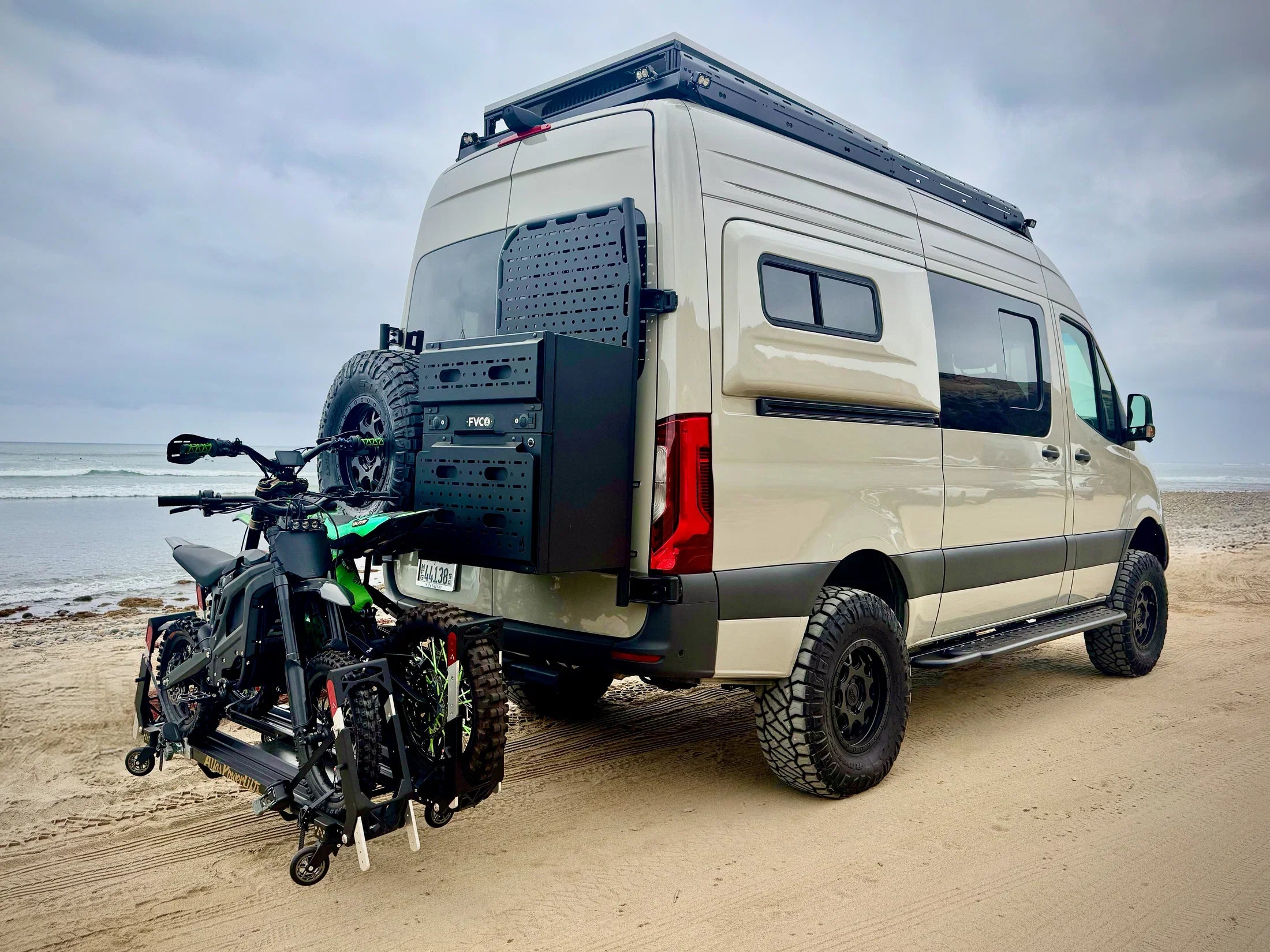

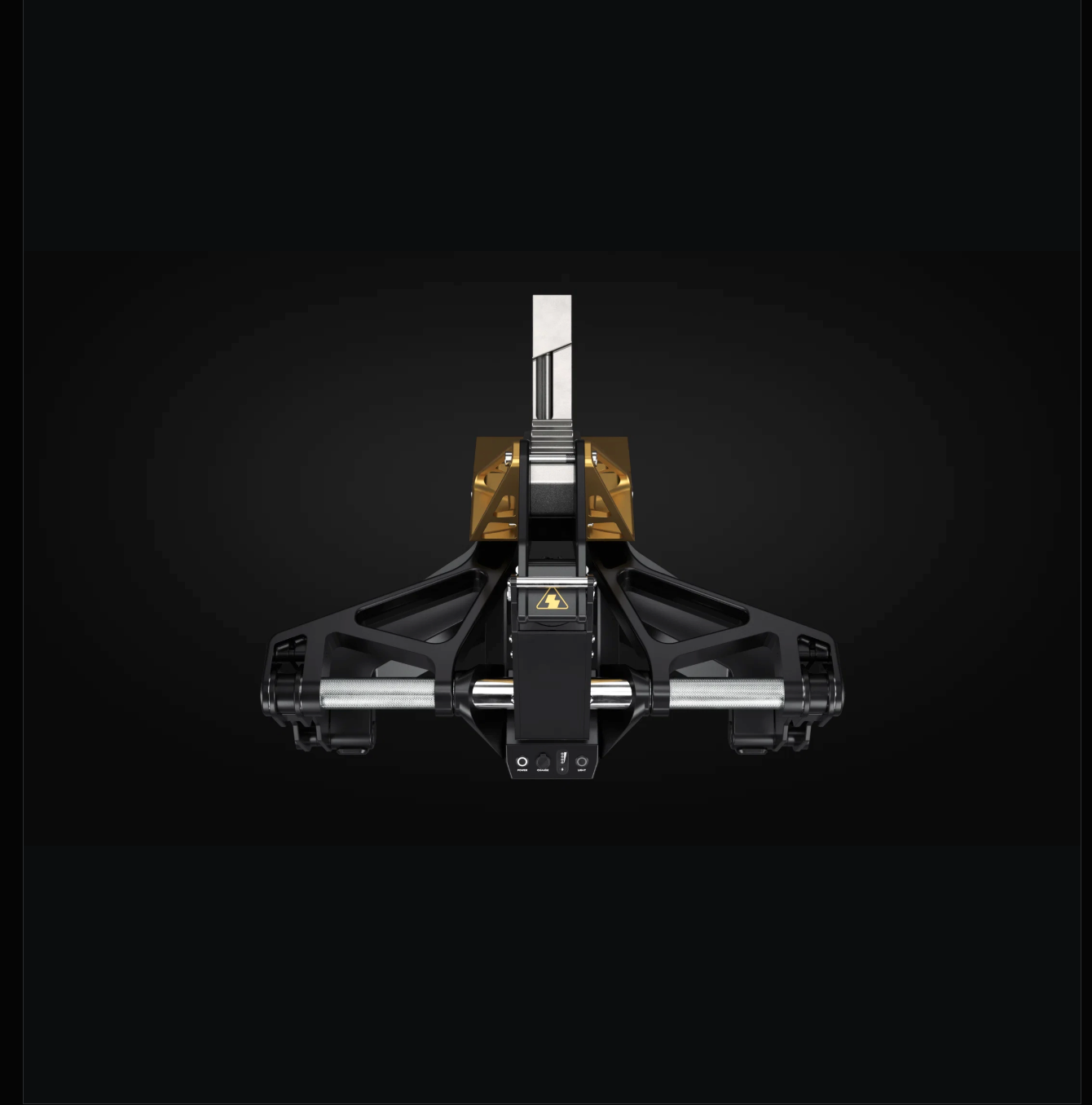

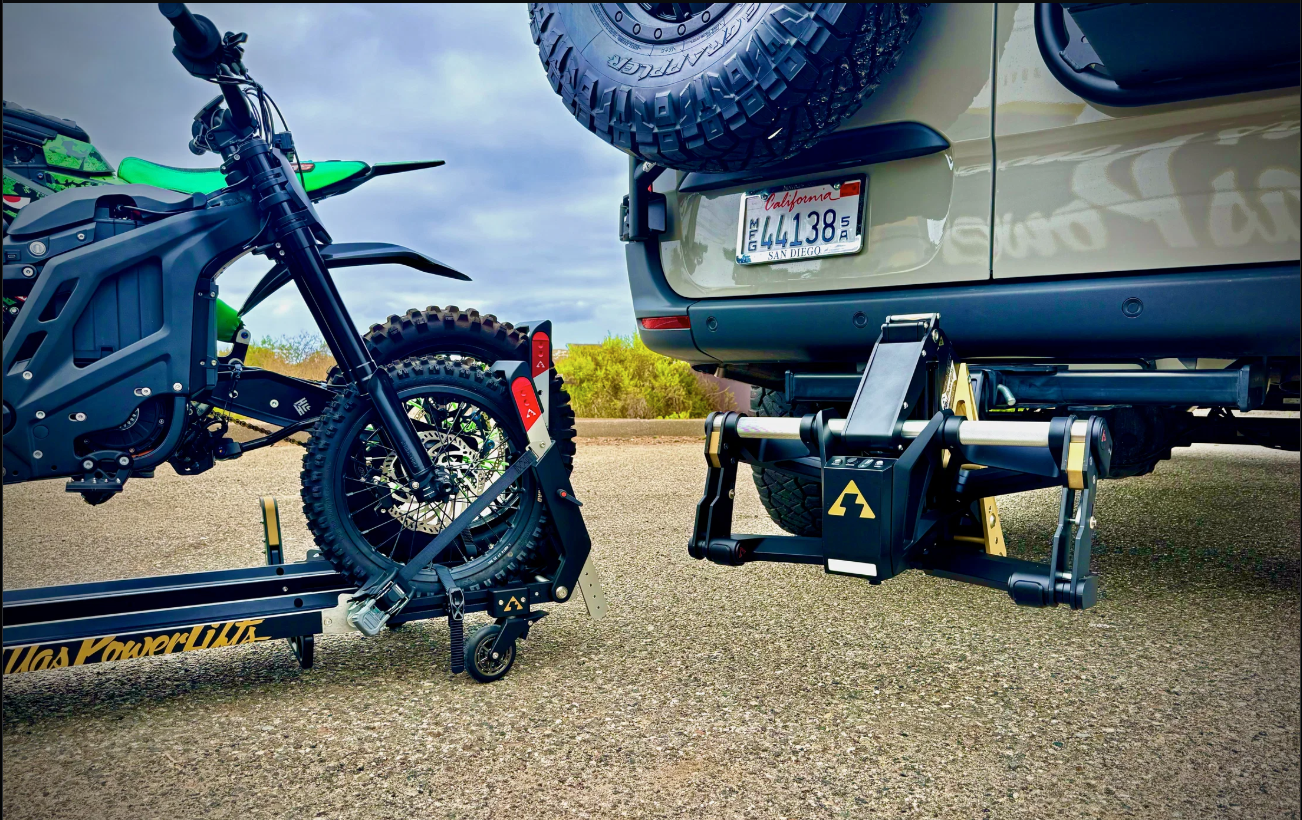

Atlas PowerLift EBR1 E-Bike Rack is a hitch-mounted, motorized rack that lowers to ground level so you can roll an e-bike into place instead of lifting it, then powers back up for transport. It solves the problem of loading heavy e-bikes onto a standard rack by hand — the system runs on its own self-contained battery, so no vehicle wiring is required.

The system requires a 2" receiver hitch rated for at least 250 lbs of tongue weight, and is built for SUVs, trucks, RVs, and mid-size unibody vehicles rather than a specific make or model. The rack detaches from the PowerLift unit for independent use when you're not hauling bikes.

Features

Powered loading built around a single hitch-mounted unit:

• Fits 2” receiver hitch
• A minimum 250 lb tongue weight rating
• Works with campervans, SUVs, trucks, RVs, and many mid-size unibody vehicles.

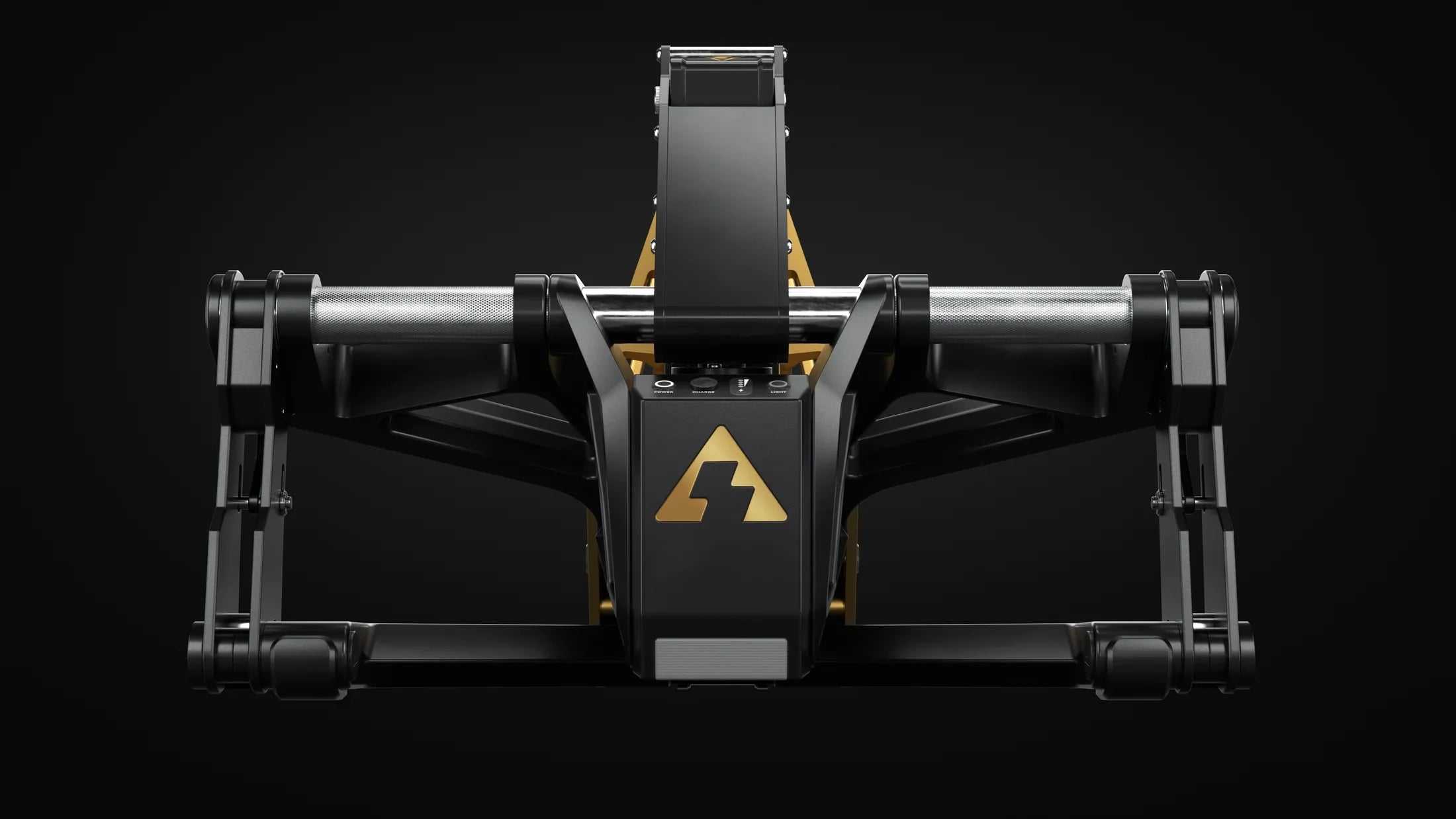

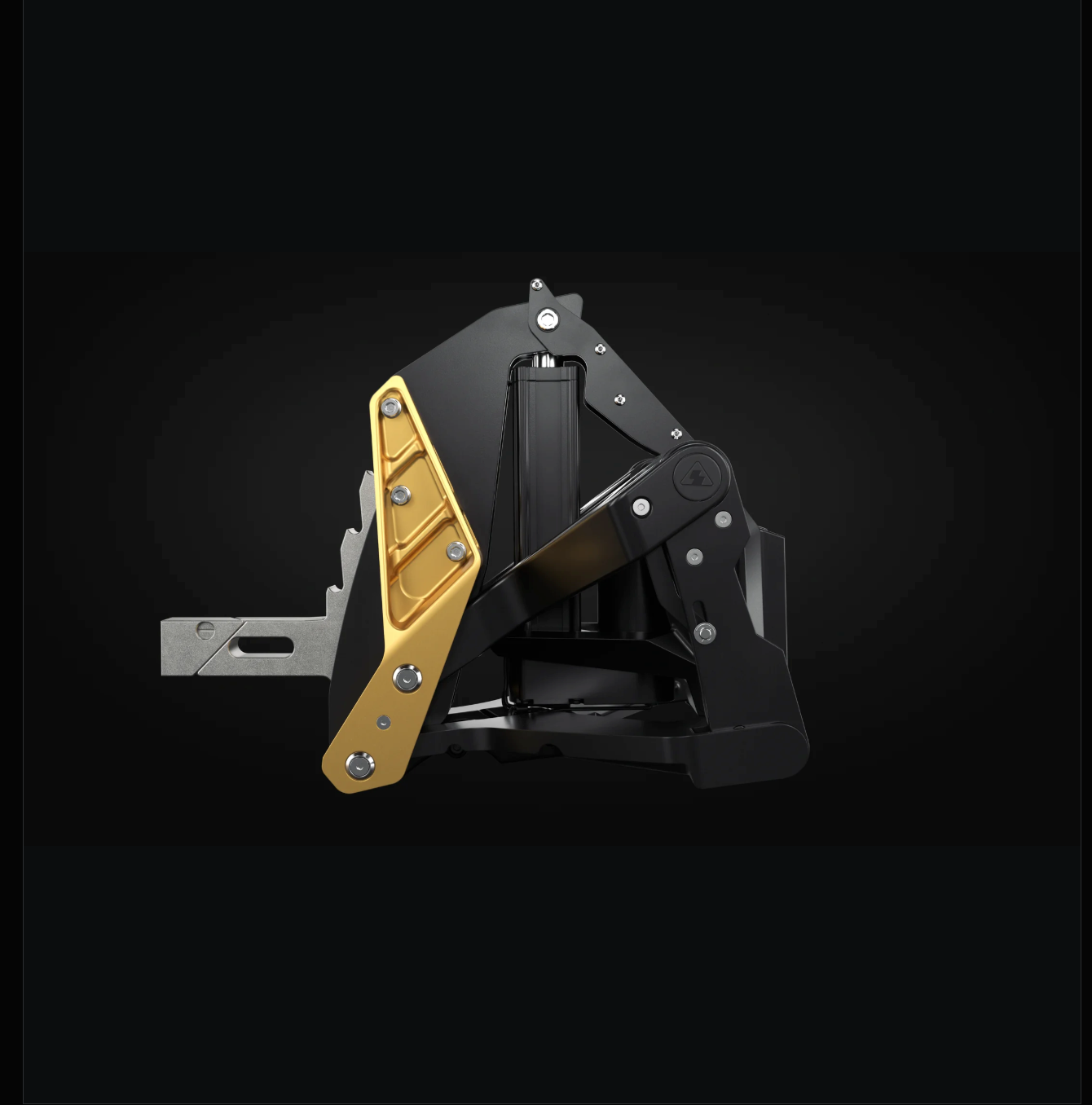

• High-torque linear actuator lowers the rack to ground level for rolling a bike on, then lifts it back into transport position.
• Self-contained battery powers the lift independently of the vehicle — no wiring or electrical hookup needed.
• Fast-charge port brings the battery from empty to full in about 3 hours.
• Integrated battery gauge and power button let you check charge and operate the lift without pulling out a phone or remote.
• Two wireless remote controls operate the lift from a distance.
• Anti-rock mounting design reduces sway and movement during transport.
• Built-in puddle lamp lights the ground around the rack when loading in the dark.
• Locking through-pin secures the rack to the hitch.

What's Included?

• PowerLift unit
• 2x EBR1 e-bike rack
• Universal mount
• 2x Wireless remote controls
• Locking through-pin
• Wrenches (5mm, 6mm, 8mm)
• Instructional materials
• Atlas keychain

Specifications

Max Load Capacity	250 lbs
Lift Unit Weight	46 lbs
Rack Weight	90 lbs
Mount Weight	8 lbs
Total System Weight	144 lbs
Hitch Requirement	2 in. receiver hitch, 250 lb minimum tongue weight rating
Charge Time	Approx. 3 hours, empty to full
Finish	Satin black
Warranty	2 years (mechanical, structural, and manufacturing defects)

FAQ's

How much weight can the system handle?

The Atlas system supports up to 250 lbs of combined load capacity.

What vehicles is it compatible with?

Compatible with vehicles equipped with:

• A 2” receiver hitch
• A minimum 250 lb tongue weight rating

Works with SUVs, trucks, RVs, and many mid-size unibody vehicles.

Do I need to lift the bikes at all?

No. The system lowers to ground level, allowing you to roll bikes into position.

How is the system powered?

Atlas uses a self-contained battery system, completely independent from your vehicle.

Do I need to connect it to my vehicle’s electrical system?

No. No wiring is required.

How long does the battery take to charge?

Approximately 3 hours from fully depleted to fully charged(120V port).

How do I check battery level?

The lift includes an integrated battery gauge.

What controls are included on the lift?

• On/off power button
• Battery gauge
• Charging port
• Built-in puddle lamp

Do I need to purchase anything separately?

No. Everything required is included.

Can I remove the rack?

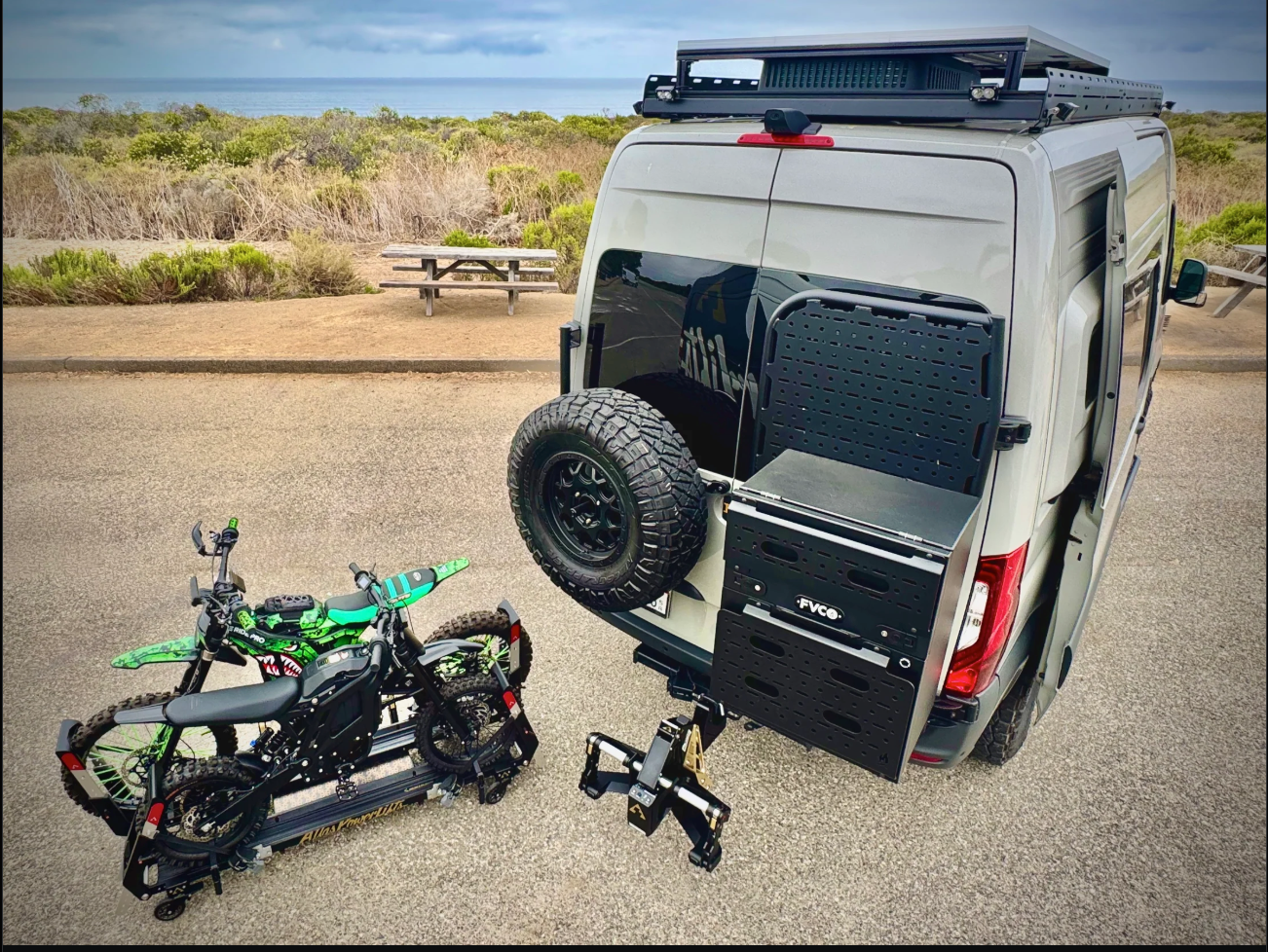

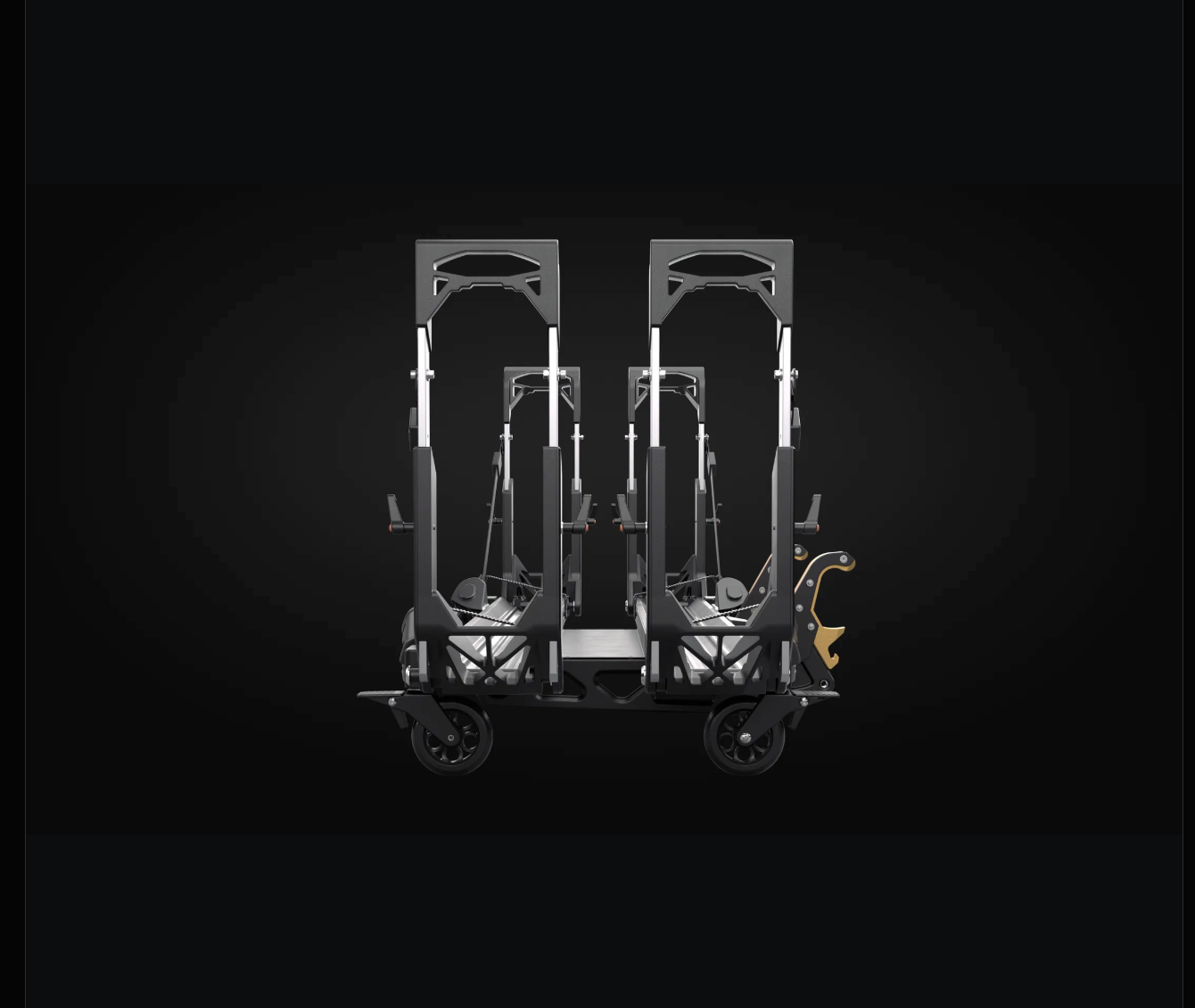

Yes. The rack detaches and can be rolled independently.

Is it weather resistant?

Yes. The system is designed for outdoor use.
