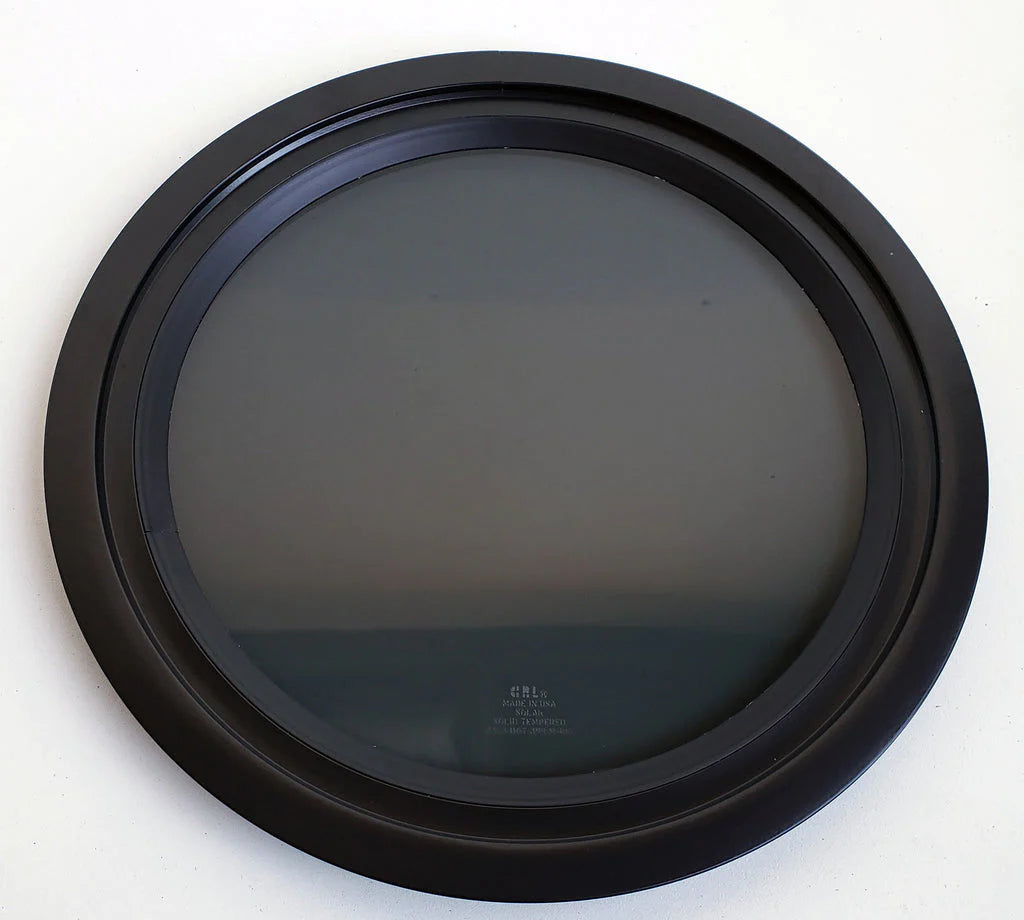

CRL 12" Round Porthole Van Window
- Black Powder Coated Aluminum Frame 1/8" (3.2 mm) or 1-1/2" (38.1 mm)

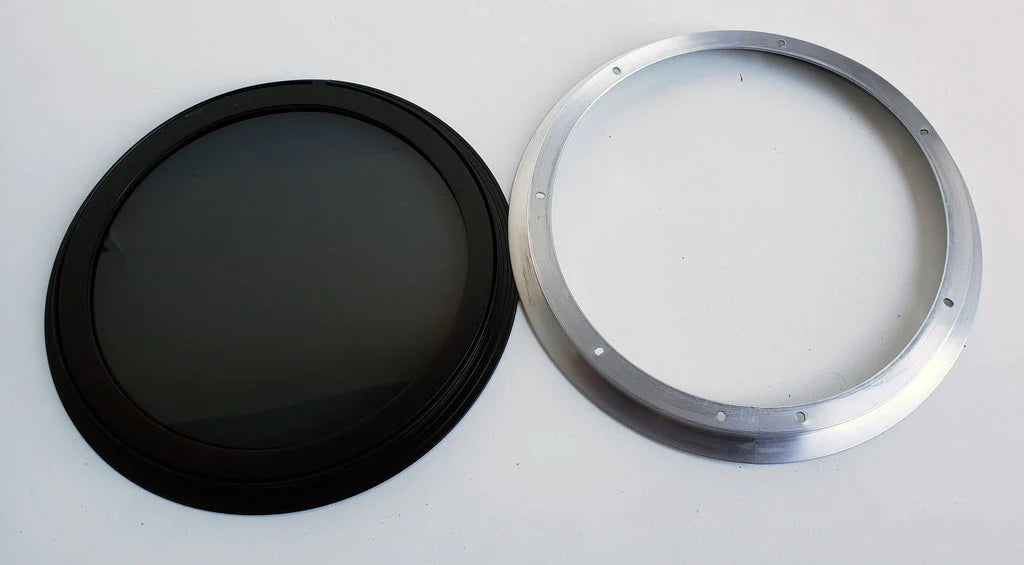

- Reversible Clamp Ring
- Classic Look
Measurements
Outside Diameter: 12-7/8"Cut Hole Diameter: 11-11/16"
CRL Custom Van Portholes give vans a classic look. They install with a 1/8" (3.2 mm) or 1-1/2" (38.1 mm) reversible clamp ring making installation in a conversion or cargo van easy. The Porthole windows black powder-coated aluminum frame gives a great look and helps protect from weather and elements. The glass is a DOT/SAE approved 31% dark tint for excellent UV protection and privacy.
What's needed to Install? |
How will I install this window? |
Using the cardboard box the porthole came in you can trace a pattern using the inner portion of the trim ring or aluminum inner frame of the window which ever your more comfortable with should yield approx. same template. Once your pattern is drawn out you'll cut it from the cardboard box. Determine where on the Van you will install your porthole window. Check the interior for possible obstructions. The Porthole comes with a reversible mounting ring so can go straight to the exterior metal of the van using the 1/8" or you can flip it if you have interior walls to a 1-1/2" depth. If you need to use the 1-1/2" depth you may need to create spacer often times a 1" thick ply would that's cut into a ring to place behind wall to fill gap between outer sheet metal and interior wall. Before cutting always double check the pattern size make sure its the inner portion of the trim ring and only the extruded aluminum thick frame can go through holes can always be trimmed larger if needed not so easy to make them smaller. Once your hole is cut apply tape on foam seal to back side of porthole window start and end at bottom so the gap of foam is on the bottom to prevent leakage. If you do not have two people you will want to tape the window in place other wise one person holds porthole from the outside while the other screws on the interior clamp ring (mounting ring) much like a tire you will tighten a little at a time top , bottom , left, right ensuring an even seal. That's about it for a Van Porthole Window install. Here is a printable installation sheet. Van Porthole Window Installation
Mfg: CR Laurence (CRL) MFG Country: USA Warranty: 30 Days |
