Northwest Conversions 28 Gallon Dodge Promaster Wheel Well Water Tank (Center)

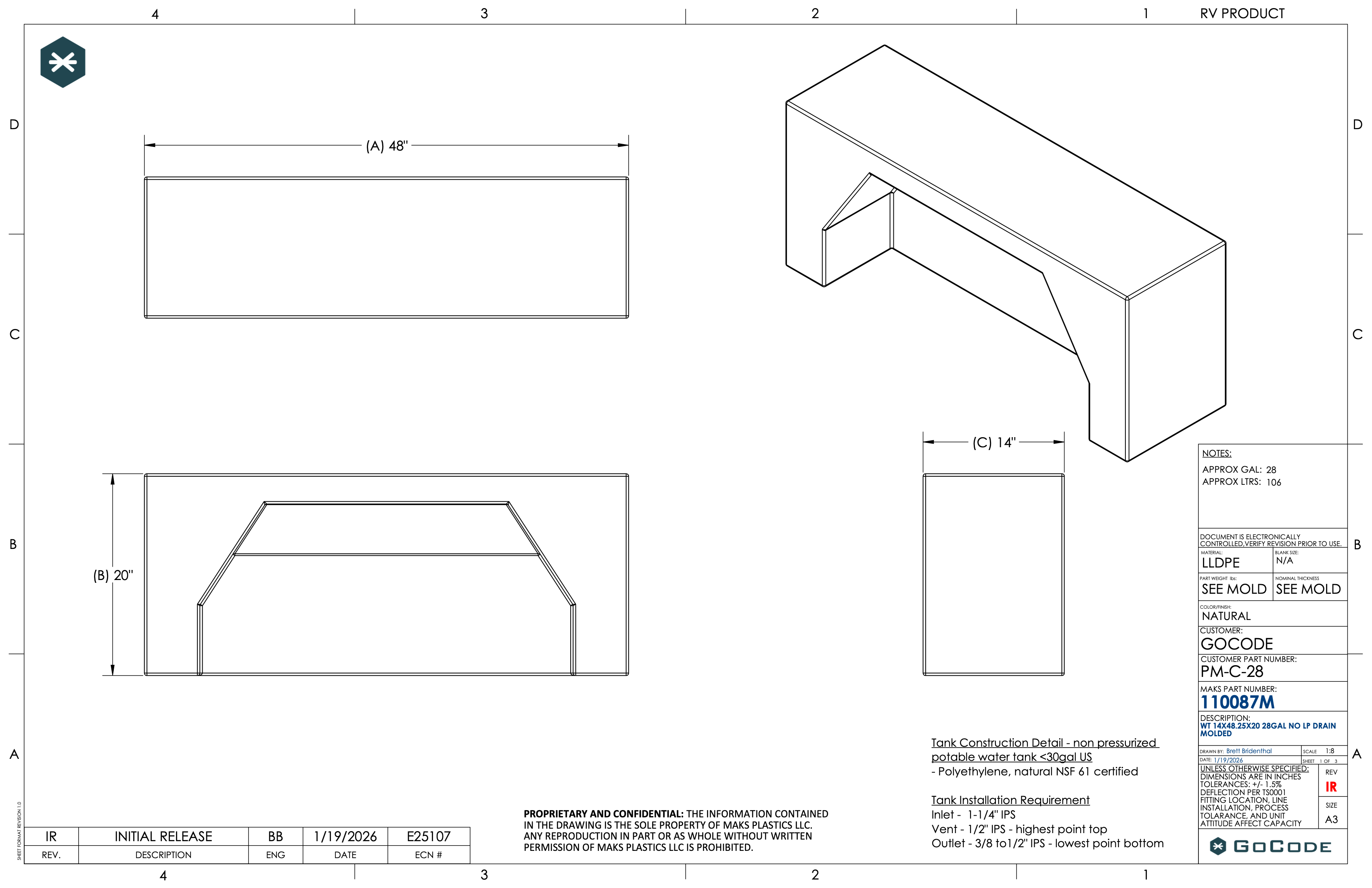

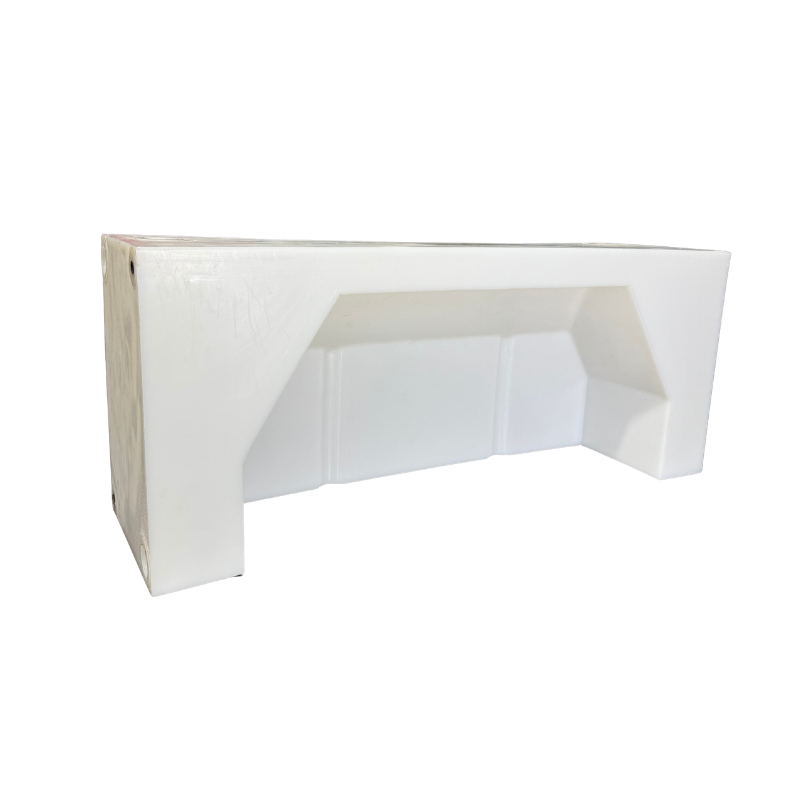

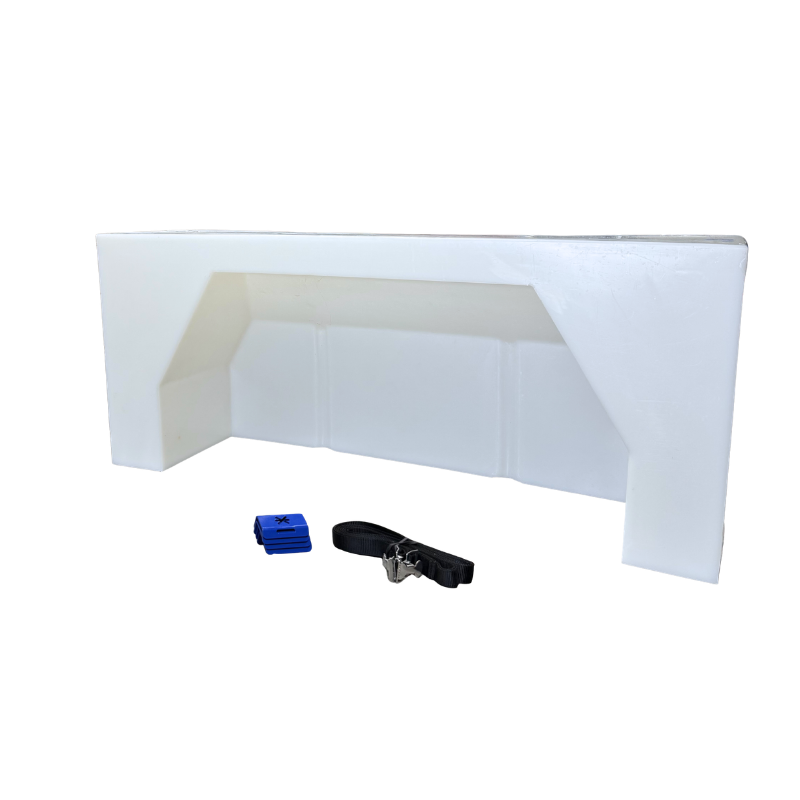

The 28 gallon wheel well water tank is designed to use the wasted space around the well. It is designed to fit the Promaster and will also fit other vans. The tank can also fit other vehicle makes and models. Tank measurements are 48” long x 20” tall x 14” deep.

Features

• 28 Gallon Promaster Water Tank

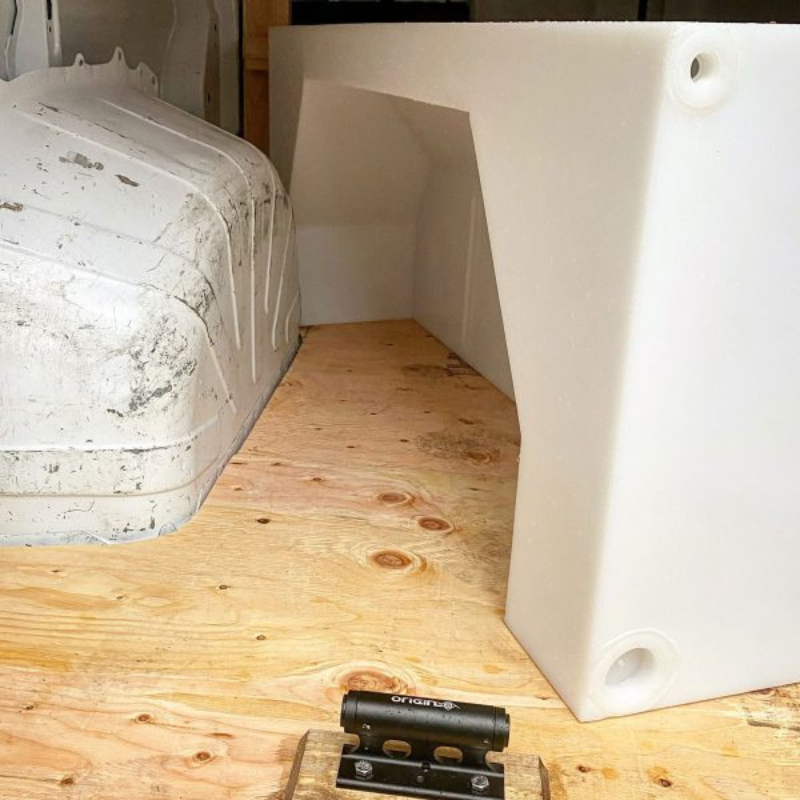

• Centered over the wheel well
• 48” long, 14” deep, 20” tall
• Designed to fit the Promaster Van
• Tank is designed not to be pressurised (I.e.  Needs to be vented).
• Tank will fit Sprinter and Transit vans also with more gap around the top of the wheel well.
• Can be placed either driver or passenger side
• Tank has (2) 1.5” NPT ports (need to be drilled out) and (2)1/2” NPT ports on either end.
• Tank has (1) 1.5” NPT port (needs to be drilled out) on top or fill or level sensor.
• Tanks are made from BPA Free Food Grade Plastic
• Made in the USA

Specifications

Dimensions: 48” long, 14” deep, 20” tall
