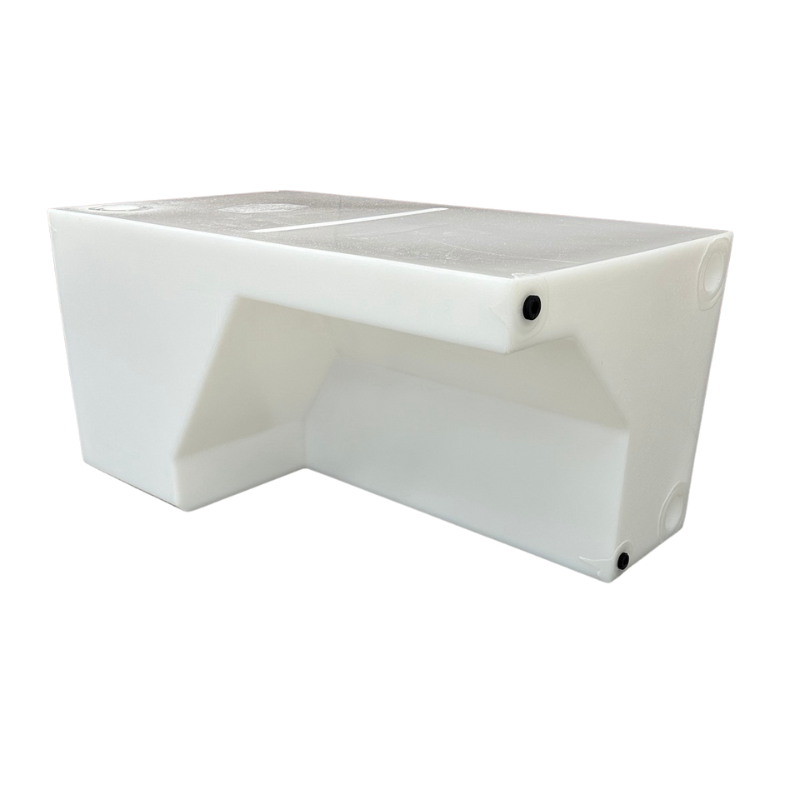

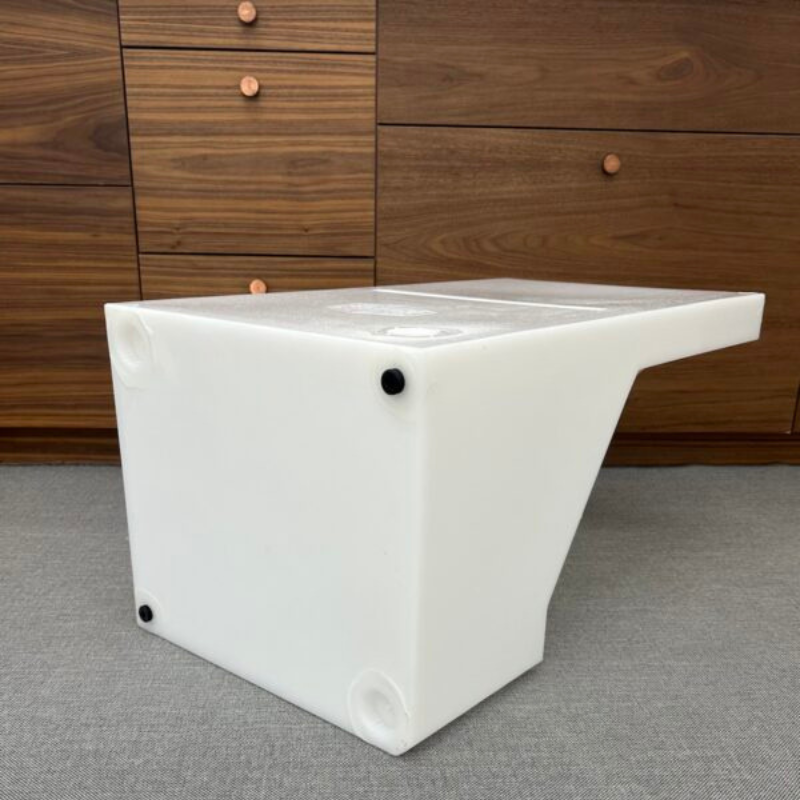

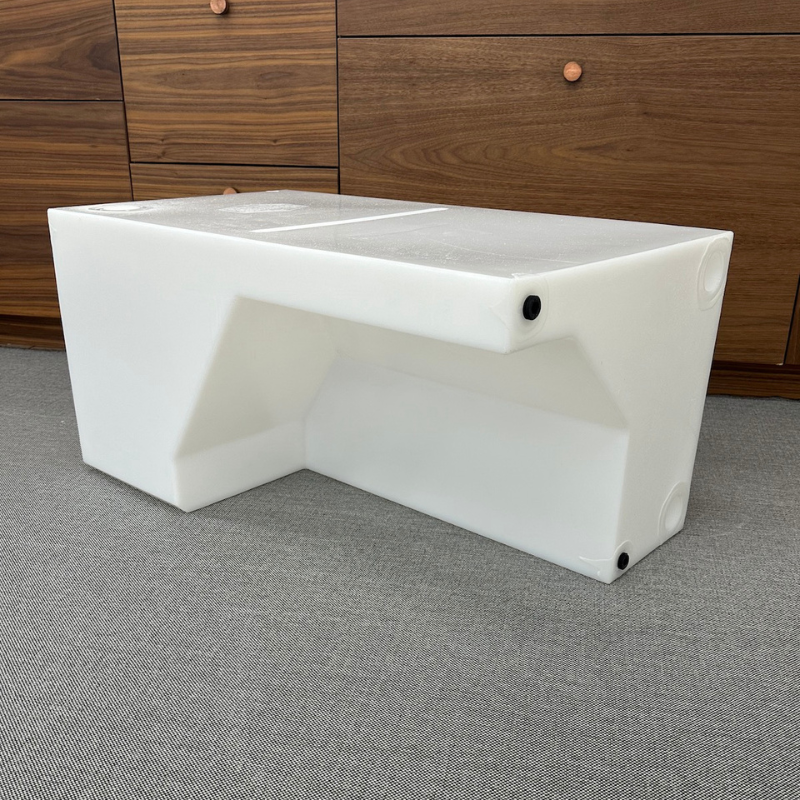

Northwest Conversions 22 Gallon Wheel Well Water Tank (Right)

$299.00

Shipping calculated at checkout.

Typically ships in 5-7 business days. Shipping fees calculated at checkout.

JOIN VAN LAND CLUB

Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more

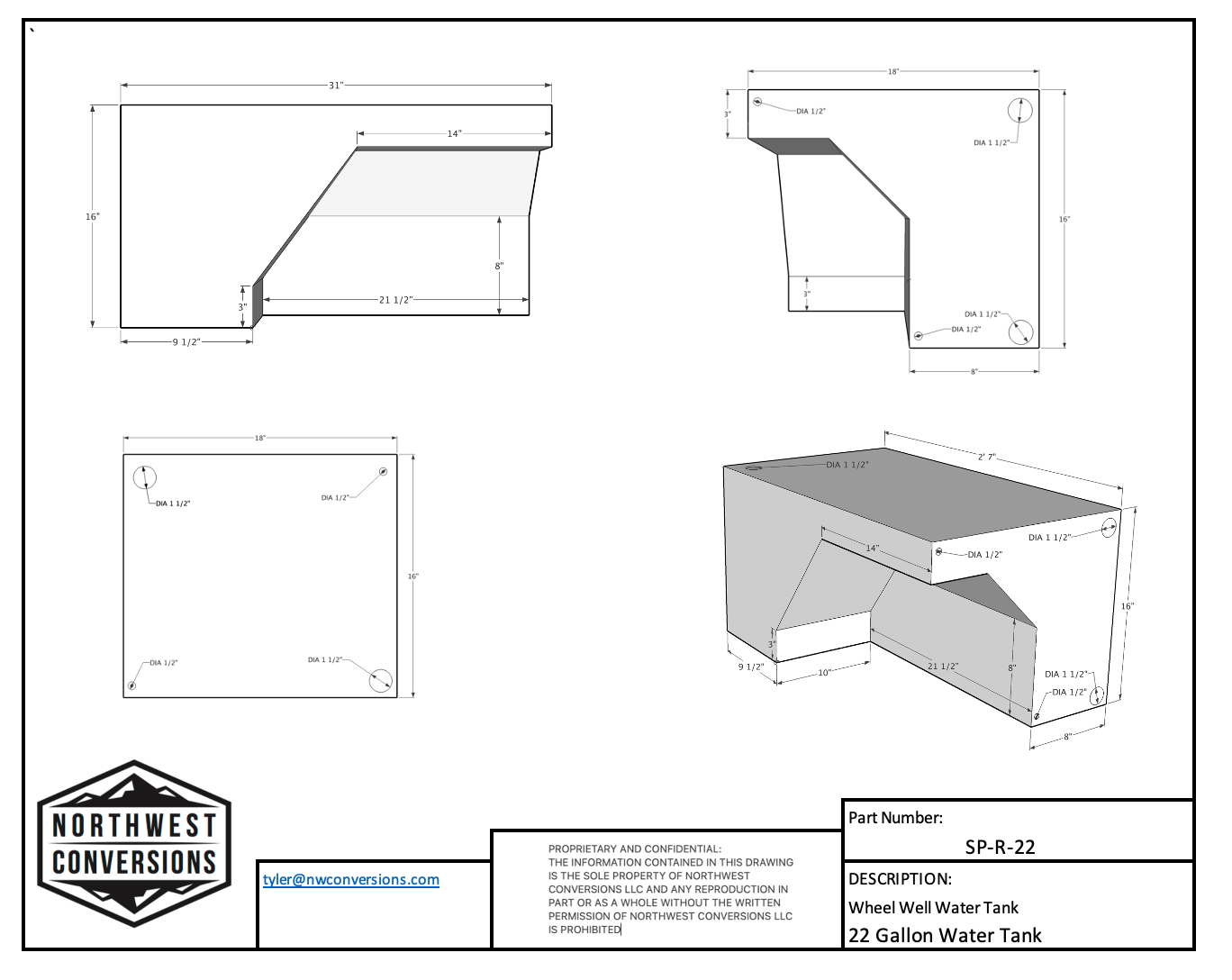

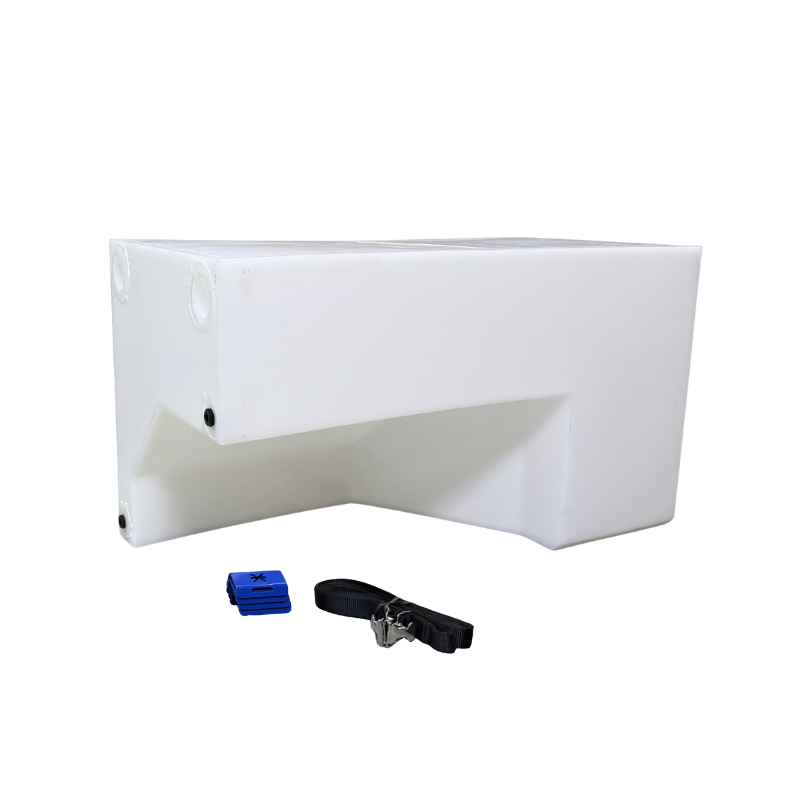

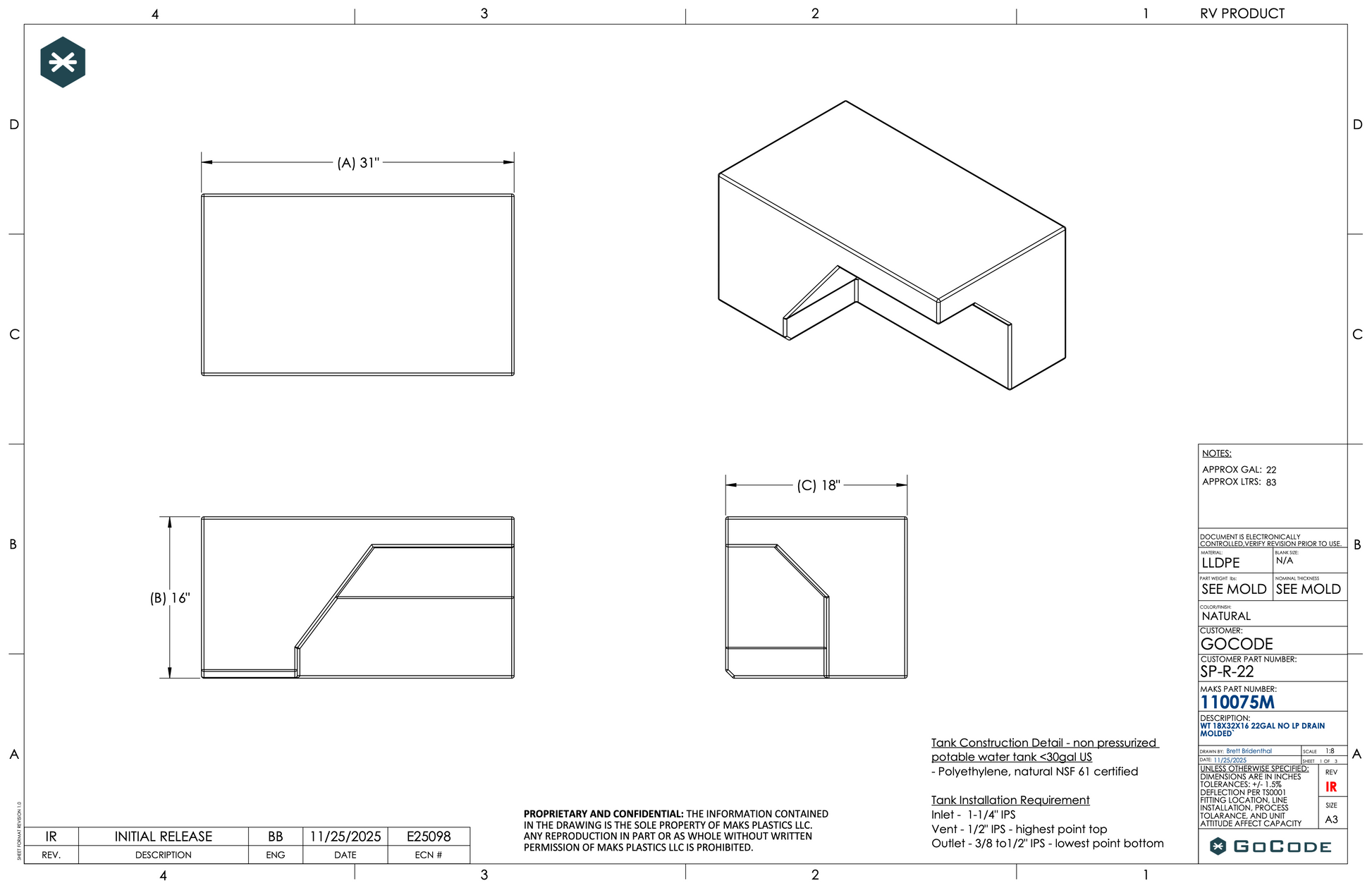

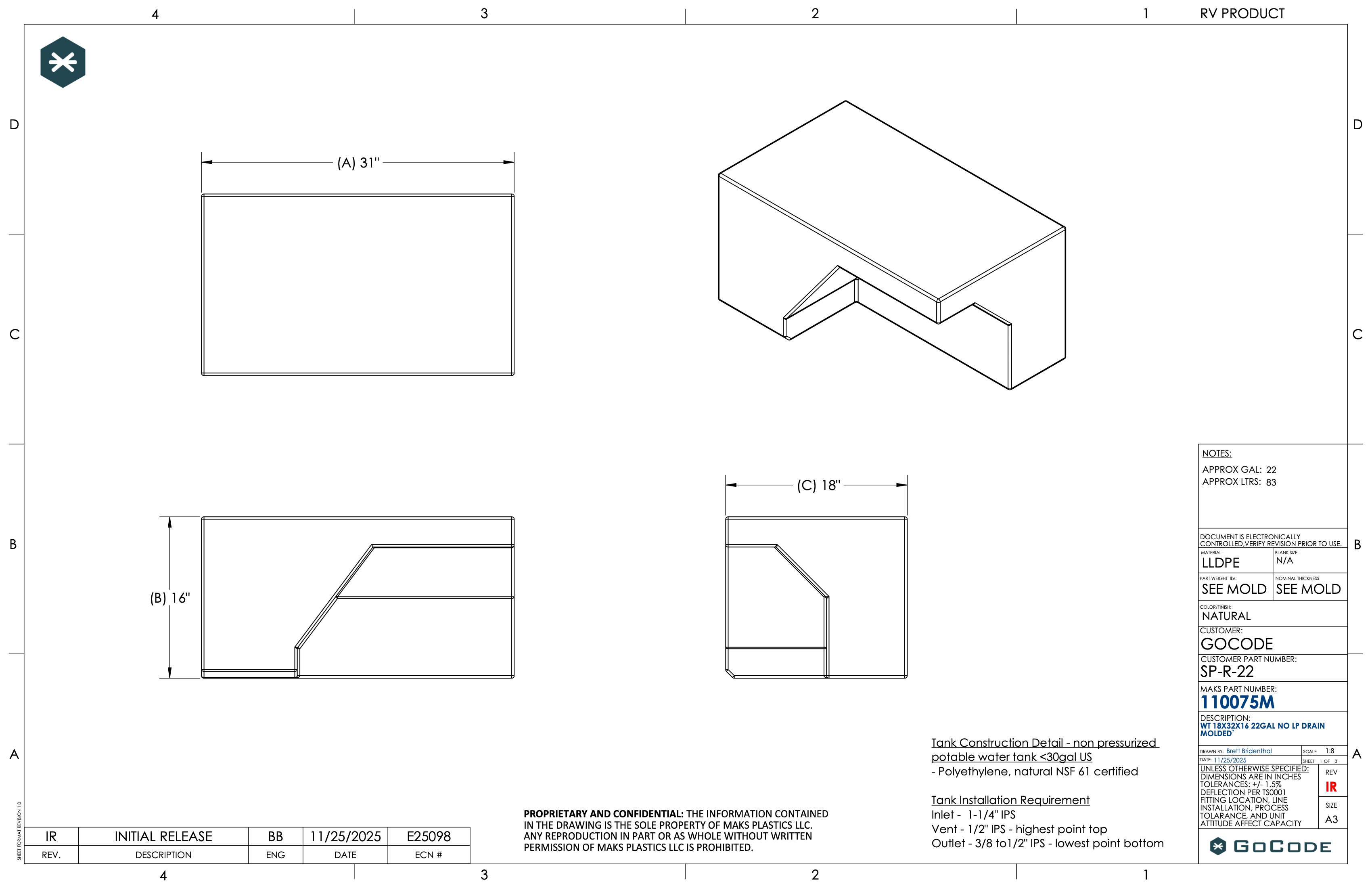

The 22 gallon wheel well water tank is designed to use the wasted space around the well. It is designed to fit the Sprinter 2500 and will also fit the Sprinter T1N and Transit single rear wheel vans. The tank can also fit other vehicle makes and models. Tank measurements are 31” long x 16” tall x 18” deep.

Designed to fit Sprinter Vans
TRANSIT Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well.
**Pro Master** needs to be elevated 3.5" to fit the large wheel wells
Can be placed either driver or passenger side

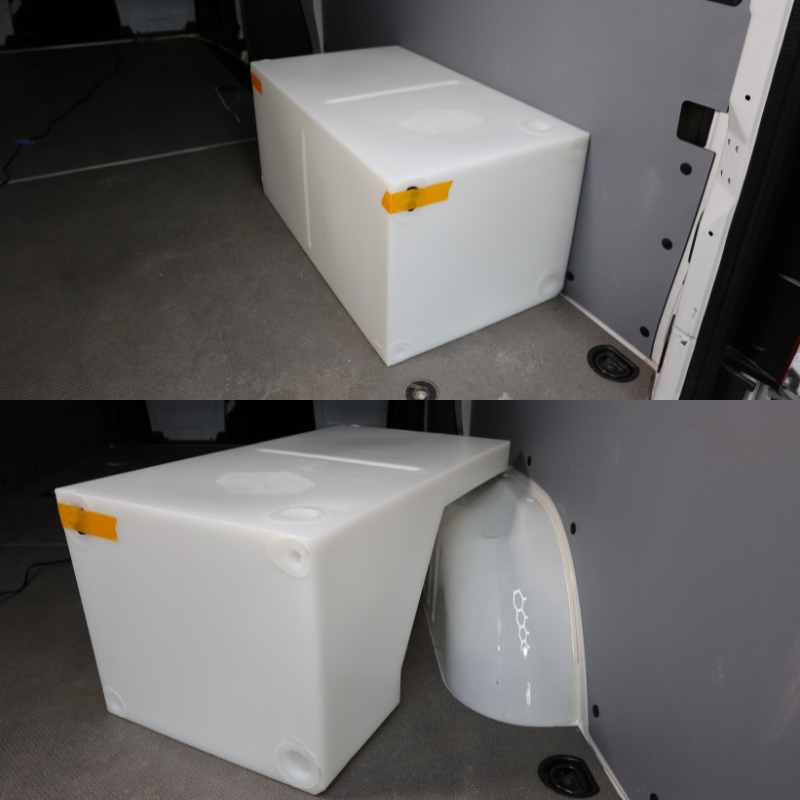

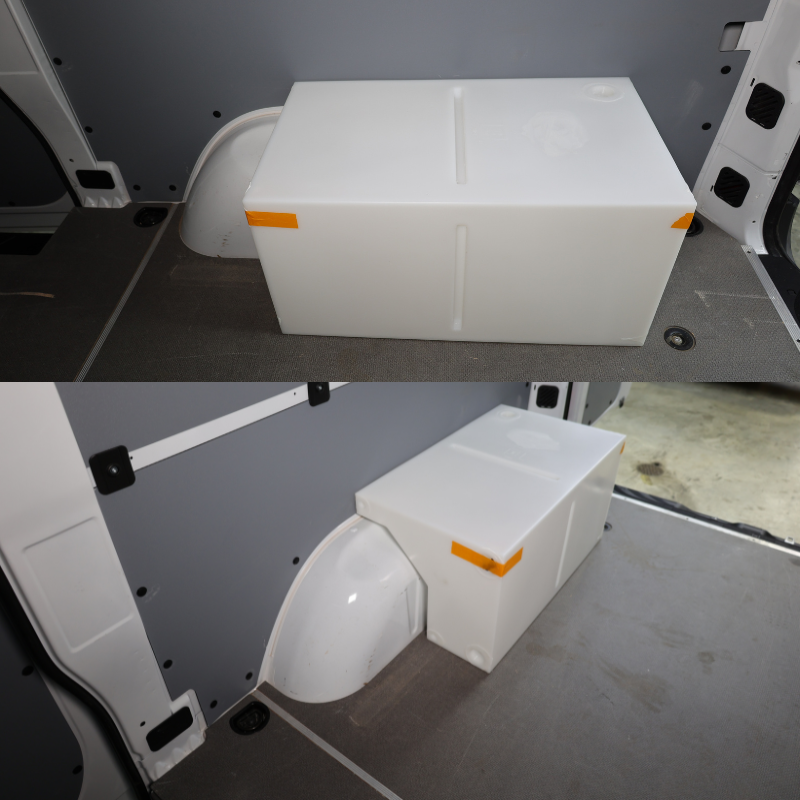

Tank sits rear of wheel well on passenger side and in front of wheel well on driver side

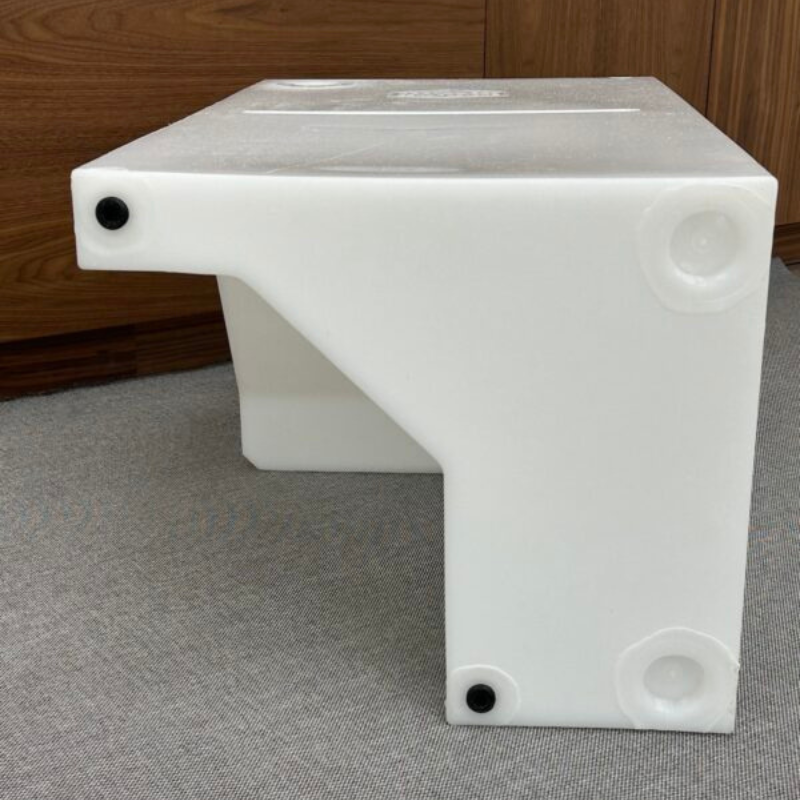

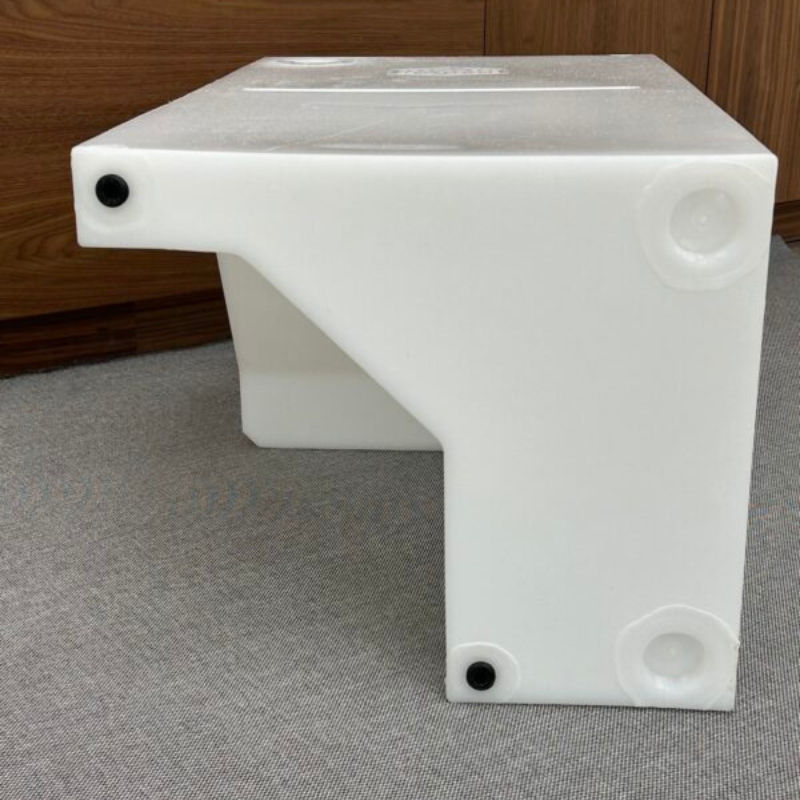

Tank has (2) 1.5” NPT ports (need to be drilled out) and (2)1/2” NPT ports on rectangular end.
Tank has (2) 1.5" NPT ports (need to be drilled out) and (1) 1/2" NPT port on opposite end.
Tank has (1) 1.5” NPT port (needs to be drilled out) on top or fill or level sensor
Tank is designed not to be pressurised (I.e. Needs to be vented).
Tanks are made from BPA Free Food Grade Plastic
