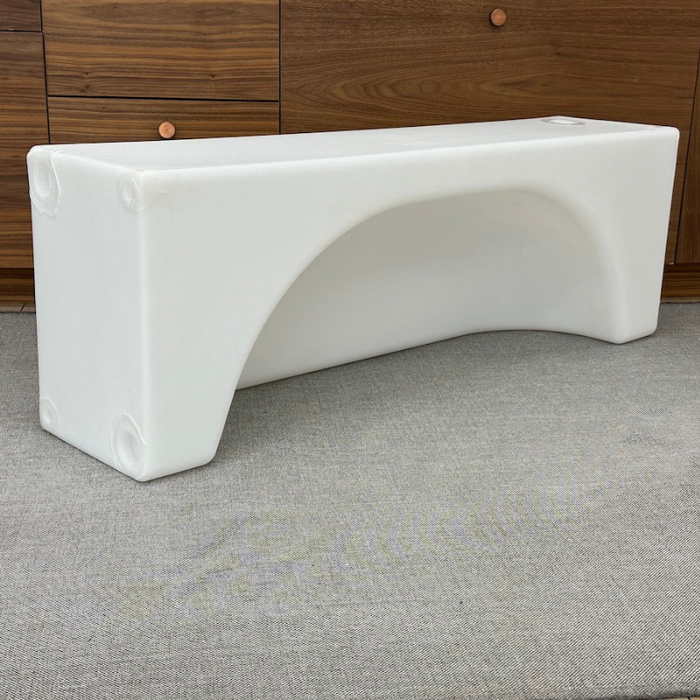

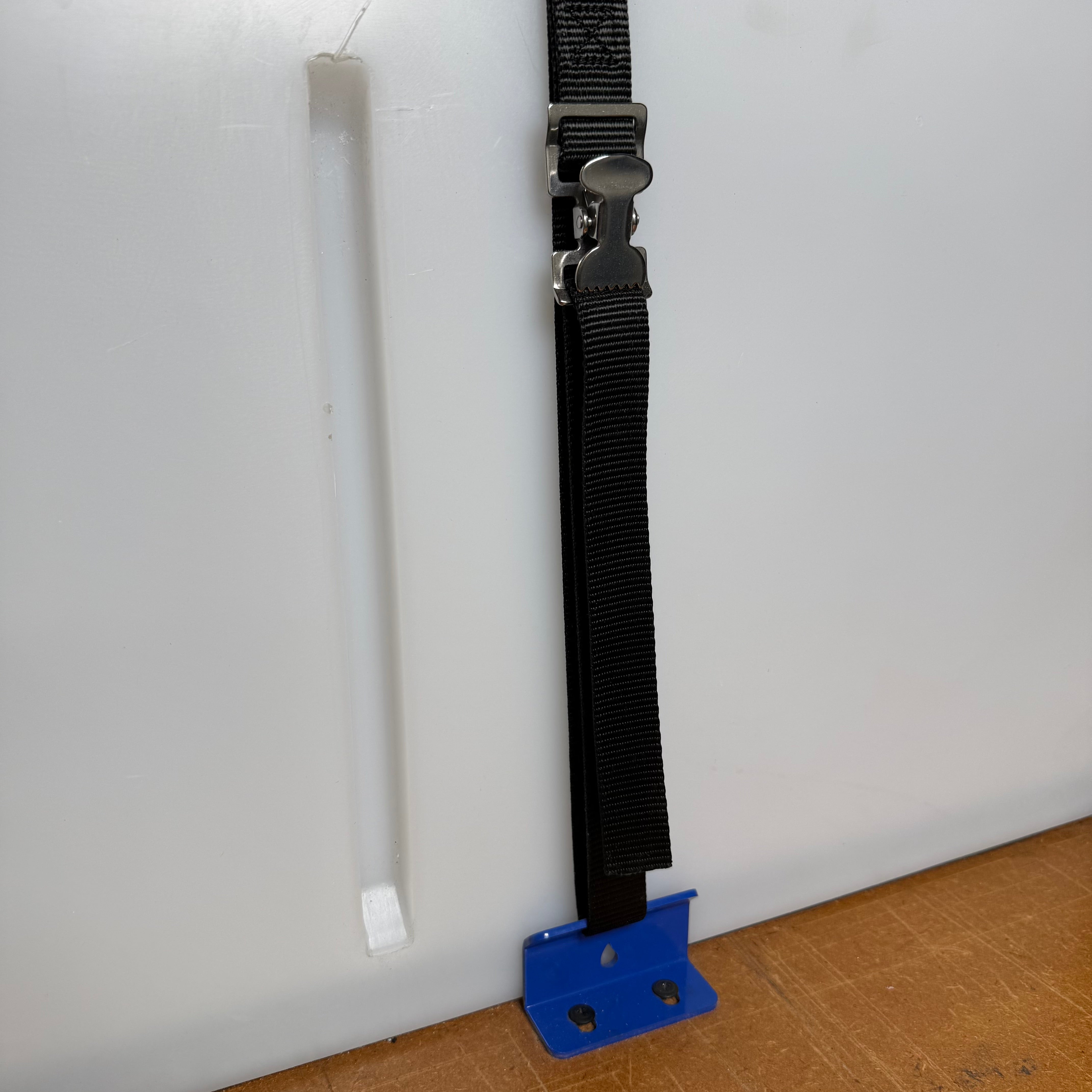

Northwest Conversions 20 Gallon Wheel Well Water Tank (Centered)

The 20 gallon wheel well water tank is designed to use the wasted space around the well. It is designed to fit the Sprinter 2500 and will also fit Sprinter T1N and Transit single rear wheel vans. The tank can also fit other vehicle makes and models. Tank measurements are 46.5” long x 16” tall x 11” deep.

Features

• 20 Gallon Water Tank (SP-C-20)

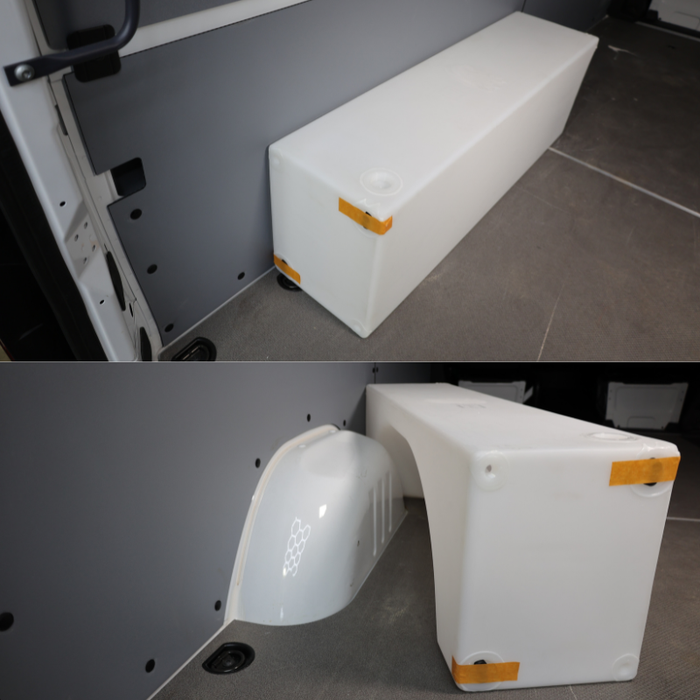

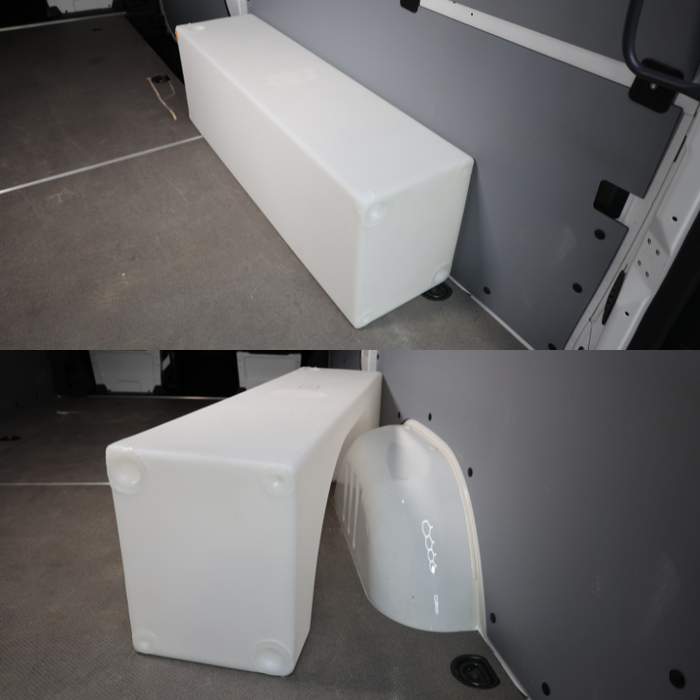

• Centered over the wheel well

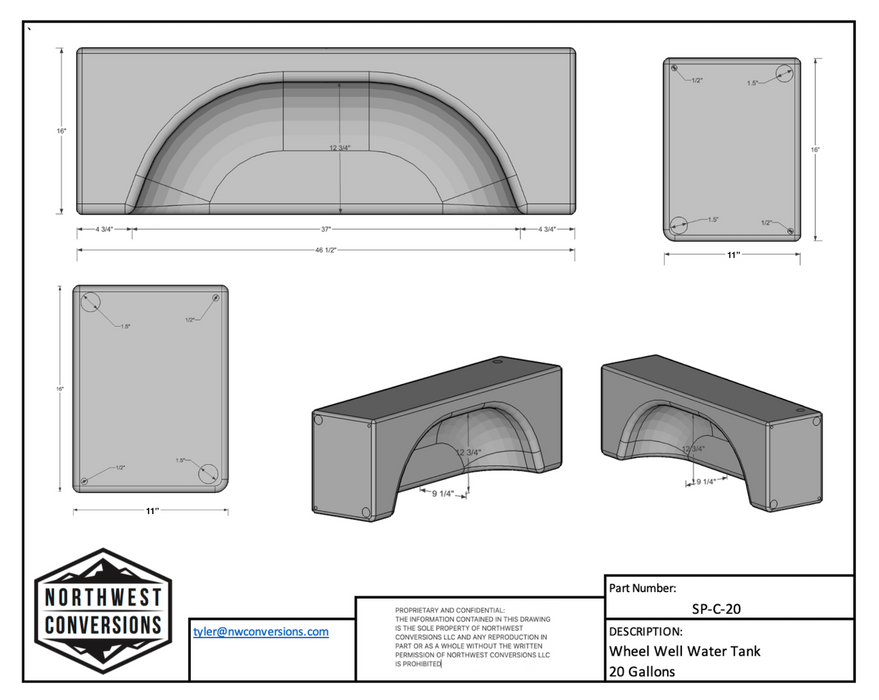

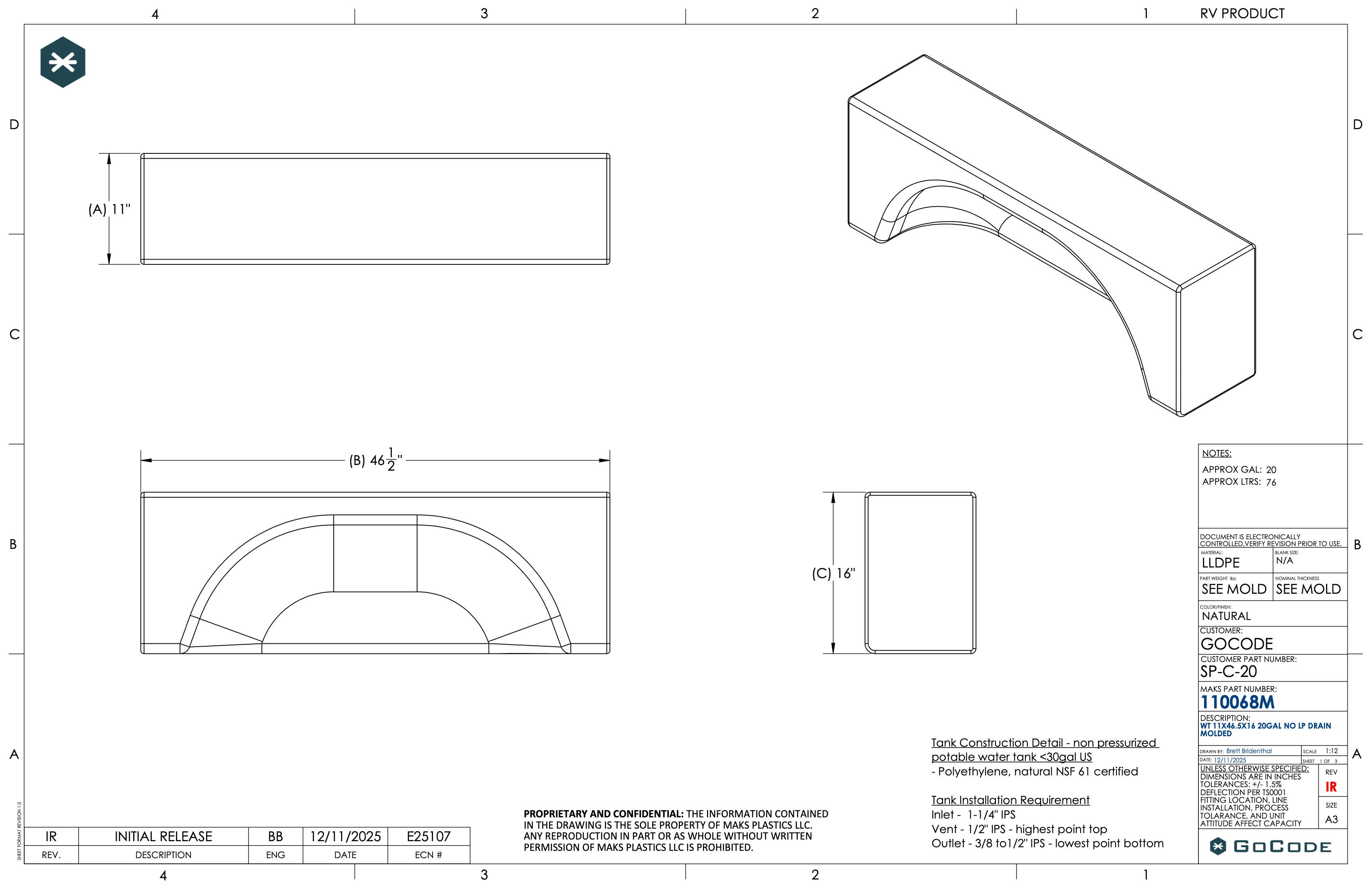

• 46.5” long, 11” deep, 16” tall
• Designed to fit Sprinter Van
• TRANSIT Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well.
• **PROMASTER**  needs to be elevated 3.5" to fit the large wheel wells.

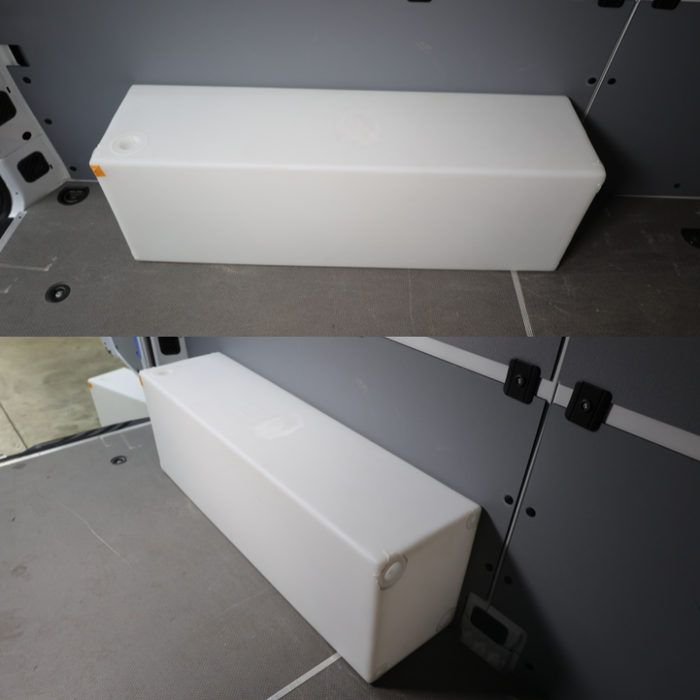

• Can be placed either driver or passenger side
• Tank has (2) 1.5” NPT ports (need to be drilled out) and (2)1/2” NPT ports on either end.
• Tank has (1) 1.5” NPT port (needs to be drilled out) on top or fill or level sensor.
• Tank is designed not to be pressurised (I.e.  Needs to be vented).
• Tanks are made from BPA Free Food Grade Plastic
• IAPMO TS 4 Certified
• Made in the USA

Specifications

Weight: 25 lbs.
Dimensions: 48 × 13 × 16 in
