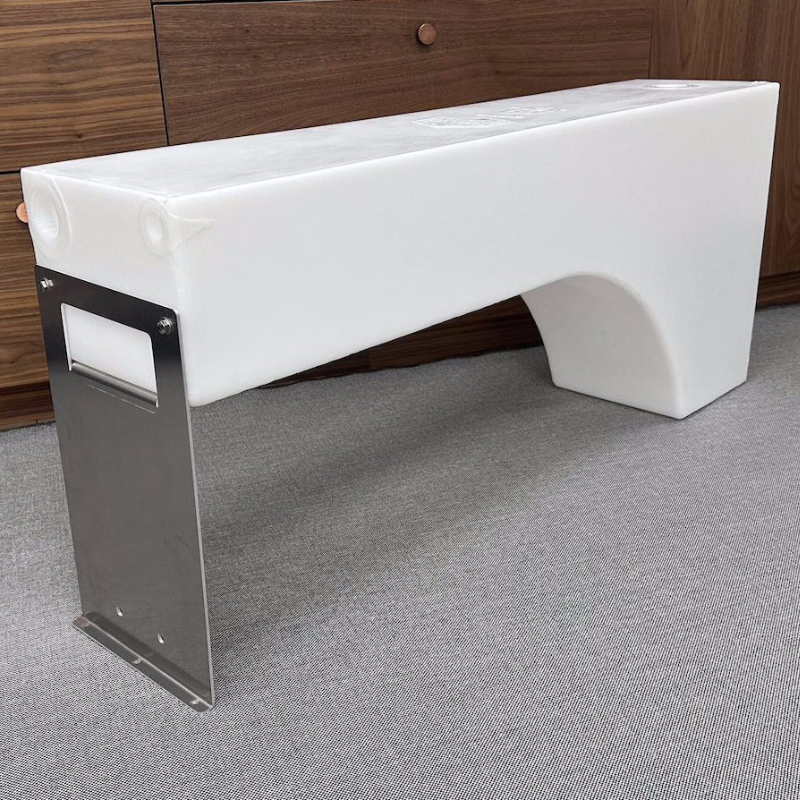

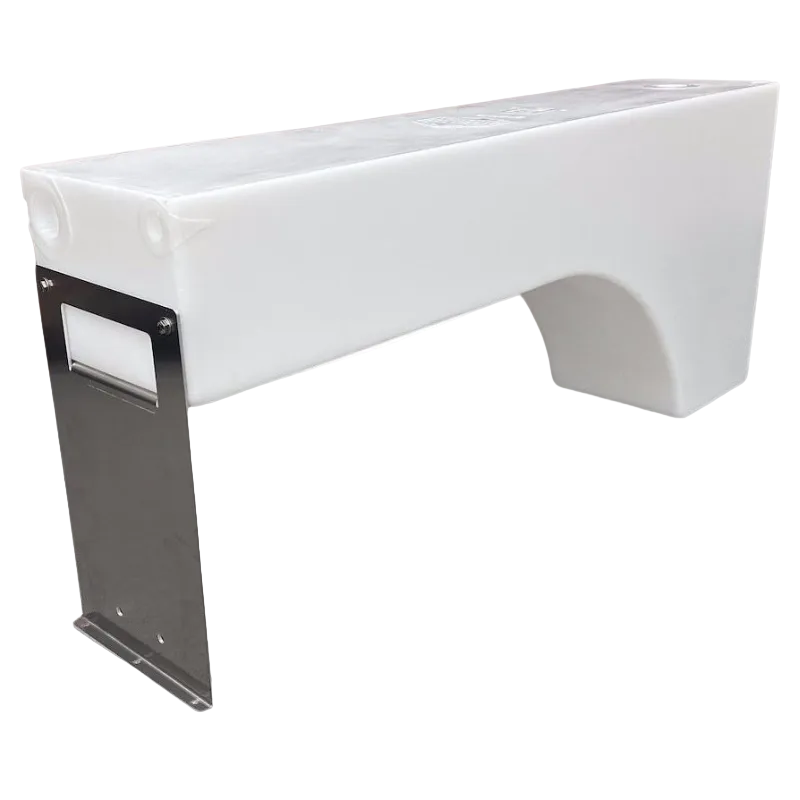

Northwest Conversions 19 Gallon Slim Dually Wheel Well Water Tank

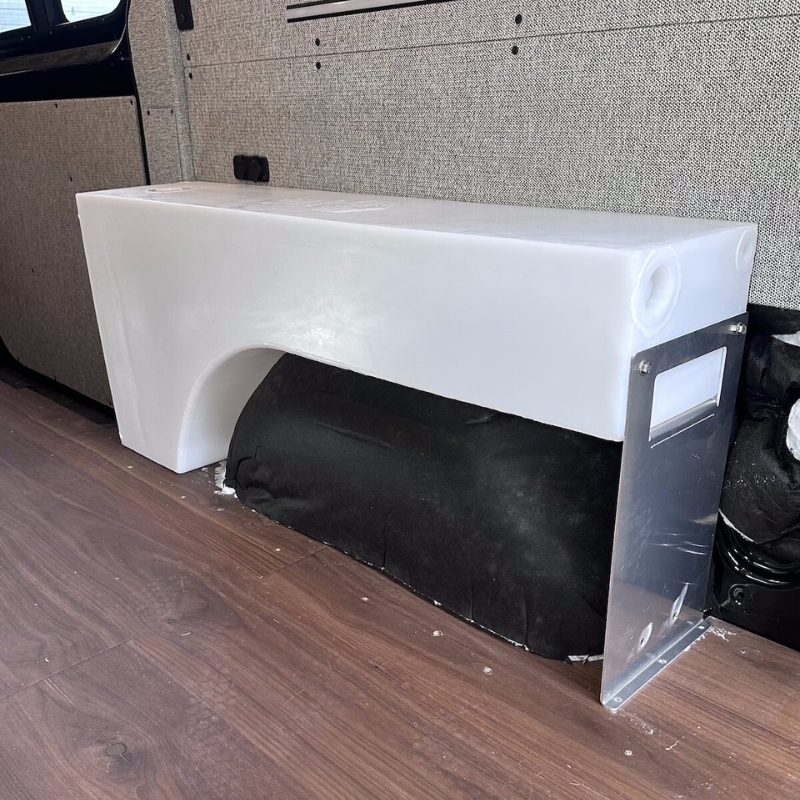

The 19 gallon wheel well water tank is designed to use the wasted space around the well and not take up any space between the wheel wells.  Allowing full width between the wheel wells for more gear or cabinetry.  Tank is designed to fit the Sprinter 2500, 3500, Sprinter T1N and Transit single and dual wheel vans. The tank can also fit other vehicle makes and models.

Features

• 19 Gallon Wheel Well Water tank. This tank is designed to not take up any space between the wheel wells of the van. The tank is a more slim version of our SP-DU-25 wheel well water tank.
• Designed for the Sprinter 2500 and 3500 Dually.  Fits Transit 2500 and 3500 Dually also.
• Will fit other makes and models

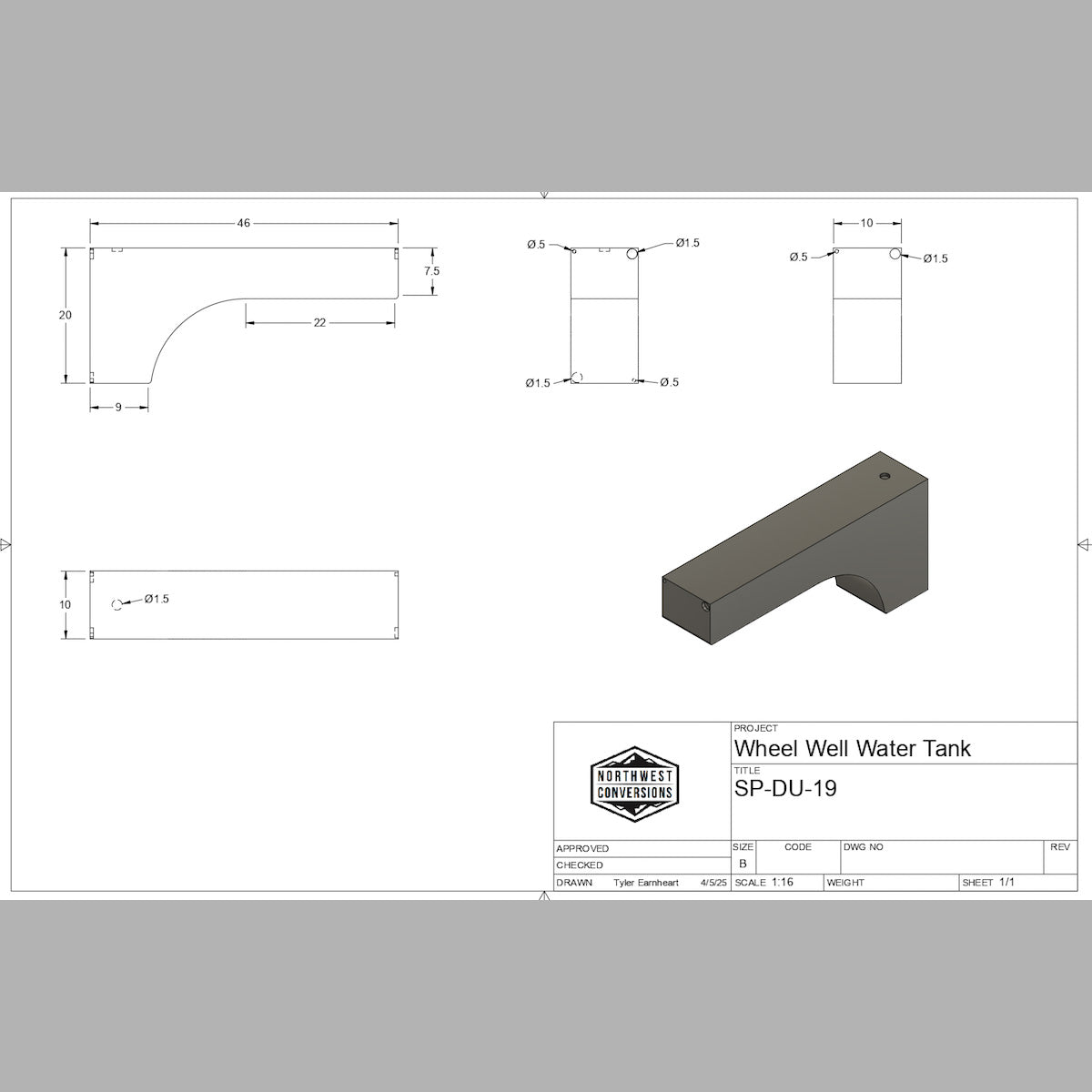

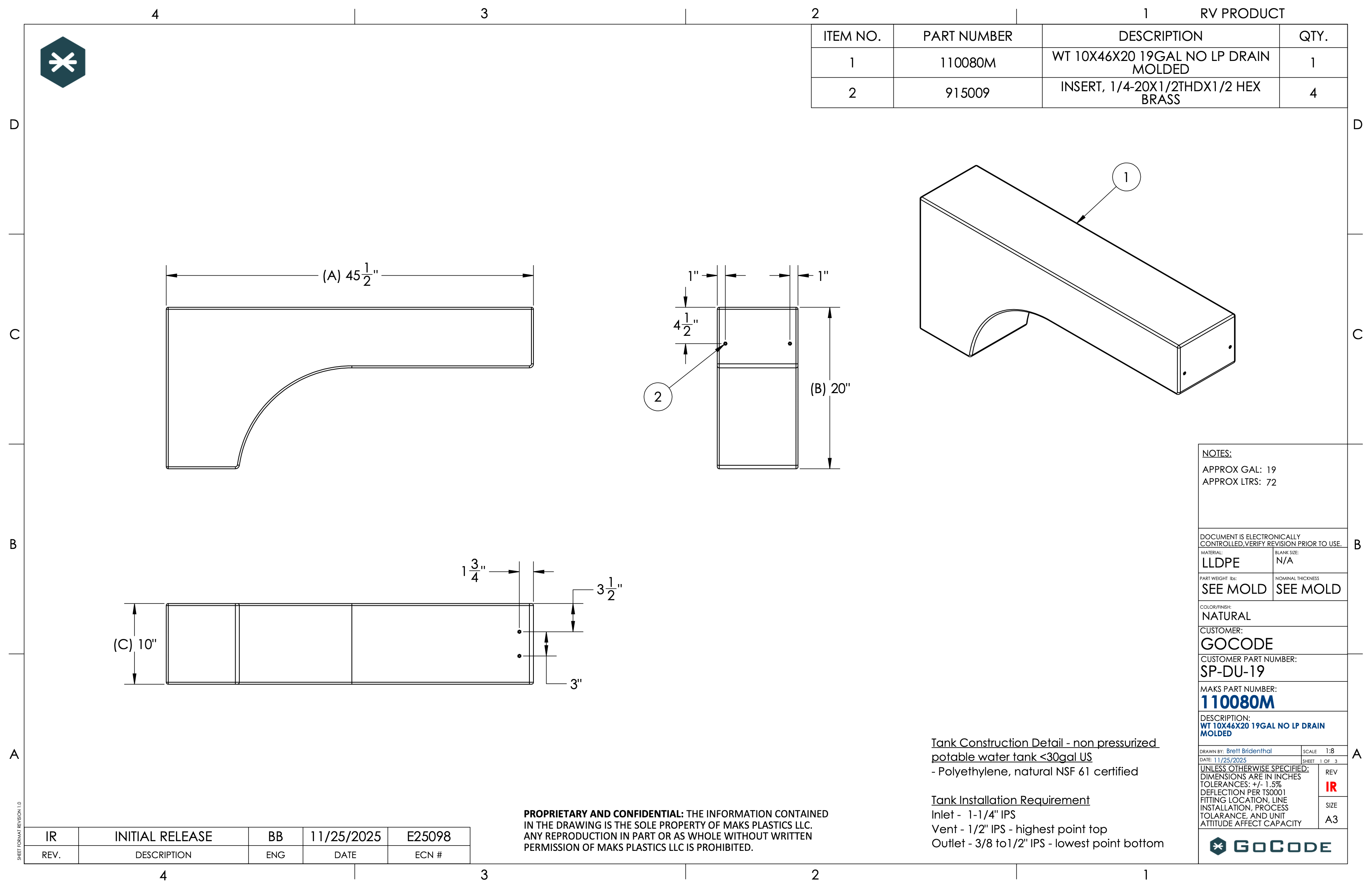

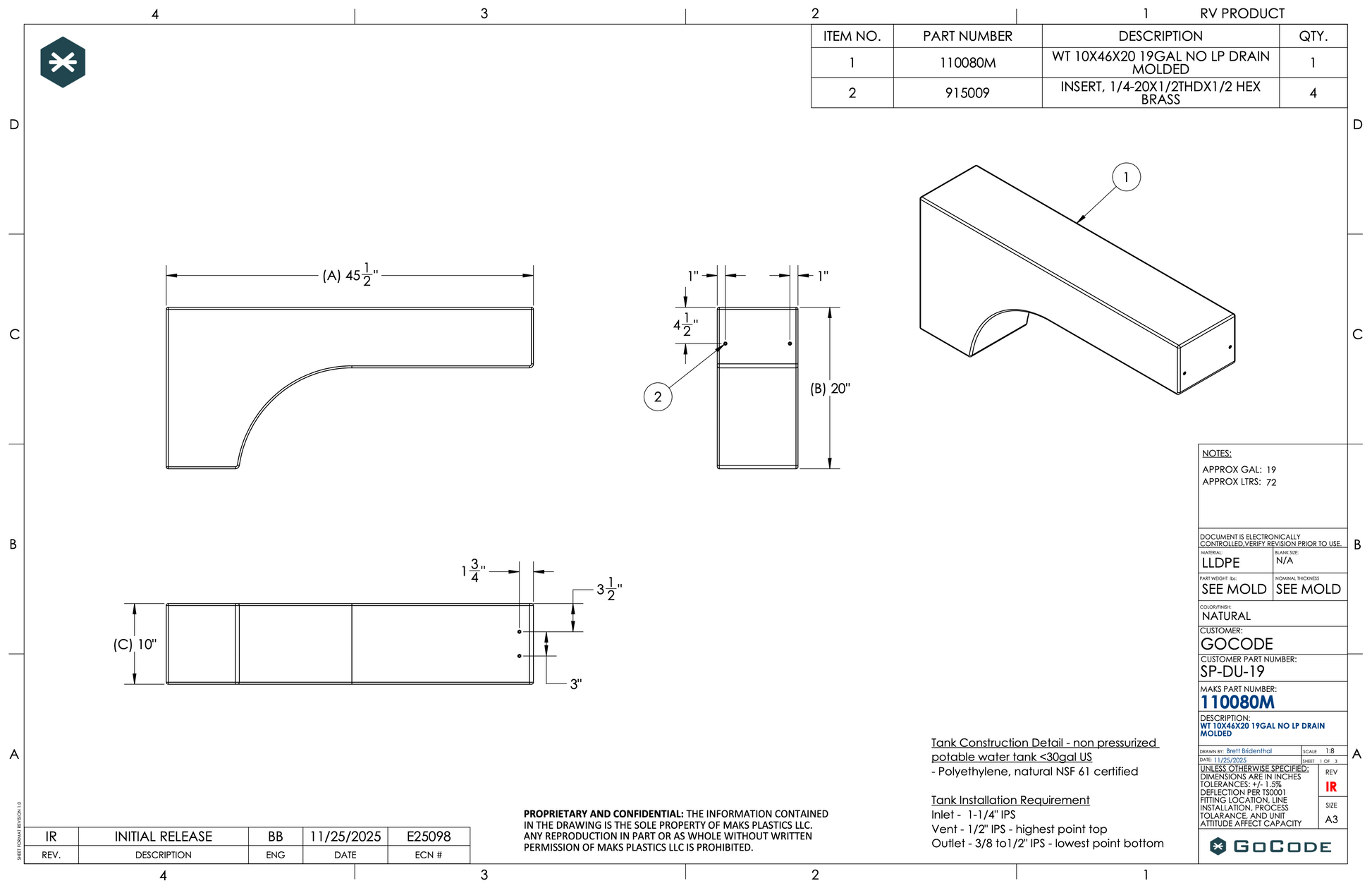

• 46" Long, 20" Tall and 10" Wide

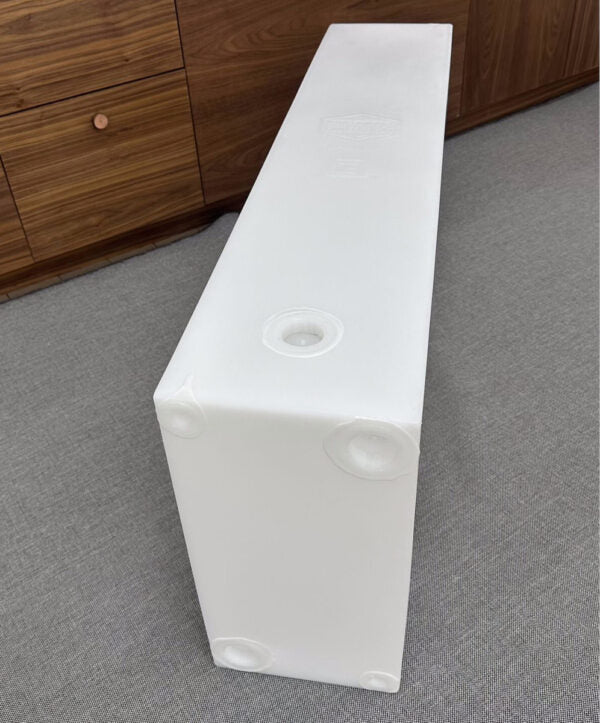

• (2) 1.5" NPT ports and (2) 1/2" NPT Ports on larger end
• (1) 1.5" NPT port on TOP
• (1) 1.5" NPT port and (1) 1/2" NPT port on end that goes above wheel well

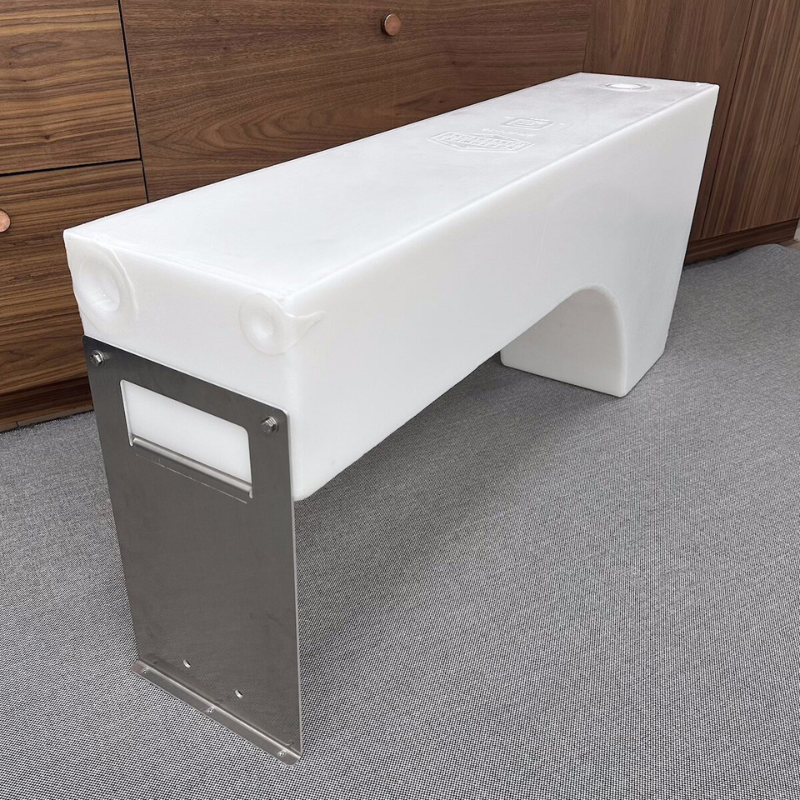

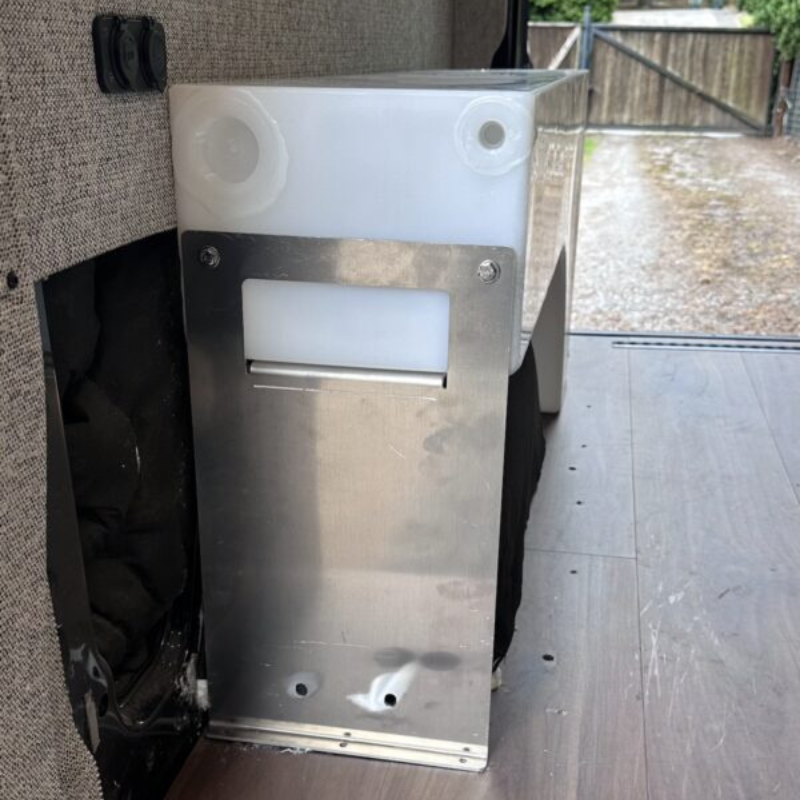

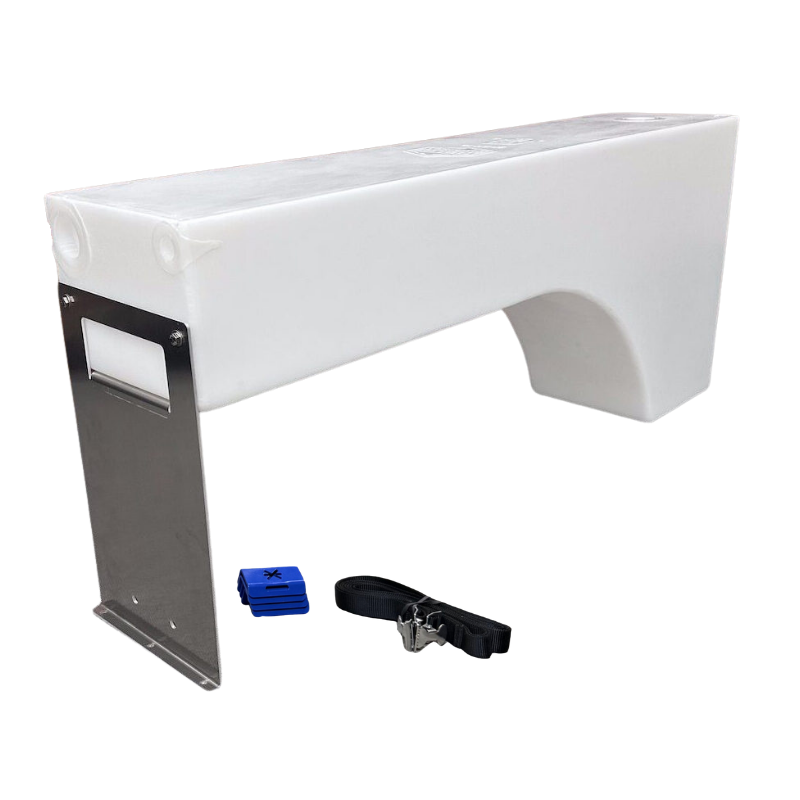

• Support plate and hardware for the support plate are included.
• TRANSIT Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well.
• **PROMASTER**  needs to be elevated about 3.5" to fit the large wheel wells.

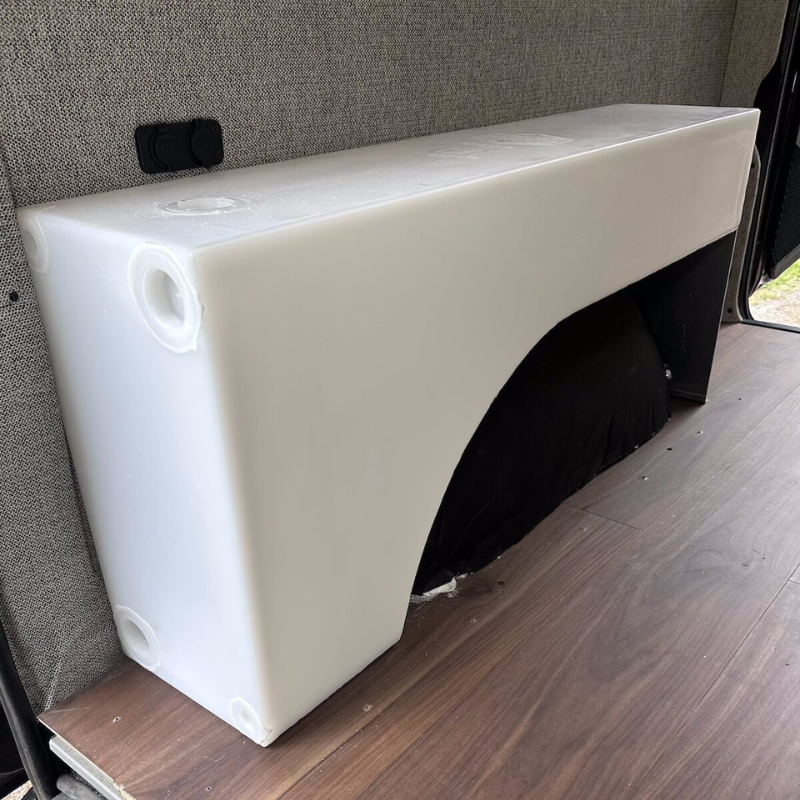

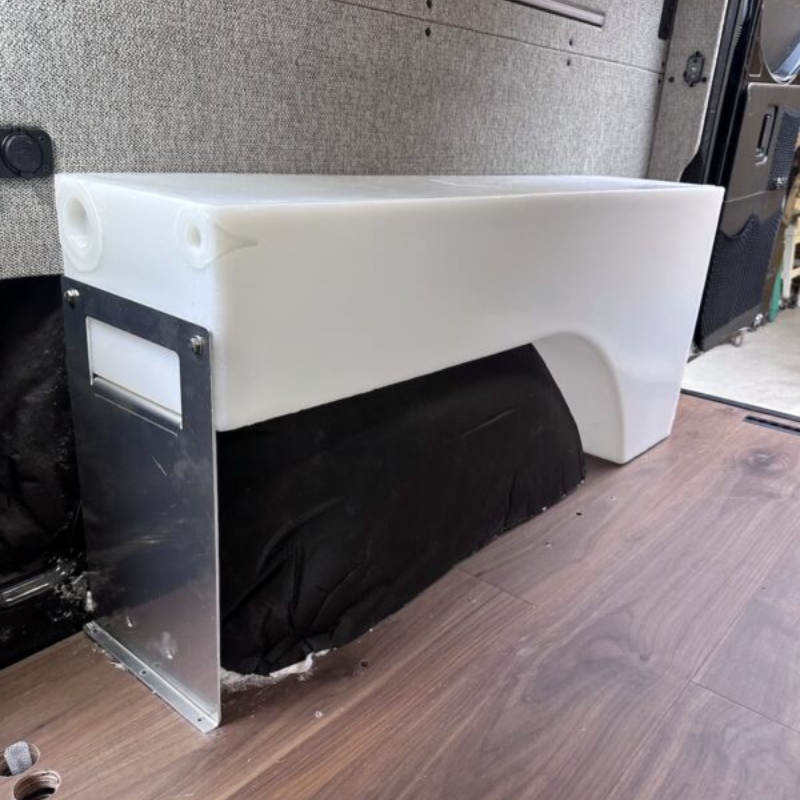

• Can be placed either driver or passenger side in front or rearward of the wheel well.
• Tank is designed NOT to be PRESSURIZED  (I.e.  Needs to be vented).
• Tanks are made from BPA Free Food Grade Plastic
• IAPMO TS 4 Tested and Certified

• Made in the USA

Specifications

Weight: 27 lbs
Dimensions: 48 × 10 × 20 in
