Dometic RTX 2000 12V Air Conditioner
Couldn't load pickup availability
Club members receive 5% off every order, access to expert product consultations & exclusive content. Learn more
Typically ships in 5-10 business days. Free shipping to all lower 48 US states.
Need an RV rooftop air conditioner for your camper van? This Dometic RTX2000 12V RV Air Conditioner (6800 BTU) is a low-profile RV rooftop air conditioner with sleek, futuristic styling that offers premium comfort control and very minimal power draw. The third-generation Dometic CoolAir roof air conditioner offers more cooling performance, even while consuming less energy than its predecessor. That's because the Dometic RTX2000 uses a variable-speed inverter compressor, giving excellent cooling performance and amazingly efficient and quiet operation.

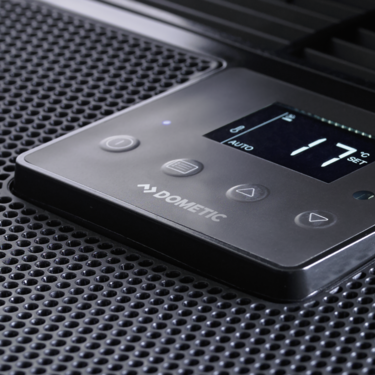

The Dometic RTX2000 12V RV Air Conditioner (6800 BTU) has a two-cylinder compressor which works quietly, letting you enjoy all the comforts of this air conditioner: the large, high-contrast display, the individually adjustable air distribution, the four operating modes – and the adaptive automatic mode of the air conditioner.
Features
- 2000W cooling capacity (6,824 BTU), 12 V
- This is a complete kit! Includes 12V installation kit with 24 ft (8m) electrical harness, rubber gasket for roof mount, and optional interior ceiling panel.
- Very quiet
- Suitable for ambient temperatures of 41 °F to 126 °F
- Turbo cooling operating mode for quick cooling
- All A/C components integrated into roof unit
- Highly efficient: only 19A@12VDC power consumption in Eco mode
- 1-year warranty.
What's Included?
- 12V Dometic RTX 2000 Air Conditioner
- Foam Roof Gasket
- Electrical Wiring Harness and Electrical Pack
- Air Conditioner Mounting Hardware
See full breakdown below.

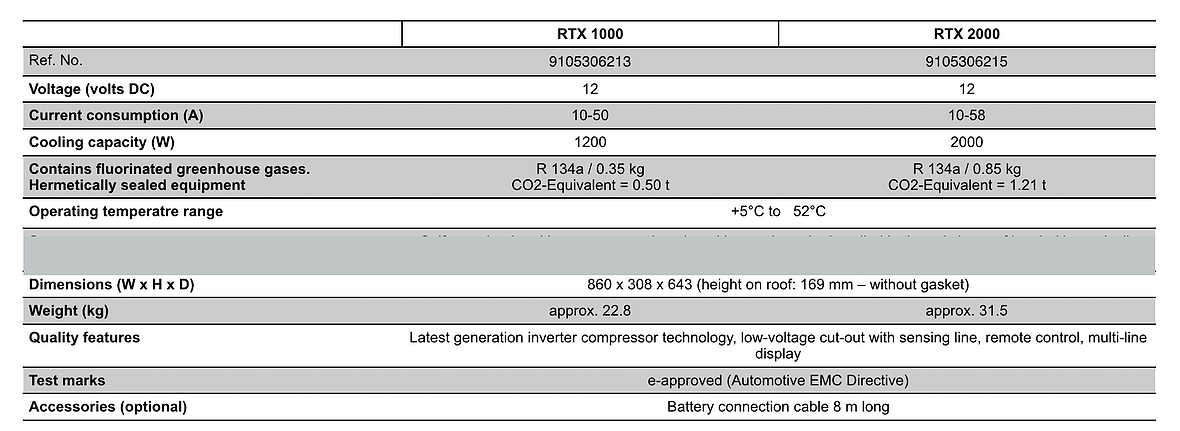

Specifications
- Weight 72.6 lbs (approximately)

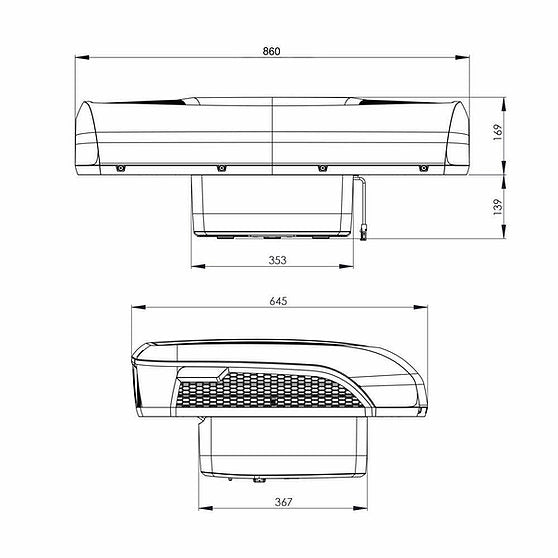

- Dimensions ( W x H x D ) 34'' x 12'' x 25'' (above the roof). Required cutout 15" x 14".
- Electrical consumption: 19A-58A@12VDC
- Refrigerant: R-134A
- Noise: < 70 dB(A)

Documents: Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
Installation and Operating Manual Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
Video: Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
Included items:
|
Part |
Quantity |
|
Cover Frame Universal RTX 2000 3rd Generation |
1 |
|
Seal 0.4 in. x 0.8 in. (10 mm x 20 mm) |
1 x 2.7 mm |
|
Support Bracket |
2 |
|
Hex Bolt M8 x 100 |
4 |
|
Threaded Insert With Flange M8 |
4 |
|
Threaded Insert With Flange M6 |
4 |
|
Washer 8.5 x 20 x 1.25 |
4 |
|
Spring Washer M8 |
4 |
|
Nut M8 |
4 |
|
Allen Screw With Cylinder Head M6 x 110 |
4 |
|
Spacer 6.2 x 10 x 48 |
8 |
|
Washer M6 |
4 |
|
Power Cable External Short RTX 12V |
1 |
|
Cable Ties |
1 |
|
1/4 in. Hex Bit |
1 |
|
80 A Fuse |
1 |
|
200 A Fuse Holder |
1 |
|
2 A Fuse |
1 |
|
Cable Terminals for Battery Cable AWG 4 3/8 in. |
2 |
|
Cable Terminal for Fuse Holder 1/4 in. |
2 |
|
Ring Terminal 0.02 in. (0.5 mm) |
2 |
|
Joint Connector 0.02 in. (0.5 mm) |
1 |
|
2A Fuse Holder |
1 |
|
Loom Tubing 9.8 ft (3 m) |
1 |
|
Opening Template 18.9 in. x 15.3 in. (480 mm x 390 mm) |
1 |
|
Seal 35 x 20 x 3000 |
1 |
