Van Compass 2015-2022 Mercedes Sprinter 2500 4X4 - Stage 2.3 System (Mid/Heavy Tune)
Part#
VCMP-7071-MH
Upgrade your Sprinter's suspension to meet the demands of heavier builds with the Van Compass 2015-2022 Mercedes Sprinter 2500 4X4 - Stage 2.3 System (Mid/Heavy Tune). Designed for adventure vans and camper builds closer to or at GVWR, this system delivers optimized ride quality, improved handling, and enhanced control on and off the pavement.
The foundation of the Stage 2.3 kit is our 4-corner VC-tuned Falcon 3.3 Fast Adjust Shocks, offering 10 intuitive damping settings. Whether you're cruising highways or exploring off-road trails, these shocks give you the flexibility to adapt your ride—firm up for high-speed stability or soften things up for comfort and compliance over rough terrain.
Heavier builds demand more control, and this system delivers. With dramatically improved cornering stability, reduced sway, and better response over large and small bumps, you'll experience a smoother, more confident ride—no matter how much gear you're hauling.
Our progressive foam Bump Buddy jounce bumpers replace harsh factory bump stops with smoother spring progression and enhanced bottom-out resistance—minimizing harsh impacts without adding extra noise or vibration.
Key Features
- Fits 2015-2022 Mercedes Sprinter 2500 4X4

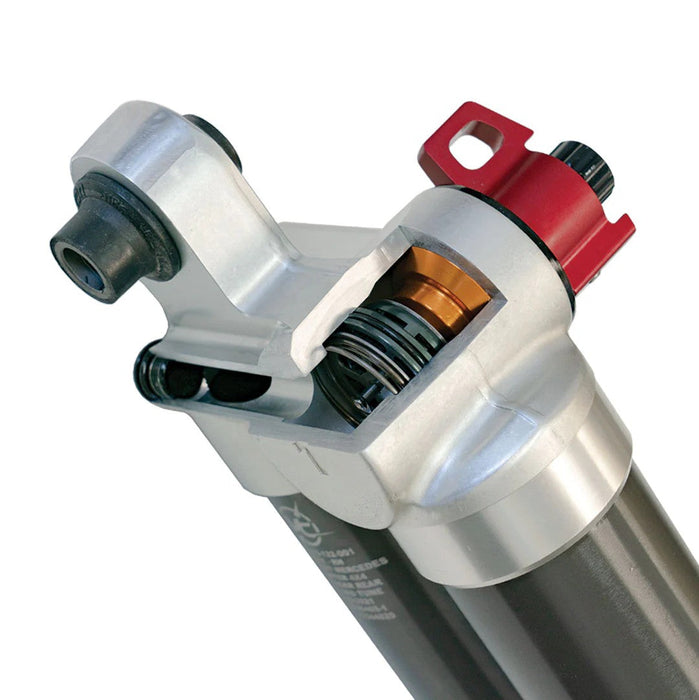

- VC-Tuned Falcon 3.3 Adjustable Shocks – 10-position fast adjust dial for precision tuning
- Engineered for mid to heavy builds near GVWR
- Reduces body roll, sway, and impact harshness
- Improves stability and control across all driving conditions
- Simple 100% bolt-on installation – no cutting or fabrication required

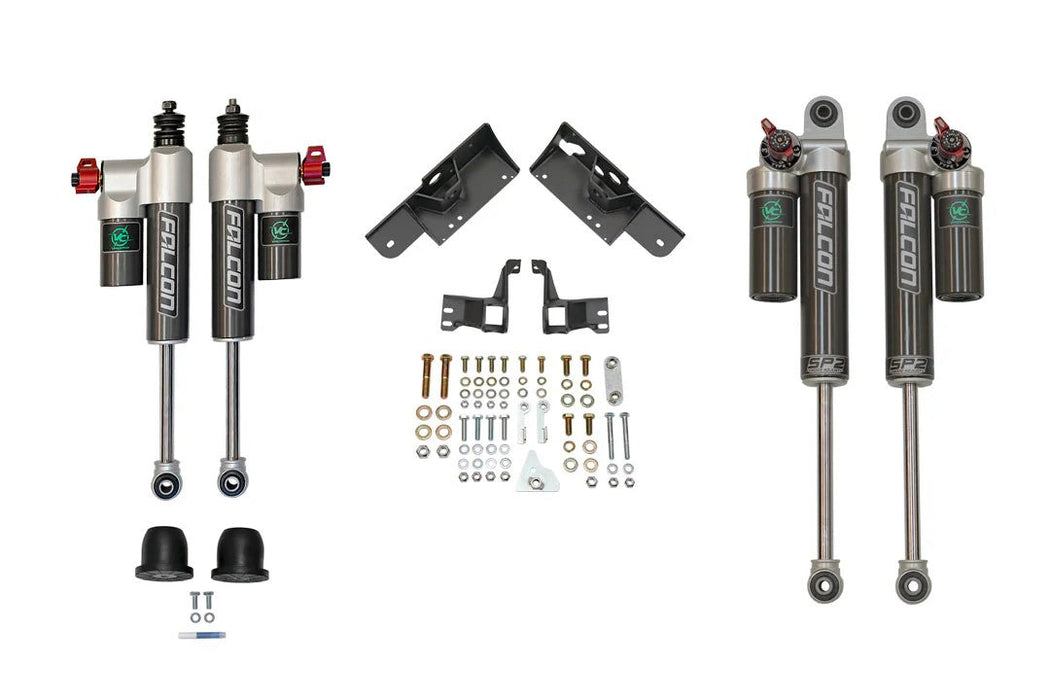

What's Included?

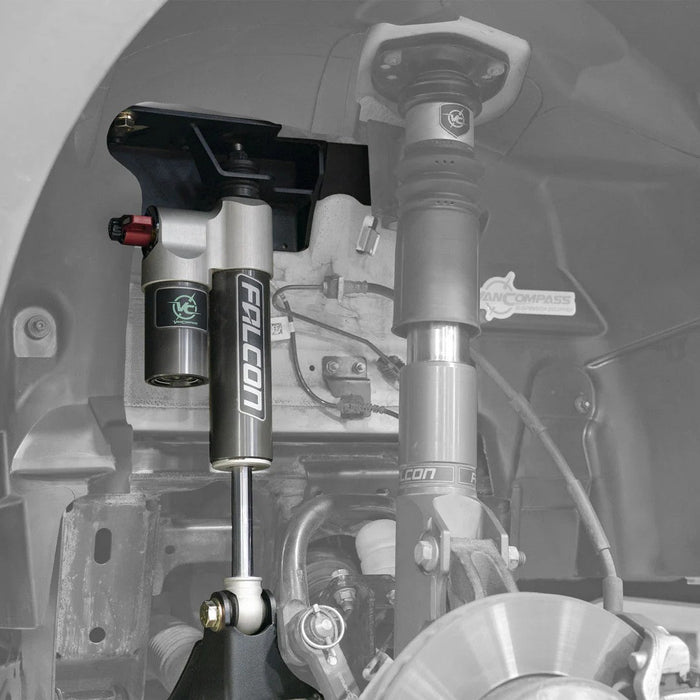

- Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets

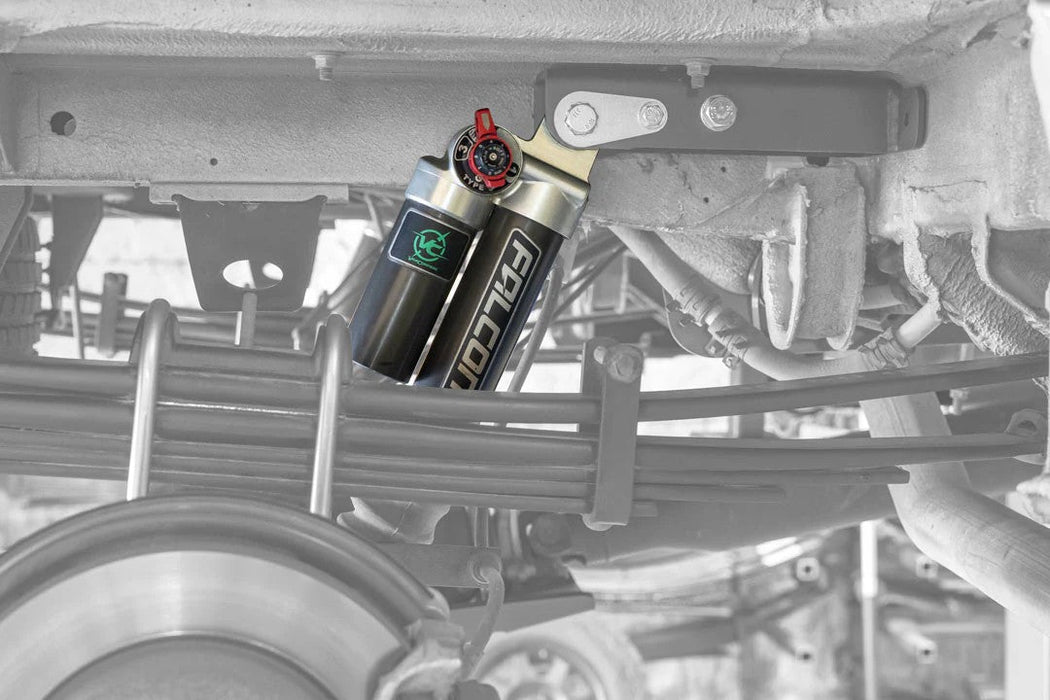

- Falcon 3.3 Fast Adjust Rear Shocks with SP2 Adjuster
- Front “Bump Buddy” Jounce Bumpers
- Dust boots for all 4 shocks
- All necessary hardware and clear installation instructions

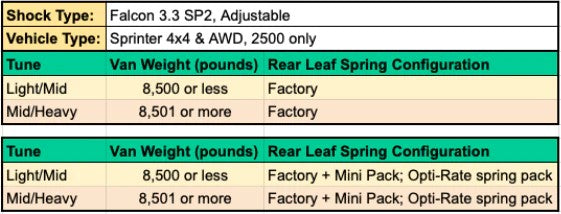

Fitment Guide
MODEL: SPRINTER 2500
YEAR: 2015-PRESENT
DRIVE TYPE: 4X4 and AWD
>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<
>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<
Recommended Wheel Size: 17" x 8.5", +45mm offset
NOTE: Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701
NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
Documents
2015+ VS30 4x4 Falcon Front Shock Installation Instructions
Falcon 3.3 SP2 Rear Shock installation instructions
Sprinter AWD and 4x4 Front Bump Buddies installation instructions
