Van Compass 2023+ Mercedes Sprinter 170" - AWD Rocker Guards

Part#
VCMP-4109

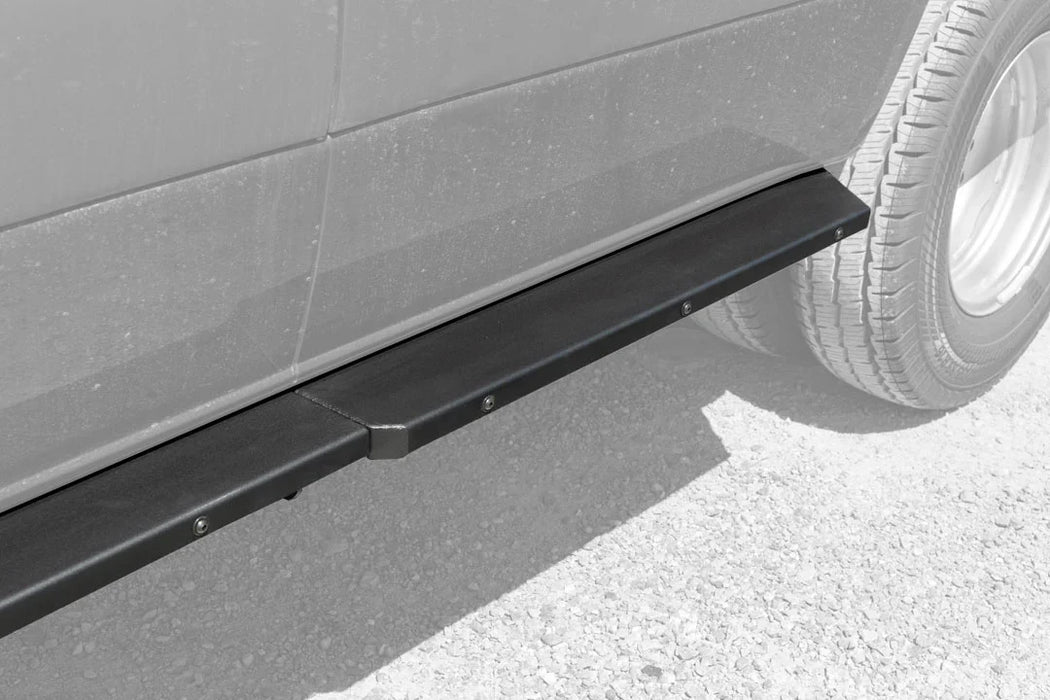

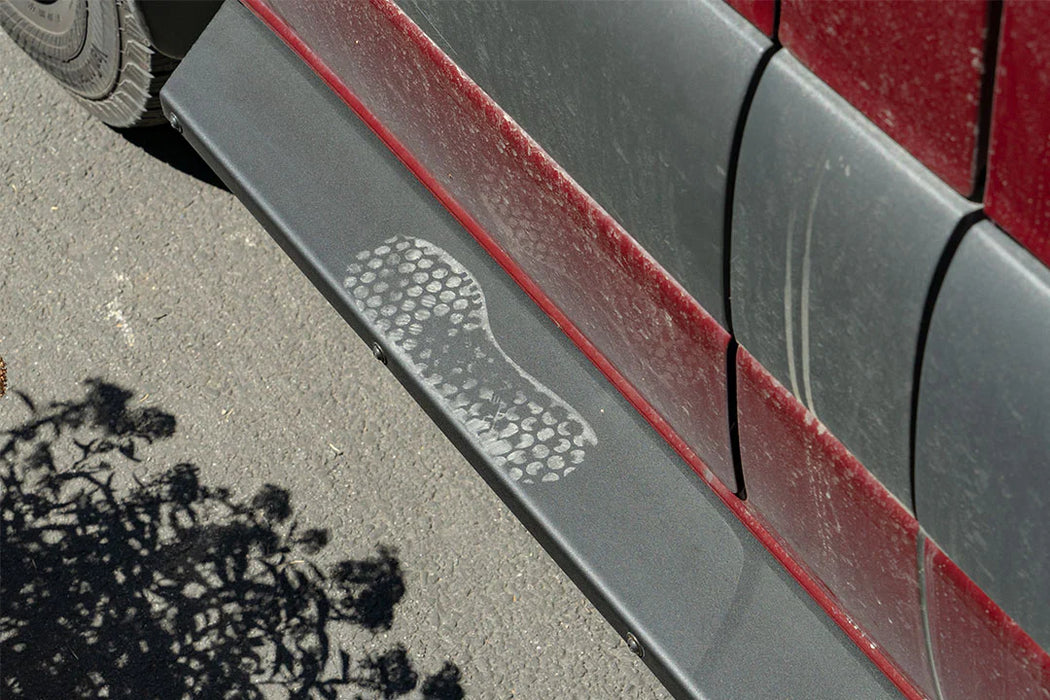

Need rocker guards for your Mercedes Sprinter AWD (2023+)? The VVan Compass Mercedes Sprinter AWD (2023+) Rocker Guards Wheelbase 170" adds functional protection, chassis rigidity and ease of access to your 170" wheelbase AWD Sprinter in sleek style with a set of Van Compass Rocker Guards. Our signature stealth design cues create an attractive 4" wide step to make getting in and out of your van more convenient, and the rear portion features an additional 1" of width for additional protection on tight trails. This robust design offers excellent body protection and adds easy to access vehicle lifting points. Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely.

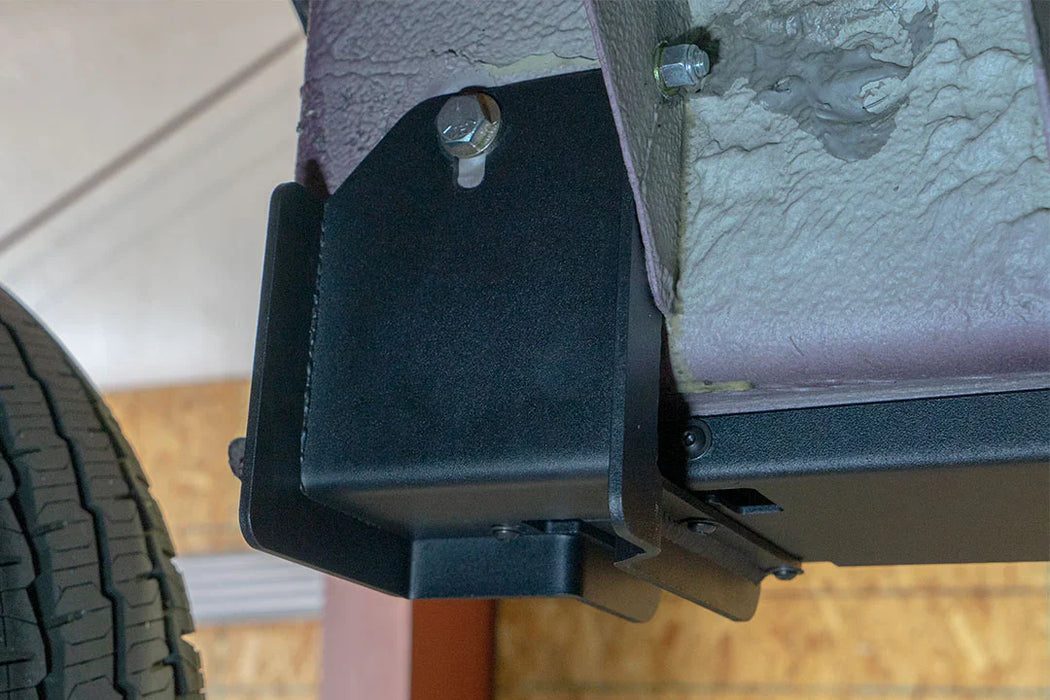

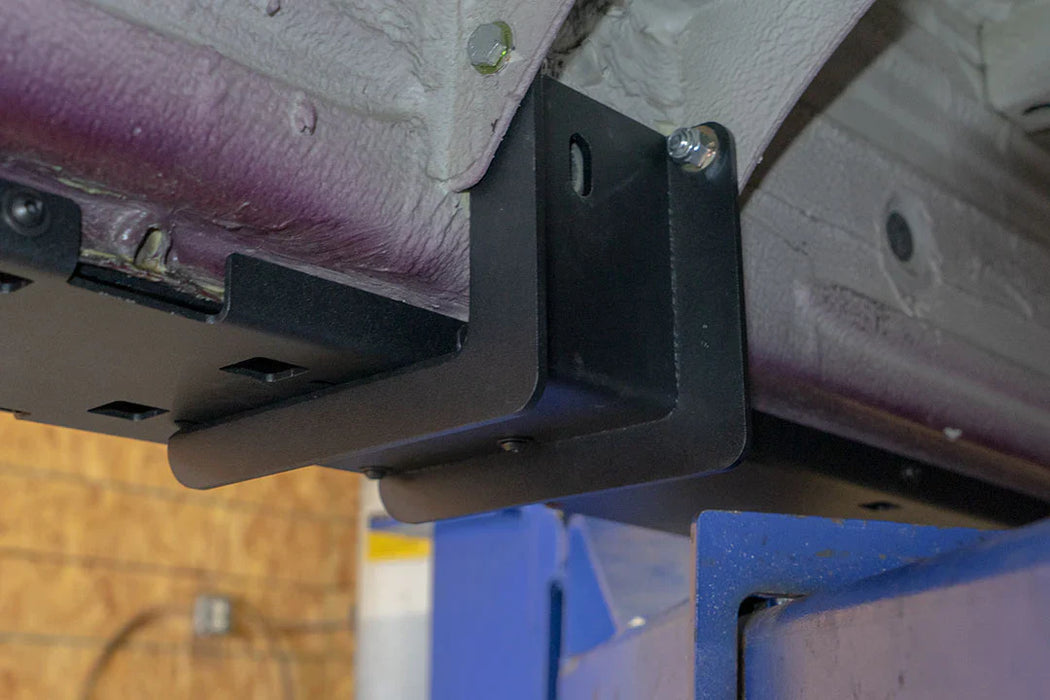

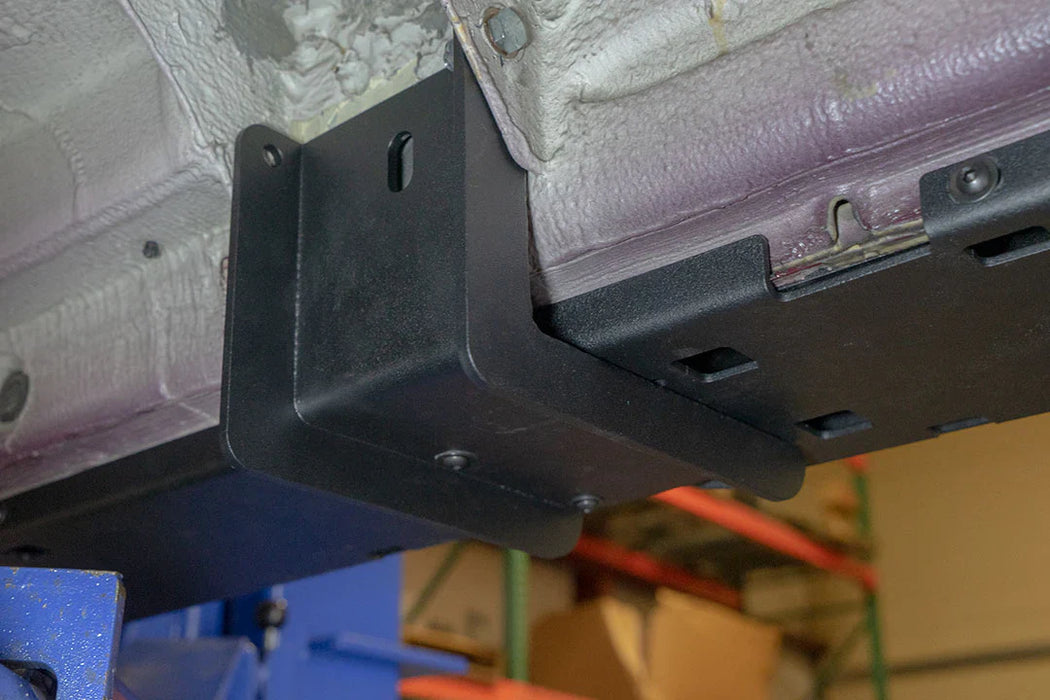

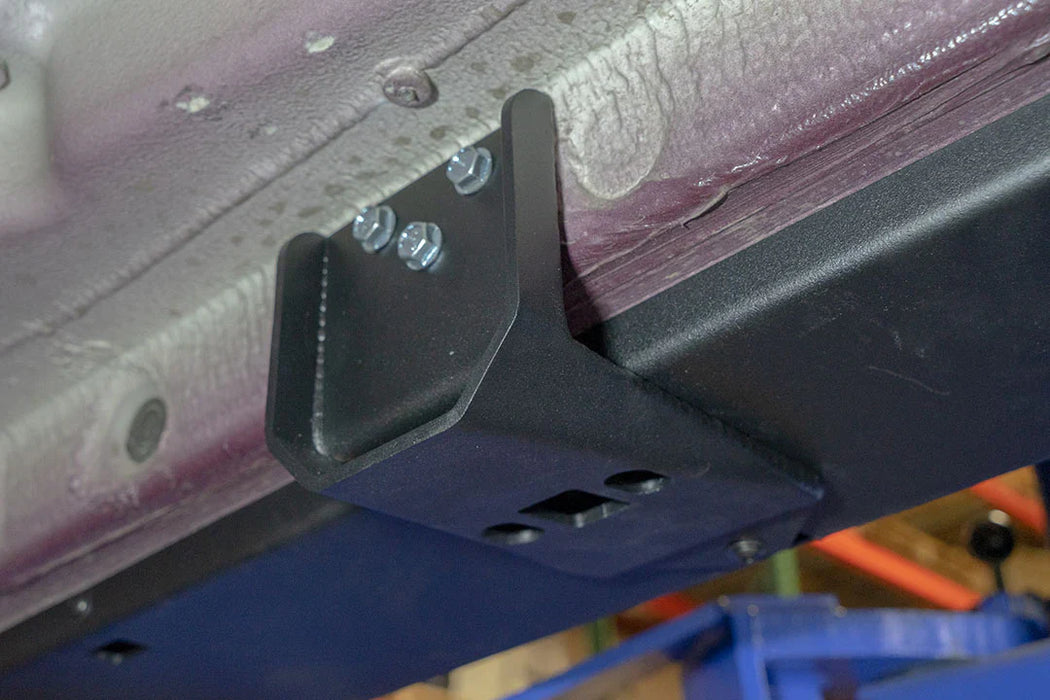

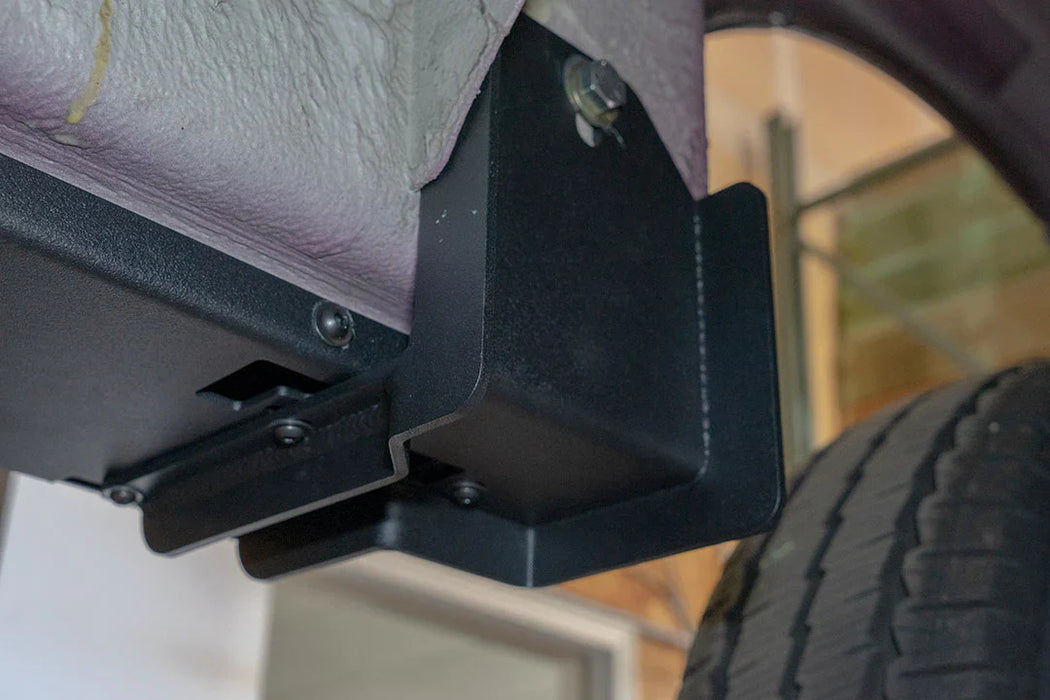

The main step surfaces are constructed from 1/8" steel and attach to the pinch seam with stainless steel hardware. Frame mounts are constructed from 3/16" steel and are attached in three locations directly to the vehicle's chassis. This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle. Drilling of holes at the pinch seam and under body gussets are required for installation.

NOTE: Step Surface Width: 3.5-4" (van body has slight taper at front door sill); 4.375" at rear kick out with doors closed.

** NOT COMPATIBLE with Winnebago Boldt, water tanks are in the way **

These ship in a very long crate, non-commercial address may be subject to additional delivery fees.

NOTE: Not compatible with Winnebago BOLDT

NOTE: Fits lifted and non-lifted applications.

Key Features: Van Compass Mercedes Sprinter AWD (2023+) Rocker Guards Wheelbase 170"

• Designed for 2023+ Mercedes Sprinter AWD with 170" wheelbase

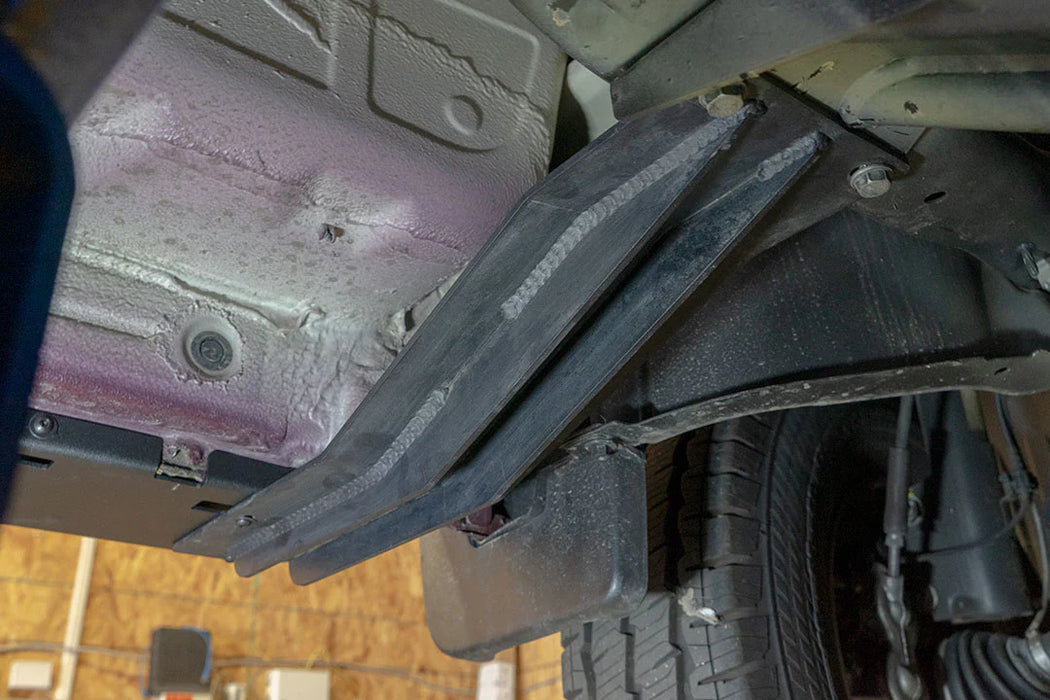

• 4" wide step surface at doors for easy access; 4.375" wide rear kick-out for extra protection
• Integrated Hi-Lift jack slots for safe lifting and off-road recovery
• 1/8" thick steel step surfaces for strength and durability
• 3/16" thick steel frame mounts increase chassis rigidity
• Stainless steel hardware included for corrosion resistance
• Powder coated for long-lasting durability and clean finish
• 100% bolt-on frame mounting with required drilling at the pinch seam
• Made in the USA

What's Included?

• Rocker Guard step plates, 1/8" Steel, Black Powdercoat
• Front, 2x Middle and Rear Chassis Tie In Brackets, 3/16" Steel, Black Powdercoat
• Stainless Mounting hardware with AL2000 black finish for step plates

Fitment Guide

MODEL: SPRINTER 2500 and 3500

YEAR: 2023+

DRIVE TYPE: AWD

NOTE: Not compatible with Winnebago BOLDT

NOTE: Fits lifted and non-lifted applications.
