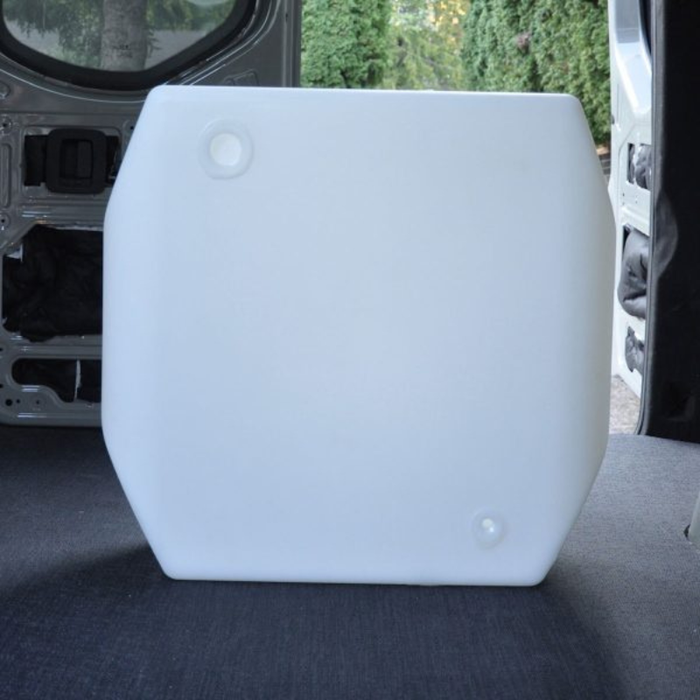

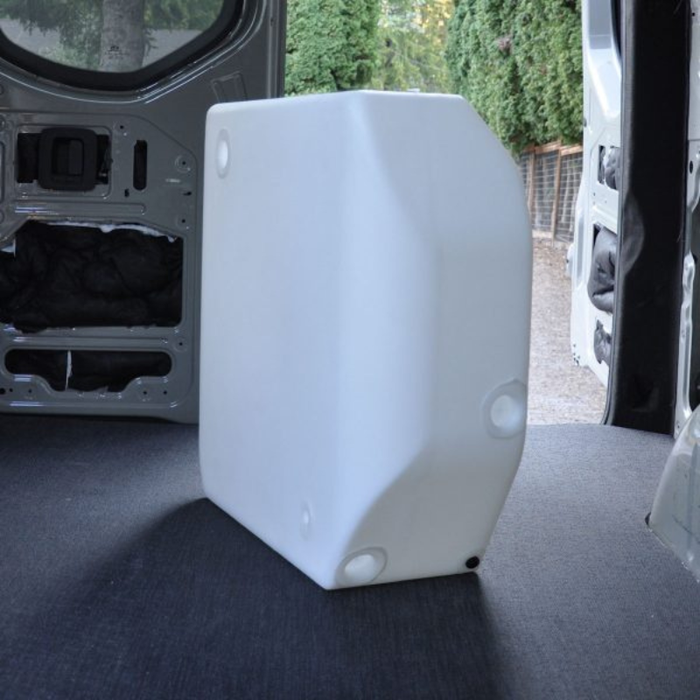

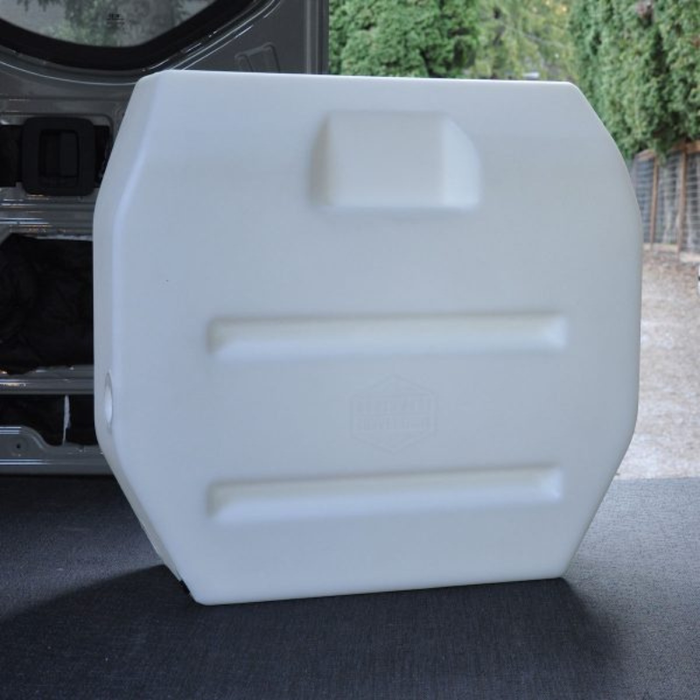

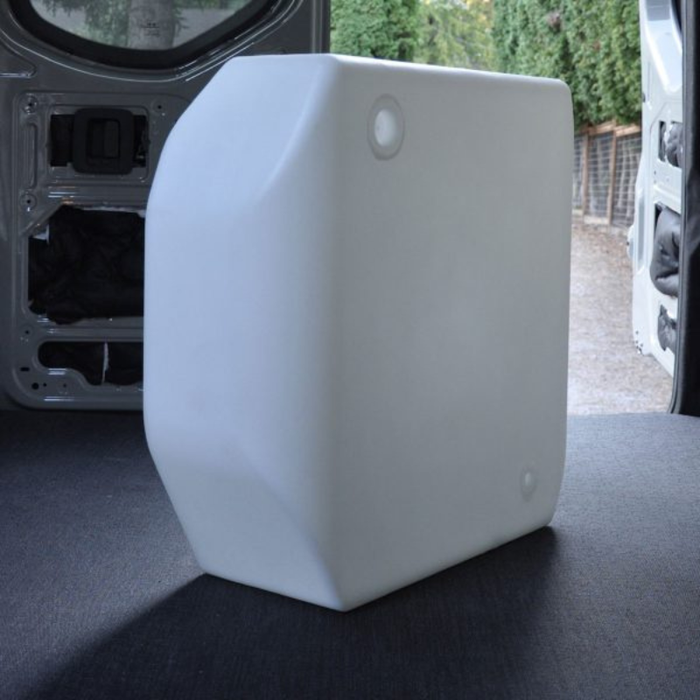

Northwest Conversions 28 Gallon Spare Tire Water Tank

Free shipping to all lower 48 US states. Typically ships in 10 business days.

The 28 gallon Sprinter spare tire tank is designed to fit the factory location using only the factory hardware and holder.  No other hardware is needed.  Tank fits Mercedes Sprinter 2500 2007-present, Winnebago Revel and Storyteller.

Features

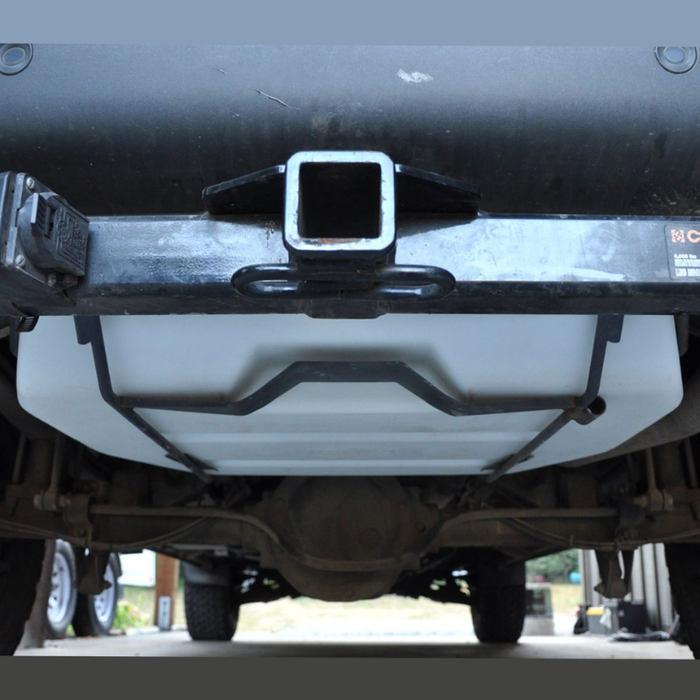

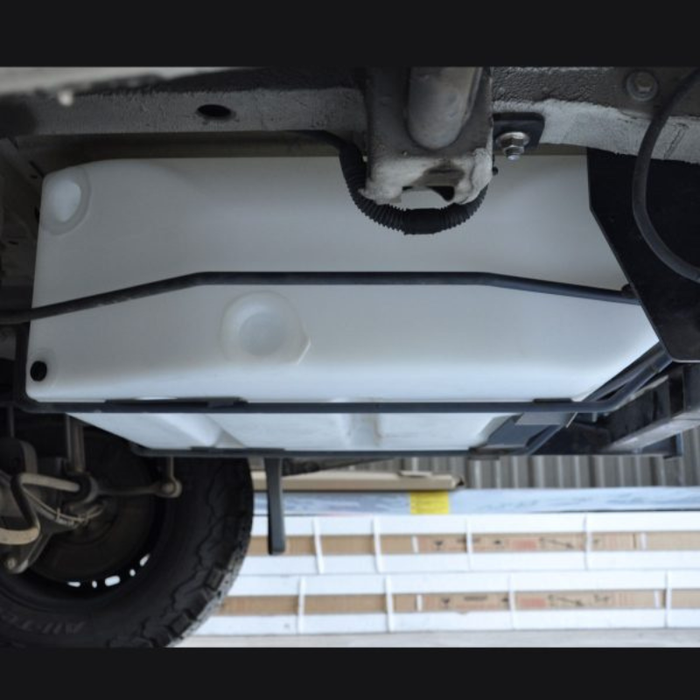

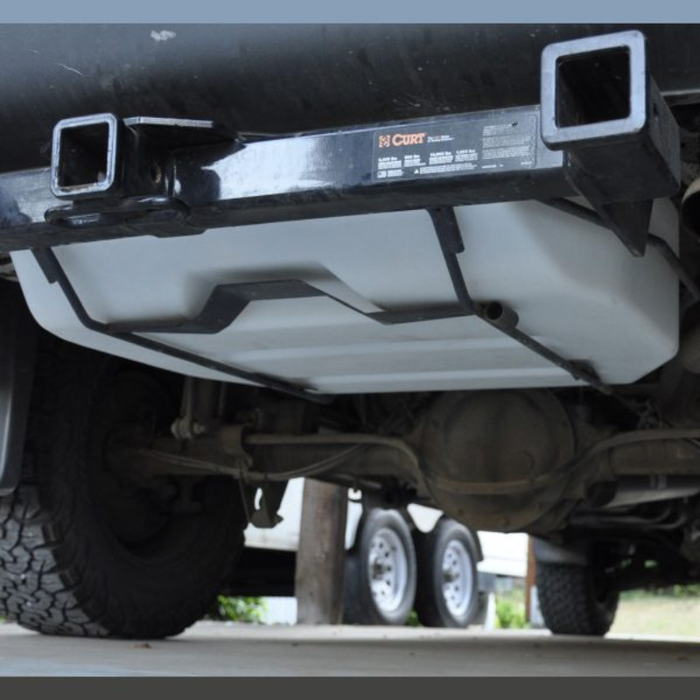

• Fits Sprinter 2500 Factory Spare tire location.  NO extra hardware required.
• Sprinter 170 Ext may have different brackets.  Please confirm with your van before ordering.
• Dually Sprinter van 3500.  May need to lower brackets or cut spacers from frame.  Dually wheel is narrower in width.  Please measure your van before ordering.
• Tank can be used for fresh or grey water
• Requires a spare tire ladder carrier or running with no spare tire
• 28 Gallon Tank

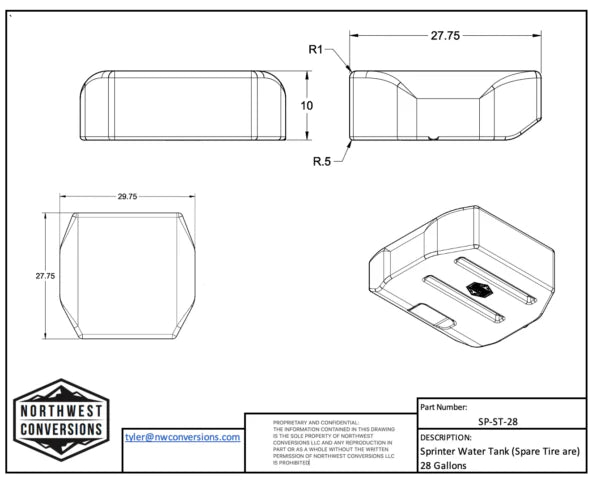

• Overall dimensions: 28" W x 30" L x 10" H.
• BPA Free, food grade plastic.
• IAPMO TS-4 Certified
• Tank has (2) 1.5" NPT port and (1) 1/2" NPT ports on driver side.
• Tank has (1) 1.5" NPT port and (1) 1/2" NPT port on top that can be used for float sensor or vent.
• Tank is designed not to be pressurised (I.e.  Needs to be vented).

Specifications

Dimensions: 28" W x 30" L x 10" H.
