Passenger or Driver Side Awning Style Bunk Window 2007-2024

Original price $374.99 - Original price $374.99
Original price
$374.99 - $374.99
Current price $374.99

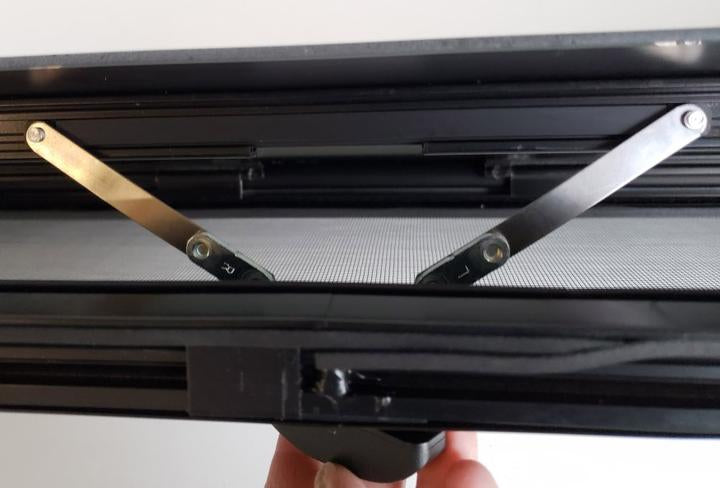

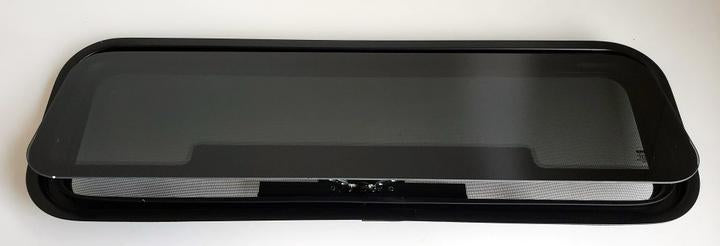

Awning tilts out 2-1/4" allowing air to flow through the massing 31-1/4" x 8-1/4" opening allowing some of the best ventilation for a bunk window.

Awning tilts out 2-1/4" allowing air to flow through the massing 31-1/4" x 8-1/4" opening allowing some of the best ventilation for a bunk window.

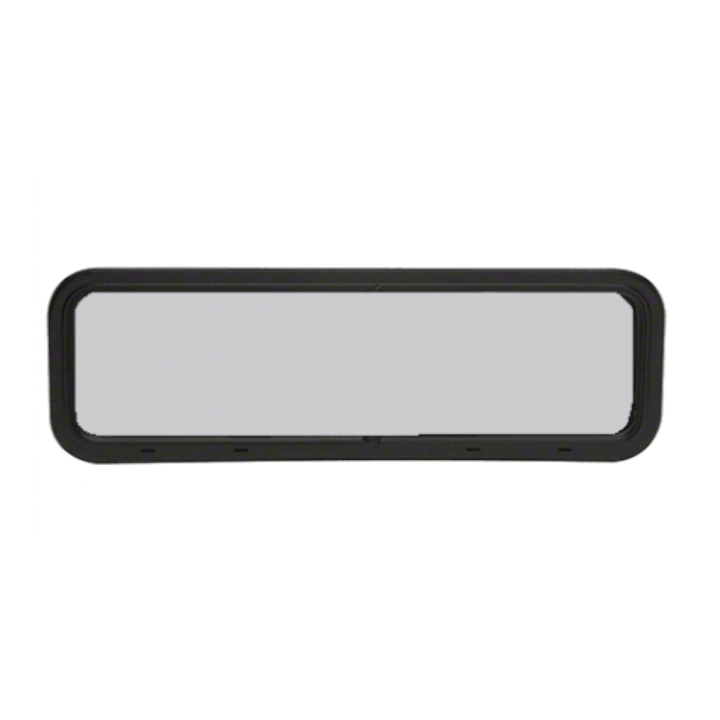

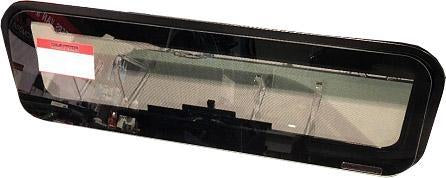

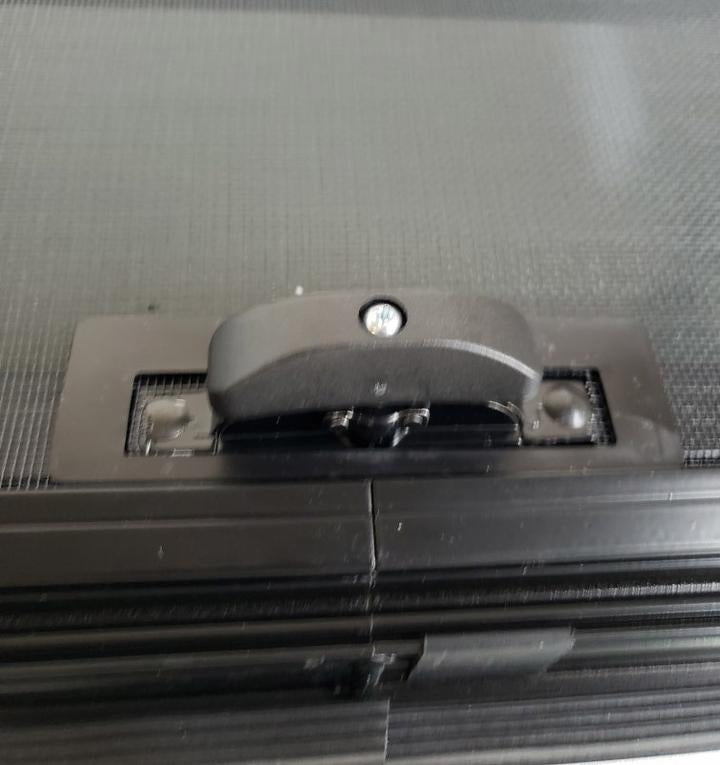

The CRL Awning Bunk Window is a small window that allows excellent ventilation for your Camper Van. Add serious ventilation to the rear cargo area of your van with this easy to install flat awning crank out window that features a removable screen and measures in at 34-3/4" long and 11-3/4" tall. The window is crafted with solar privacy glass and is manufactured in the USA!

  • Outside Frame Dimensions: 34-3/4" x 11-3/4"
  • Cut-Out Dimensions: 33-1/2" x 10-1/2"
  • Clamp Ring Size: 1/8"

Whats needed to Install?

 No Additional Products Needed

How will I install this window?

 To install the AW1033 Series of bunk windows you will need to create a template. To make a template you can either use the aluminum framing on the backside of the window or the clamp ring we will have illustrations on using the clamp ring. Be sure to use the edge of the clamp ring that matches to the aluminum frame edge of the window (the aluminum frame that goes through the wall).

Make sure that the clamp ring is taped shut as it has an opening.

Van Window Template to install van windows

 You will then trace you template onto the cardboard box sharpie, black marker ,etc.. you do not want to have to thick of a marker as you want to try and be as precise as possible.

Template Van Window Installation

After you have draw out the pattern on the cardboard it is time to cut the pattern from the cardboard.

Cutting out Van Windows - Van Window Installation Steps  Removing van window template

Once you template is created clean up any little rough edges and we are ready to place on your van. You will want to measure out for placement to insure you have your template where you want it to be. To hold template in place you can put screws through cardboard to hold, have a partner hold or use tape. In our photo we used tape. Be sure to tape the template in place on the straight areas so those are easy to draw in your line later.

Van Window Template Installation Process

Draw your template onto the wall of the van.

Draw template for van window installation

Once you have drawn your pattern onto the wall of the van and are happy with the placement your ready to cut. Reciprocating saw, skill saw, disc, nibbler,shears, etc...

Once your hole is done dry fit the bunk window to make sure window fits into hole no adjustments or extra trimming are needed. If your good you can add clear coat or paint to the cut edge its not necessary just a precaution.

 Now time to install the bunk window. Before putting the window on the van its best to go through make a small pilot hole in all the locations around the trim ring that way you do not round the heads of the screws when tightening the window.

Put Window in place from outside of Van allowing the aluminum mounting frame to extend through hole in wall. Place clamp ring from inside most vans will have the split on the bottom. With one person holding window in place on the outside the other can start to screw from the inside generally start with the two at the split in the trim ring to have that lined up then top and around you do not want to fully tighten once all screws are in place, you can then go back around and tighten them be sure to tighten evenly around for proper seal.
