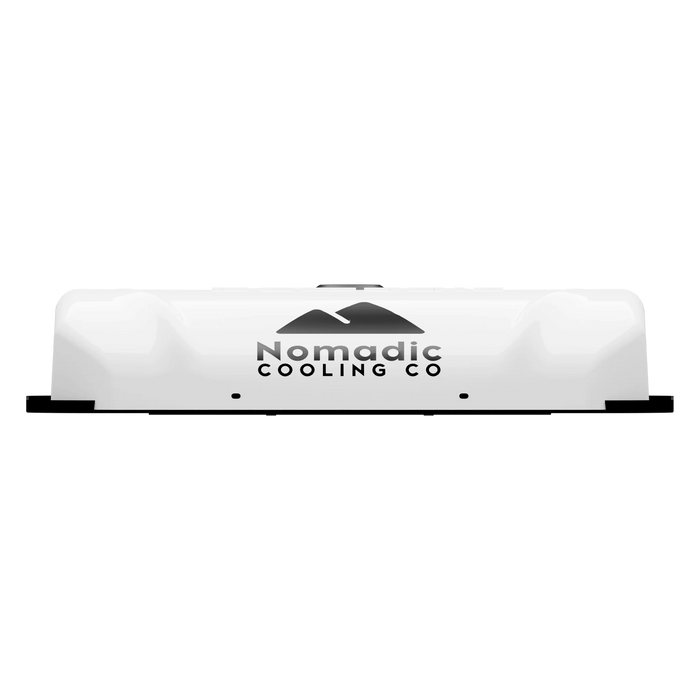

12V Battery Powered Rooftop Mounted Air Conditioner

PLEASE NOTE: THIS PRODUCT IS STILL IN TESTING
WE ARE DOING A LIMITED RUN OF THESE

The Nomadic Cooling 1000 was designed for individuals with a smaller space in mind. These units are still in their first stages of development and we are doing a limited run of these to see how they hold up to people's needs.

TECH SPECS

• Voltage: 12V  (Max power consumption tested over 100 Fahrenheit)
• 65 Amp Compressor
• Amperage: 25-65A
• Net Weight: 27.69kg 61.05lbs
• Size: 37.75 x 31 x 7 (Please see here for full dimensions)
• Opening Size: 14x14
• Noise Volume: 60dBa
• Refrigerant: R-134a @ 600g *gas is pre-filled before delivery.
• Wind Volume: Max wind  volume  1050ft  6  speed
• Battery Powered: 100%  stand-alone  Battery-powered  unit
  • Battery not included
• Easy Installation: Easily fits any new or existing  14x14  rooftop opening.
  • See the support page for installation instructions
• Interior Vent: Use a Nomadic Cooling Vent or  Design/incorporate your own.
• Standard Vent: 15 3/4" L x 15 3/4" W
• Revel Plate (Special Request only): 20 3/4" L x 22 1/2" W
• Other/Old Style Plates (Special Request Only): 19 3/4" L x 15 3/4" W

*Display represented in  Celsius or Fahrenheit, but must be programmed at the time of purchase.

*Mounting bolts located inside 14x14 opening.

• The 1000 battery-powered air-conditioner is specifically designed for individuals who travel off the grid but have a smaller space.
• All Nomadic Cooling air-conditioners are powered by DC 12V/24V/48V batteries. Preferably lithium but not mandatory.
• This is a stand-alone air-conditioner. You do not need to connect to the engine to operate the air-conditioner.
• All Nomadic Cooling air-conditioners are non-polluting, and highly efficient units.
• All Nomadic Cooling battery-powered air-conditioners operate at or below  60dBA. Plus, the added benefit of the vibration-free operation.
•  An intelligent microprocessor control system, allows the user to set the temperature based on the desired temperature.
• Includes multiple built-in protection functions such as pressure alarm, power high/low voltage, motor over-current, and motor temperature protection.

PACKAGE INCLUDES

• 1: 12V Air Conditioning  Unit
• 1: Interior  Control  Panel  -  Thermostat Included
• 1: Remote
• 4: Metal Washers Large
• 4: Metal Lock Washers
• 4: Mounting Bolts Large
• 4: Mounting Nuts
• 600g R134A Refrigerant (pre-filled)
• 1: 14x 14 Waterproof Gasket
• 1: Interior mounting brace 14x14 (Metal Powder coat)
• 1: Flush mount interior vent aluminum (aluminum or powder coated)
• 8: Small black finish screws for interior vent placement
• 1: Air separator foam
• 1: Vibra-Tite threadlocker

NOT INCLUDED

• Fuse Breakers (Please use Blue Sea 187 Breakers 100A)
• Batteries
• Weather Proofing Sealant (For weatherproofing the installation)

ECO MODE VS POWERFUL MODE

Eco Mode should be the default operation type on a Nomadic Cooling air conditioner.  Powerful mode should only be used for short periods of time for maximum cooling, as powerful mode has increased consumption of energy.

REMOTE FUNCTIONS

• On/Off: Turns the air conditioner on/off
• Light: Not Applicable
• Sleep: Turns off the LCD screen display light
• Cool: Not Applicable
• Dry: Not Applicable
• Fan: Each press will increase fan speed
• Powerful: A/C setting that will cool faster but will drain the battery very quickly
• Eco: Default A/C setting that uses minimal energy
• -/+: Changes the temperature
