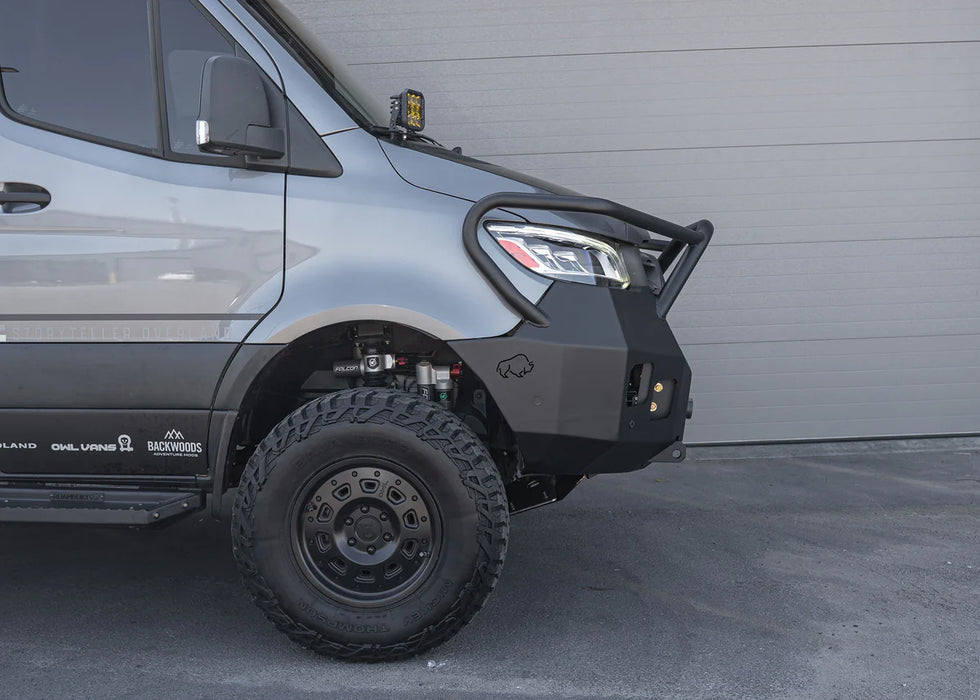

ROAMBUILT Mercedes Sprinter Full Guard Front Bumper (2019-2024)

Liftgate freight delivery required. Shipping calculated at checkout. Typically ships in 5-7 business days.

If ordering for a 2WD or Sprinter 3500 dually, you will need Roambuilt 2019+ Sprinter Frame Brackets. The 3500 requires you to remove the DEF tank in order to drill your own holes into the frame.

If you're looking to upgrade your Mercedes Sprinter van with added protection and true off-road functionality without the extra weight, the ROAMBUILT Mercedes Sprinter Full Guard Front Bumper (2019-2024) is the perfect solution. Built with a hybrid steel and aluminum design, it combines strength exactly where you need it most and weight savings everywhere else. The result is a highly capable, rust-proof, and durable bumper that weighs only 149 lbs.

The outer shell is constructed from 3/16" 5052 aluminum and reinforced with an internalribbed gusset system for rigidity. The winch cradle and shackle mounts are made from 1/4-inch thick steel, giving you rock-solid strength for recovery and front-end protection.

Specifically designed to complement popular van platforms like Revel, Storyteller, EKKO, and GH1, this bumper is the ideal upgrade for serious van lifers, overlanders, and professional upfitters seeking lightweight durability without compromise.

Key Features:

• Compatible with 2019-2024 Mercedes Sprinter 2500, 3500, 2WD and 4x4 models
• Lightweight hybrid bumper: Steel winch cradle and shackle mounts with an all-aluminum shell
• Perfect for Revel, Storyteller, EKKO, and GH1 builds

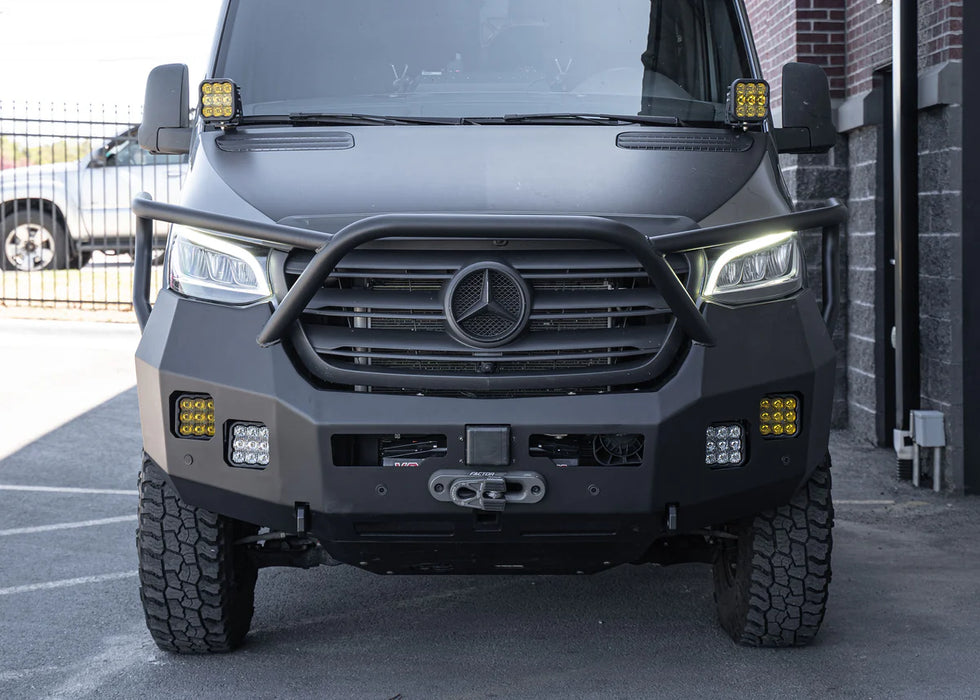

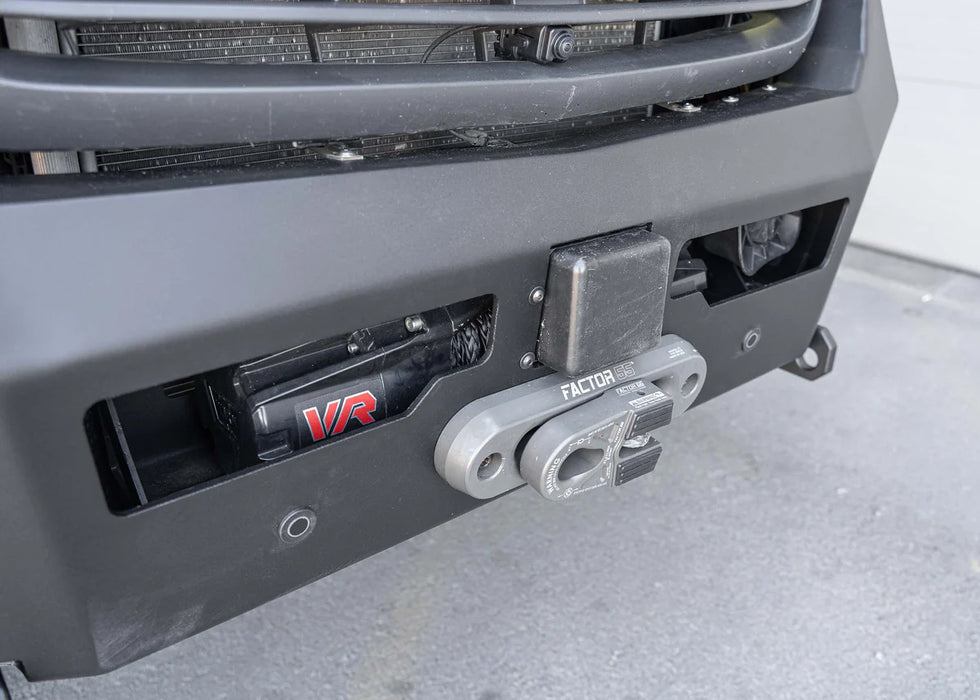

• Accepts Warn VR-EVO & Warn 12k Zeon series winches (up to 12k)
• 1 thick steel shackle mounts for shackles
• Integrated 2 receiver hitch

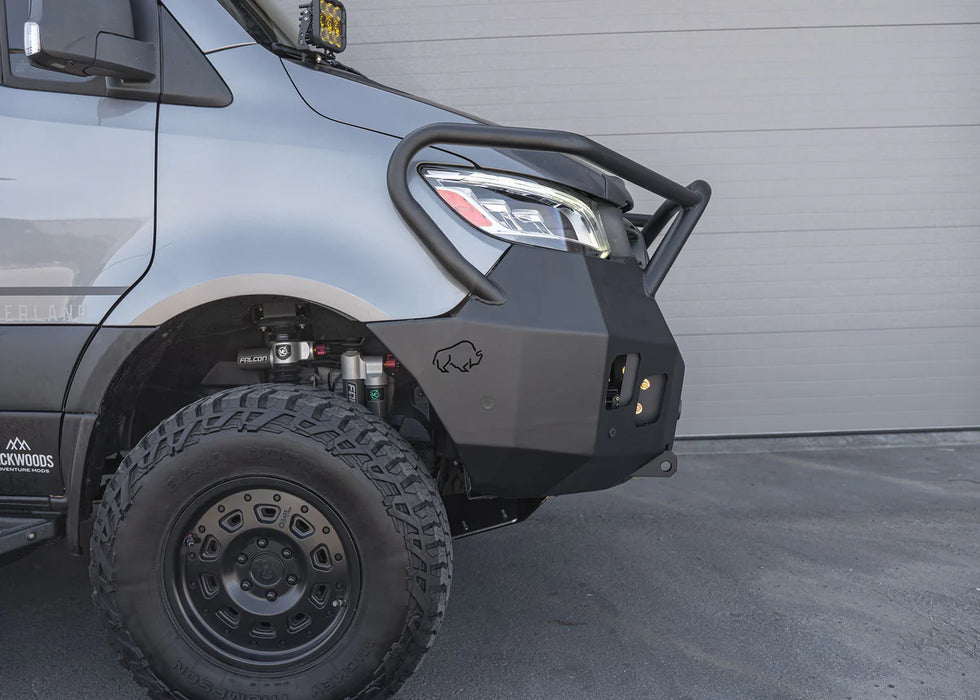

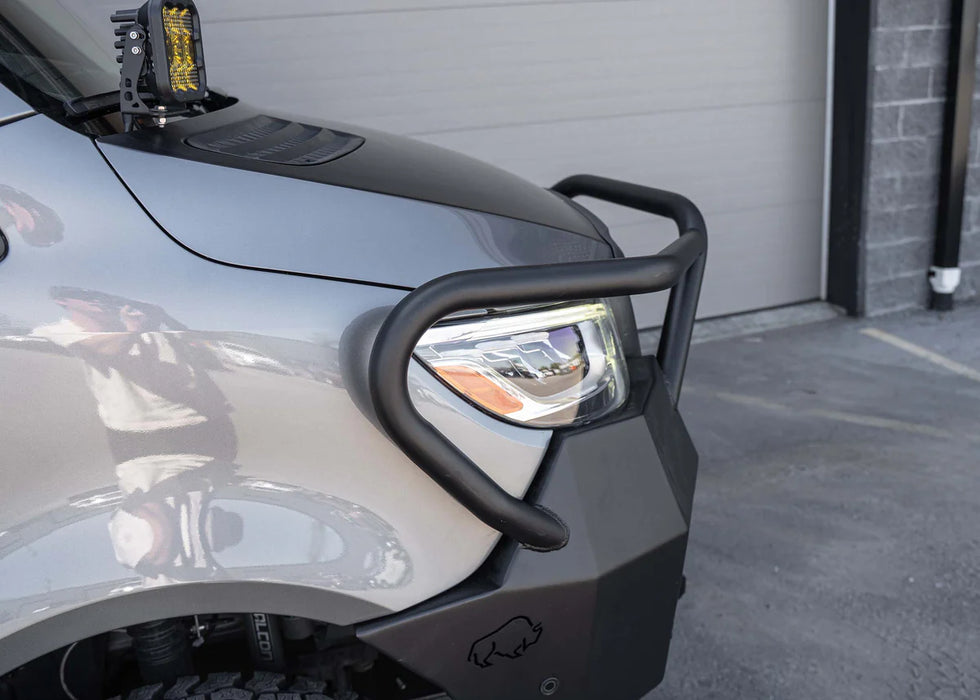

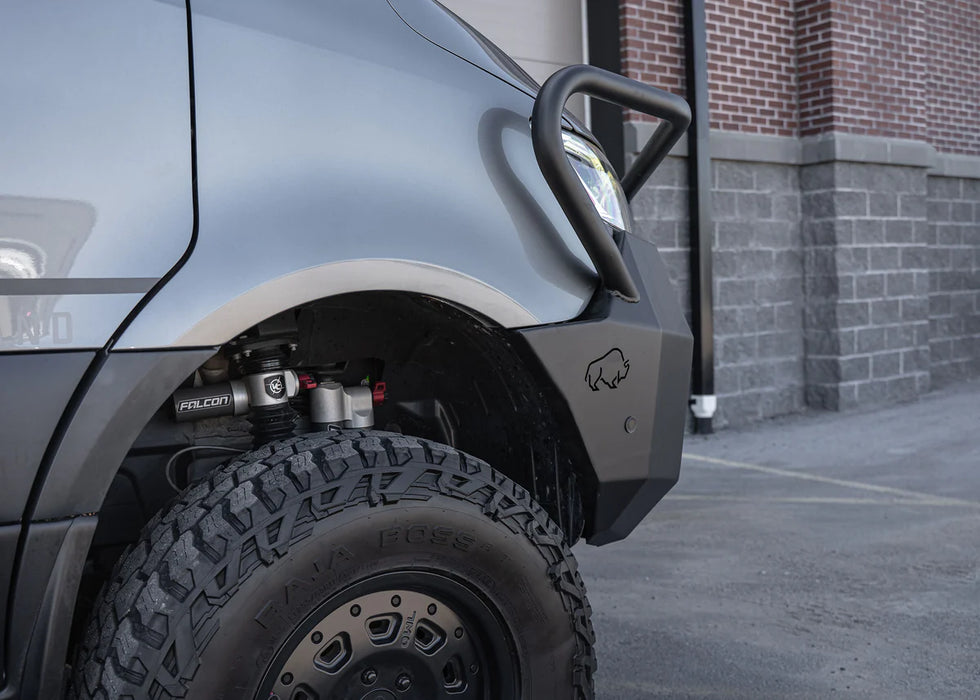

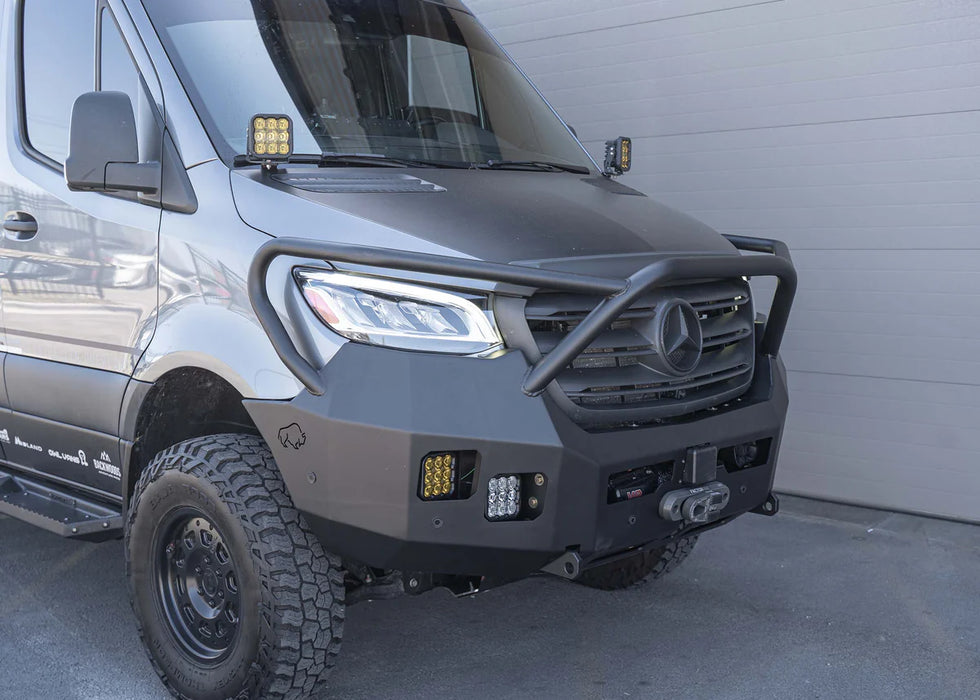

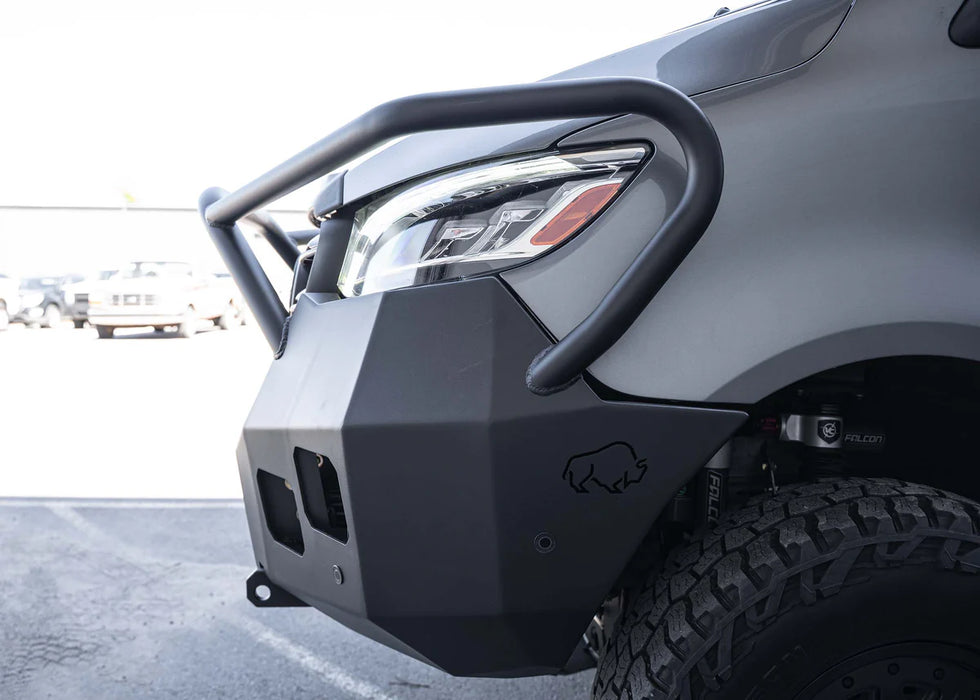

• Full guard tube design with 2 3/8" aluminum center tube and 2" outer tubes

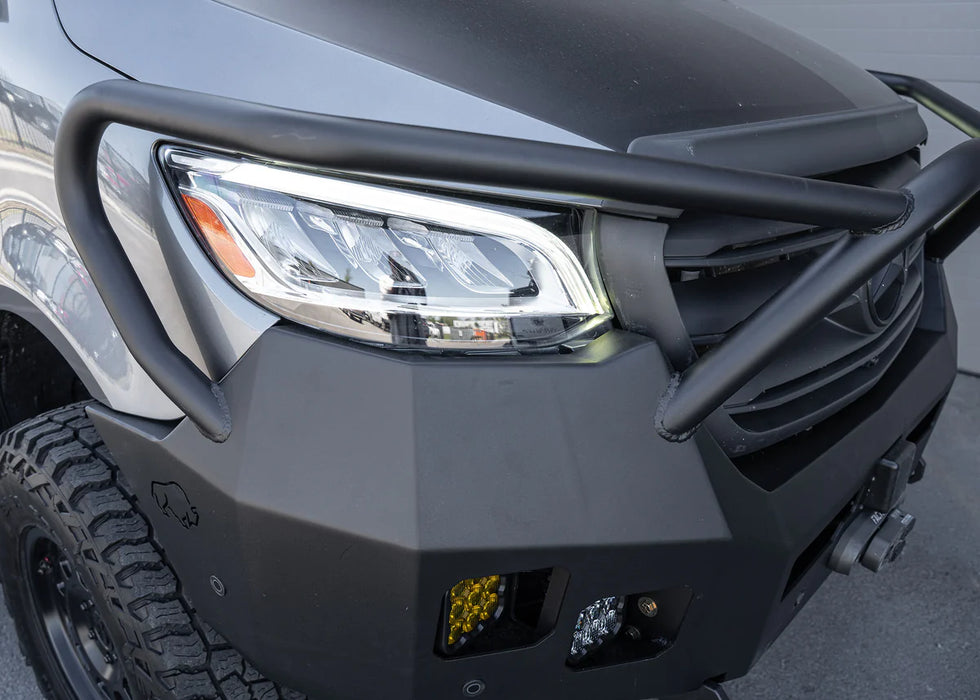

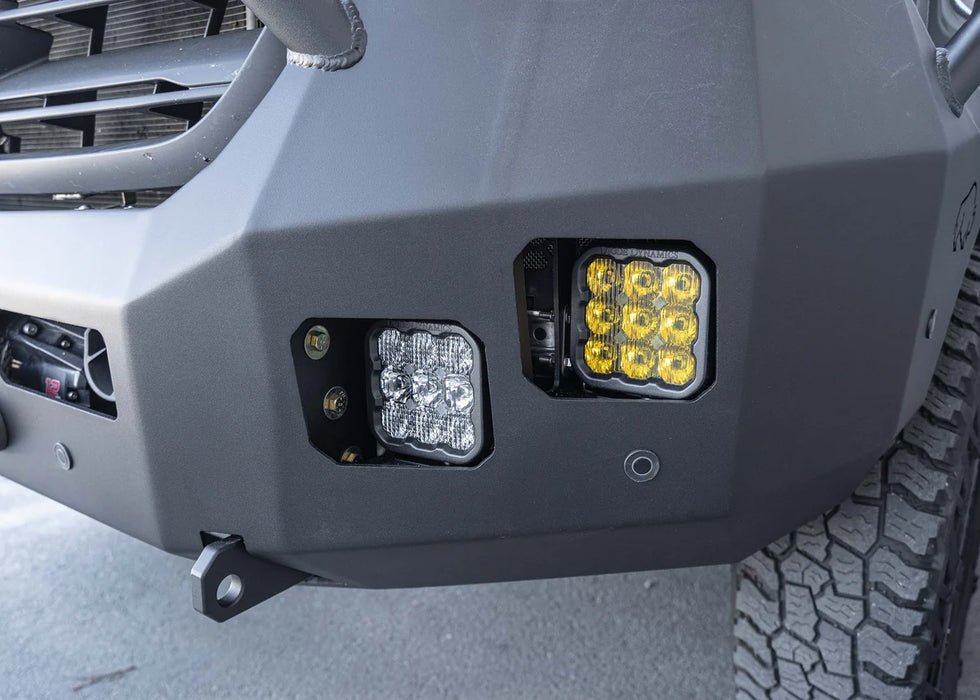

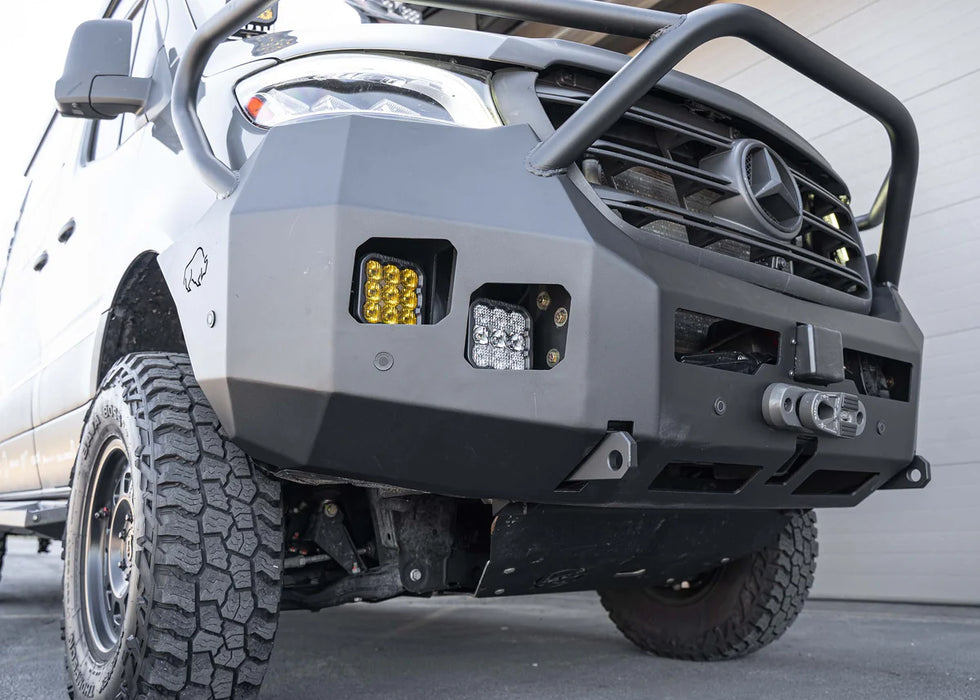

• Four square light pockets compatible with most LED lights
• Recommended LEDs: Diode Dynamics SS5 White Sport & SS5 Yellow Sport
• Compatible with ROAMBUILT Skid Plate
• Works with Cruise Control and Active Brake Assist
• Full frontal DEF tank protection for on- and off-road use
• Reinforced with vertical and horizontal gusseting for extra strength
• Wrap-around steel frame brackets for maximum support
• Designed to exceed Mercedes airflow requirements
• Pre-cut sensor holes and housings / includes sensor cap deletes
• Finished in black textured powder coat

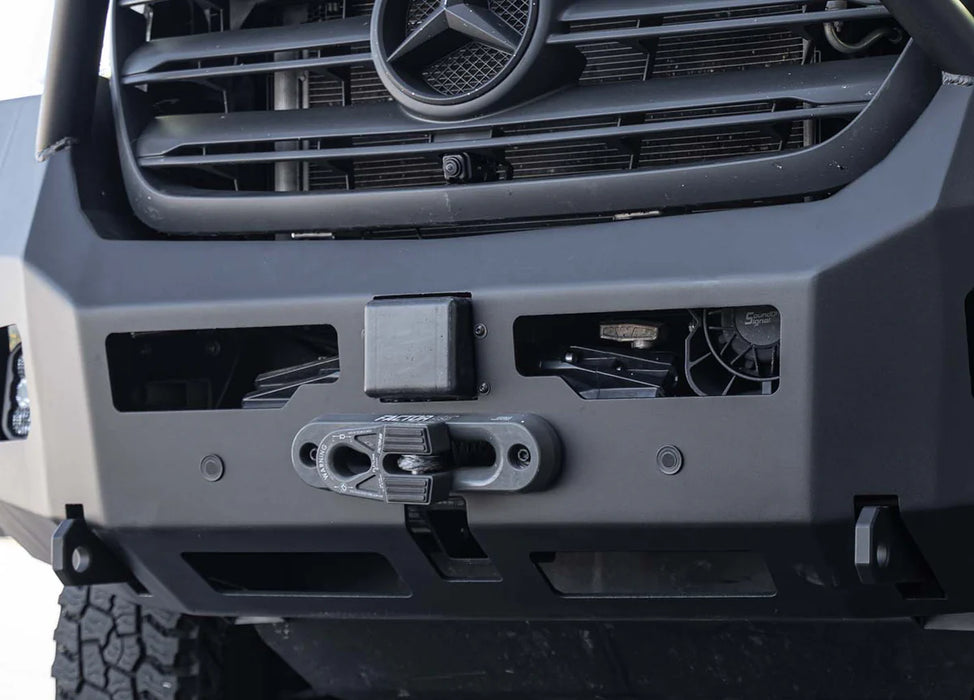

• Large hand cutouts for easy winch operation and line visibility
• Bolts directly to the framed uses frame extensions for additional strength
• Quick and easy installation
• Proudly made in the USA
